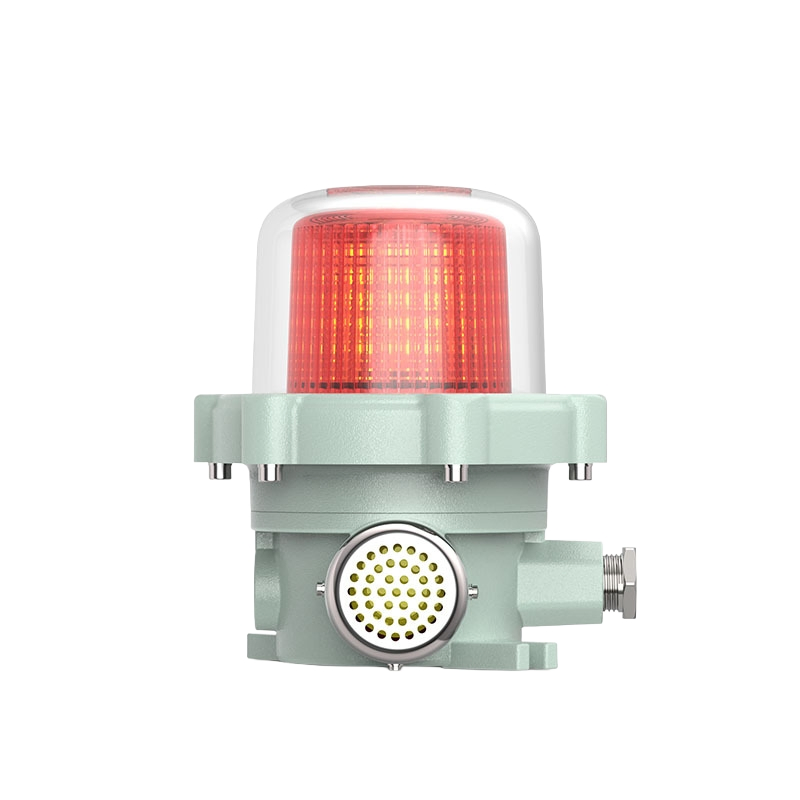

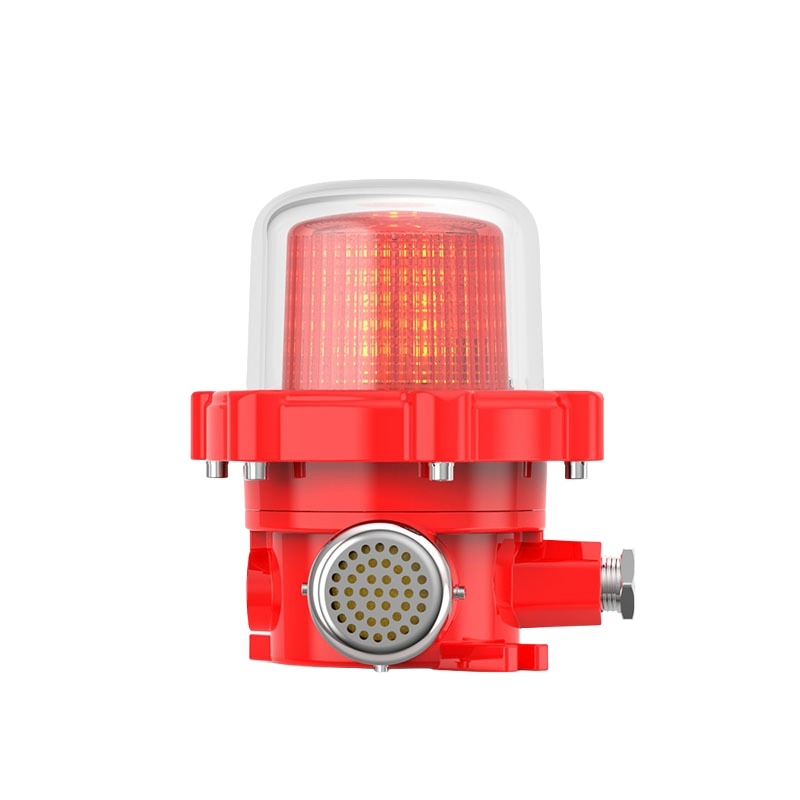

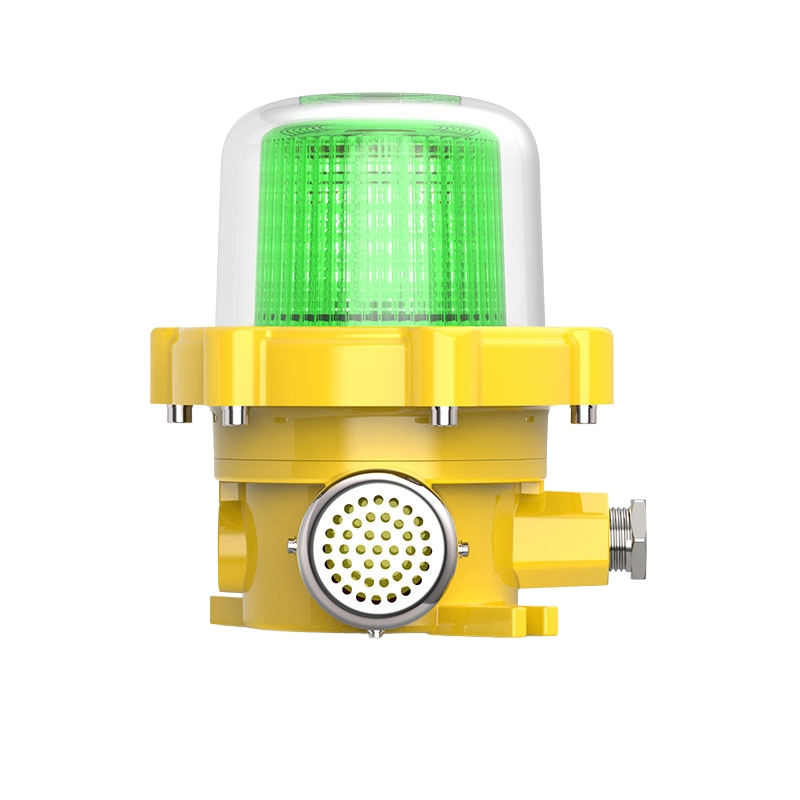

An explosion-proof warning light is a specialized lighting device designed to operate safely in hazardous environments where the presence of flammable gases, vapors, or combustible dust could lead to an explosion. These lights are engineered with robust construction and sealed enclosures to prevent any sparks or arcs from igniting the surrounding atmosphere. They typically feature durable materials such as aluminum and are equipped with specially designed lenses to maximize light output while ensuring safety.

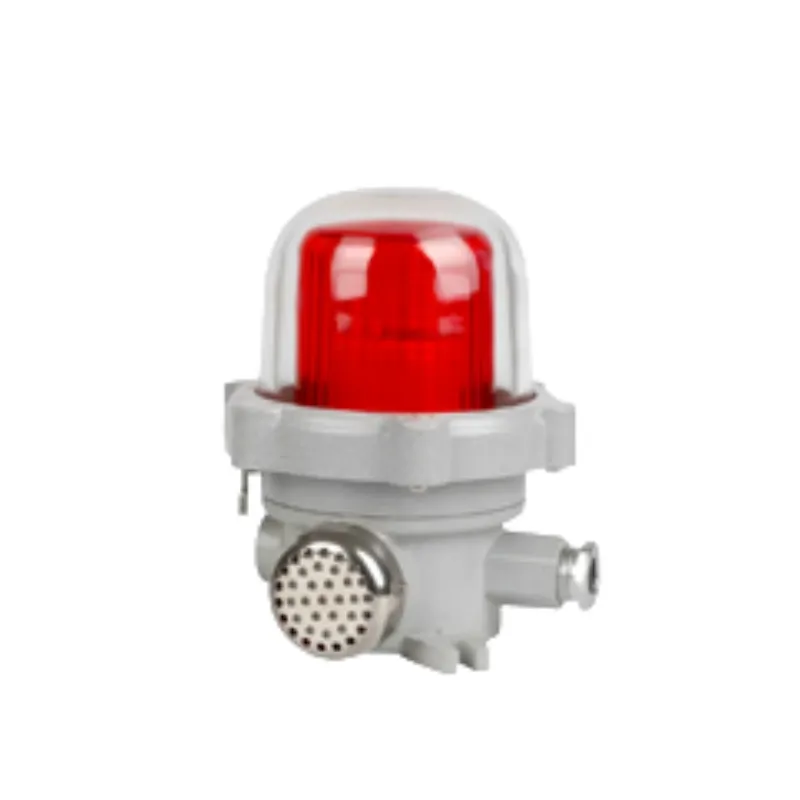

Explosion-proof and anti-static. The aluminum alloy die-cast housing features an electrostatically sprayed plastic surface for corrosion resistance, anti-static properties, and impact resistance.

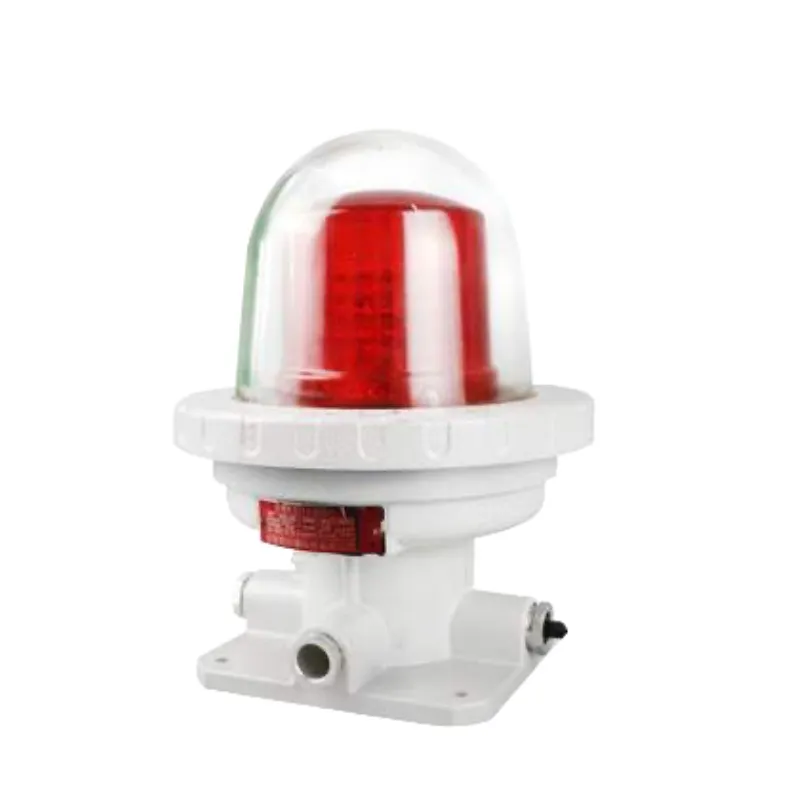

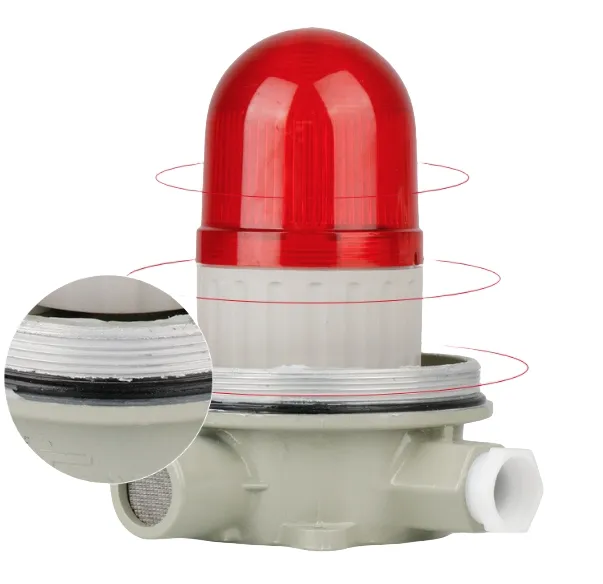

Special glass and a thickened mesh cover prevent arc sparks from coming into contact with flammable gases, ensuring safe operation in Zone 1 and Zone 2 environments.

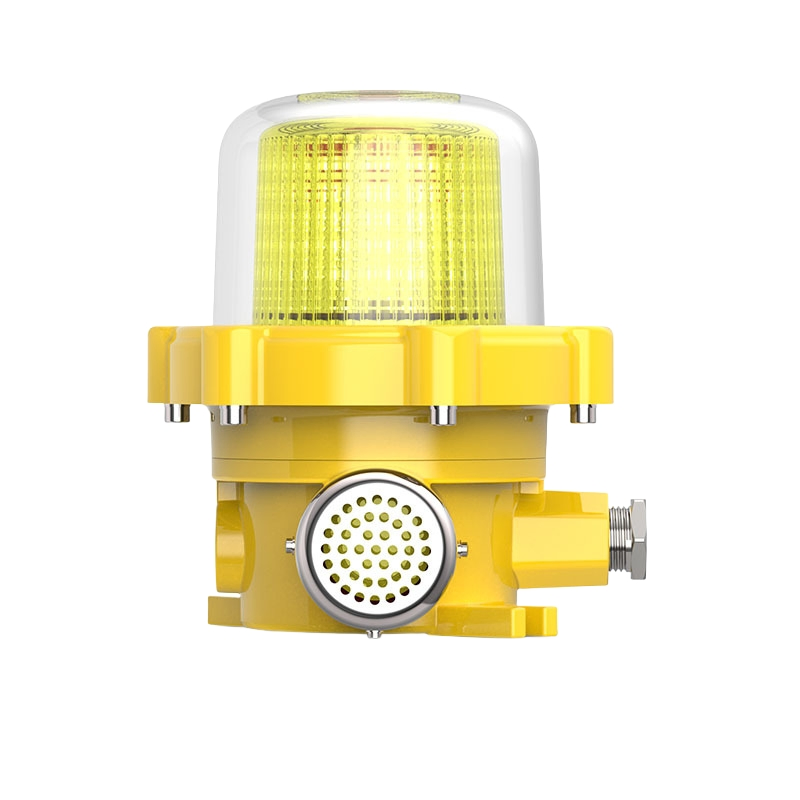

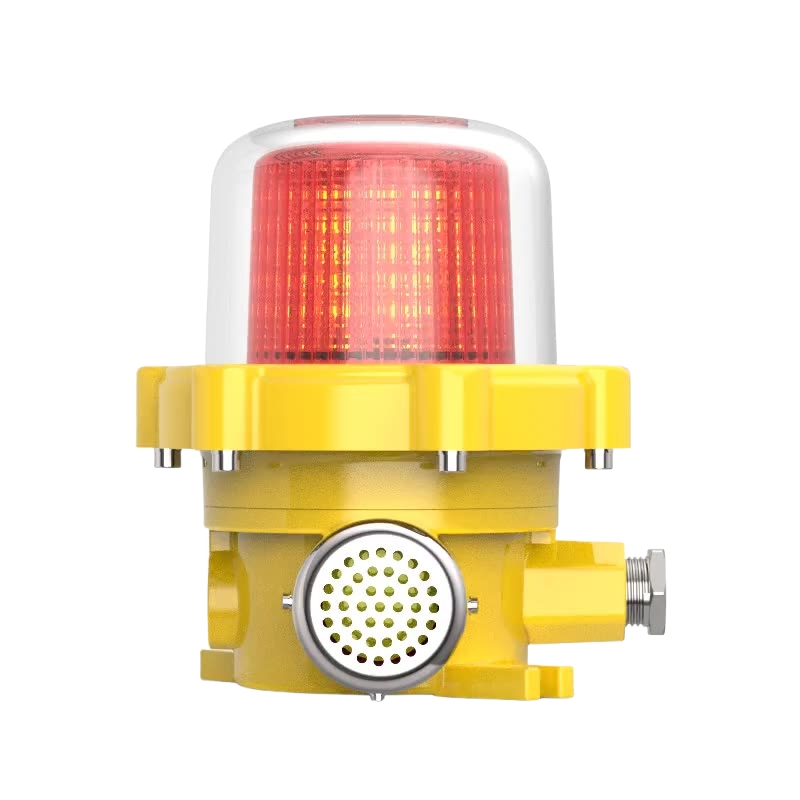

Equipped with 3030LED high-brightness lamp beads. These LED chips provide superior intensity while being more energy-efficient than traditional warning bulbs.

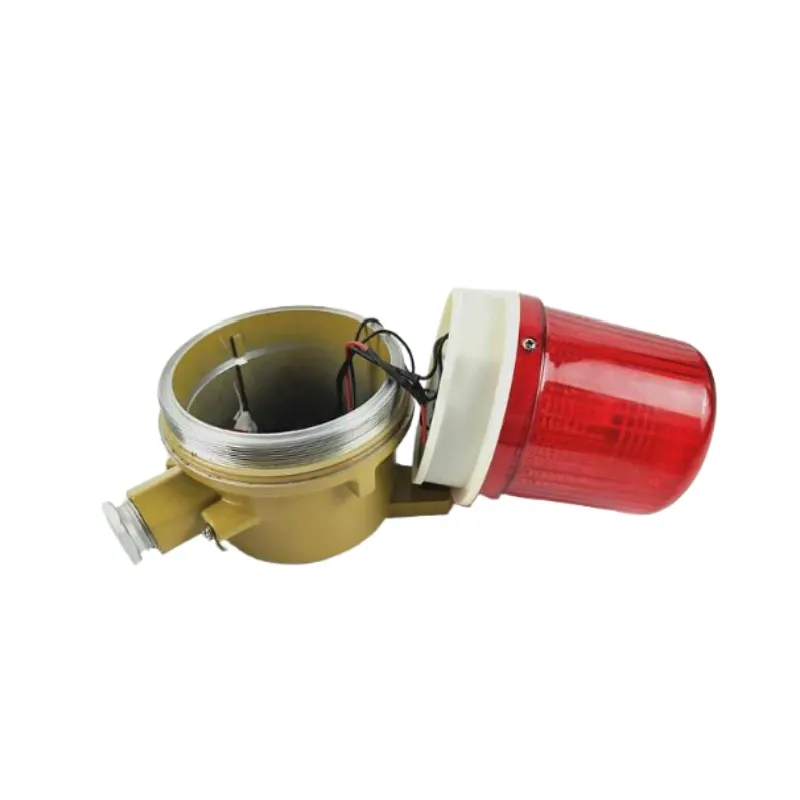

The integrated high-definition buzzer delivers a clear and loud warning signal that reaches approximately 120 decibels at a one-meter distance.
| Parameter | Detail |
| Implementation Standards | GB/T 3638.1-2021; GB/T 3836.2-2021; GB/T 3836.31-2021 |
| Lighting Mode | Rotating; Flashing; Steady On |
| Lighting Angle | 360° |
| Operating Temperature | -25°C ~ +45°C |
| Inlet Thread | G3/4"; 3/4 NPT |
| Cable Outer Diameter | Φ8~14mm |
| Dimensions | Diameter Φ175 x Height 250 mm |
| Product Weight | 1.8 KG |
Must be performed by qualified personnel. Ensure grounding is secure. Strictly forbidden to open the cover while energized. Check seals after maintenance to prevent water ingress.
