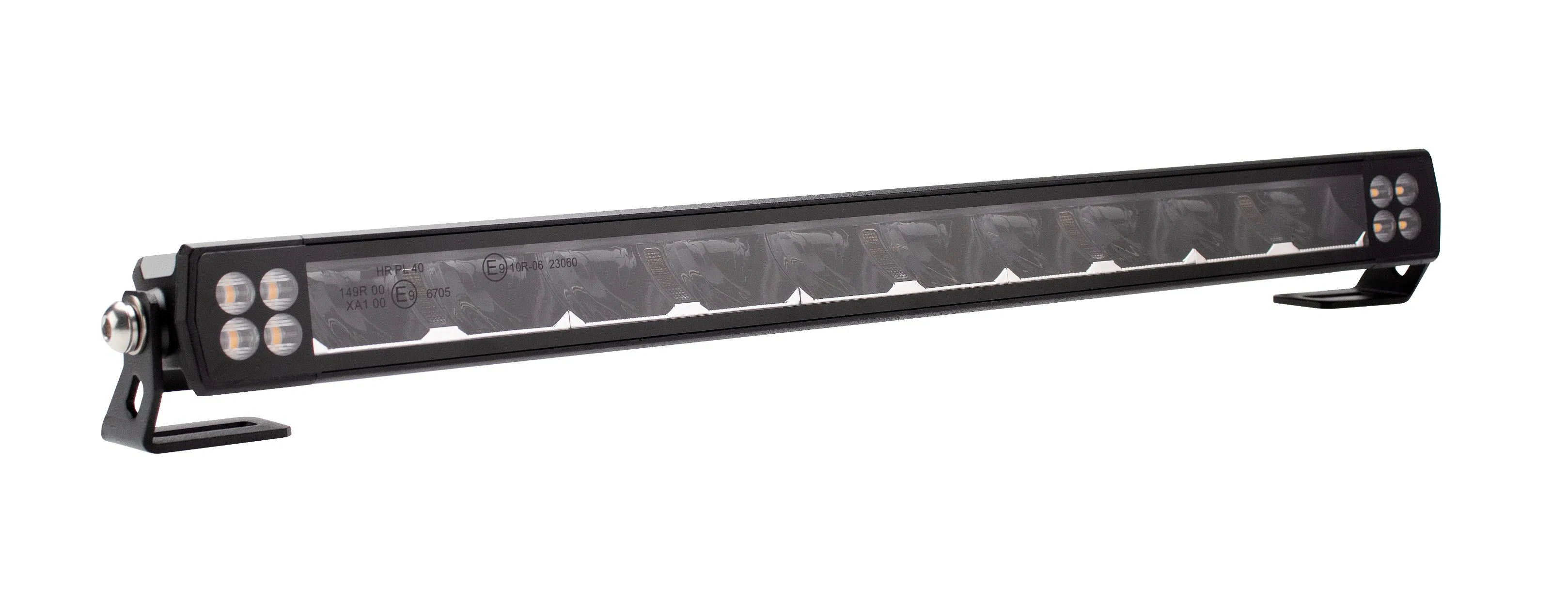

Brtled 12V Warning LED Bar Yellow White 100W Slim Offroad Light Bar

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model

BLWL1508S-P

Voltage

DC 9-36V

Wattage

100W

Luminous Flux

11000LM

Color Temp

6000K

Beam Pattern

Driving Beam (35°) + Amber White DRL + Warning

Dimensions

19inch (484*40.5*52.5mm)

Waterproof

IP68 / IP69K

Product Description & Features

📏

Ultra Slim Design
Height only 40.5mm for discreet installation.

🛡️

ETM Technology
Electronic Thermal Management for long life.

💡

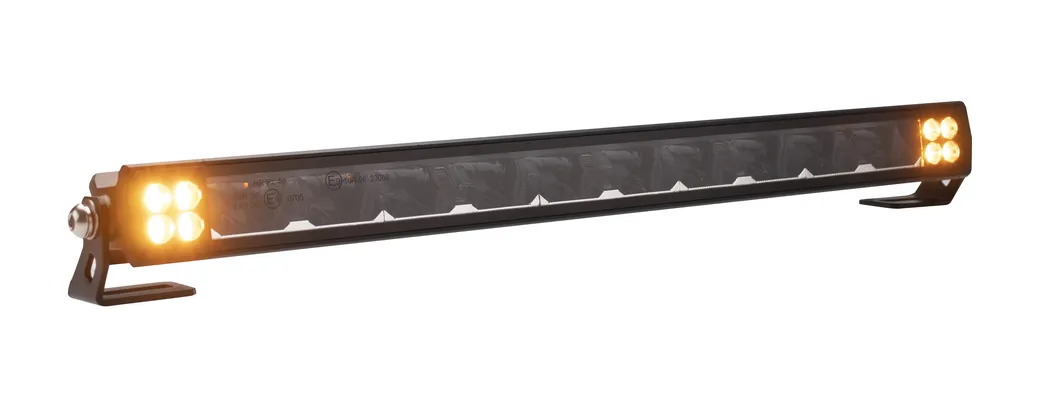

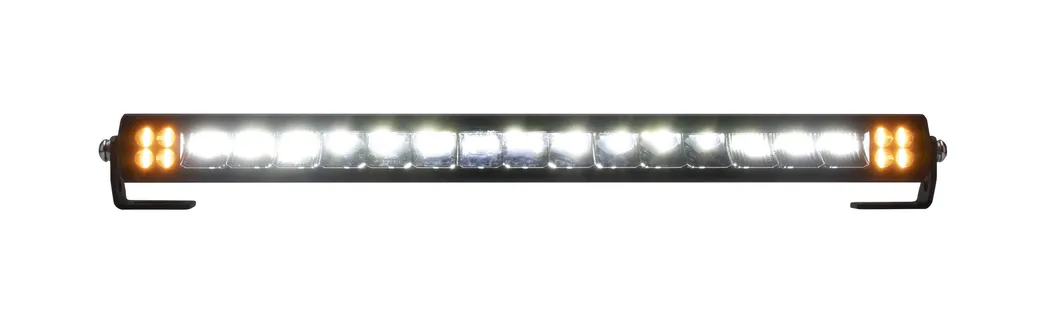

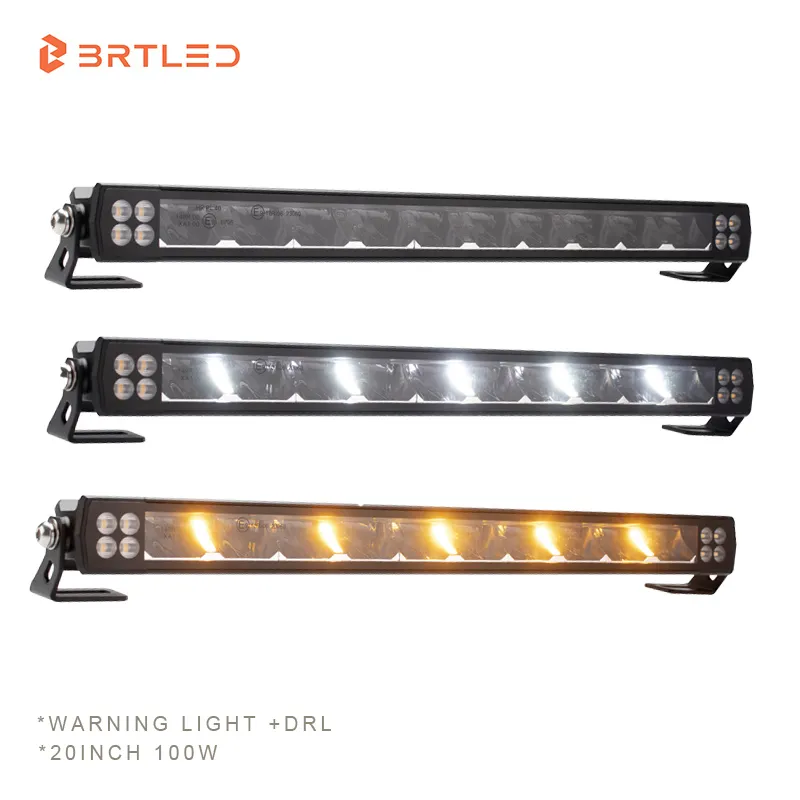

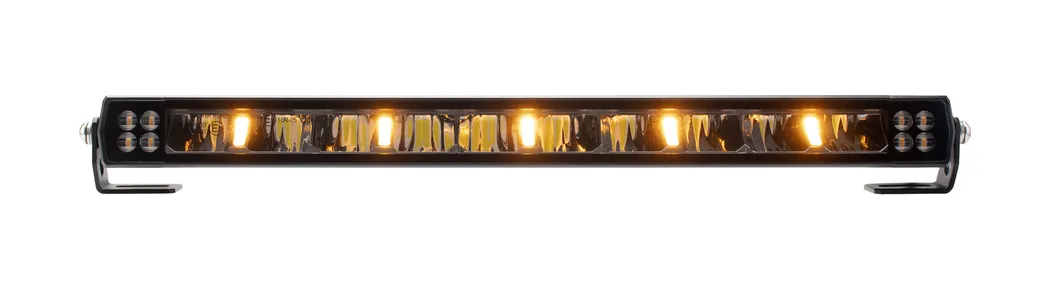

Dual Color DRL
Features both White and Amber position lights.

Feature	Specification Details
LED Configuration	10 PCS * 10W High-Intensity LEDs

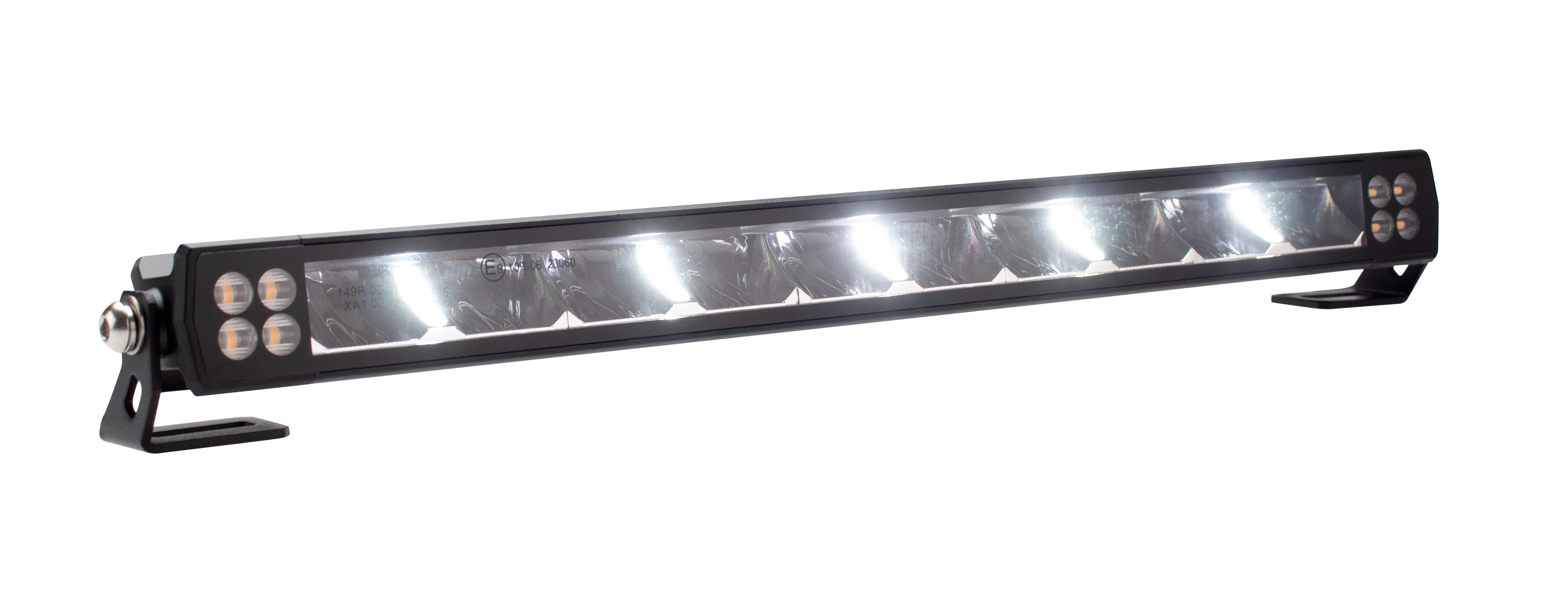

Available Beam	Driving Beam (35°)

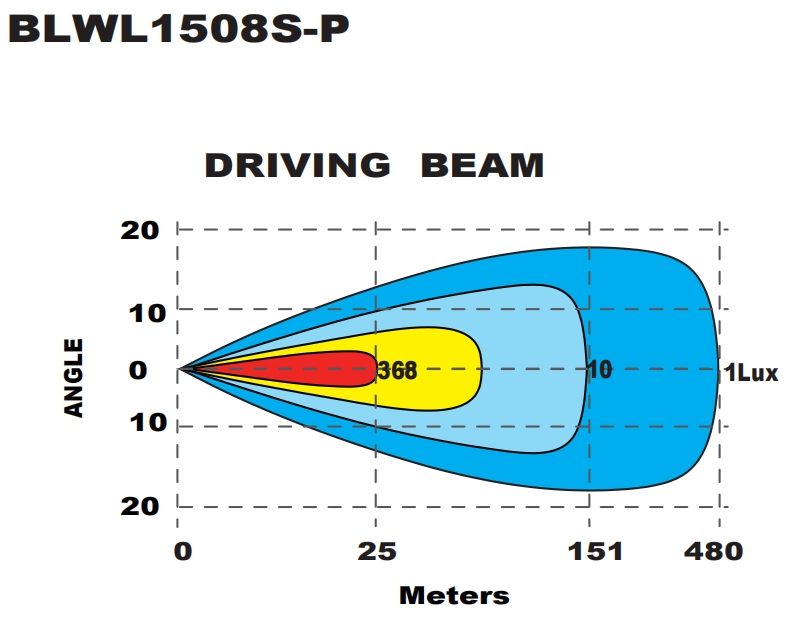

Intensity	1Lux @ 480m
Certification	ECE R10, R112, R7, R65, CE, ROHS, SAE595
Protection	Reverse Polarity Protection, Anti-Rust, Corrosion Resistance
Optic System	Side-Reflecting Optic System

Detailed Engineering

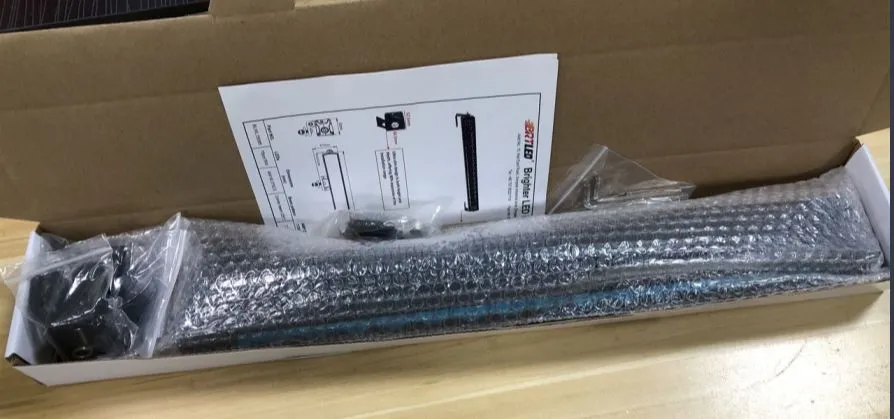

Packing & Delivery

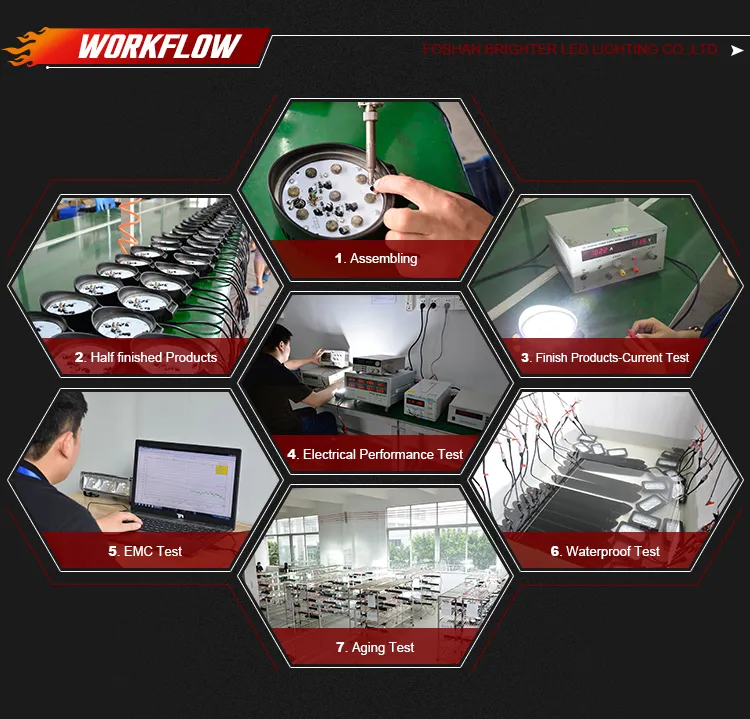

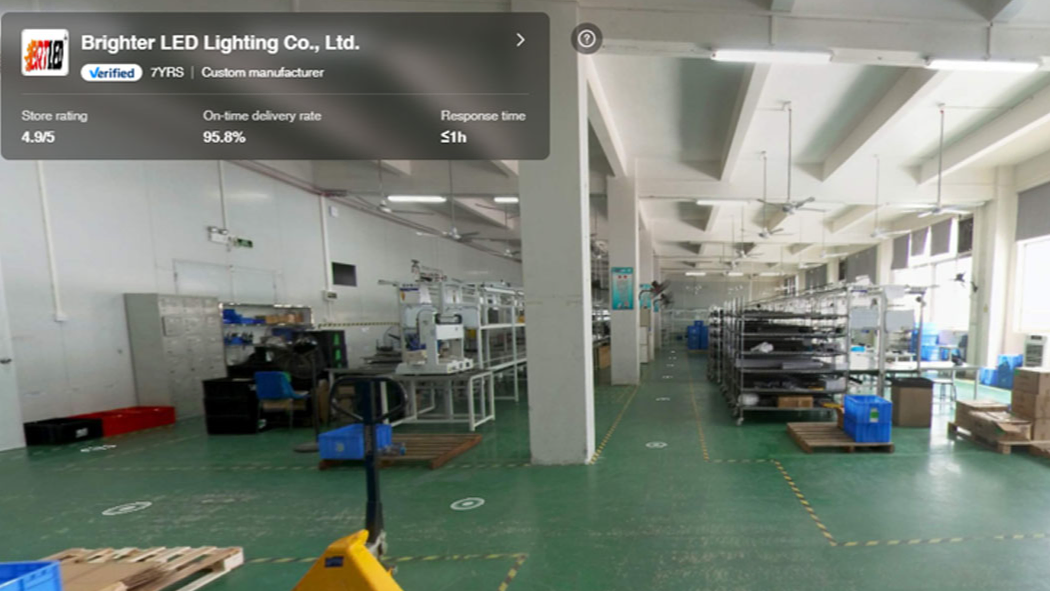

Manufacturing Excellence

Frequently Asked Questions

What is the operating voltage for this LED light bar?

The light bar operates on a wide range of DC 9-36V, making it suitable for various vehicles including cars, trucks, and universal industrial vehicles.

Is this light bar waterproof and durable for off-road use?

Yes, it complies with IP68 and IP69K waterproof ratings. It also features anti-rust, corrosion resistance, and freezing resistance for extreme conditions.

What certifications does the product hold?

The product is fully certified with ECE R10, R112, R7, R65, CE, RoHS, and SAE595, ensuring compliance with international safety and quality standards.

What are the dimensions and mounting options?

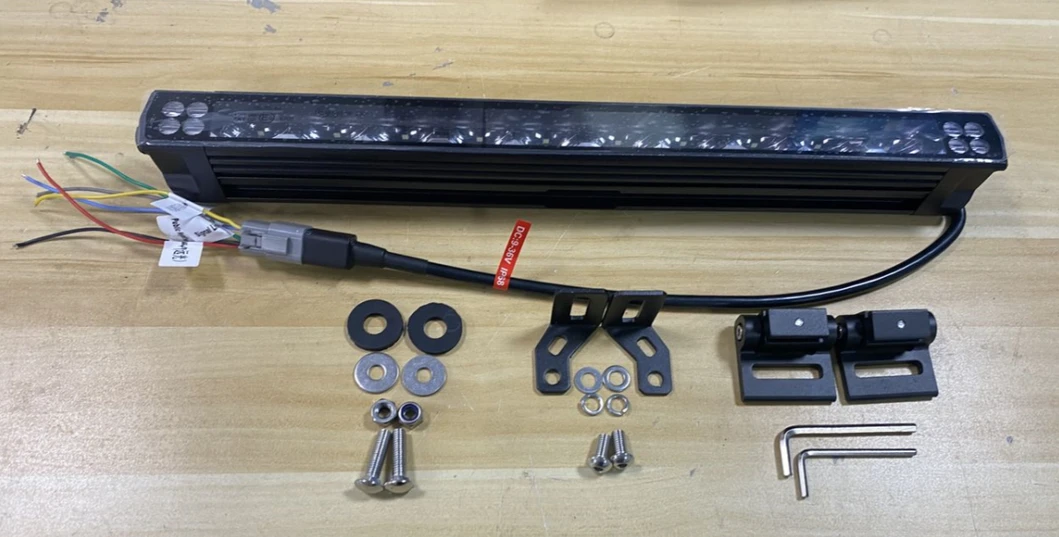

It is a 19-inch bar (484mm length) with a very slim height of 40.5mm. It comes with both side and bottom brackets for flexible installation.

Does it have different lighting modes?

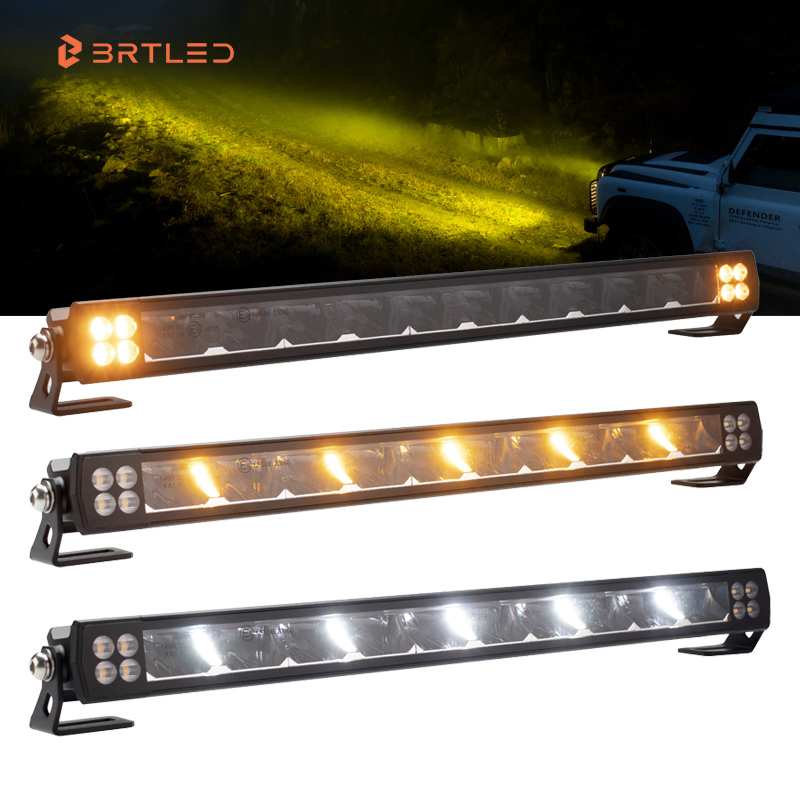

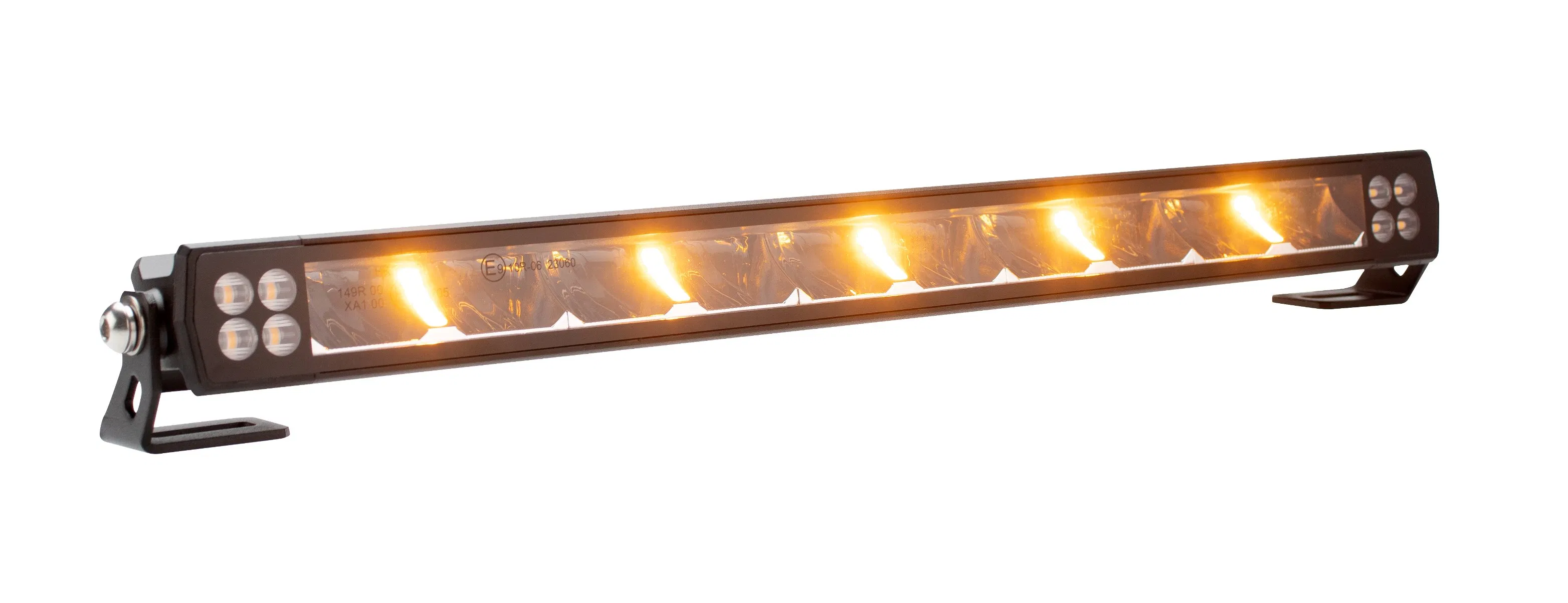

Yes, it features a primary driving beam (35°), combined with an Amber and White DRL (Daytime Running Light) and integrated warning LED functions.

What is the "ETM" function mentioned in the specs?

ETM stands for Electronic Thermal Management. It automatically monitors and adjusts the temperature of the LEDs to prevent overheating and extend the product's lifespan.
