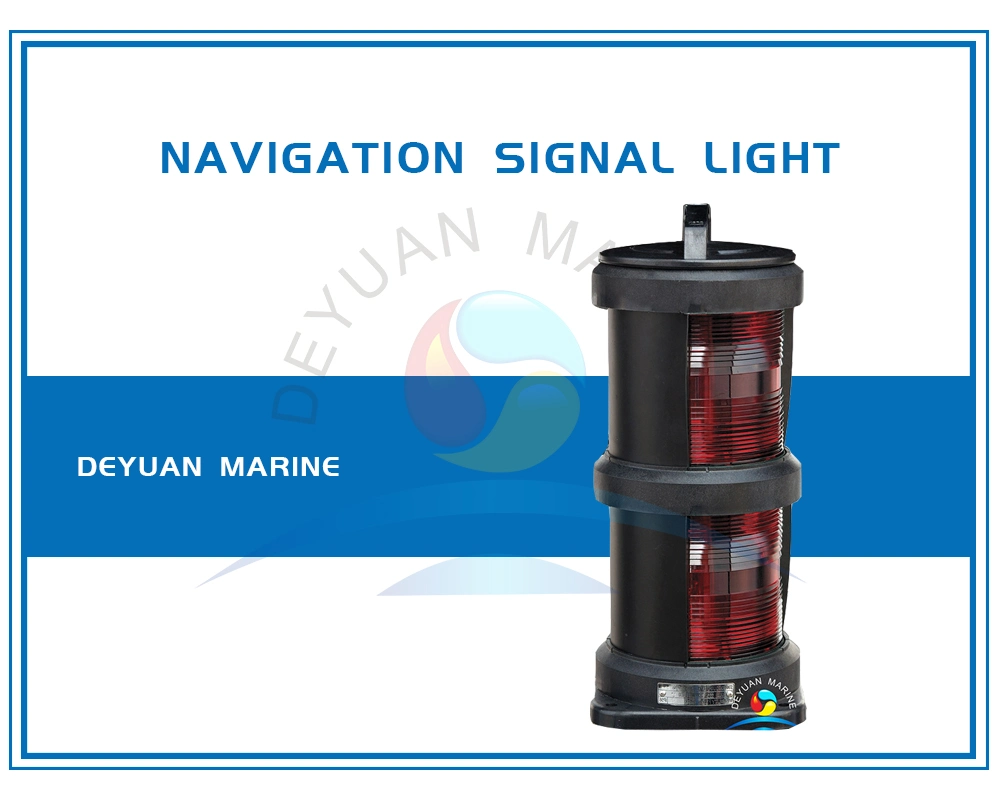

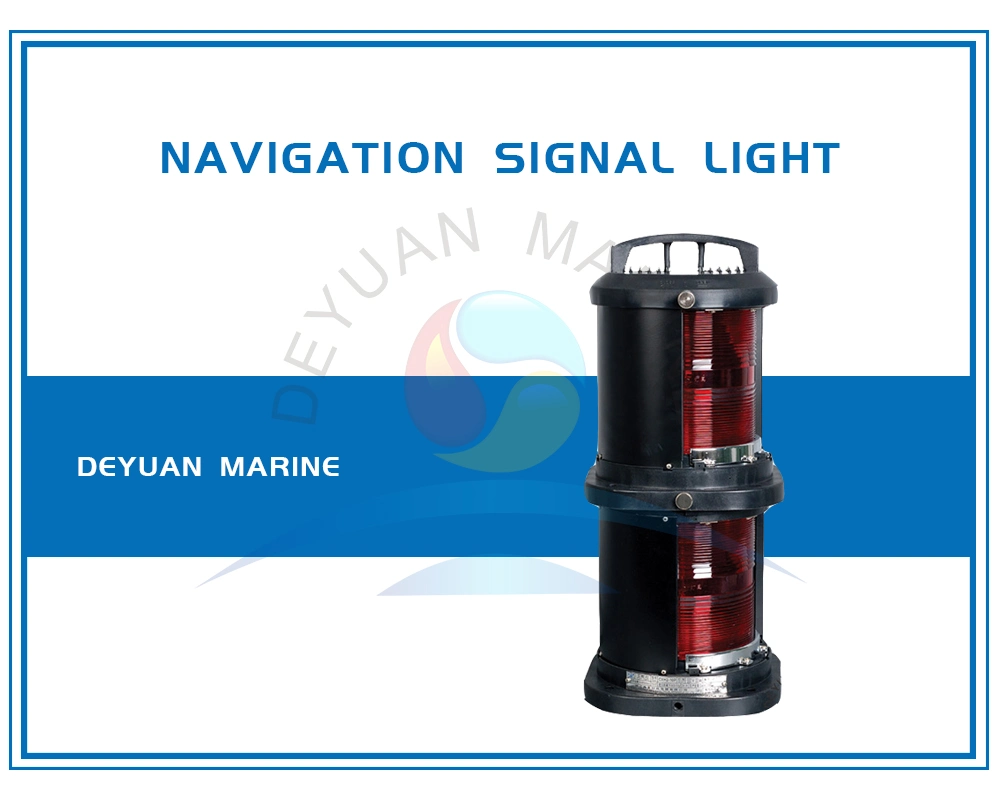

Chx6-101p Marine Plastic Double Deck Navigation Signal All Round Light

1 / 5

Chx6-101p Marine Plastic Double Deck Navigation Signal All Round Light

Customization:	Available
Working Temperature:	-30℃TO 50℃
Transport Package:	Export Package

Send Inquiry

Product Description

Basic Information

Model NO.: DY-Marine Light

Specification: CCS

Origin: China

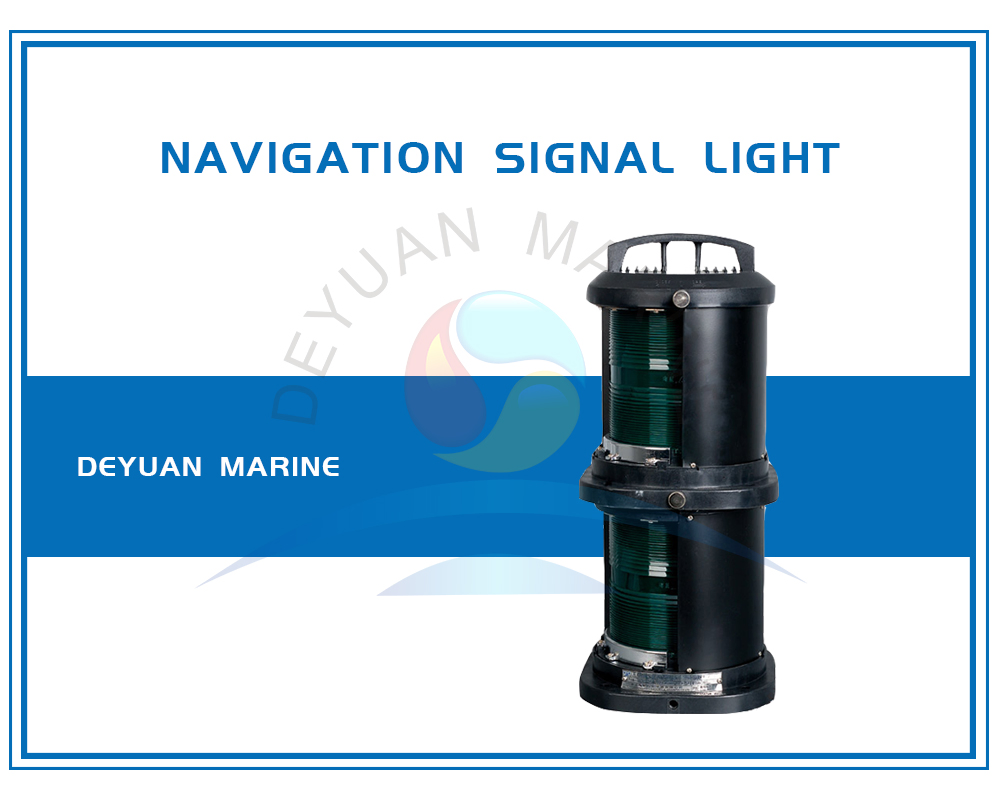

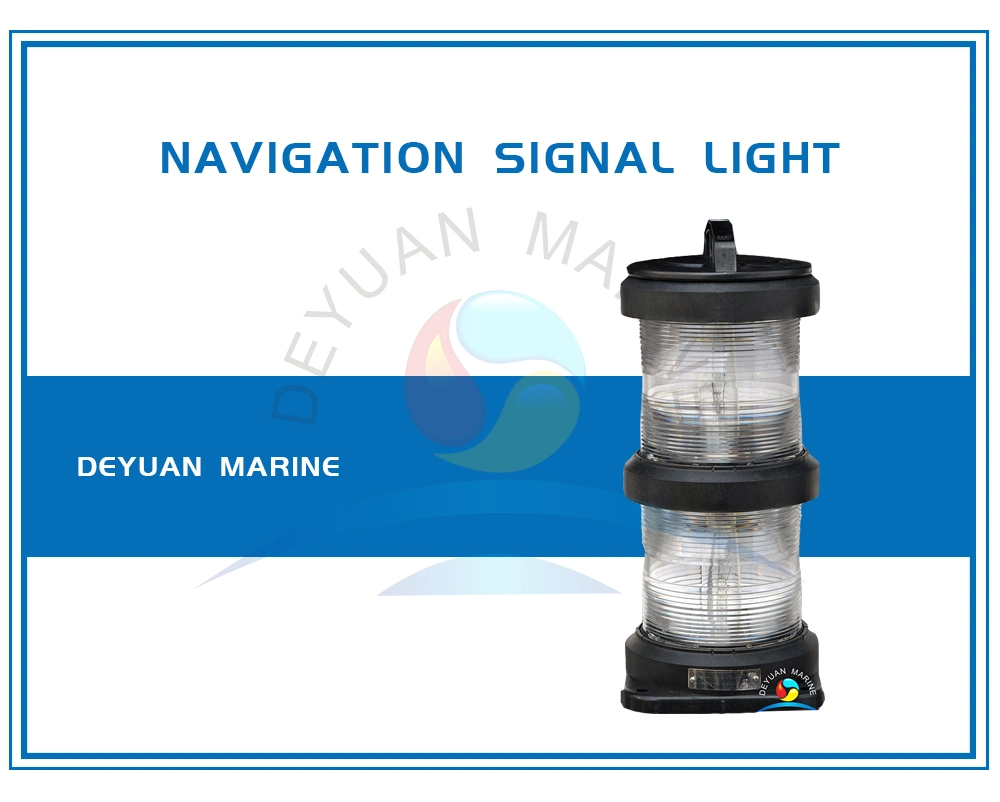

CXH6-101p Marine Plastic Double Deck Navigation Signal All Round Light

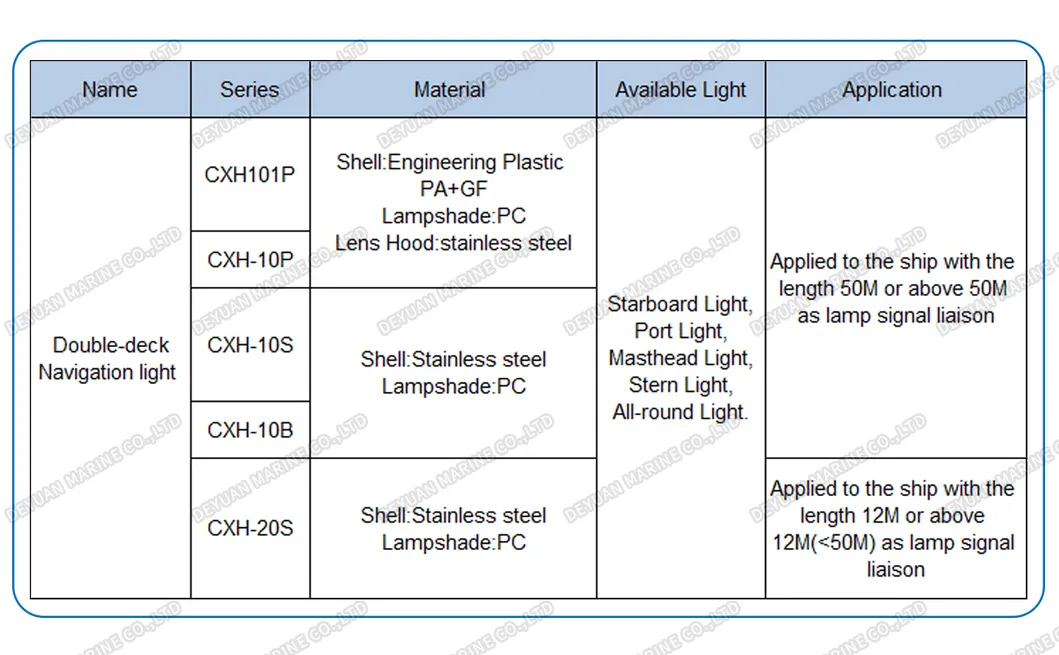

Lamp Shell Material Options

Engineering plastic (PA): Models CXH-101P, CXH-10P. Suitable for vessels length 50M or above.

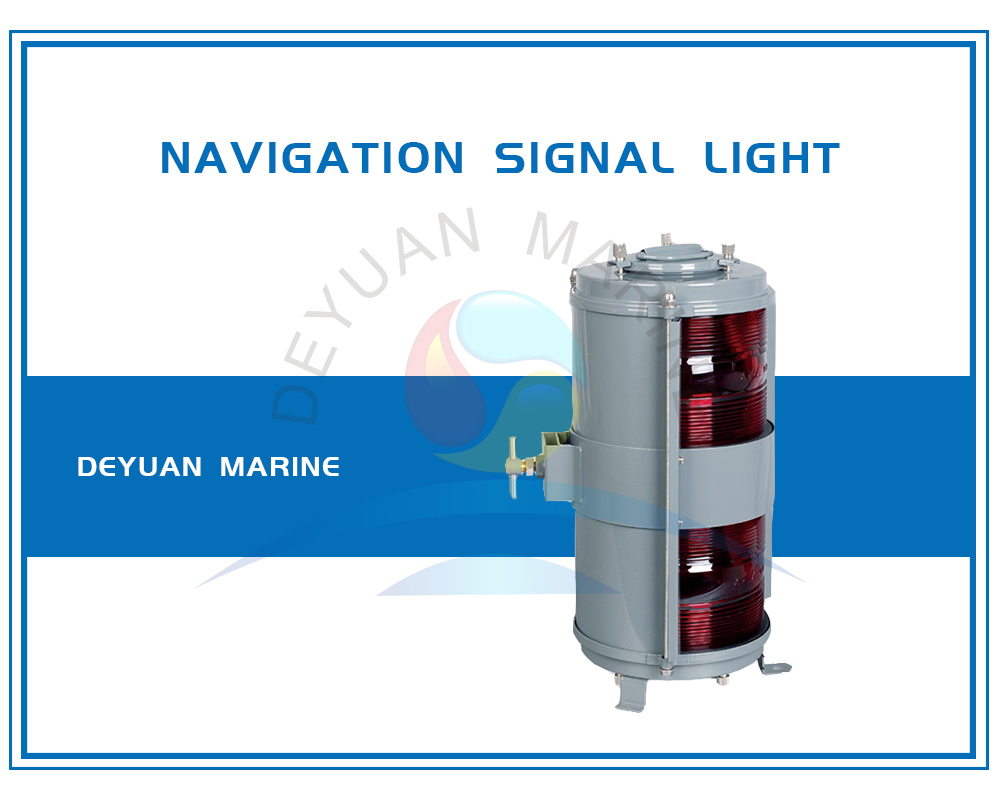

Steel: Model CXH-10B. Suitable for vessels length 50M or above.
Stainless steel:
CXH-10S: Suitable for vessels length 50M or above.
CXH-20S: Suitable for vessels length 12M to 50M.

Available types include starboard light, port light, masthead light, stern light, and all-round light.

Technical Specifications

Name/ Type	Visibility	Level Arc	Color	Power	Weight
CXH1-102PL Starboard light	3n.m	112.5º	Green	2*6W	6.2kg
CXH2-102PL Port light	3n.m	112.5º	Red	2*6W	6.2kg
CXH3-102PL Masthead light	6n.m	225º	White	2*8W	6.2kg
CXH4-102PL Stern light	3n.m	135º	White/Yellow	2*6W	6.2kg
CXH6-102PL All-round light	3n.m	360º	Red/Green/White	2*6W	6kg

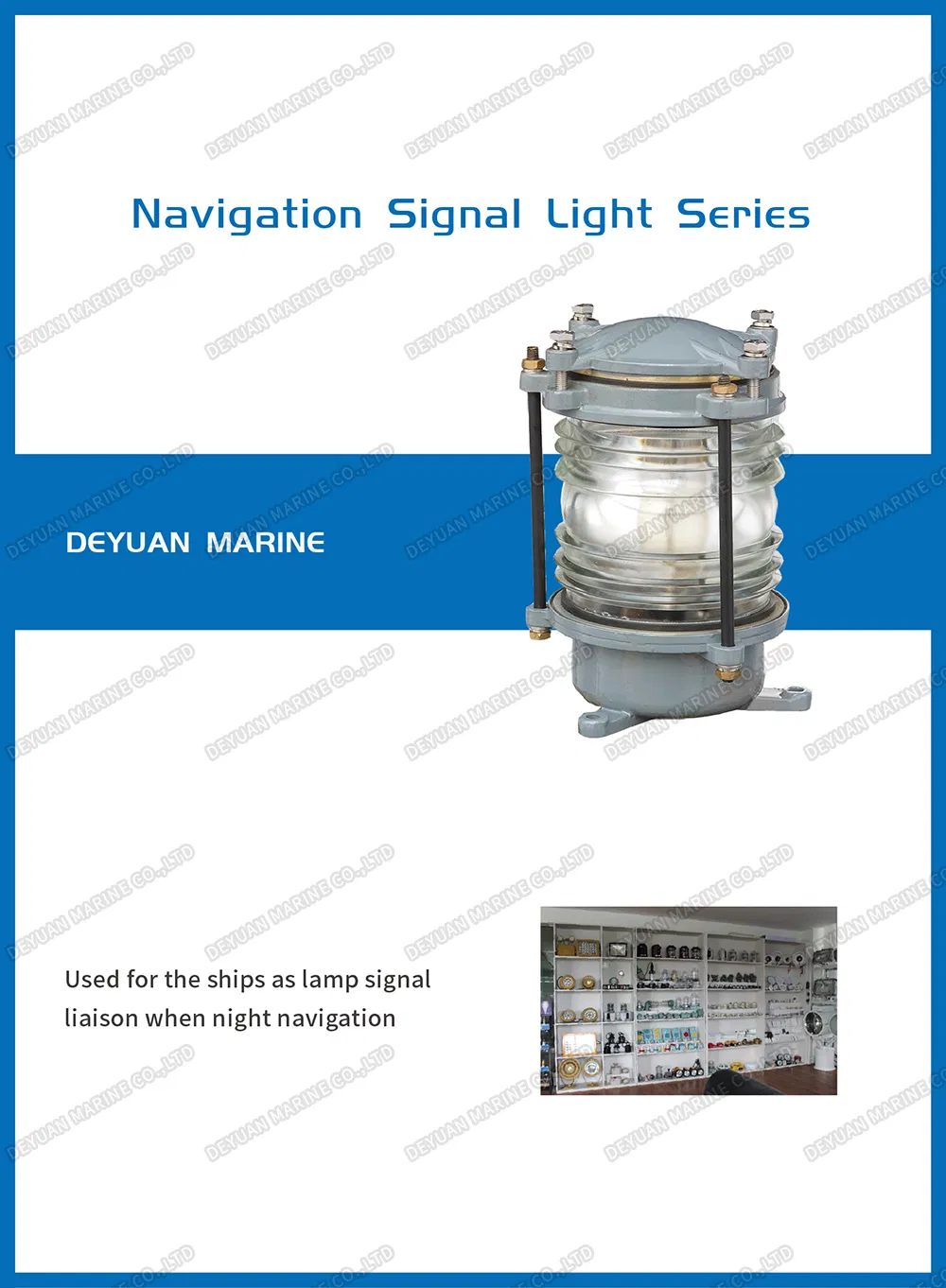

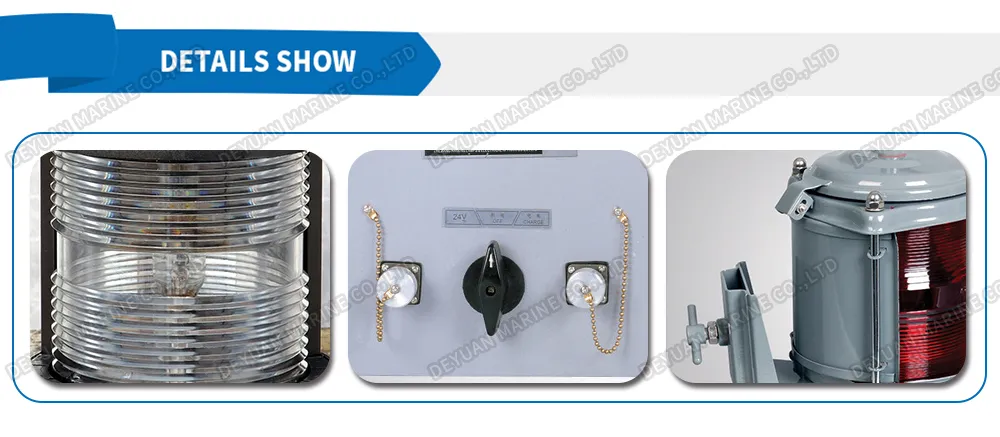

Product Detail Series

Frequently Asked Questions

Q1: What is the visibility range for these navigation lights? A1: Depending on the model, the visibility ranges from 3 nautical miles (n.m) to 6 nautical miles for masthead lights.

Q2: Which vessel sizes are these lights suitable for? A2: Most models (CXH-10 series) are designed for vessels 50 meters or above. The CXH-20S series is suitable for vessels between 12 and 50 meters.

Q3: What materials are available for the lamp shells? A3: We offer three material options: Engineering Plastic (PA), Steel, and Stainless Steel to meet different maritime environment requirements.

Q4: Are the lights compliant with maritime standards? A4: Yes, these navigation lights are designed according to CCS (China Classification Society) specifications.

Q5: What are the power requirements for the double-deck lights? A5: The double-deck models use dual light sources, typically rated at 2*6W or 2*8W depending on the specific light type.

Q6: What colors are available for all-round navigation lights? A6: All-round lights are available in Red, Green, and White, covering a full 360º level arc.
