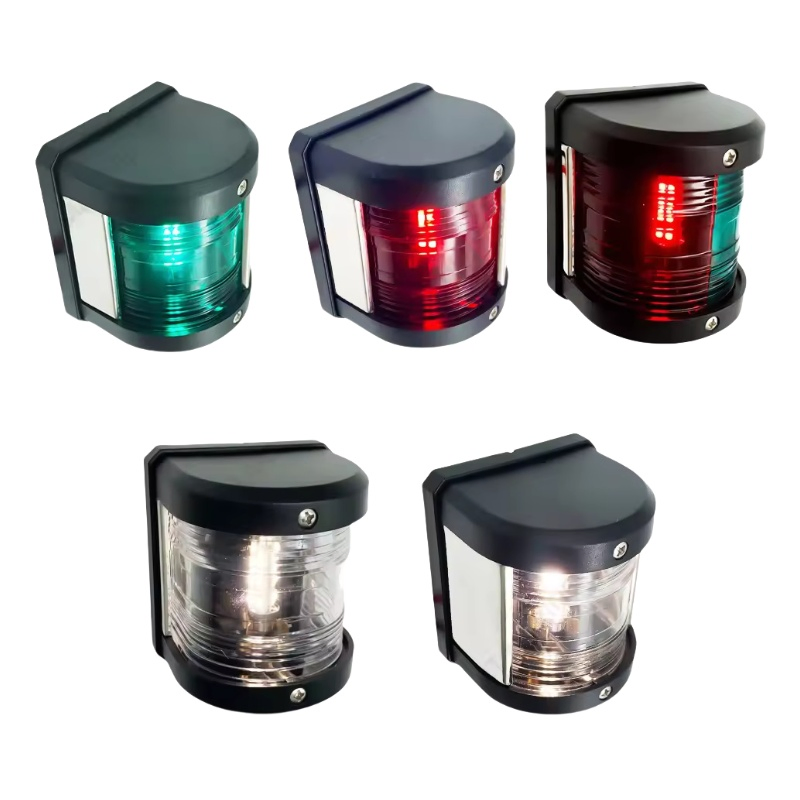

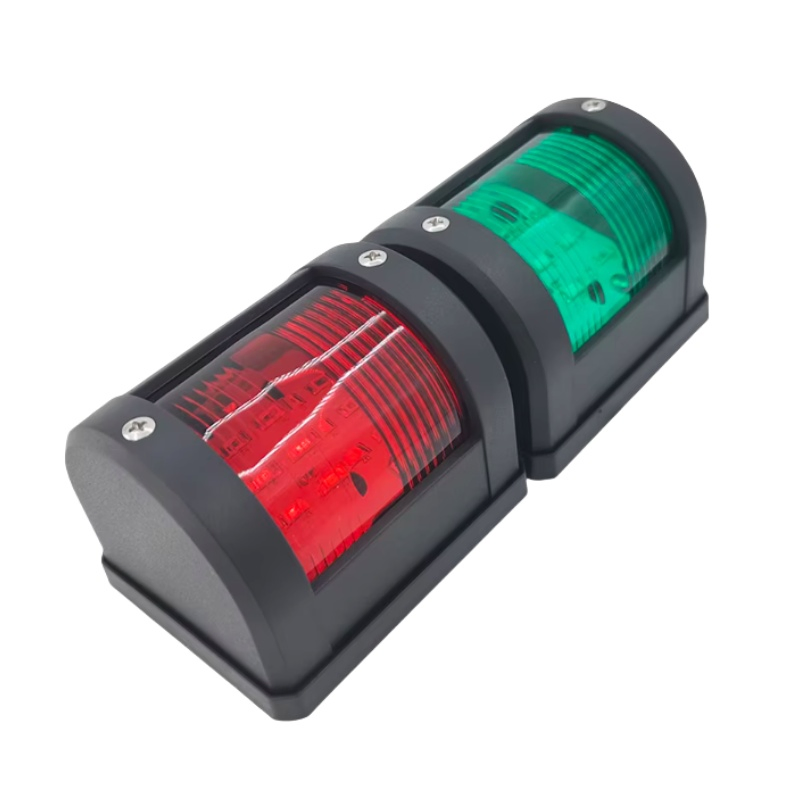

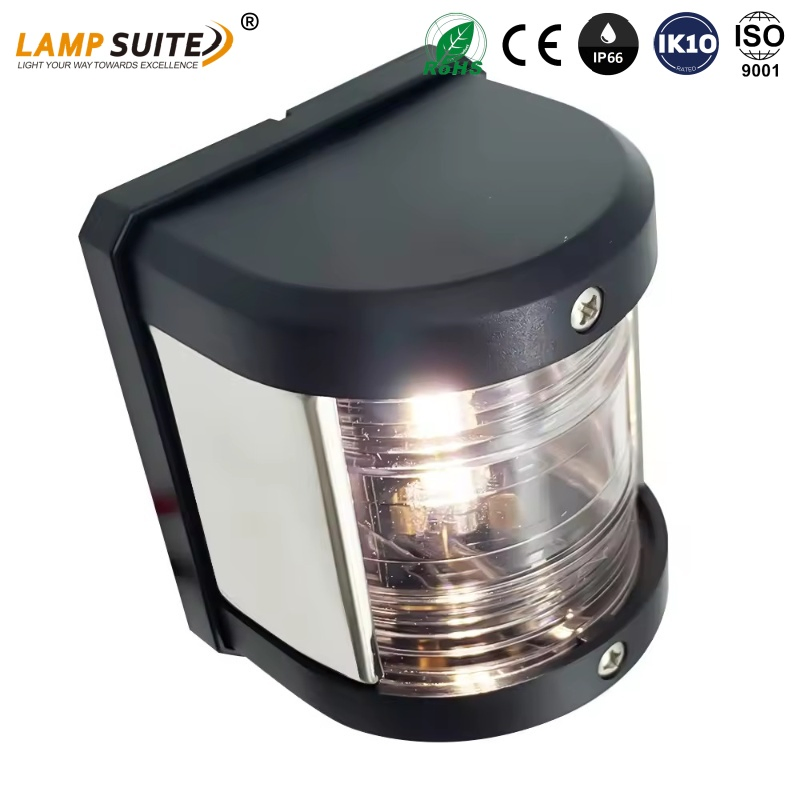

Corrosion Resistant Plastic SS304 Marine Deck LED Navigation Side Light
| Model NO. | E011 | Color Temperature | Warm White |
|---|---|---|---|
| IP Rating | IP66 | Light Intensity | 10-100lm |
| Light Source | LED | Power | <10W |
| Voltage | 12V; 12-24V | Material | Plastic + S.S.304 |
| Visibility | 2nm | LED(5φ) | 9PCS |
| Applicable Vessels | up to 39.4 FT (12m) | Type | LED Lamp Bead; LED Lamp Panel |
| MODEL NO. | LIGHT SOURCE | COLOR | VOLTAGE | ANGLE |
|---|---|---|---|---|
| E011 | LED Lamp Bead | Red | 12V | 112.5° |
| E012 | Green | 112.5° | ||
| E013 | White | 135° | ||
| E014 | Red+Green | 225° | ||
| E015 | White | 225° | ||
| E021 | LED Lamp Panel | Red | 12V-24V | 112.5° |
| E022 | Green | 112.5° | ||
| E023 | White | 135° | ||
| E024 | Red+Green | 225° | ||
| E025 | White | 225° |
An LED Navigation Light is a marine signal lamp used to indicate the position, direction, and operational status of vessels or offshore structures during night navigation or low-visibility conditions. It ensures safe navigation and collision avoidance, featuring long lifespan, high brightness, and energy efficiency with LED technology.
Constructed from premium nylon and polycarbonate (PC) for exceptional strength, impact resistance, and long-lasting durability.

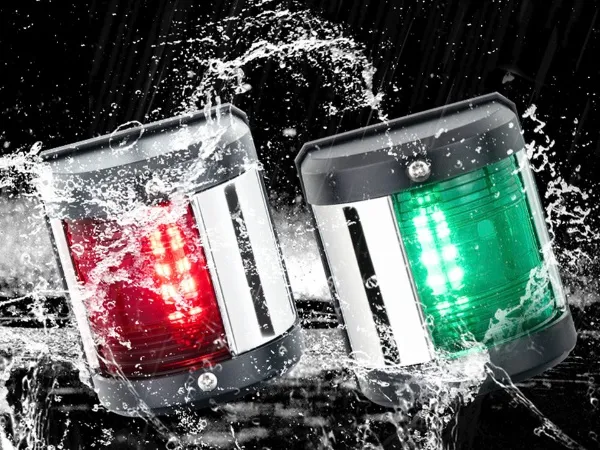

Fully sealed and IP66-rated, providing reliable protection against water, dust, and harsh marine environments, with a robust design to withstand vibration and mechanical impact.

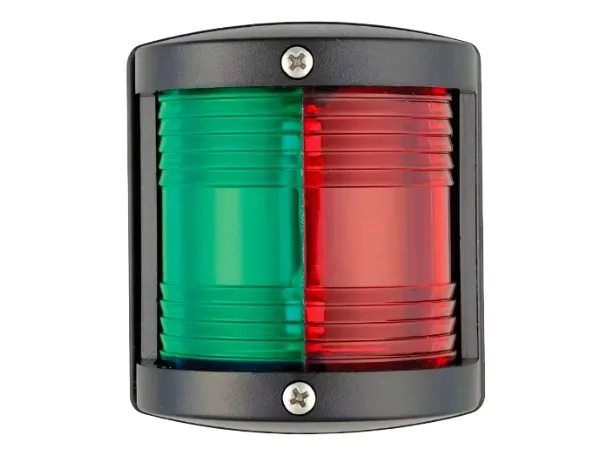

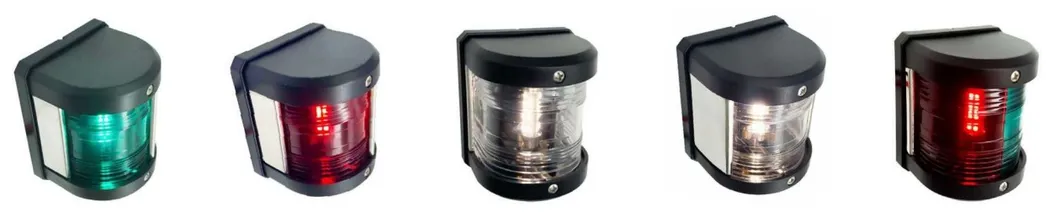

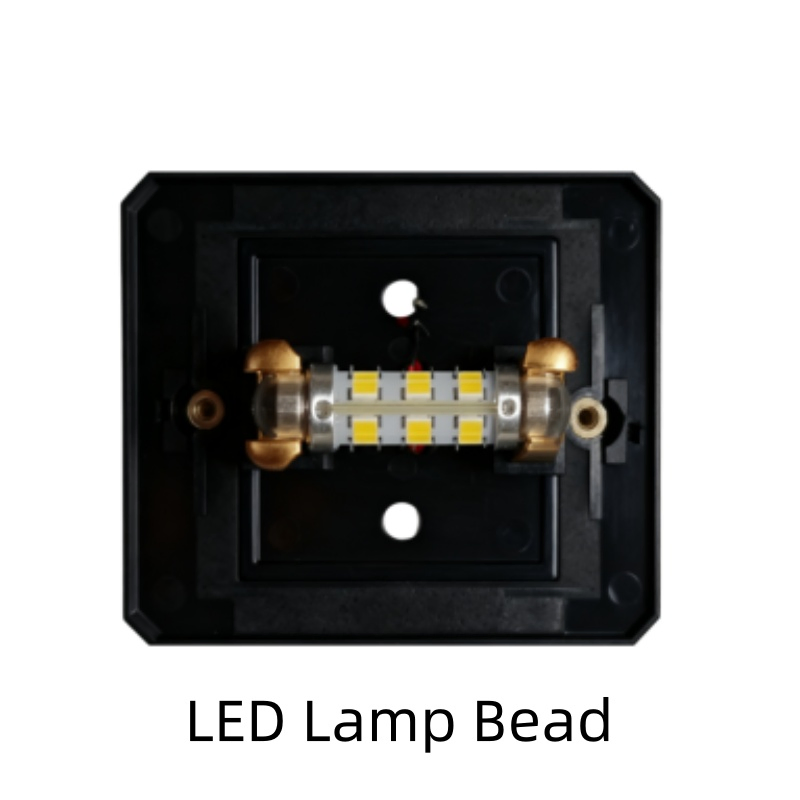

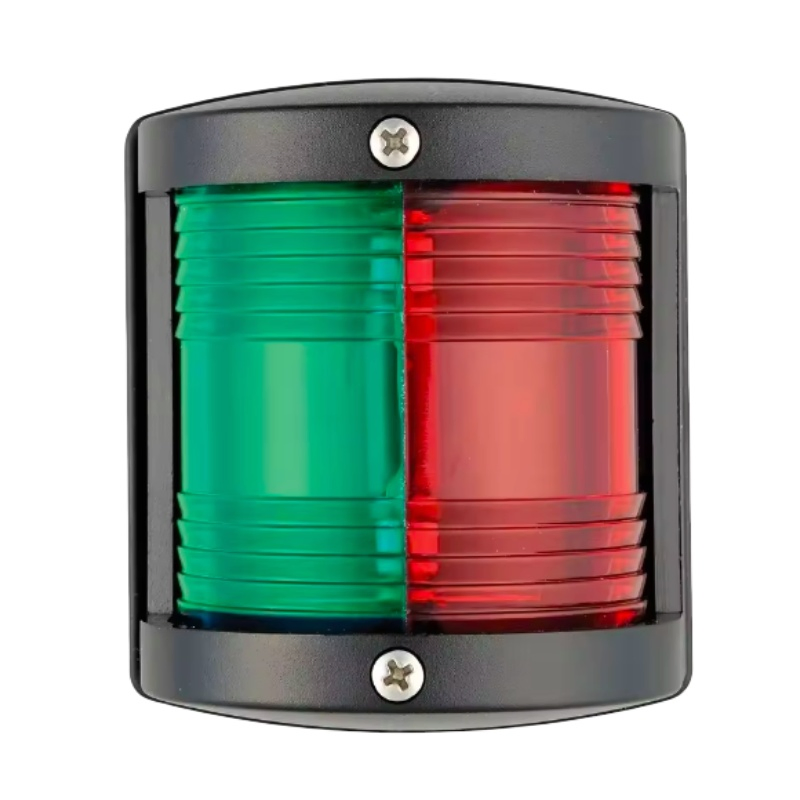

Available in single or dual colors: Red, Green, White, or Red + Green, with two light source types: high-efficiency LED bulbs or LED boards.
