| Model NO. | BBJ-120 |
|---|---|
| Input Voltage | DC12V/24V/36V, AC110V/220V |
| Power | 5w |
| Color Temperature | Warm White |
| Emitting Color | Red, Green, Blue, Yellow, White |
| Certification | CCC, CE, RoHS, ISO9001, ATEX |
| Working Mode | Rotating; Flashing; Steady on |
| Explosion-Proof Marking | Ex db IIC T6 Gb; Ex tb IIIC T80℃ Db |
| Sound Level | ≥120dB (1 Meter Distance) |
| IP Rating | IP66 |
| Working Temperature | -25°C ~ +45°C |

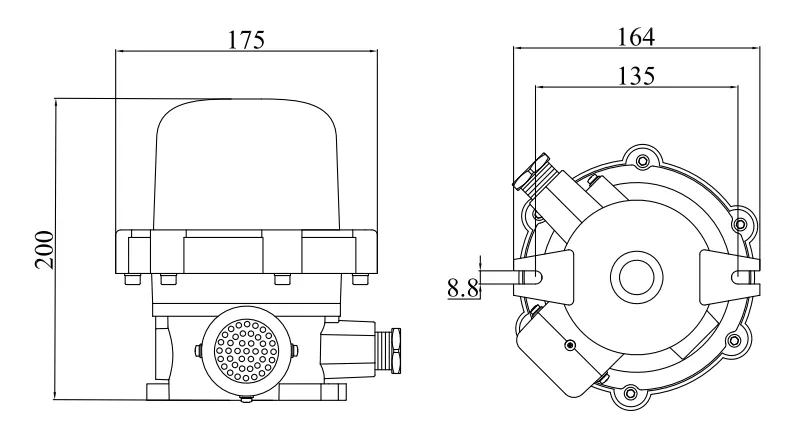

| Lamp Dimension | Φ175 x H250 mm |
| Flash Frequency | 120~150/Min |

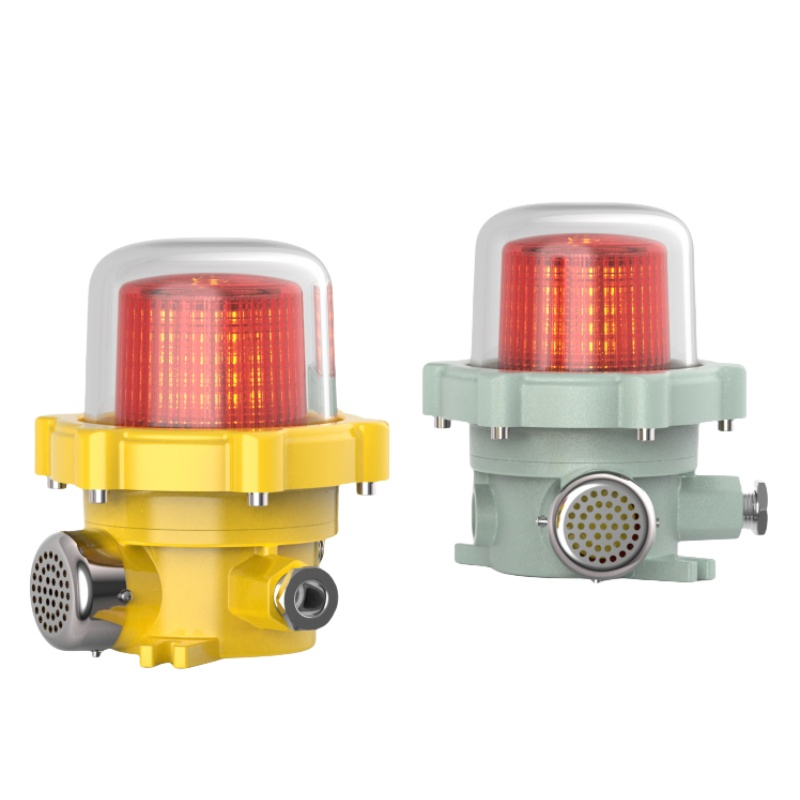

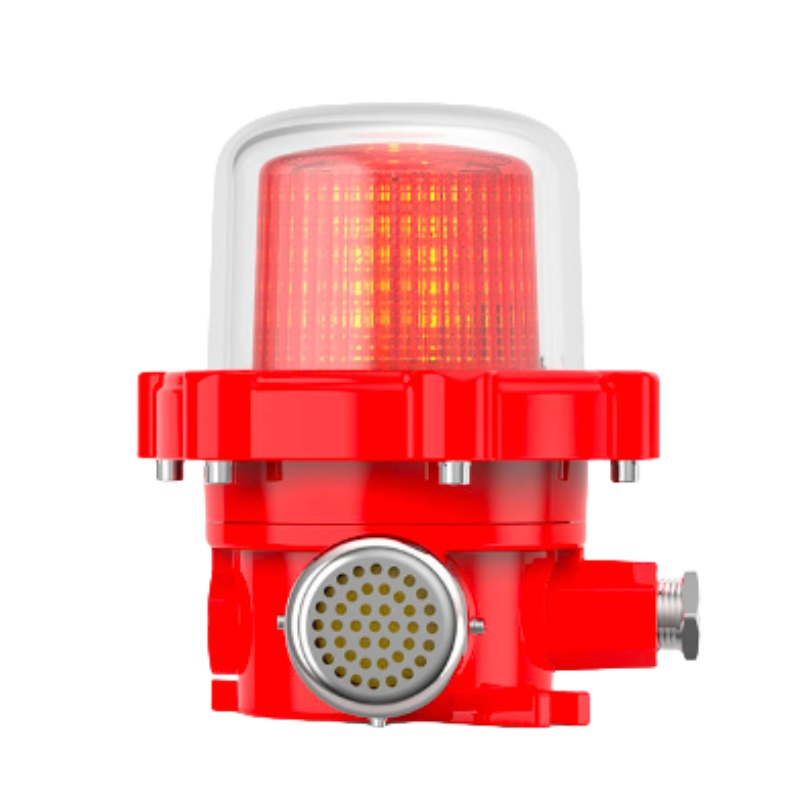

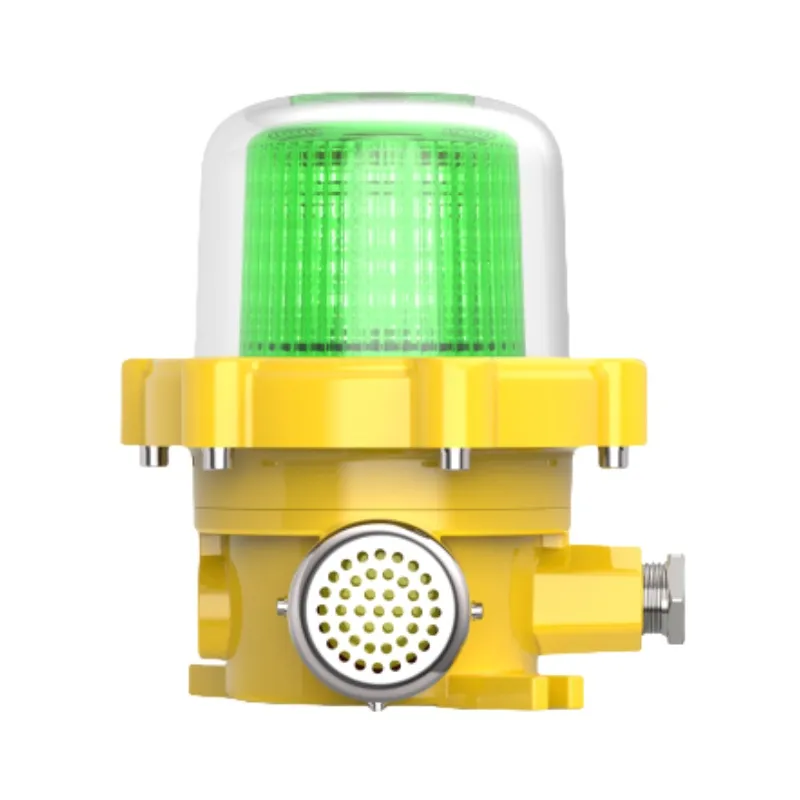

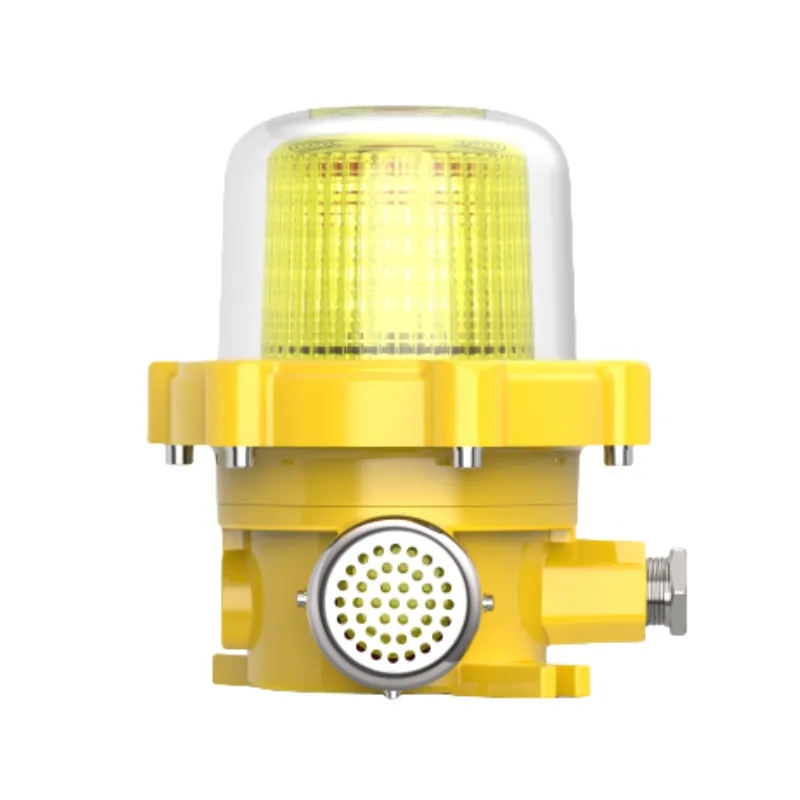

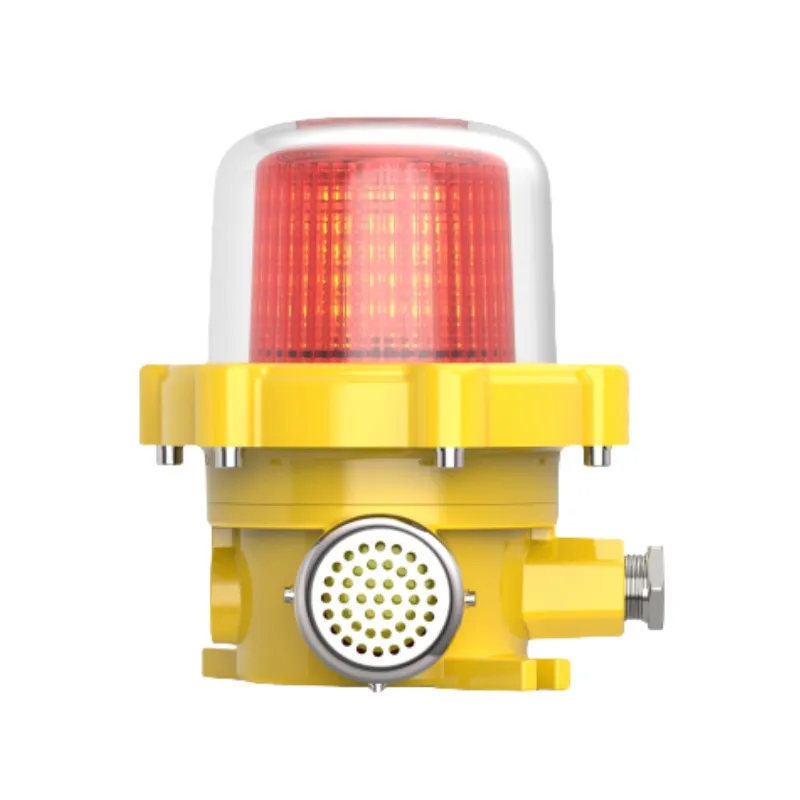

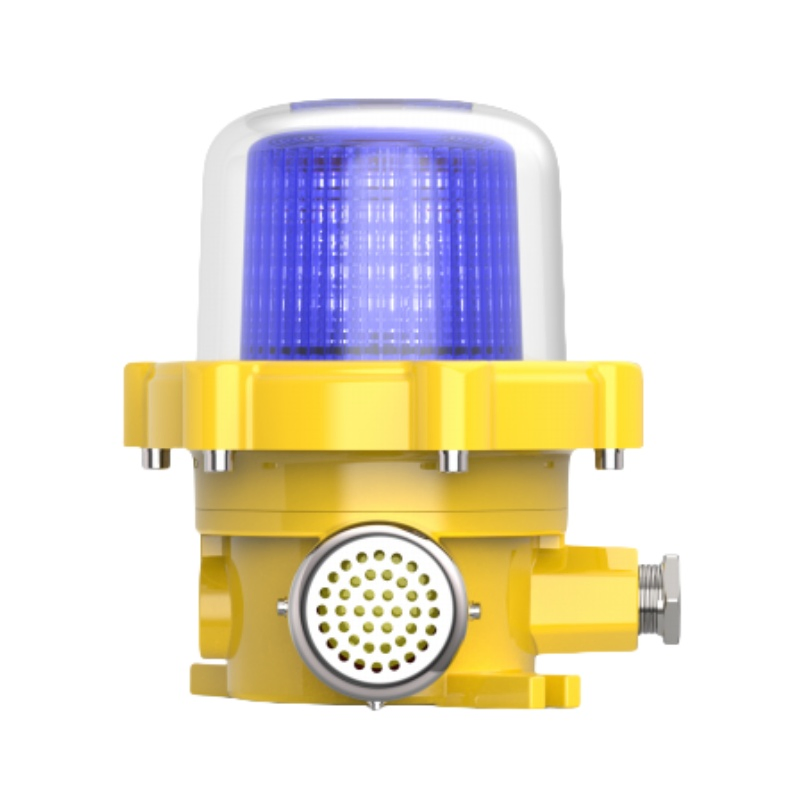

An explosion-proof warning light is a specialized lighting device designed to operate safely in hazardous environments where the presence of flammable gases, vapors, or combustible dust could lead to an explosion. These lights are engineered with robust construction and sealed enclosures to prevent any sparks or arcs from igniting the surrounding atmosphere. They typically feature durable materials such as stainless steel or aluminum and are equipped with specially designed lenses to maximize light output while ensuring safety.

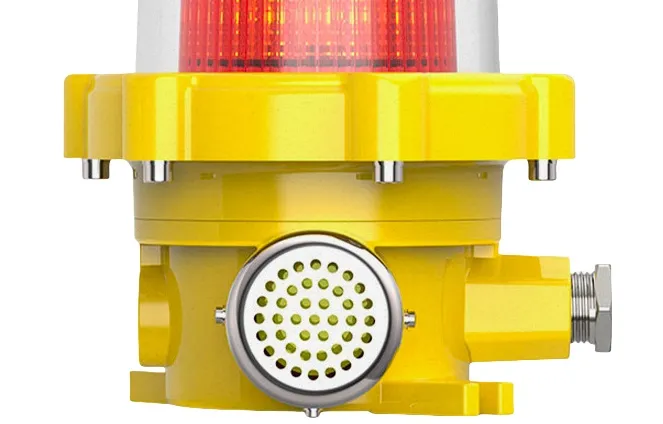

Explosion-proof and anti-static. Die-cast housing with electrostatically sprayed plastic for corrosion and impact resistance.

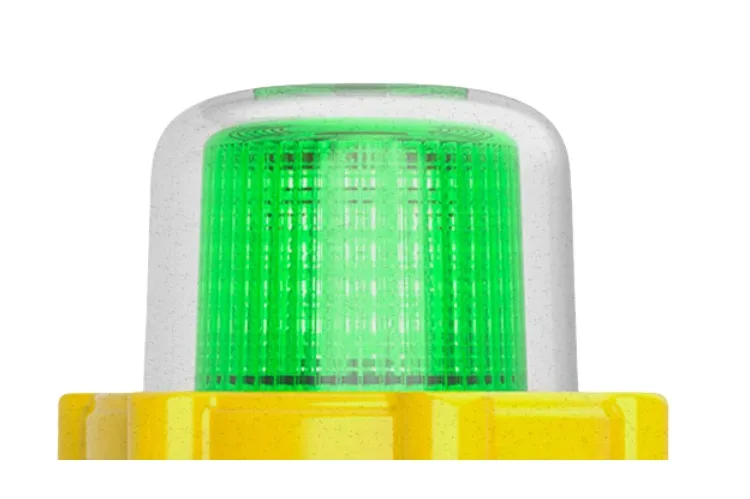

Special glass and thickened mesh cover prevent arc sparks from contacting flammable gases.
High-brightness LED beads ensure long-distance visibility with significantly lower power consumption.
Equipped with a high-definition buzzer reaching ~120dB for timely and clear audible warnings.

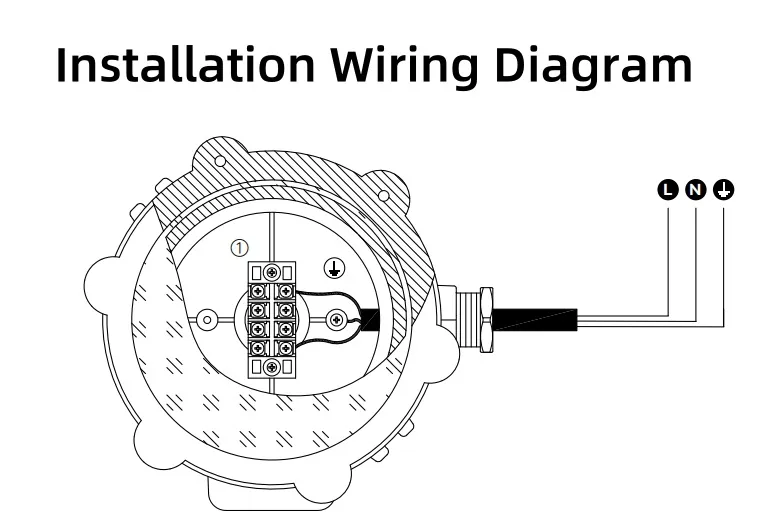

! Installation must be performed by qualified personnel.
! Grounding must be secure and reliable to ensure safety.
! Strictly forbidden to open the cover while the device is energized.
! All fasteners must be secured tightly to prevent loosening.
• Oil & Gas Platforms / Drilling Rigs
• Chemical & Pharmaceutical Plants
• Grain Silos & Flour Mills
• LNG Stations & Hazardous Storage
• Zone 1 & Zone 2 Gas Environments
• Zone 21 & Zone 22 Dust Environments
• Class IIA, IIB, IIC Explosive Gases
• Aviation Obstacle Indicators
