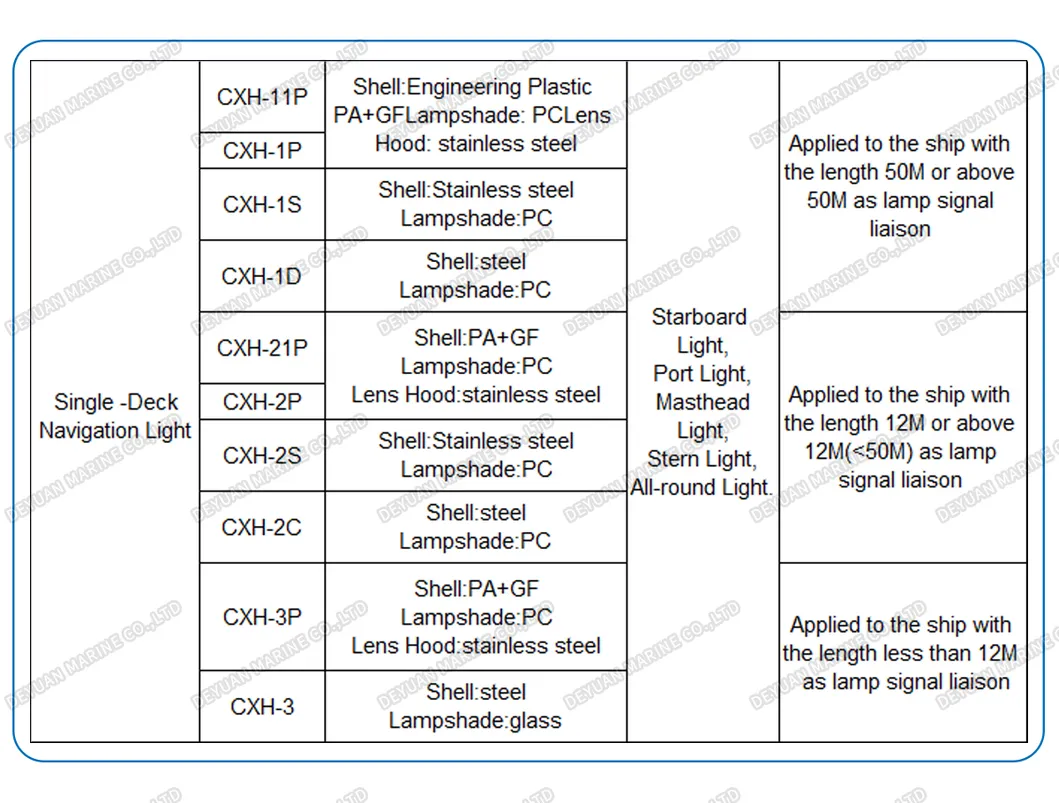

Single-Deck Navigation Light Options:

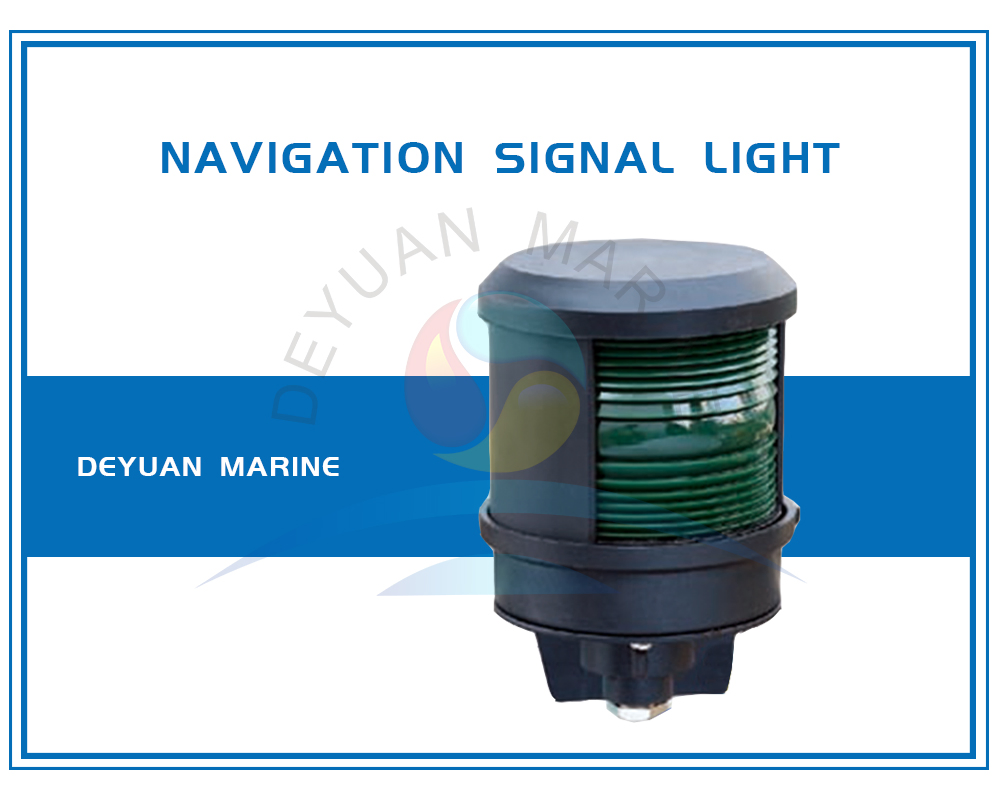

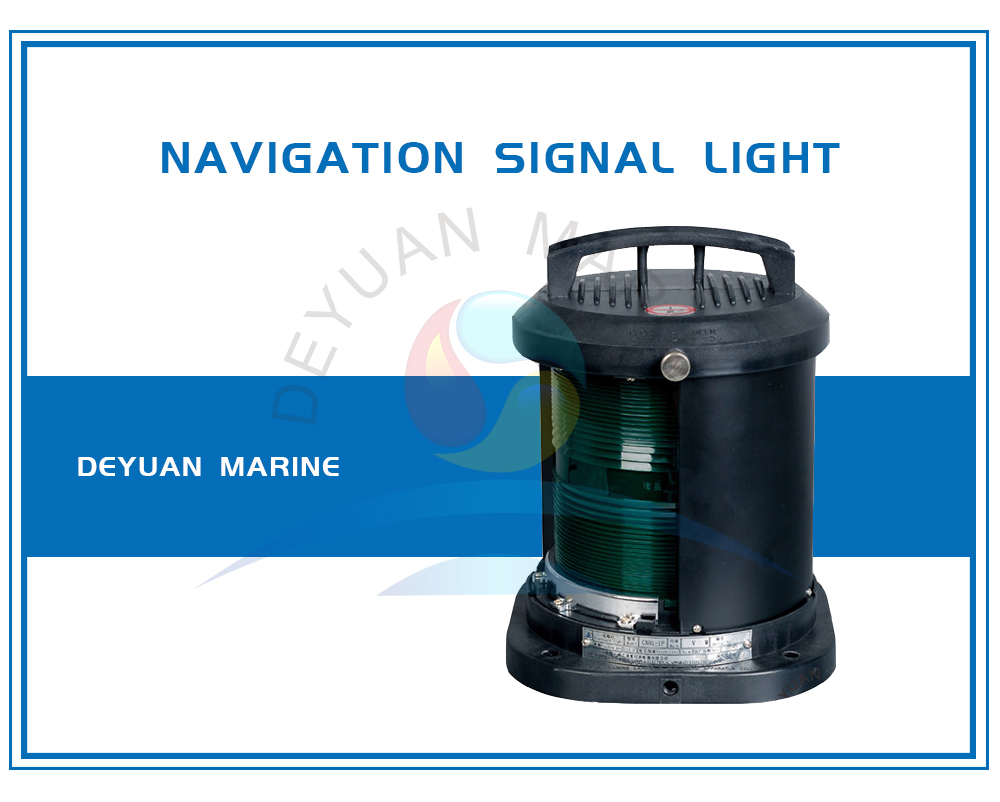

1. Engineering Plastic (PA) Navigation Light:
• Model CXH-11P, CXH-1P: Suitable for vessels with length 50M or above.
• Model CXH-21P, CXH-2P: Suitable for ships with length 12M to 50M.
• Model CXH-3P: Suitable for ships less than 12M.
2. Stainless Steel Navigation Light:
• Model CXH-1S: Suitable for vessels 50M or above.
• Model CXH-2S: Suitable for ships 12M to 50M.

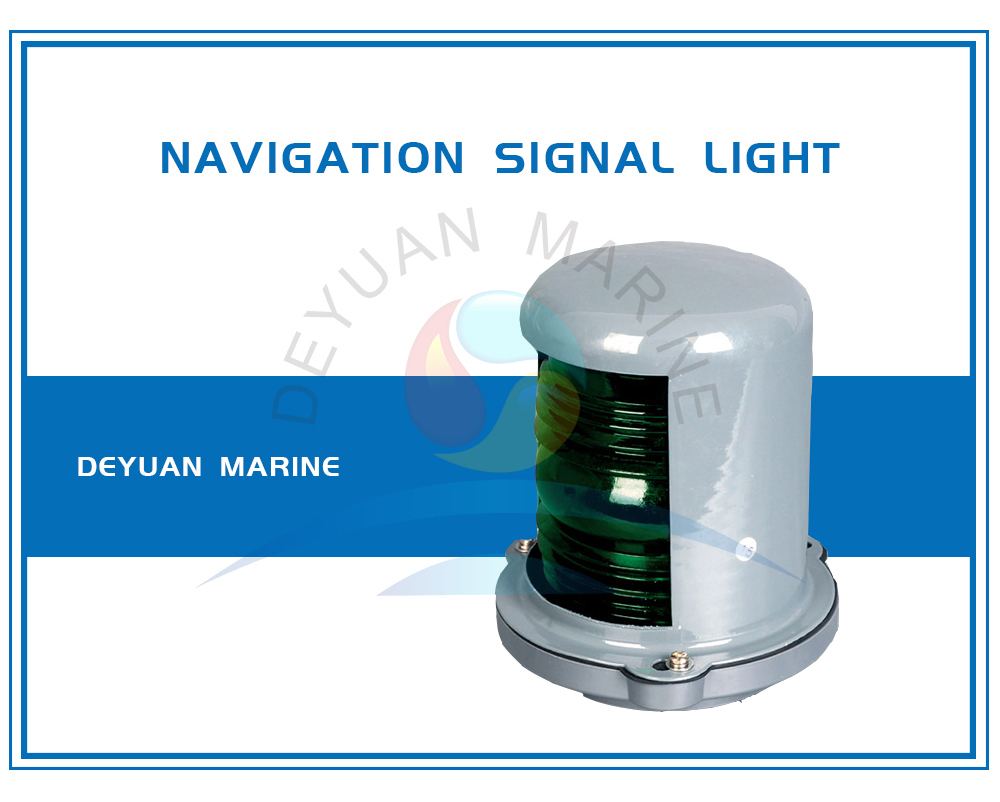

3. Steel Navigation Light:
• Model CXH-1D: For ships 50M or above.
• Model CXH-2C: For vessels 12M to 50M.
• Model CXH-3: For ships less than 12M.
| CXH-1D Single-deck Navigation Light Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Name | Type | Visibility | Level Arc | Lamp Holder | Voltage/Power | Protection Class | Cable O.D. | Color | Weight |
| Starboard Light | CXH1-1D | 3n.m | 112.5° | B22d | 24V/60W, 110V/65W, 220V/65W |
IP55 | Φ14~Φ16 | Green | 4.9kg |
| Port Light | CXH2-1D | 3n.m | 112.5° | Red | 4.9kg | ||||
| Masthead Light | CXH3-1D | 6n.m | 225° | White | 4.9kg | ||||
| Stern Light | CXH4-1D | 3n.m | 135° | White/Yellow | 4.9kg | ||||
| All-round | CXH6-1D | 3n.m | 360° | Red/White/Green | 4.9kg | ||||
