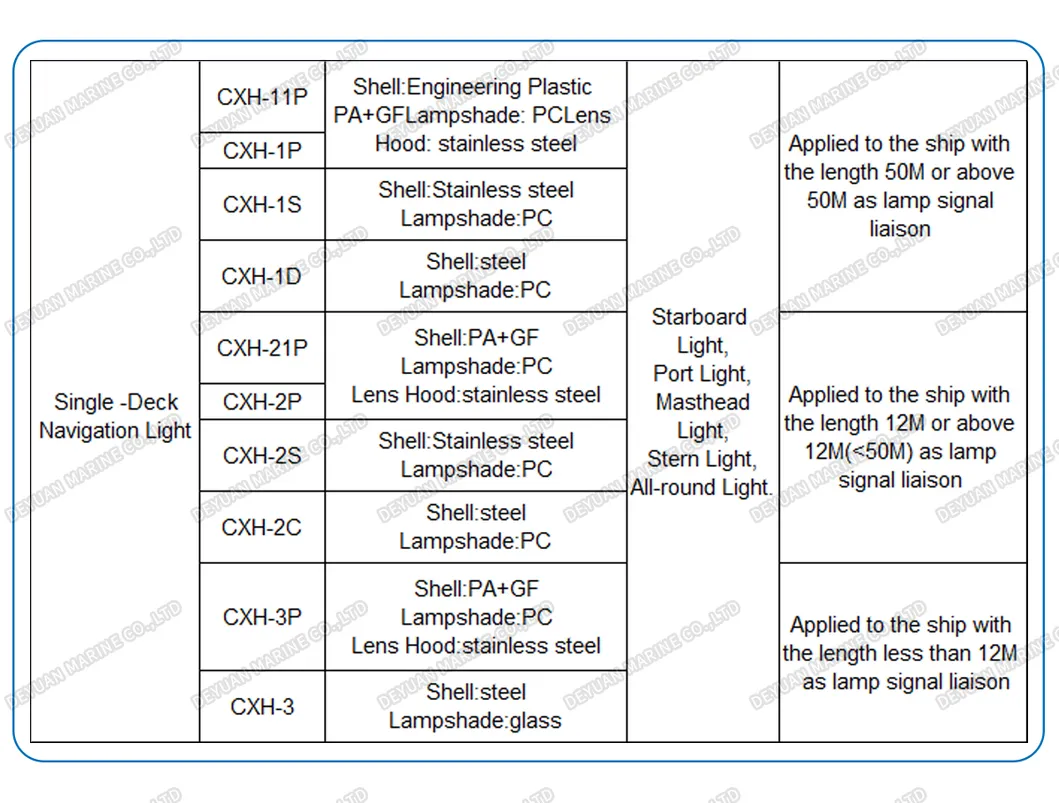

(1) Engineering Plastic (PA) Navigation Light:

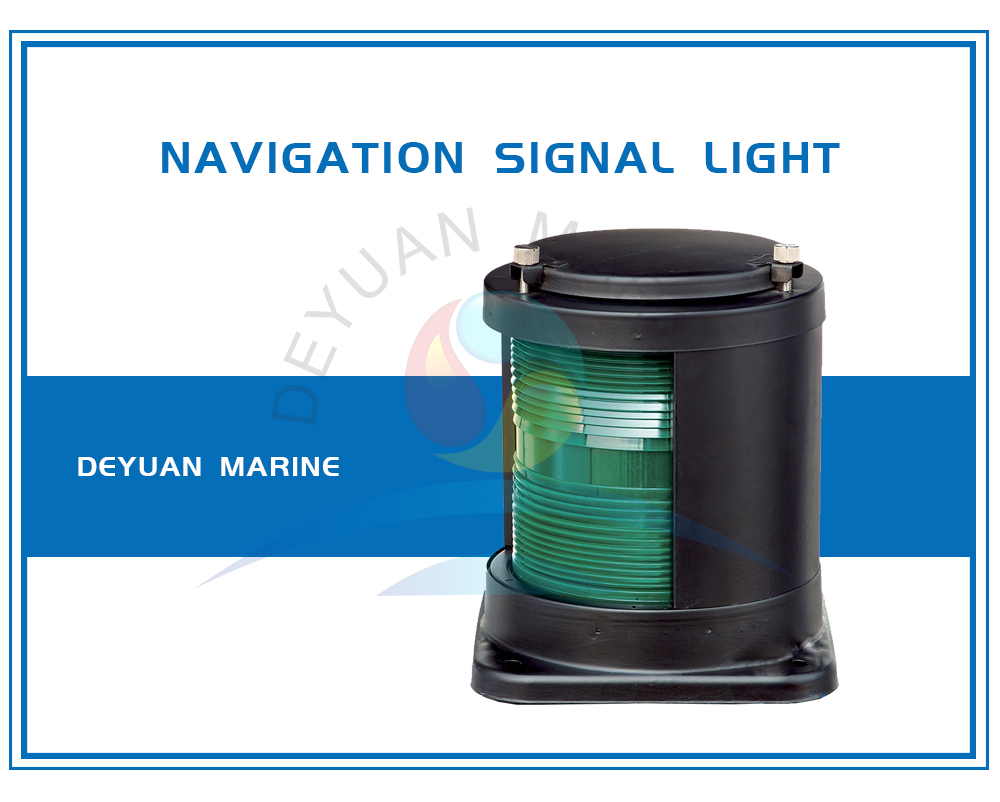

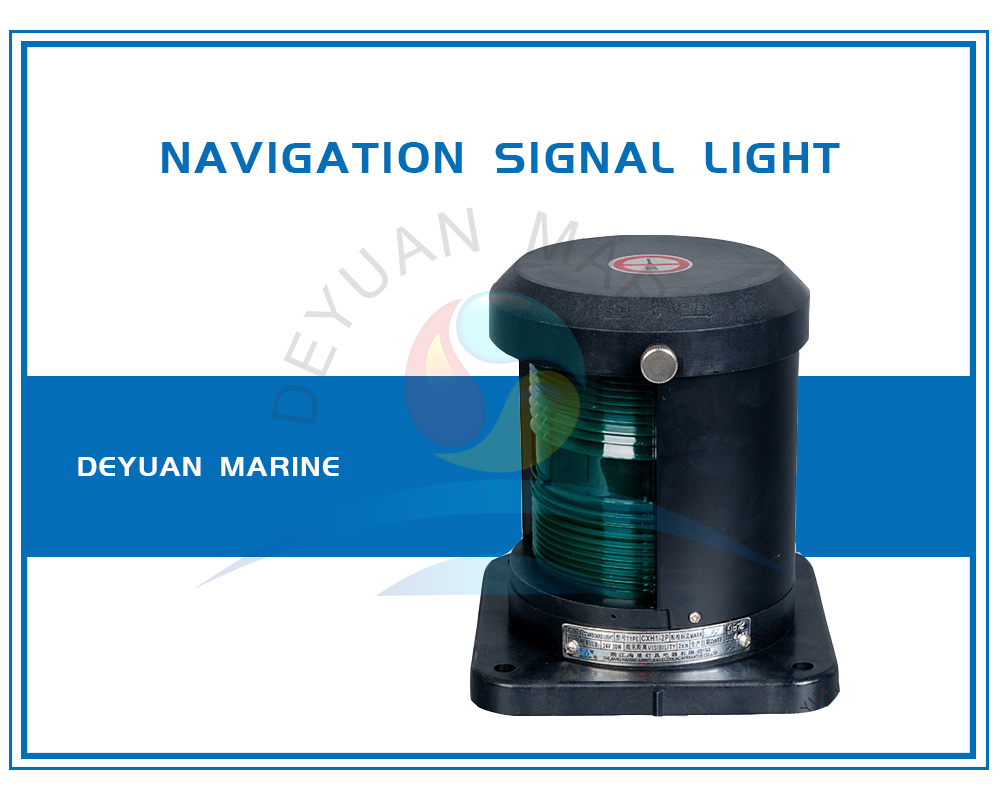

- CXH-11P, CXH-1P: For vessels/ships length 50M or above.

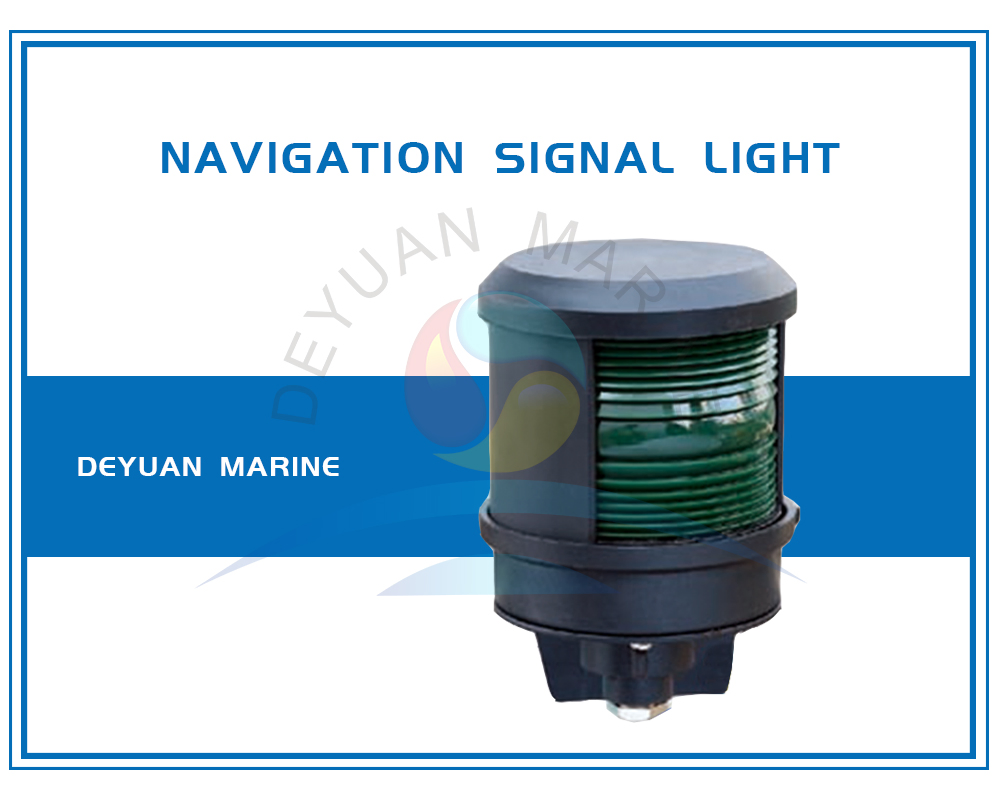

- CXH-21P, CXH-2P: For ships length 12M to 50M.
- CXH-3P: For ships less than 12M.
(2) Stainless Steel Navigation Light:
- CXH-1S: For vessels 50M or above.
- CXH-2S: For ships 12M to 50M.
(3) Steel Navigation Light:
- CXH-1D: For ships 50M or above.
- CXH-2C: For vessels 12M to 50M.
- CXH-3: For ships less than 12M.
| CXH-1D Single-deck Navigation Light Data Sheet | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Name | Type | Visibility | Level Arc | Lamp Holder | Voltage/Power | Protection | Cable Dia. | Color | Weight |
| Starboard Light | CXH1-1D | 3n.m | 112.5° | B22d | 24V/60W, 110V/65W, 220V/65W | IP55 | Φ14~Φ16 | Green | 4.9kg |
| Port Light | CXH2-1D | 3n.m | 112.5° | Red | 4.9kg | ||||
| Masthead Light | CXH3-1D | 6n.m | 225° | White | 4.9kg | ||||
| Stern Light | CXH4-1D | 3n.m | 135° | White/Yellow | 4.9kg | ||||
| All-round | CXH6-1D | 3n.m | 360° | Red/White/Green | 4.9kg | ||||
