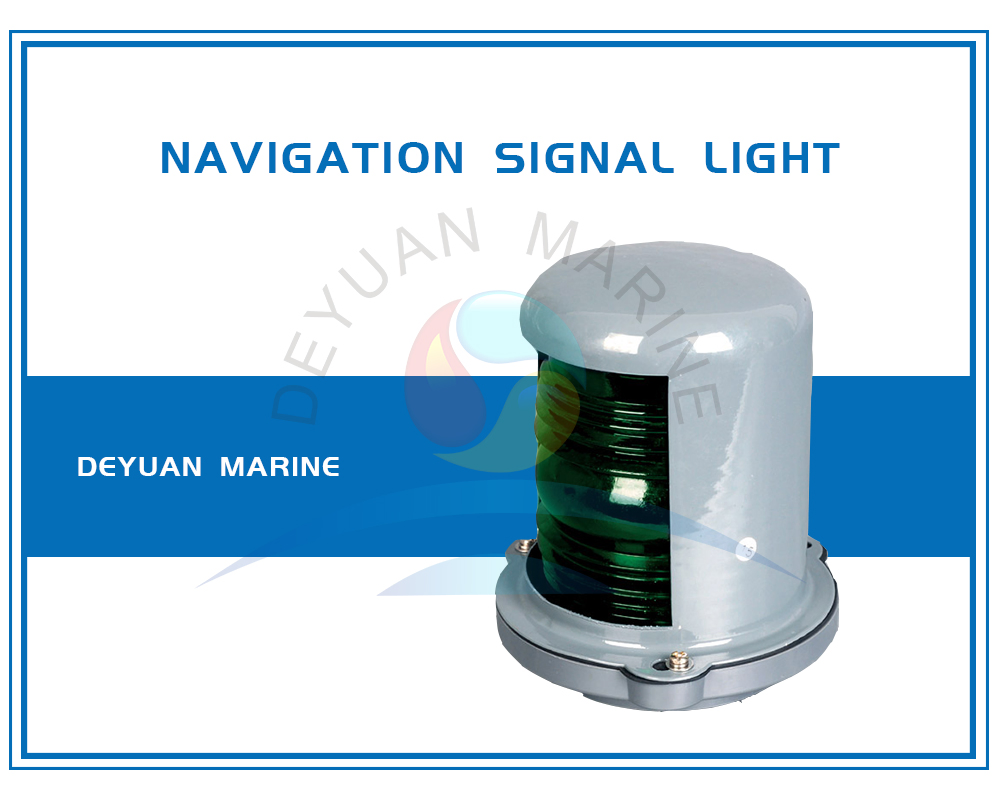

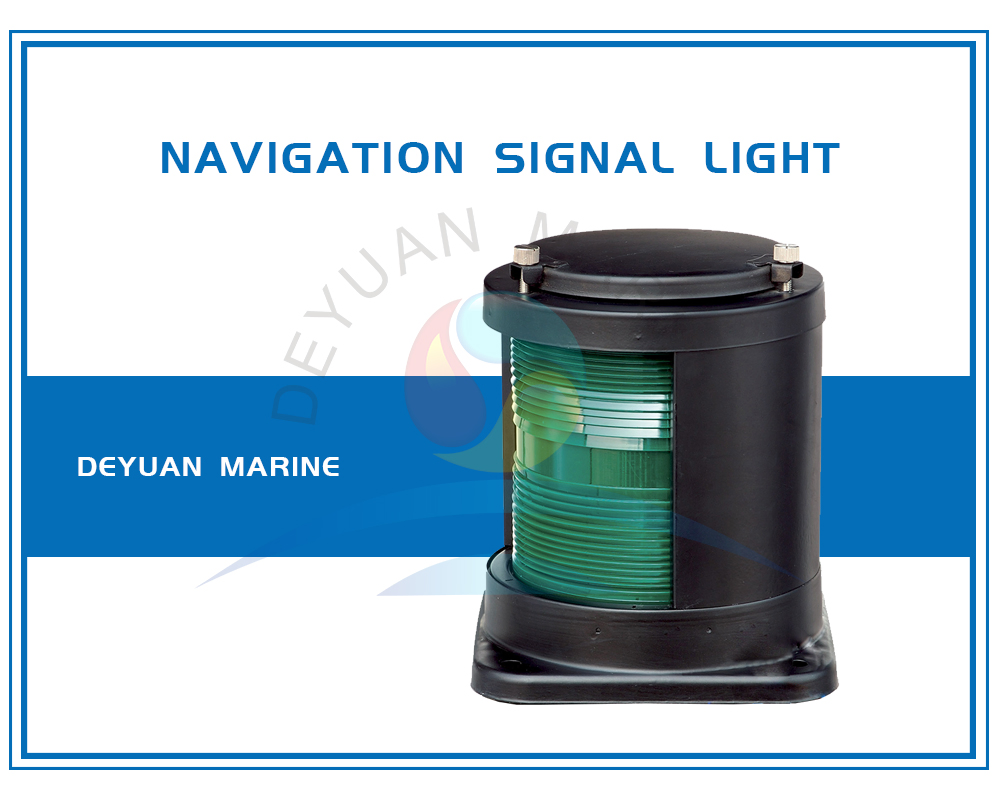

Cxh3-21p Single Deck Plastic Marine Navigation Signal Light

1 / 4

Cxh3-21p Single Deck Plastic Marine Navigation Signal Light

Customization:	Available
Certification:	CE
Type:	Portable Lamp

Send Inquiry

Product Description

iBasic Info.

Model NO.

DY-Marine Light

Material

Plastic

Package

Export Package

Specification

CCS

Origin

China

★Product Description

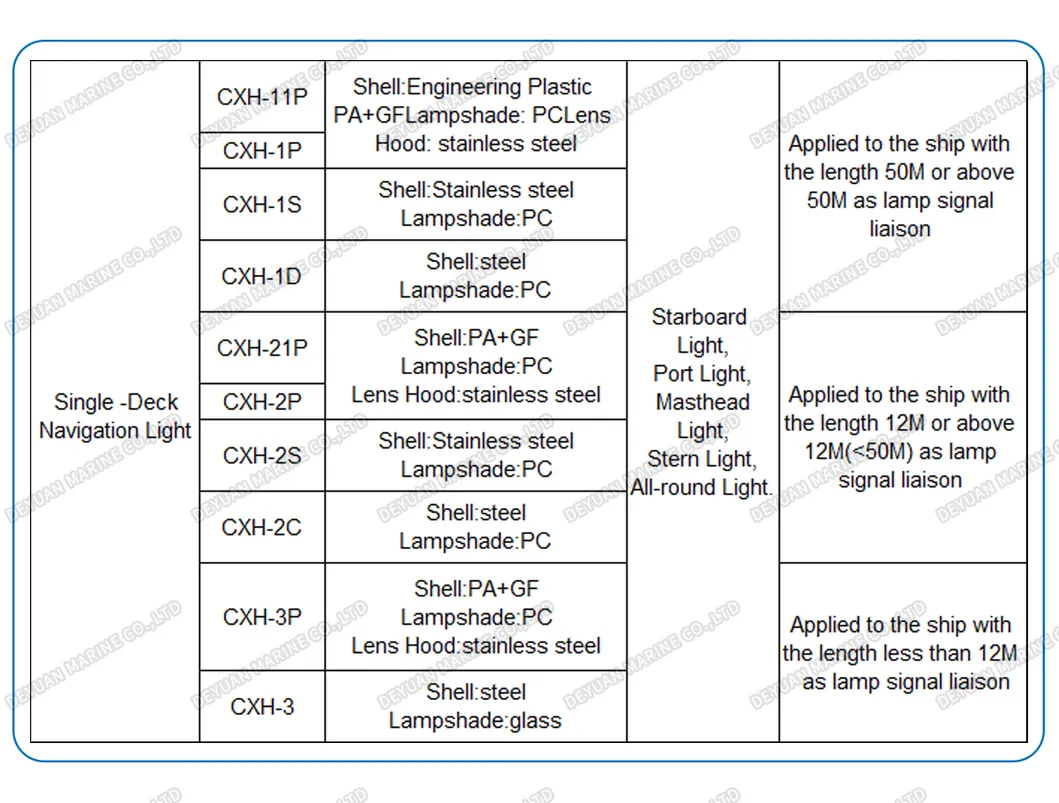

Single-Deck Navigation Light Options:

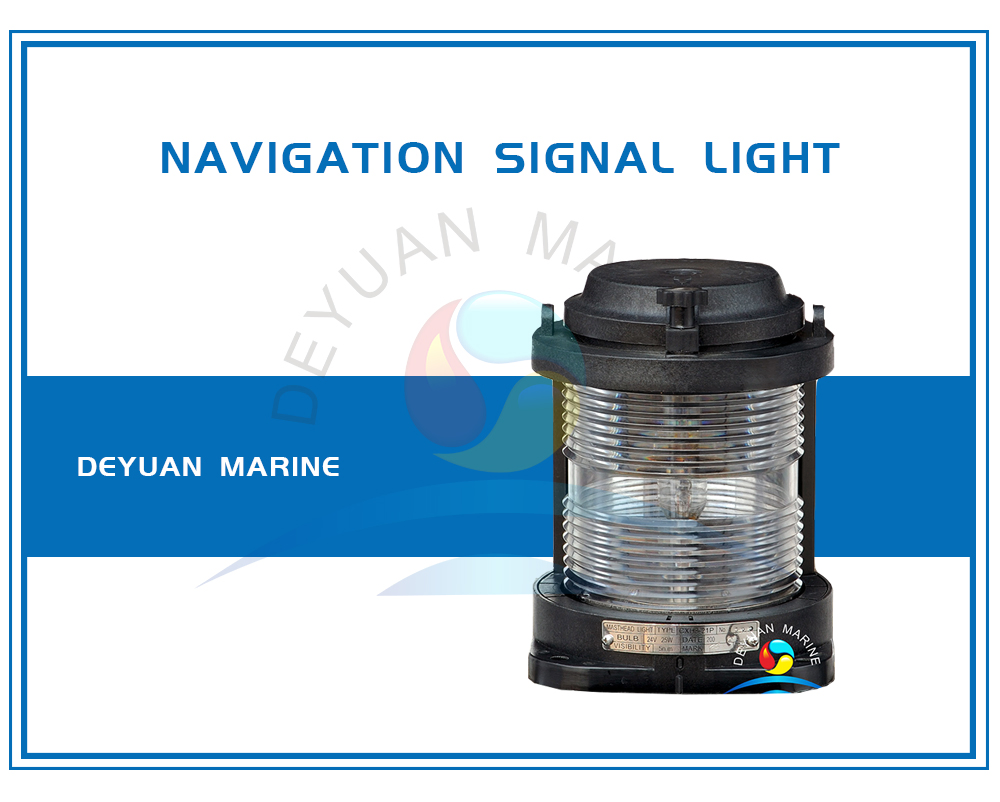

(1) Engineering Plastic (PA) Navigation Light:

Model CXH-11P, CXH-1P: Suitable for vessels with length 50M or above.
Model CXH-21P, CXH-2P: Suitable for ships with length 12M to 50M.
Model CXH-3P: Suitable for ships less than 12M.

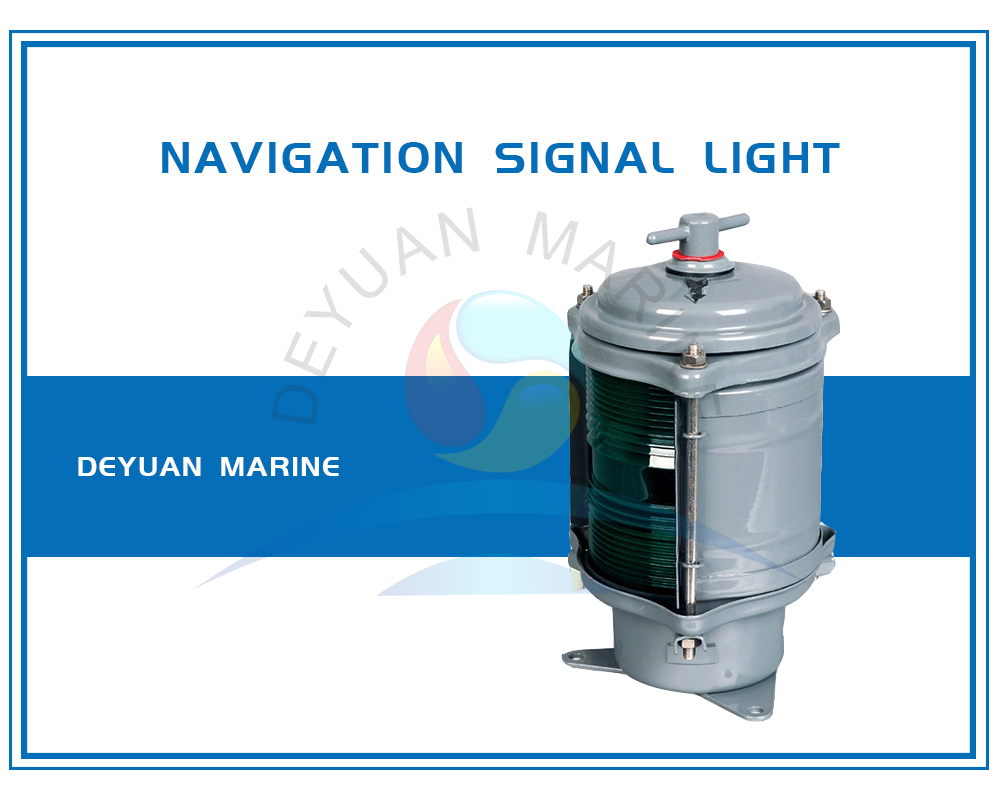

(2) Stainless Steel Navigation Light:

Model CXH-1S: Suitable for vessels with 50M or above.
Model CXH-2S: Suitable for ships between 12M and 50M.

(3) Steel Navigation Light:

Model CXH-1D: For ships with 50M or above.
Model CXH-2C: For vessels between 12M and 50M.
Model CXH-3: For ships less than 12M.

⚙Specifications

CXH-1D Single-deck Navigation Light Technical Data
Name	Type	Visibility	Level Arc	Lamp Holder	Voltage/Power	Class	Cable Dia.	Color	Weight
Starboard Light	CXH1-1D	3n.m	112.5°	B22d	24V/60W, 110V/65W, 220V/65W	IP55	Φ14~Φ16	Green	4.9kg
Port Light	CXH2-1D	3n.m	112.5°					Red	4.9kg
Masthead Light	CXH3-1D	6n.m	225°					White	4.9kg
Stern Light	CXH4-1D	3n.m	135°					White/Yellow	4.9kg
All-round	CXH6-1D	3n.m	360°					Red/White/Green	4.9kg

❐Series Details

?Frequently Asked Questions

Q1: How do I select the right navigation light based on my vessel's length?

For vessels 50M or longer, use models like CXH-11P or CXH-1S. For ships between 12M and 50M, models like CXH-21P or CXH-2S are appropriate. Ships under 12M should use the CXH-3 series.

Q2: What materials are available for these marine signal lights?

We offer three main material types: Engineering Plastic (PA), Stainless Steel, and standard Steel to suit different maritime environments and durability requirements.

Q3: What is the visibility range for the CXH-1D series?

The visibility varies by light type: the Masthead light offers 6 nautical miles (n.m) of visibility, while Starboard, Port, Stern, and All-round lights offer 3 nautical miles.

Q4: What are the electrical requirements for these lights?

The lights support multiple voltage options including 24V (60W), 110V (65W), and 220V (65W), utilizing a B22d lamp holder.

Q5: Are these navigation lights protected against water ingress?

Yes, the CXH series is designed with a Protection Class of IP55, ensuring reliable performance in marine conditions.

Q6: What certifications do these lights comply with?

These marine navigation signal lights meet CCS (China Classification Society) specifications for maritime safety standards.

Cxh3-21p Single Deck Plastic Marine Navigation Signal Light

Product Description

Single-Deck Navigation Light Options:
