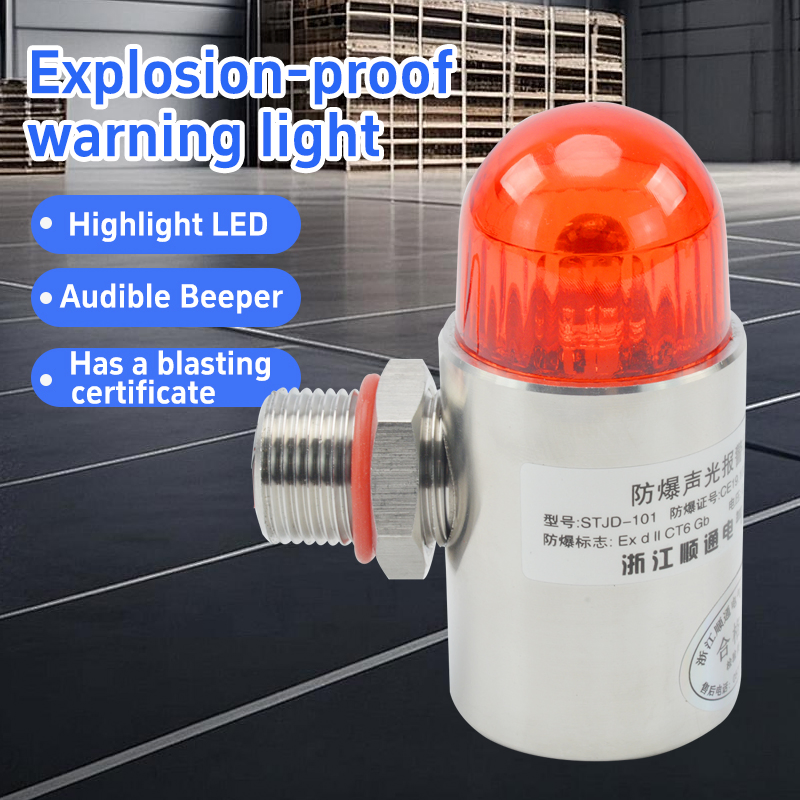

Explosion-Proof LED Warning Light with Audible Beeper Switches Product with Blasting Certificate

Customization:	Available
Working Mode:	Wire Connection
Alarm Volume (within 1m):	≥100dB

i

Basic Specifications

Model NO.

STJD-101

Origin

China

★

Product Description

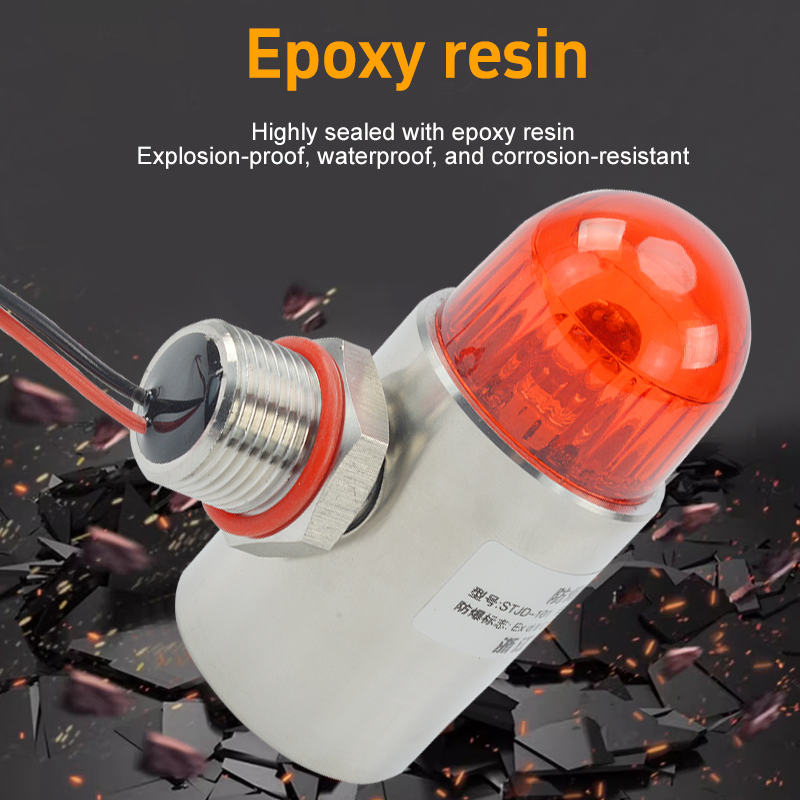

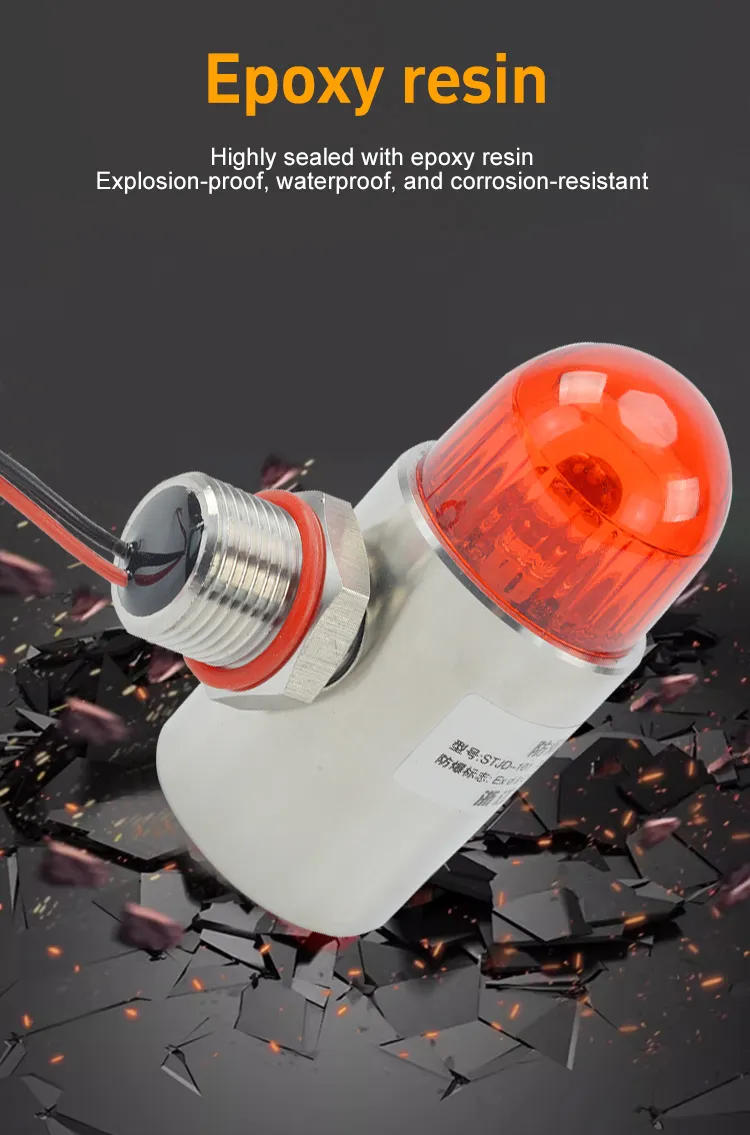

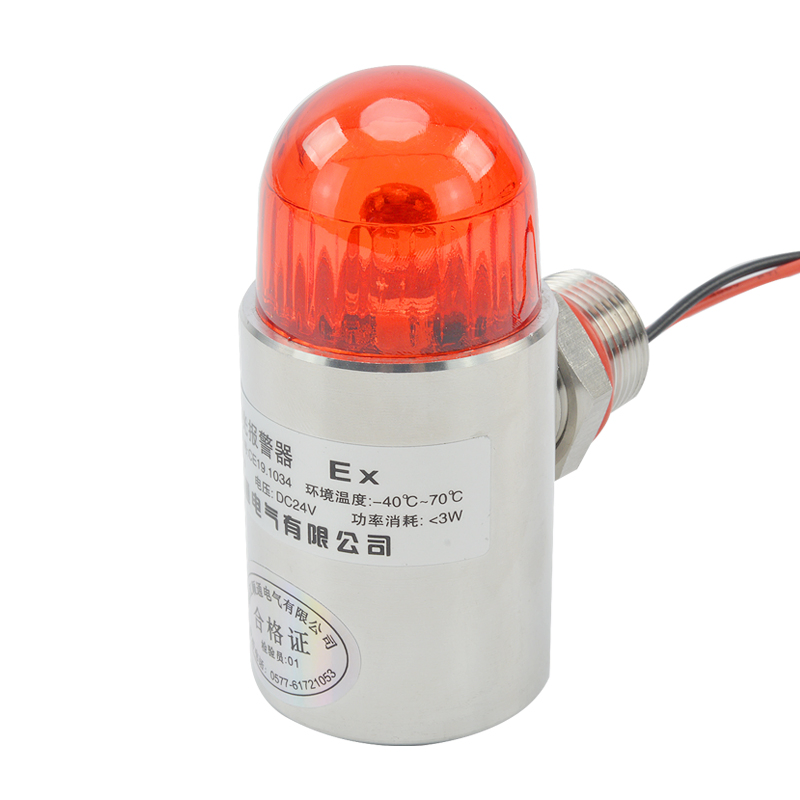

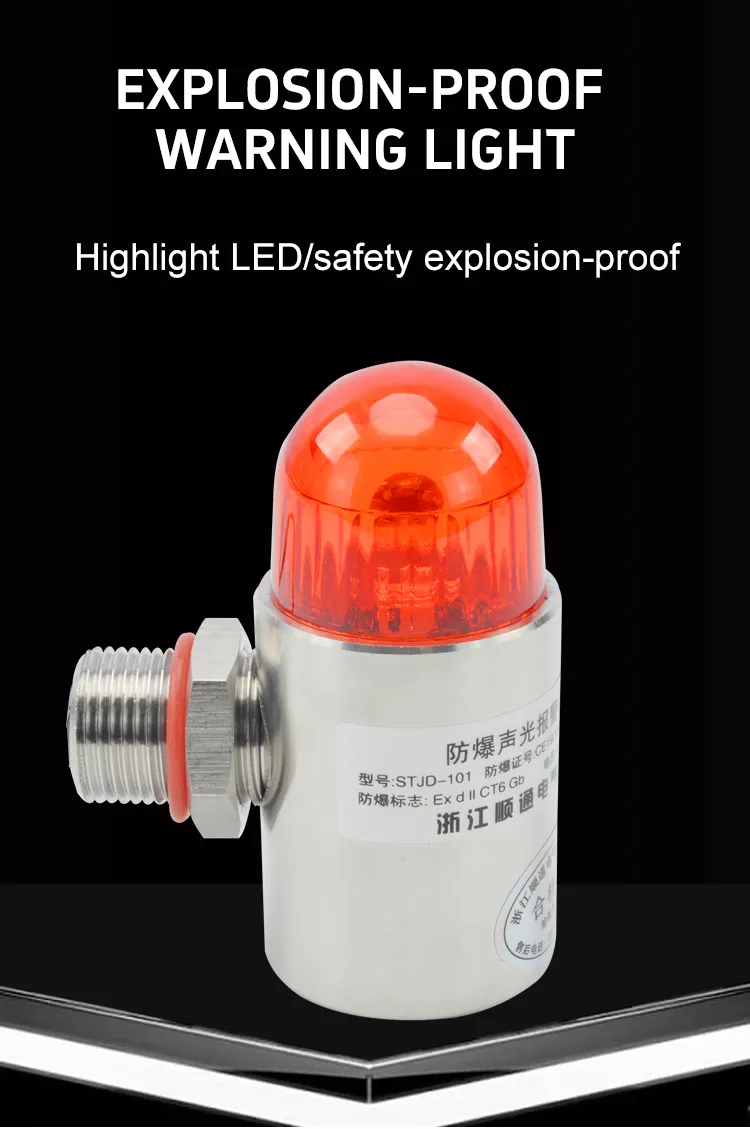

This professional Explosion-Proof Sound and Light Alarm is designed for hazardous environments, providing 100dB audible warnings with visual alerts. Certified to Exd II CT6 Gb standards, it ensures reliable operation in potentially explosive atmospheres.

⚙

Key Specifications

Dimensions	Main body: 76mm diameter × 38mm height; Mounting base: 22mm thickness
Power Supply	DC 24V
Operating Current	30-50mA
Power Consumption	<3W
Sound Output	100dB @ 1m
Temperature Range	-40°C to +70°C

🛡

Certification & Safety

Standard:

Exd II CT6 Gb

Certificate:

CE19.1034

Protection:

IP66 (Dust/Waterproof)

Material:

Stainless steel housing

✔

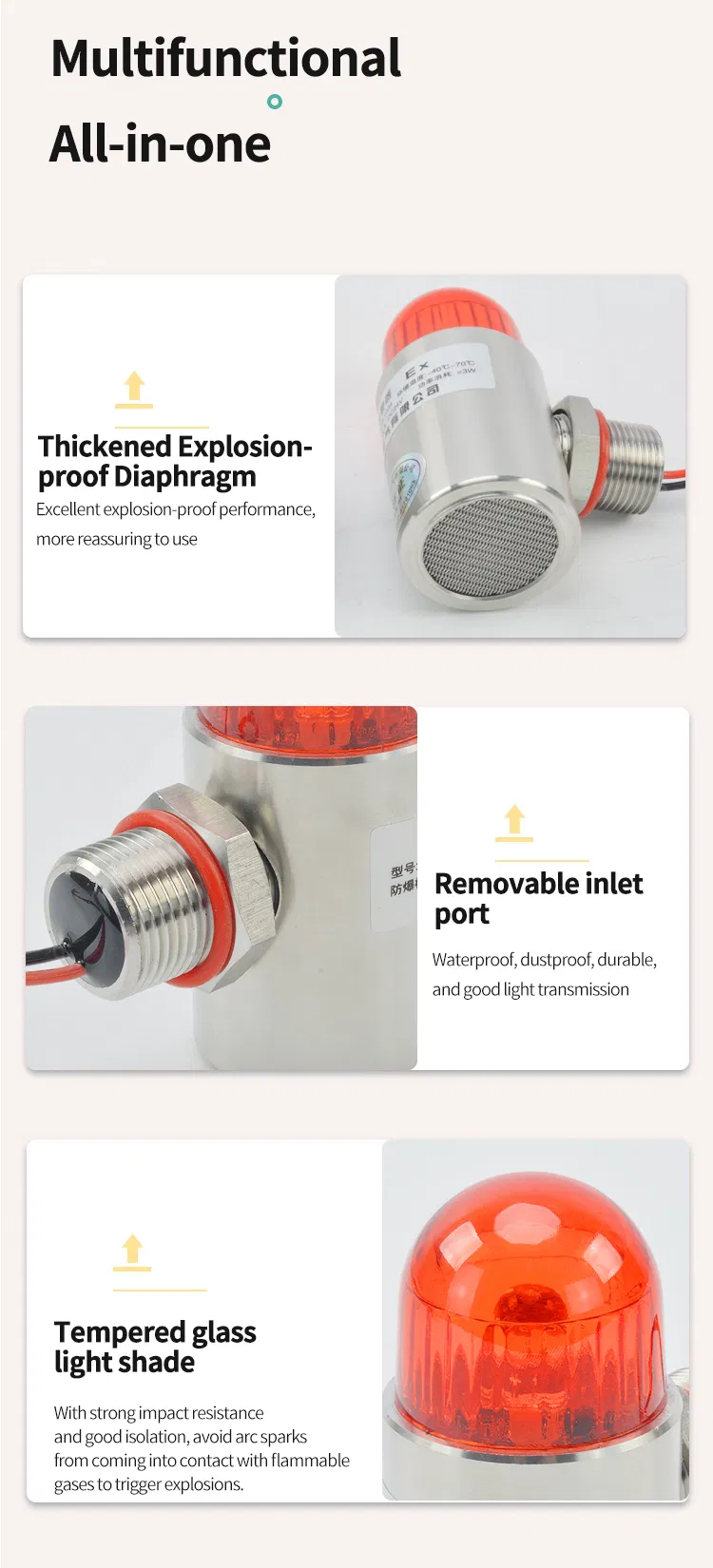

Technical Features

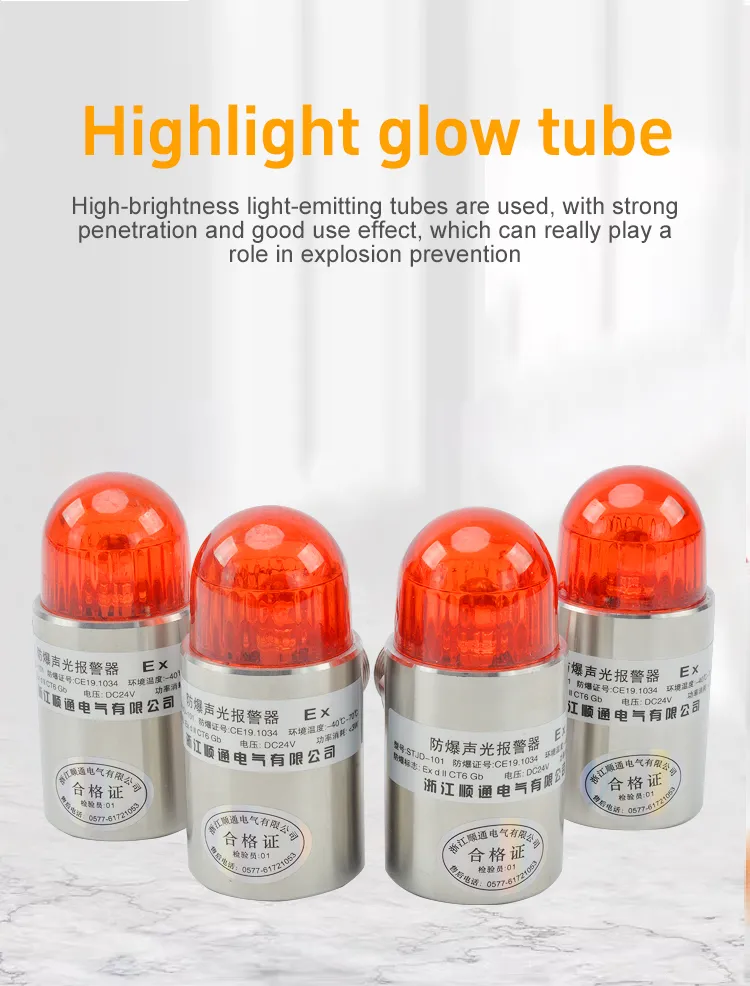

High-Intensity LED Strobe (Red/Yellow options)
Industrial-Grade Horn with clear warning tones
Low Power Consumption design
Corrosion-Resistant construction
Easy Installation with standard conduit entry

⚓

Typical Applications

Oil & gas facilities
Chemical processing plants
Pharmaceutical manufacturing
Grain storage facilities
Mining operations
Paint spray booths

📜

Compliance Standards

ATEX Certified

IECEx Approved

CE Marked

RoHS Compliant

Important Notice: Professional installation required for hazardous areas. Must be installed according to local safety regulations and manufacturer guidelines.

?

Frequently Asked Questions

What is the protection level of this alarm?

The alarm features an IP66 protection level, making it completely dustproof and resistant to powerful water jets, suitable for harsh outdoor environments.

What explosion-proof standard does it meet?

It is certified to Exd II CT6 Gb standards, ensuring safety in potentially explosive atmospheres containing gas or dust.

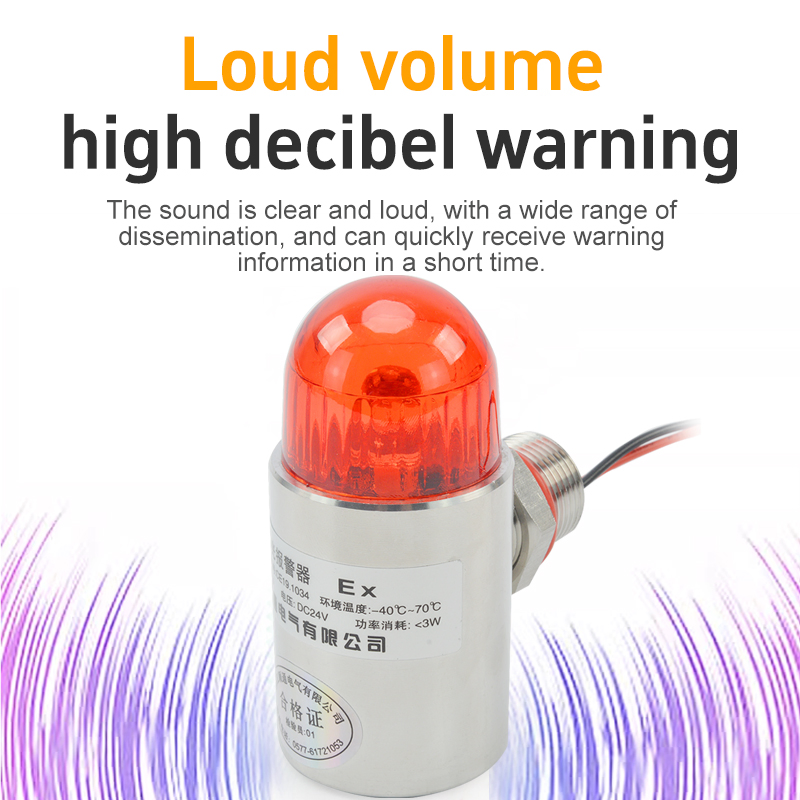

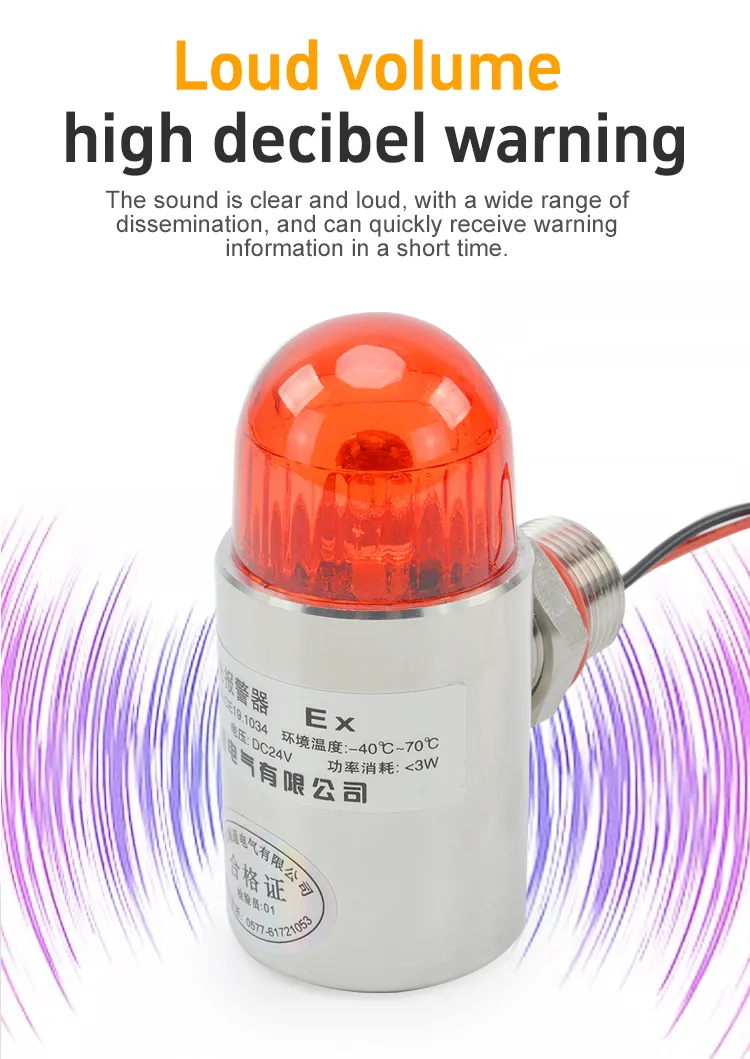

How loud is the audible warning?

The industrial-grade horn produces a high-decibel sound output of 100dB at a distance of 1 meter.

What is the operating temperature range?

This device is designed to operate reliably in extreme conditions ranging from -40°C to +70°C.

What power source is required for installation?

The unit operates on a standard DC 24V power supply with low power consumption (less than 3W).

What materials are used for the housing?

The housing is constructed from high-quality stainless steel, providing excellent corrosion resistance for industrial use.
