Basic Information
Model NO.
LED Traffic Light
Housing Material
Die-cast Aluminum
Certification
CCC, CE, CQC, RoHS
Product Name
Warning LED Light
Rating Power
<5W(Each Lamp)
Color
Red Yellow Green Blue(Optional)
Operating Mode
Steady Burning (Customizable Flash)
Supply Voltage
AC220V/AC380V
Supply Ability
1000 Piece/Pieces Per Month
Transport Package
Carton Packing
Specification
187 V to 253 V, 50Hz
Production Capacity
50000 Pieces/Year
Product Description

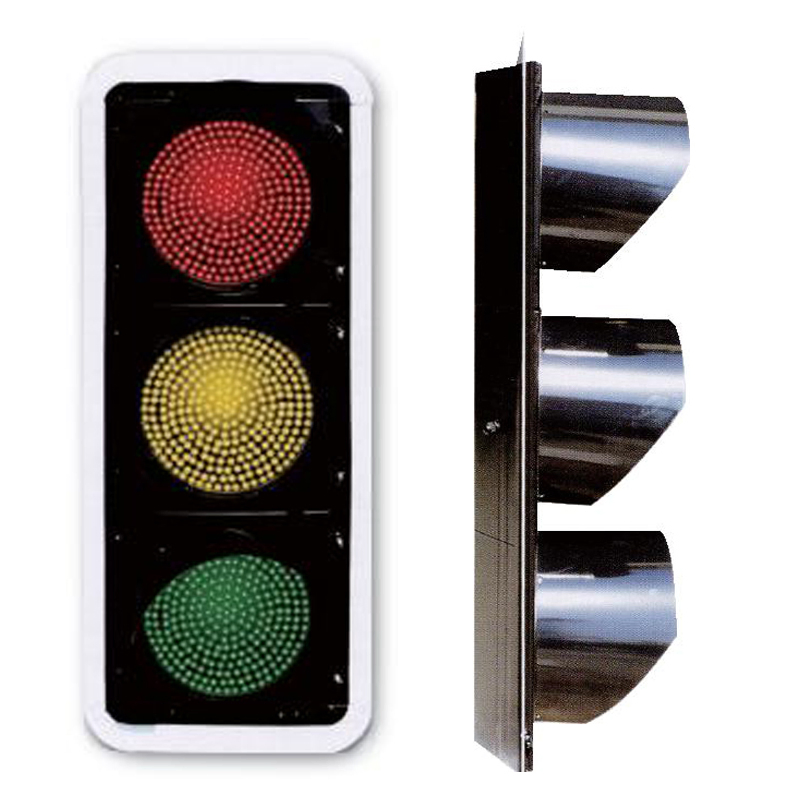

Professional LED Traffic Signal Light Solutions
⚙️
Rich Experience In OEM/ODM
📦
Small Order Quantities Workable
🌍
Global Customer Satisfaction
| Parameter |
Specifications |
| Model No. | JD200-3-ZGSM-2-RG |
| Power | Red: ≤ 5W | Green: ≤ 5W |
| Operating Voltage | 100-240VAC 50/60Hz | 12V or 24V DC |
| LED Q'ty | Red: 96 pcs | Green: 96 pcs |
| Apply Diameter | Ф200 mm (Ф8 inches) |
| Operating Temp. | -40~+75 ºC |
| Wavelength | Red: 625±5nm | Green: 500±5nm |
| Operating Humidity | 10% ~ 90% |
| Visible Range | >500m |
| IP Rating | IP54 |
| Warranty | 1 Year |
| Housing Material | PC or Aluminum |
Modular Multi-Aspects LED Signal Heads
- Utilizing imported LED chip, long lifespan
- Using constant current driver, working voltage 100-240VAC, low power
- Novel structure and beautiful appearance, using inflaming retarding and UV-proof housing
- Long visible distance, symmetrical light distribution
- Multi-ply sealed water resistant, IP rating: >IP54
- In accordance with GB/14887-2011 and relevant International standard
- Working humidity: ≤95%
- LED Driver: Efficiency >85%, PF >0.85
Key Features

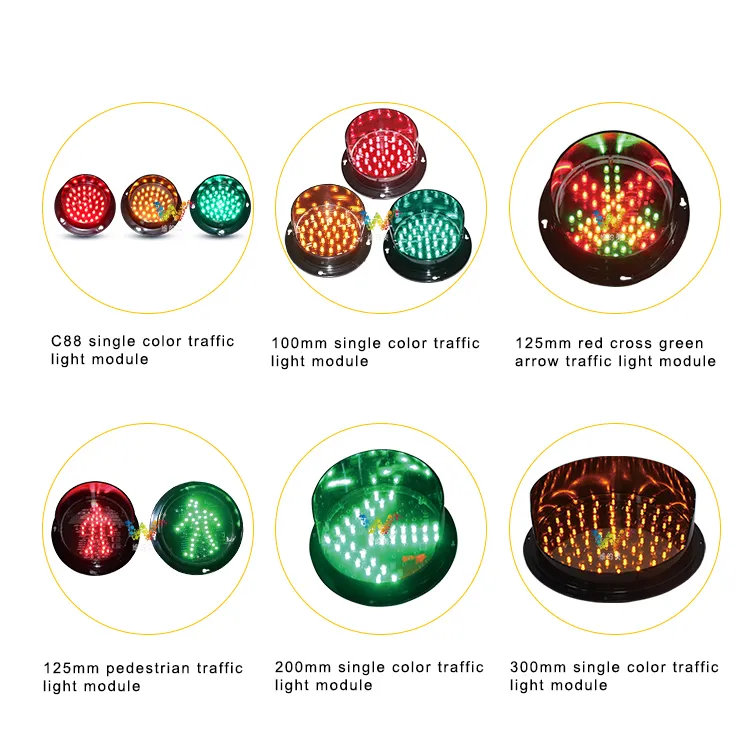

- Available in D100/200/300/400mm; Combi signal (ie. D200mm+D300mm)
- Longevity of operation and vandal-proof design
- Vertical and horizontal mounting options
- Low power consumption and brilliant light output
- Operating at temperature of -40ºC to +74ºC
- Wide view angle and compatibility with all traffic controllers

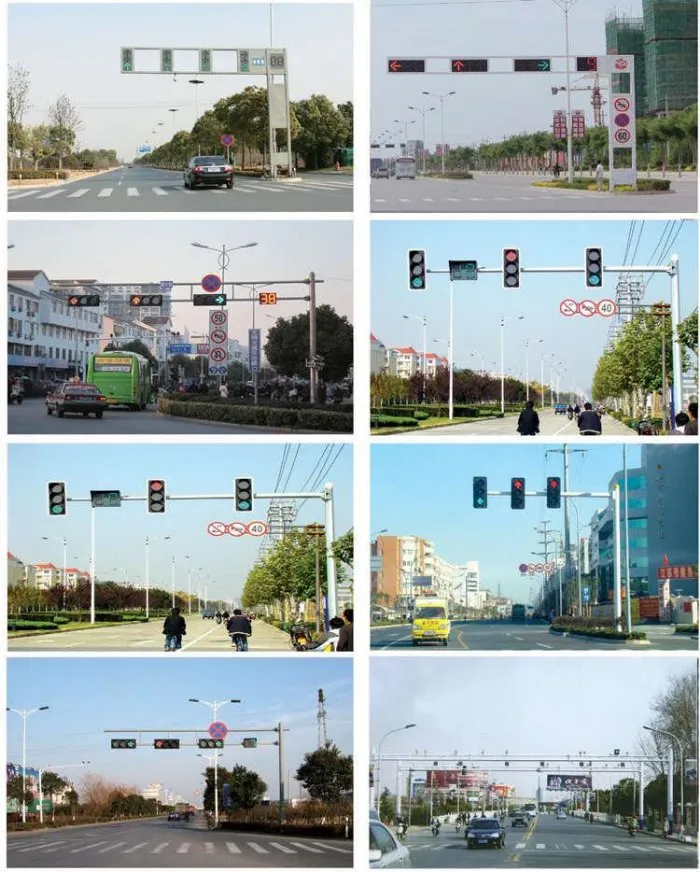

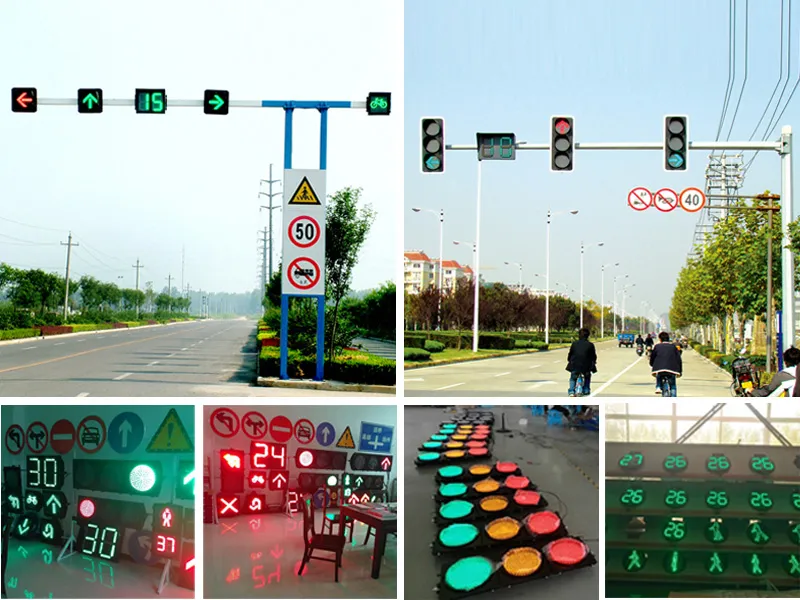

More than 50 countries have installed LED traffic signal lights all over the world.
Frequently Asked Questions
Can I have a sample order for LED light?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What about the lead time?
Samples within 3 days, large orders within 1-2 weeks depending on requirements.
Do you have any MOQ limit for LED light orders?
Low MOQ, 1pc for sample checking is available.
How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Is it OK to print my logo on the LED light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
How do you deal with faulty products?
Our products are produced under a strict quality control system with a defective rate less than 0.1%. During the warranty period, we will repair or replace defected products.
