Basic Info
Certification
RoHS, CE, EMC, ECE R65 R10
Pressure Relief
Stainless Steel Waterproof Breathable Valve
Inner Lens
Fresnel Special Optical Design
Quality Standards
ECE R65/ R10(EMC) /SAE J845 Class 1
Operating Temp
-40℃ to +65℃
Anti-Fog Tech
100% Nitrogen Filled
Alarm Mode
6 + Flashing and Rotating Modes
Installation

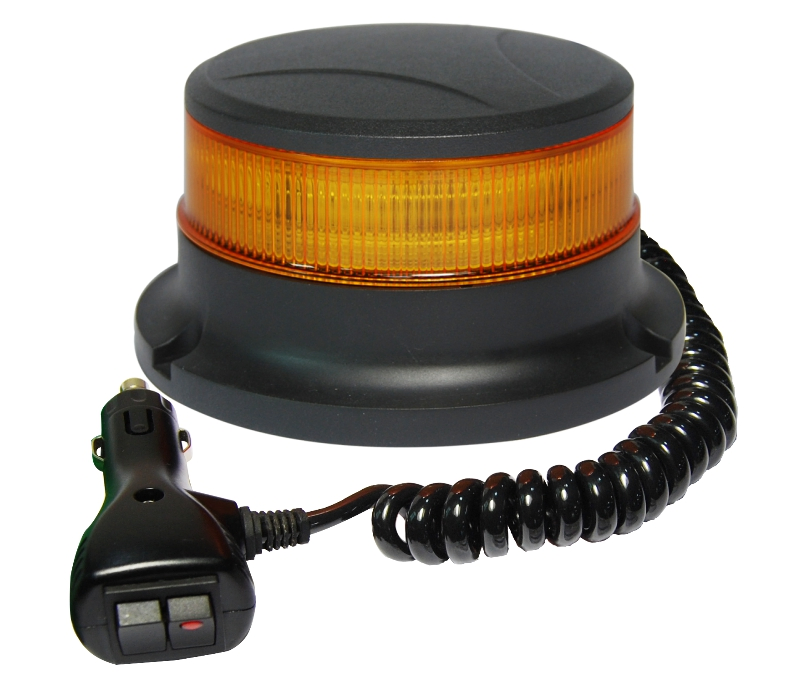

Three-Hole Screw Fixing or Magnet Base
Product Description

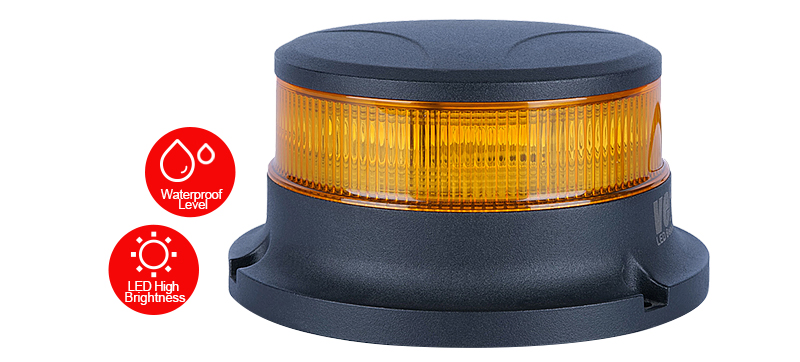

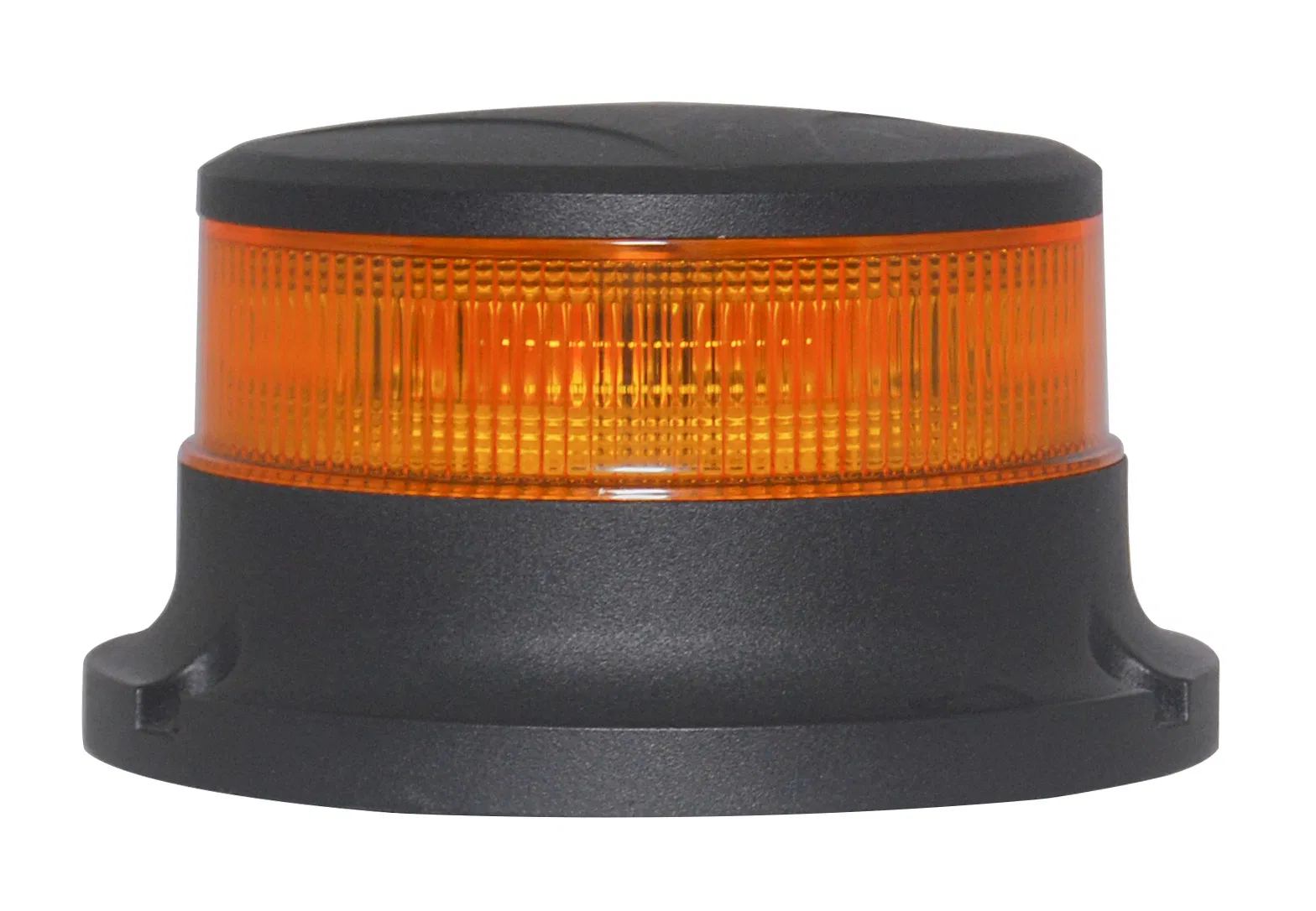

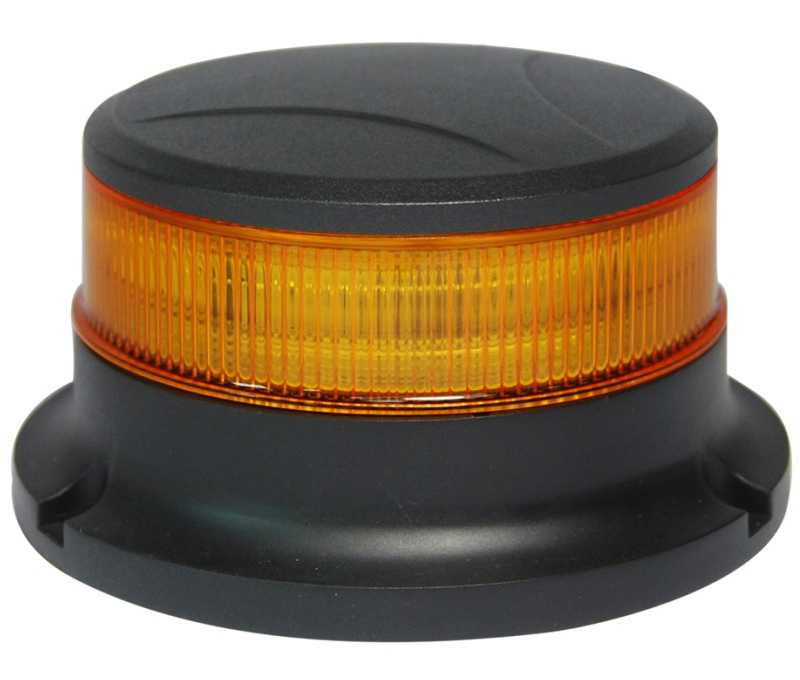

Flashing Safety Warning Lights Permanent Mount, LED Emergency Strobe Lights for Vehicles, Truck Tractor
✓ Fully sealed, vacuum, filled with nitrogen
✓ IP69K waterproof rating (100KPa)
✓ 48 high-brightness 0.5 watt LEDs
✓ Fresnel special optical polycarbonate lens
✓ Die-cast aluminum alloy base (ADC12)
✓ Cold-resistant waterproof power cable
✓ 6 blinks + 2 rotation warning light modes
✓ Reverse polarity and load-dump protection
| Maximum Power | 28W |
| Light Source | 48X0.5W high brightness LED |
| Waterproof Level | 100% IP69K |
| Warning Color | Amber |
| Flash Frequency | 2 Hz ≤ F ≤ 4 Hz |
| Operating Voltage | DC10-32V |
| Dimensions | 60(H) x 112(D) mm |
| Weight | 450g |
| Warranty | 3 Years |

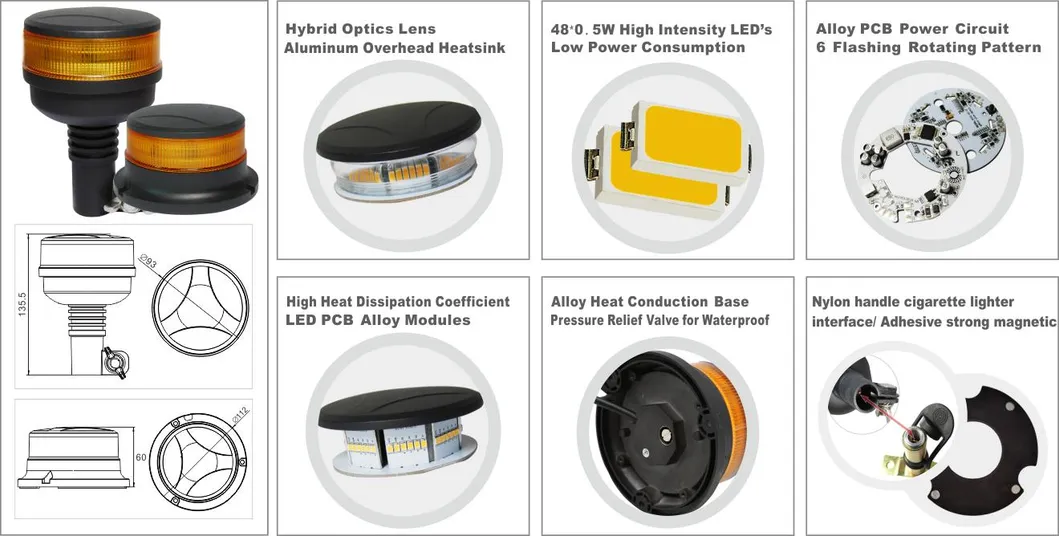

Detailed Images

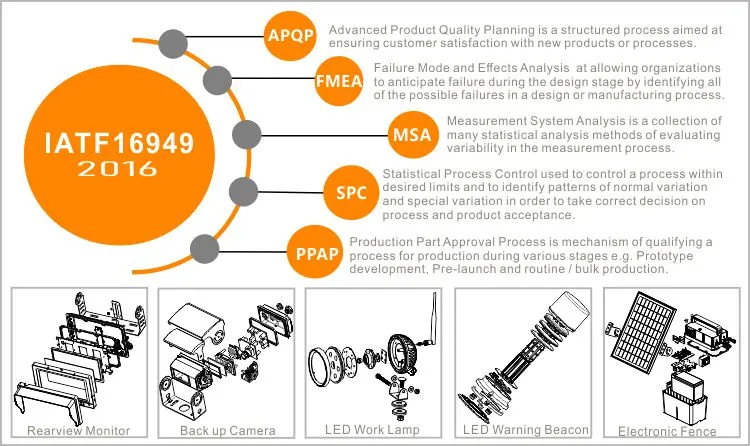

Research & Development

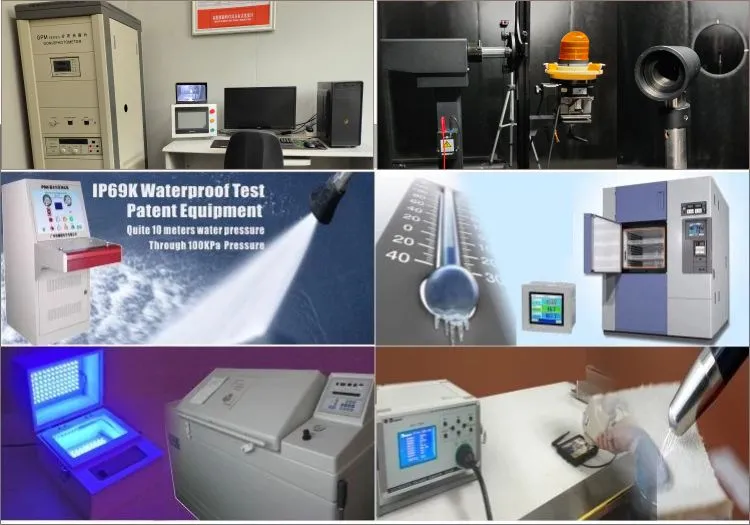

Quality Control

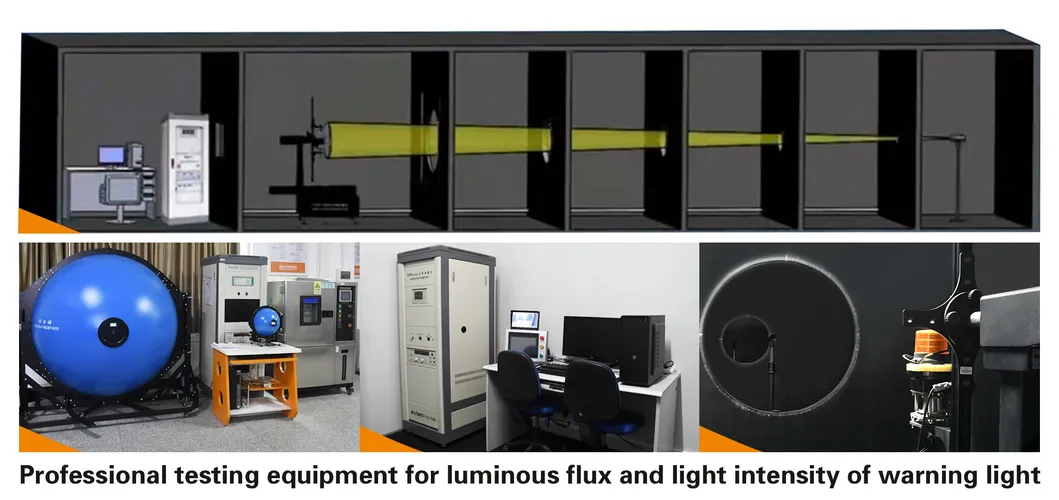

Light intensity analyzer: Ensures output conforms to ECE R65 standards.
Sealed pressure tester: Ensures waterproof performance meets IP69K rating.

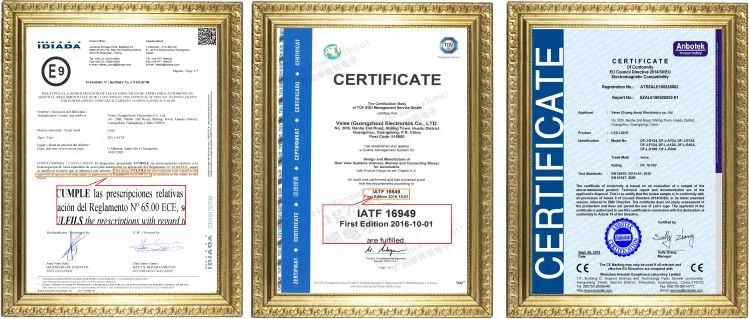

Certifications & Global Presence

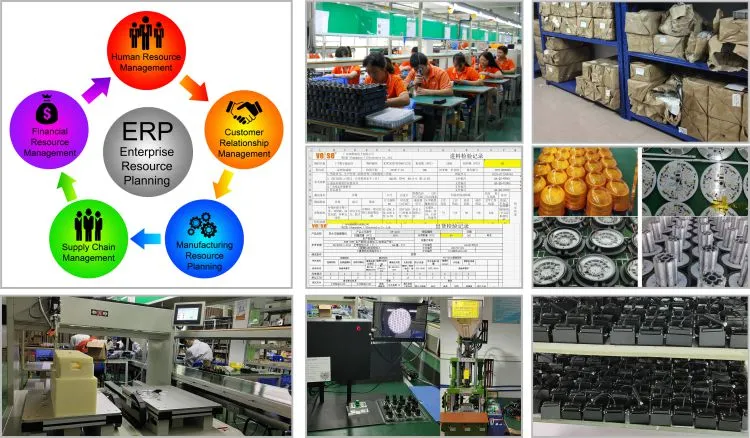

ERP Management
Frequently Asked Questions
Q1: What is the waterproof rating of this safety light?
A: This light features an IP69K waterproof rating, which is the highest protection level against high-pressure water jets and dust.
Q2: How many flashing modes are available?
A: The light supports 6 flashing modes and 2 rotating modes, controlled by an internal momentary switch with memory function.
Q3: Does the light get foggy in cold environments?

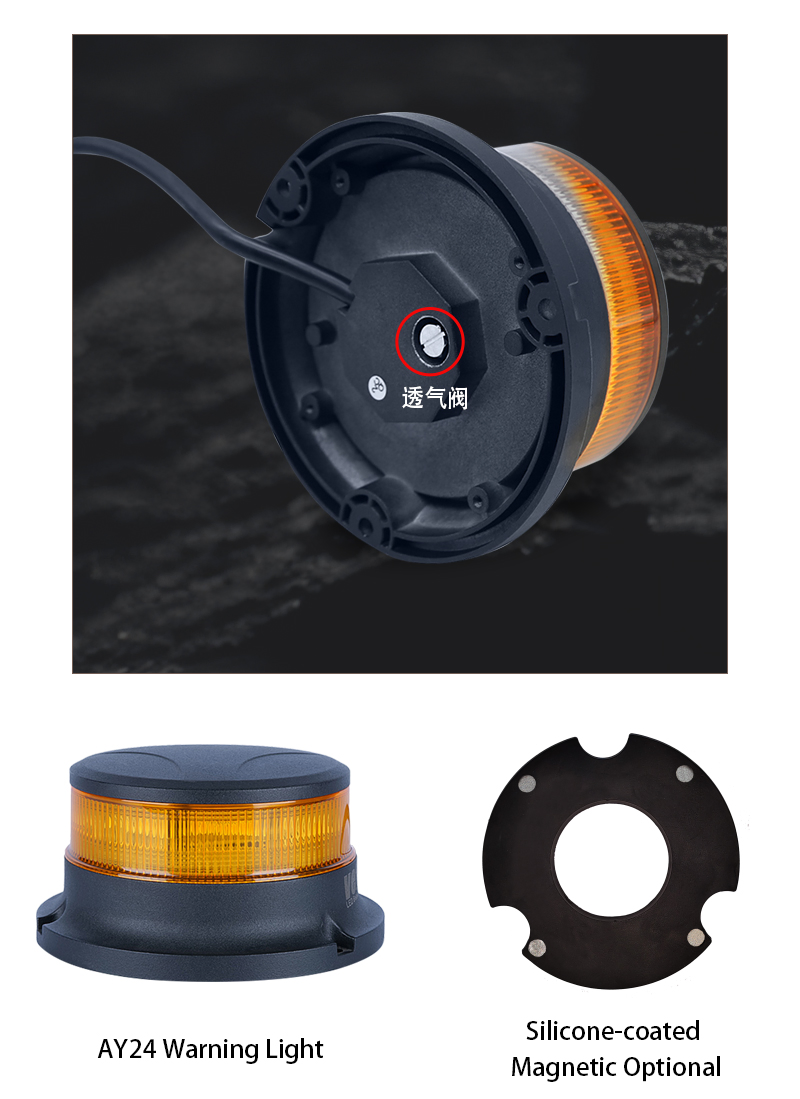

A: No, the light is 100% nitrogen-filled and uses a patented stainless steel breathable valve to prevent fogging and manage thermal pressure.
Q4: What are the main materials used in construction?
A: It is built with a die-cast aluminum alloy base (ADC12), an aluminum alloy heat dissipation cover, and a high-transmission Fresnel optical PC lens.
Q5: Which international quality standards does it comply with?
A: It meets ECE R65, ECE R10 (EMC), and SAE J845 Class 1 international light intensity standards.
Q6: Can I install this on a vehicle without drilling?
A: Yes, the light supports both a permanent three-hole screw fixing method and an optional magnet base adsorption method.
