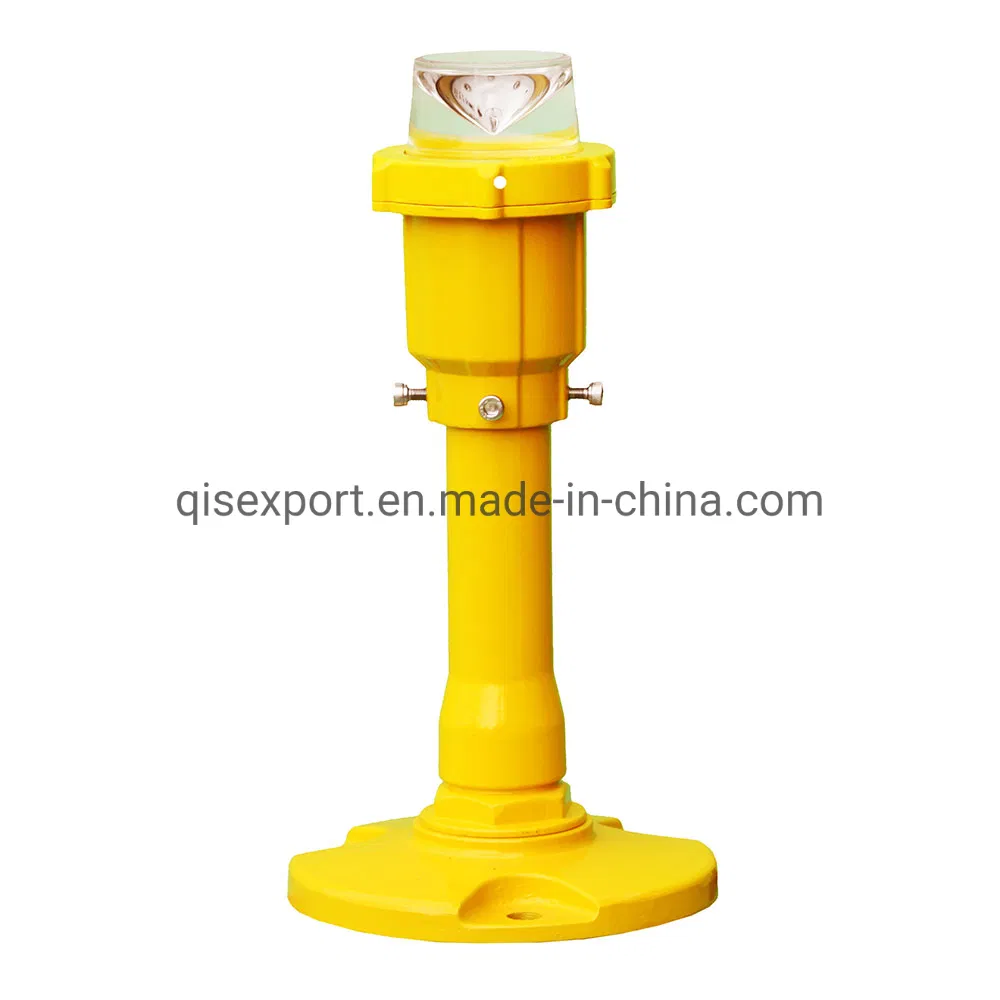

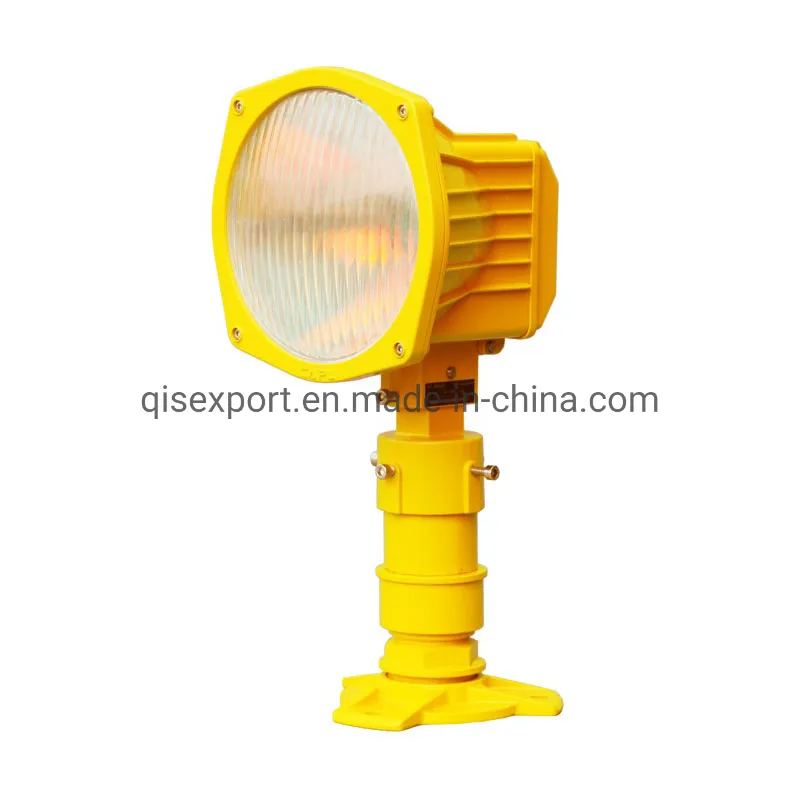

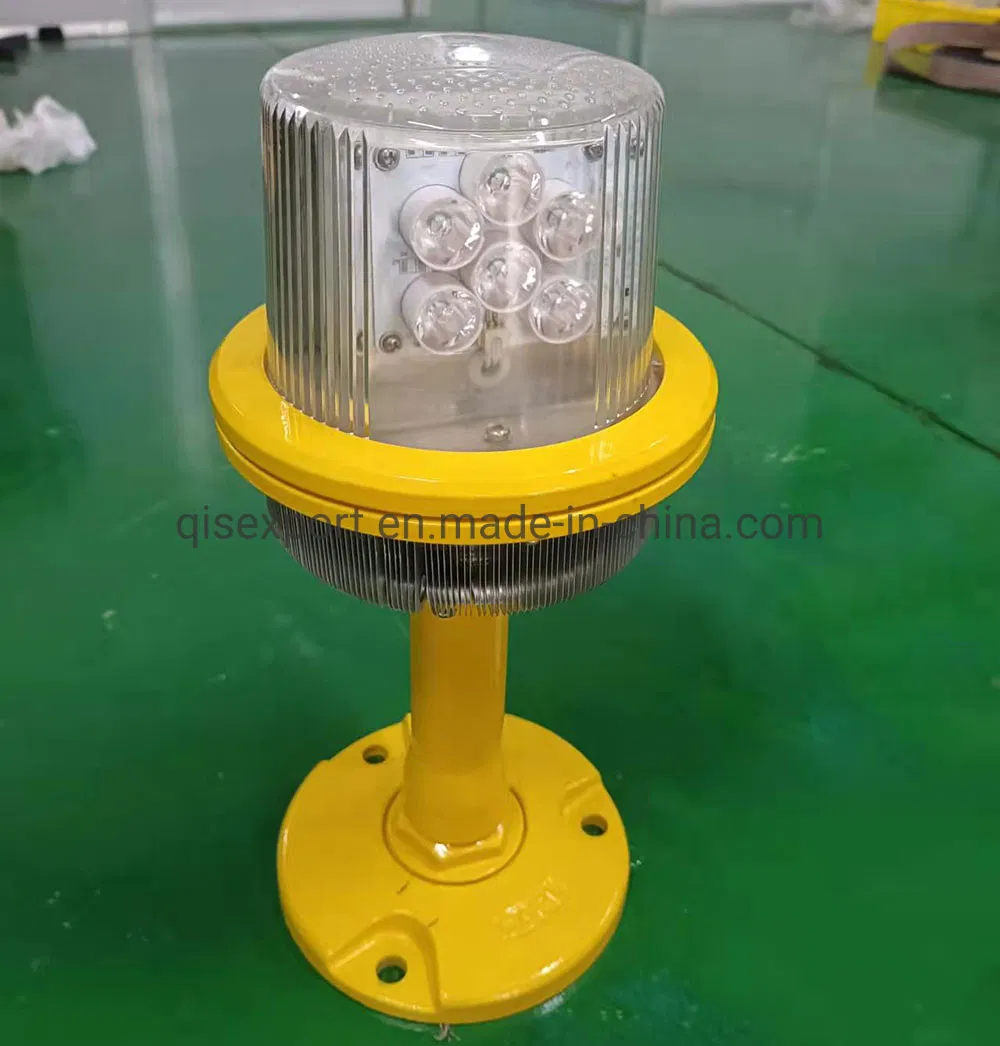

Elevated vertical airport lights are navigation aid lamps installed on both sides and extension lines at both ends of runway and taxiway, which are used to indicate the outline of the airport. These areas are far away from the runway and are not easy to be touched by aircraft tires during airport operation. Therefore, the lamps installed in these areas can be no more than 350mm higher than the pavement.
| No | Name | Model |
|---|---|---|
| 1 | Approach light | XL-620-H |
| 2 | Runway threshold light | PRL-620-H |
| 3 | Runway end light | PML-620-H |
| 4 | Runway guard light | PJJ-620-H |
| 5 | Runway edge light (WW) | PBL-620-H-WW |
| 6 | Runway edge light (W/Y) | PBL-620-H-W/Y |
| 7 | Runway edge light (W/R) | PBL-620-H-W/R |
| 8 | Taxiway edge light | HBL-600-H-b |
| 9 | T-shaped light | HBL-600-H-w |
| 10 | Apron light | HBL-600-H-r |

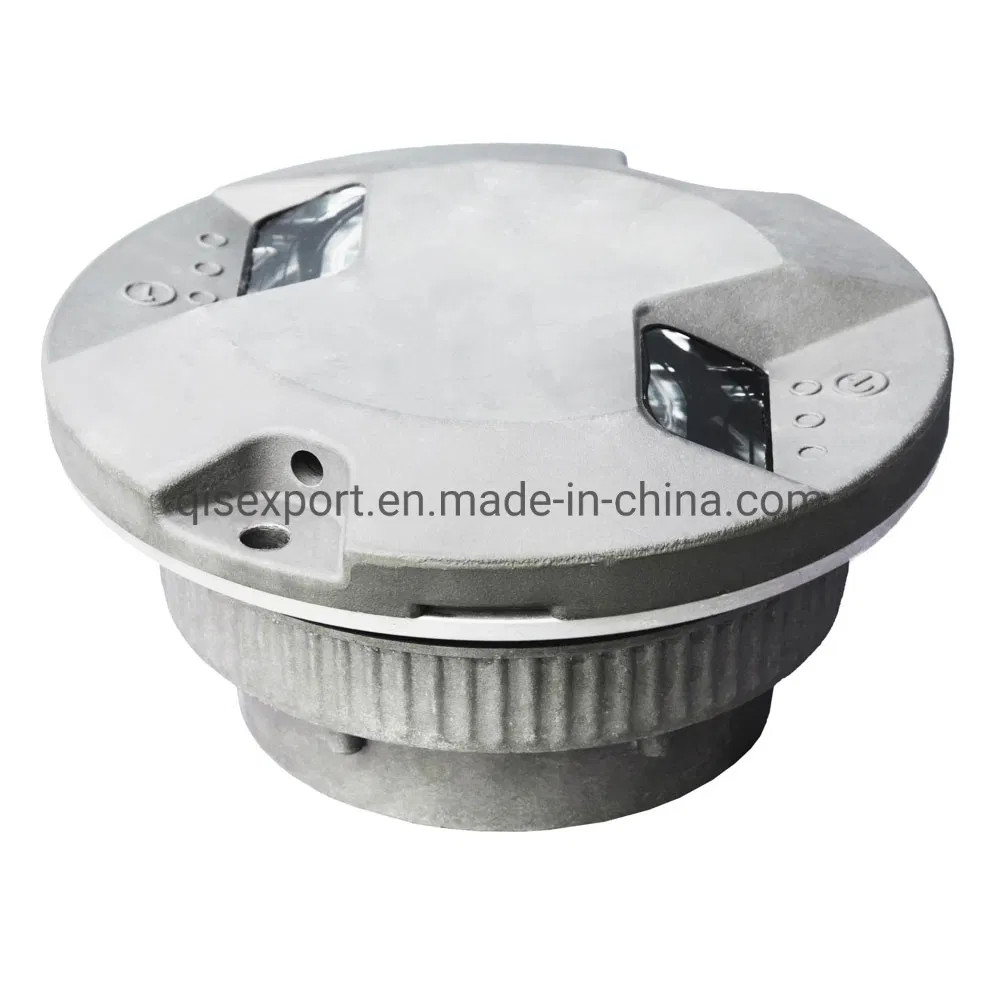

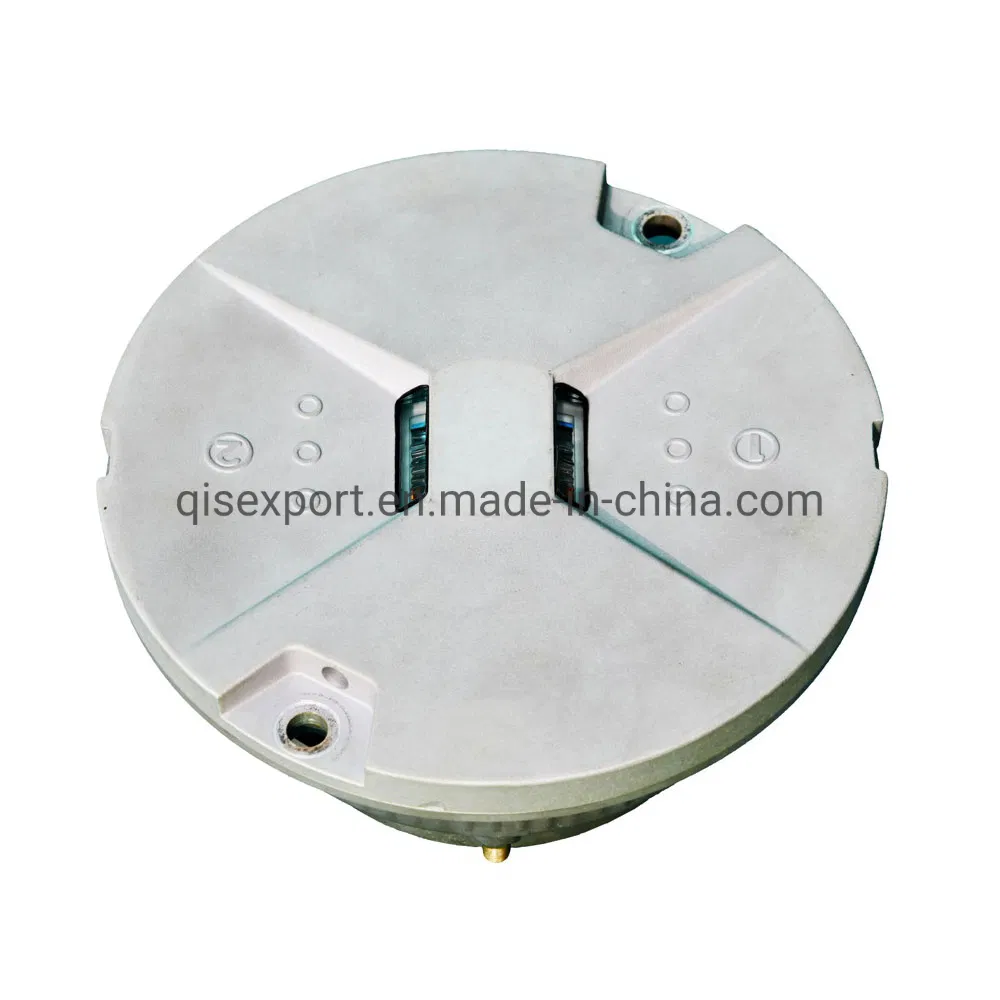

Inset light are navigation aids installed at ends of runway and taxiway or near the center line. These areas are easy to be touched by aircraft tires during airport operation, so the part of lights installed in this area higher than the pavement must be less than 12mm.
| No | Name | Model |
|---|---|---|
| 1 | Runway center line light | PZP-08S1-096-WY |
| 2 | Runway end light | PZP-08S1-096-R1 |
| 3 | Rapid exit taxiway indicator lights | PZP-08S1-096-Y1 |
| 4 | Runway touchdown zone lights | PZP-08S1-096-W1 |
| 5 | Taxiway center line light (straight) | HZP-08S1-040-YG |
| 6 | Taxiway center line light (curve) | HZP-08C1-040-YG |
| 7 | Stopway light/Stop-bar light | HZP-08S1-040-Y1 |
| 8 | Intermediate holding position light | HZP-08S1-040-Y1 |
| 9 | Low intensity B-type runway guard lights | HZP-08S1-040-Y1 |
| 10 | De-icing/anti-icing facility exit light | HZP-08S1-040-Y1 |
| 11 | Runway turn pad light | HZP-08S1-040-G1 |

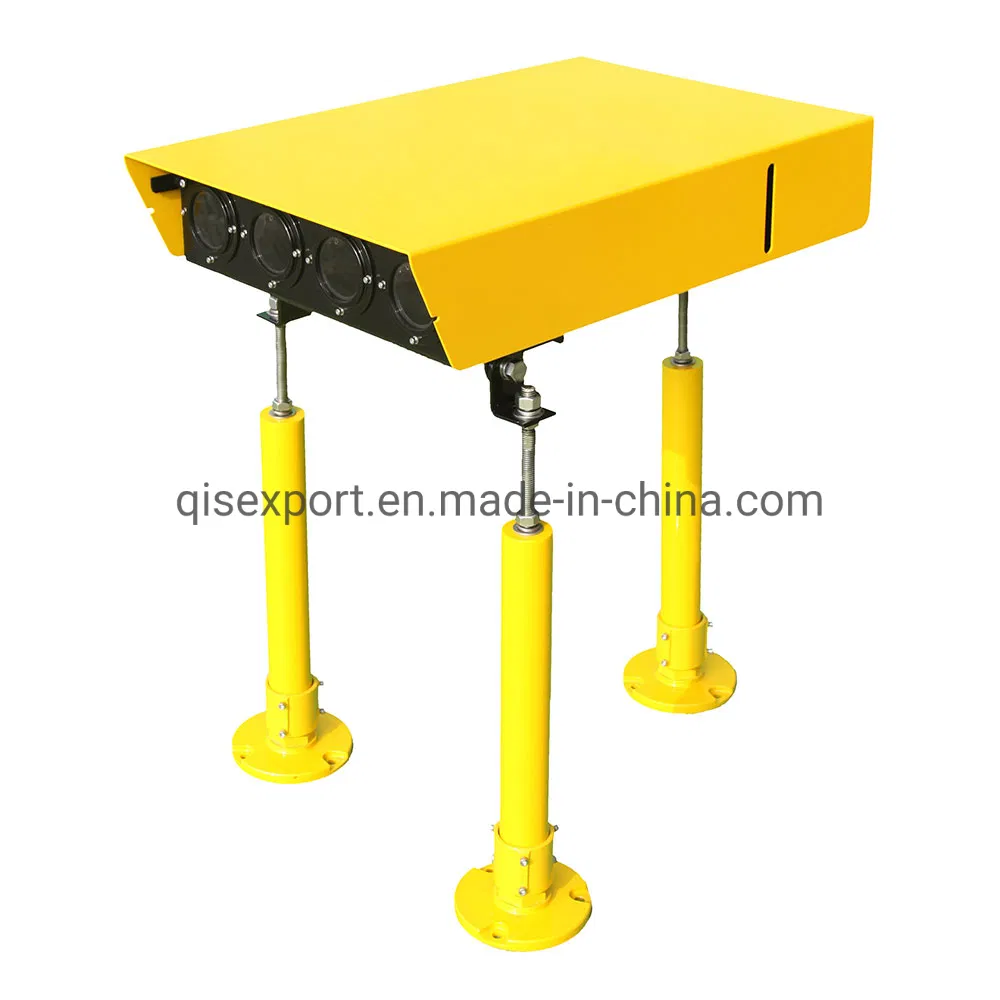

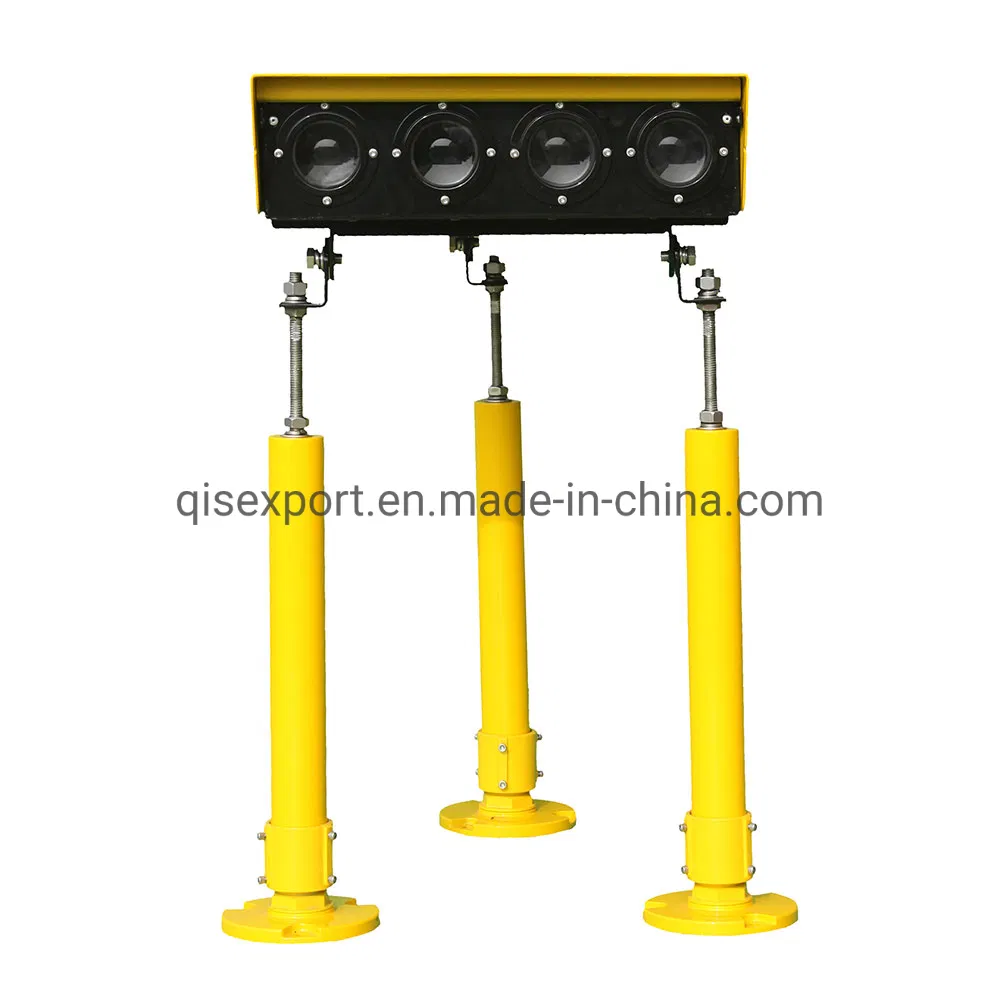

PAPI (Precision Approach Path Indication) System: Guides aircraft to approach the runway at the appropriate altitude. The top half of the beam is white and the bottom half is red. The combination of red and white light allows the pilot to judge and adjust altitude effectively.
PAPI vs APAPI: The PAPI system consists of four precision approach course indicators. The APAPI system consists of two precision approach course indicators.
A single light unit consists of a light body assembly (upper cover, front glass, box, lens, filter, bulb) and three brackets (flanges, easy-to-break parts, rods). Brackets support the body and adjust the height and elevation angle.
