Basic Specifications
Model NO.LCD-SST-150-LN2-5K
Color TemperatureCool White
IP RatingIP67 / IP68
Light Intensity> 5,000 Lumens
Light SourceHigh Power LED
Power80W-350W (Up to 3000W Equiv.)
Peak CD6.65 Mcd
Divergence2° - 4.1° FWHM
MaterialStainless Steel + Marine Aluminum
Illuminance Range1000m - 5000m

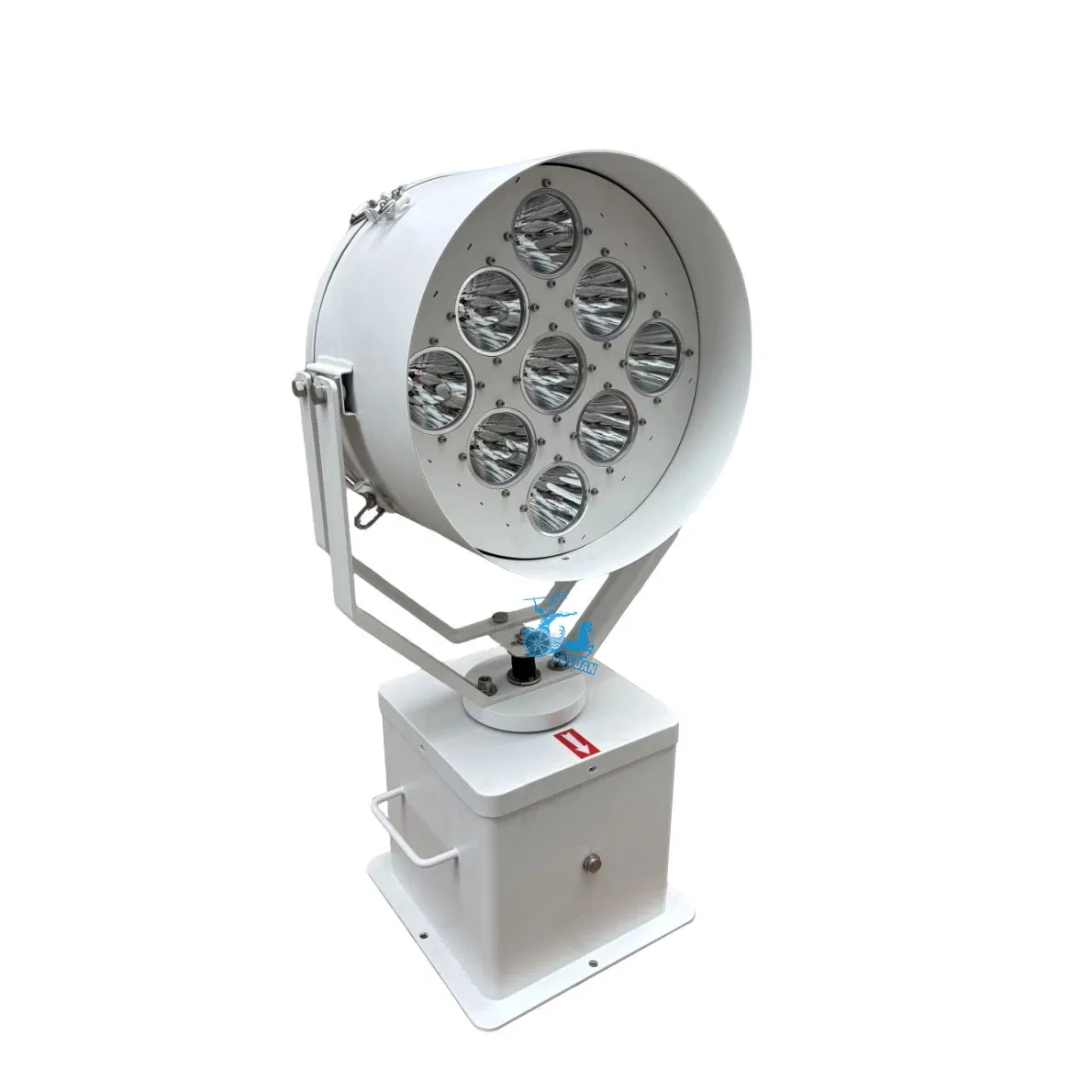

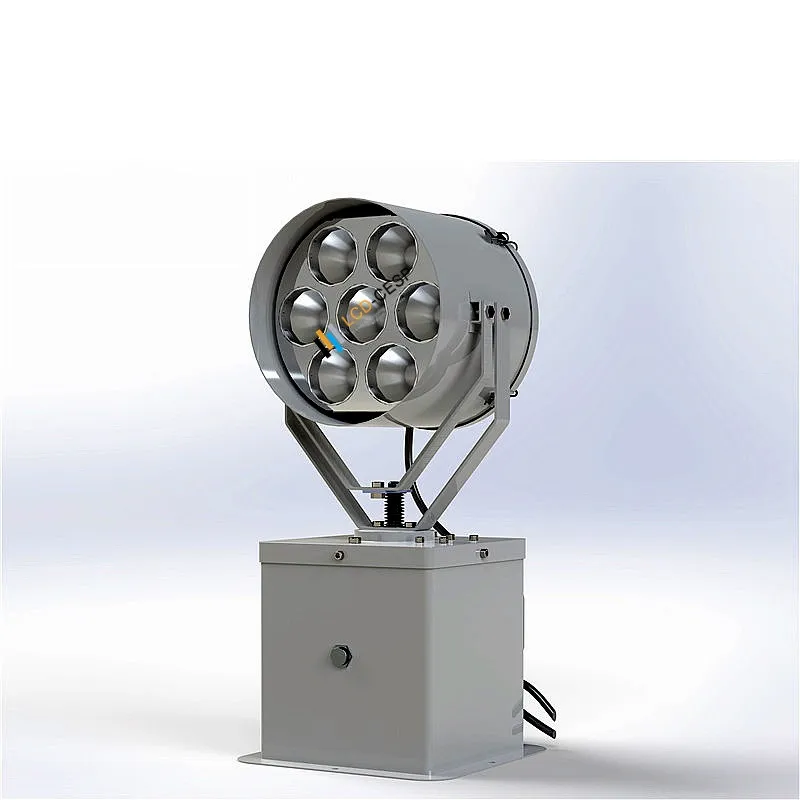

High Quality Marine Searchlights
Advanced LED technology (80W-350W) serves as a superior replacement for traditional 1000W-5000W Halogen and Xenon lamps. These searchlights deliver powerful illumination with options for both wide and narrow beams, ideal for professional marine applications.
Key Applications:
- Wide beam models: Ideal for close-range operations and man overboard rescue.

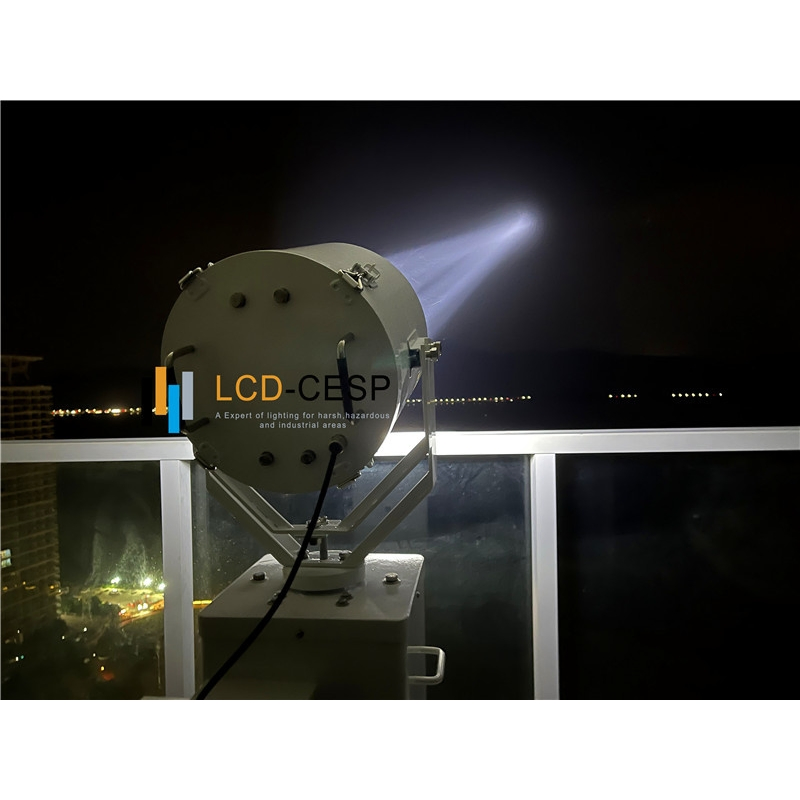

- Narrow 2° beam models: Provide long-distance visibility for demanding marine navigation.
- Harsh Environments: Optimized for Arctic conditions with a strong blue spectrum.
- Versatile Use: Suitable for patrol boats, SAR vessels, workboats, and superyachts.
Technical Superiority
Compared to traditional halogen systems, these LED searchlights offer a significantly longer lifespan with minimal maintenance, lower energy consumption, and a compact design for easy installation.
Product Specifications
| Feature |
Technical Detail |
| Lumen Output |
16,080 LM (Standard Module) |
| Beam Angle |
2.5° Parallel Light Rays |
| Input Voltage |
AC100-277V / DC 12V, 24V, 28V, 32V |
| Impact Resistance |
IK08 - IK09 High Impact Test |
| Vibration Standard |
5-6G Standards Resistance |
| Operating Temperature |
-30°C to +50°C |
| Housing Material |
Corrosion resistant Marine rate Pure Aluminum 1070 & Stainless Steel |
| Pan/Tilt Range |
Pan 0°~ 350°, Tilt -30°~ +30° (Remote Types) |
Frequently Asked Questions
1. What is the effective illumination distance of these searchlights?
The 2° narrow beam models provide long-range visibility from 1000 meters up to 5000 meters, depending on the specific module configuration and environmental clarity.
2. How do these LED searchlights compare to Xenon or Halogen lamps?
LED searchlights consume significantly less power (80W-350W) while providing equivalent brightness to 1000W-5000W traditional lamps. They also offer a much longer lifespan and are virtually maintenance-free.
3. Are these units waterproof and resistant to salt water?
Yes, they are rated IP67 and IP68, featuring corrosion-resistant marine-grade 1070 aluminum and stainless steel hardware, making them ideal for harsh maritime conditions.
4. What mounting and control options are available?

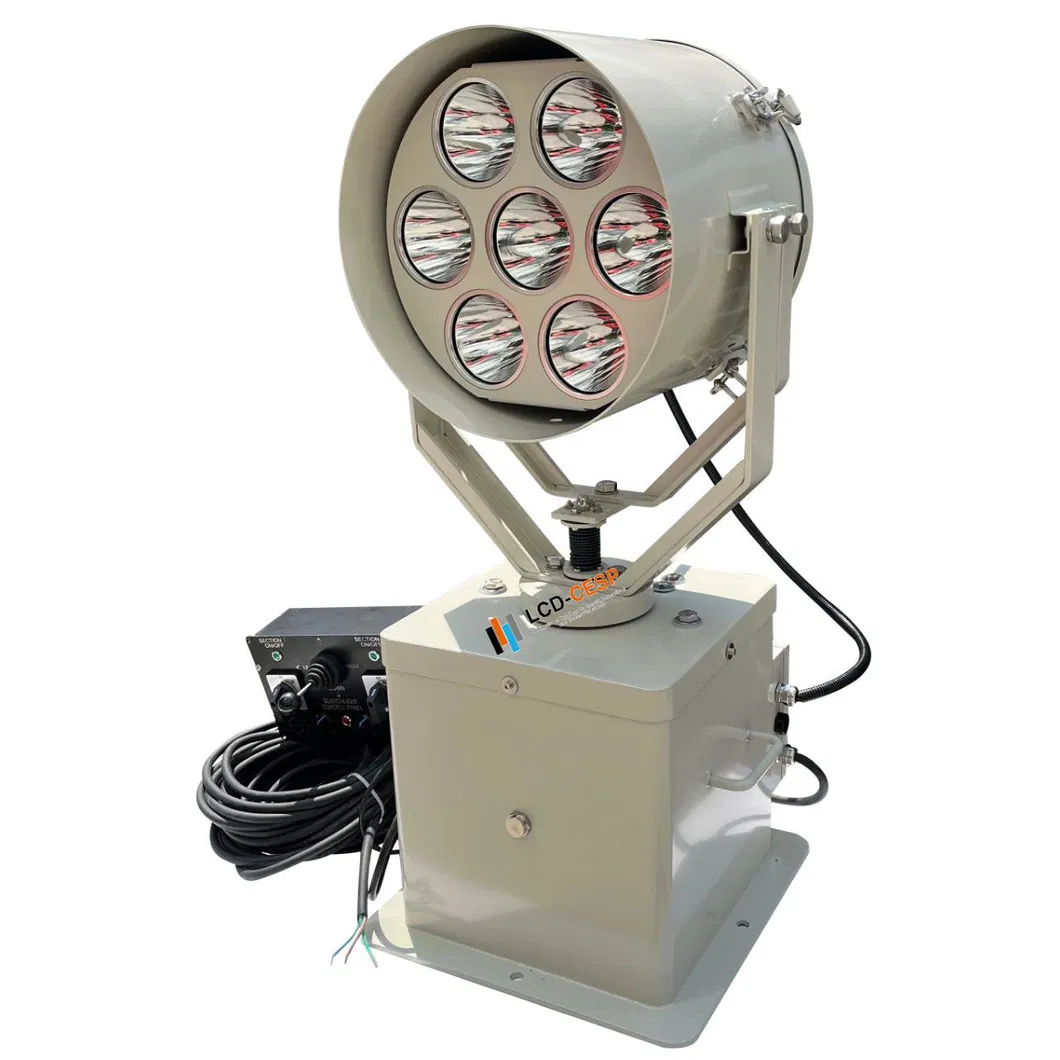

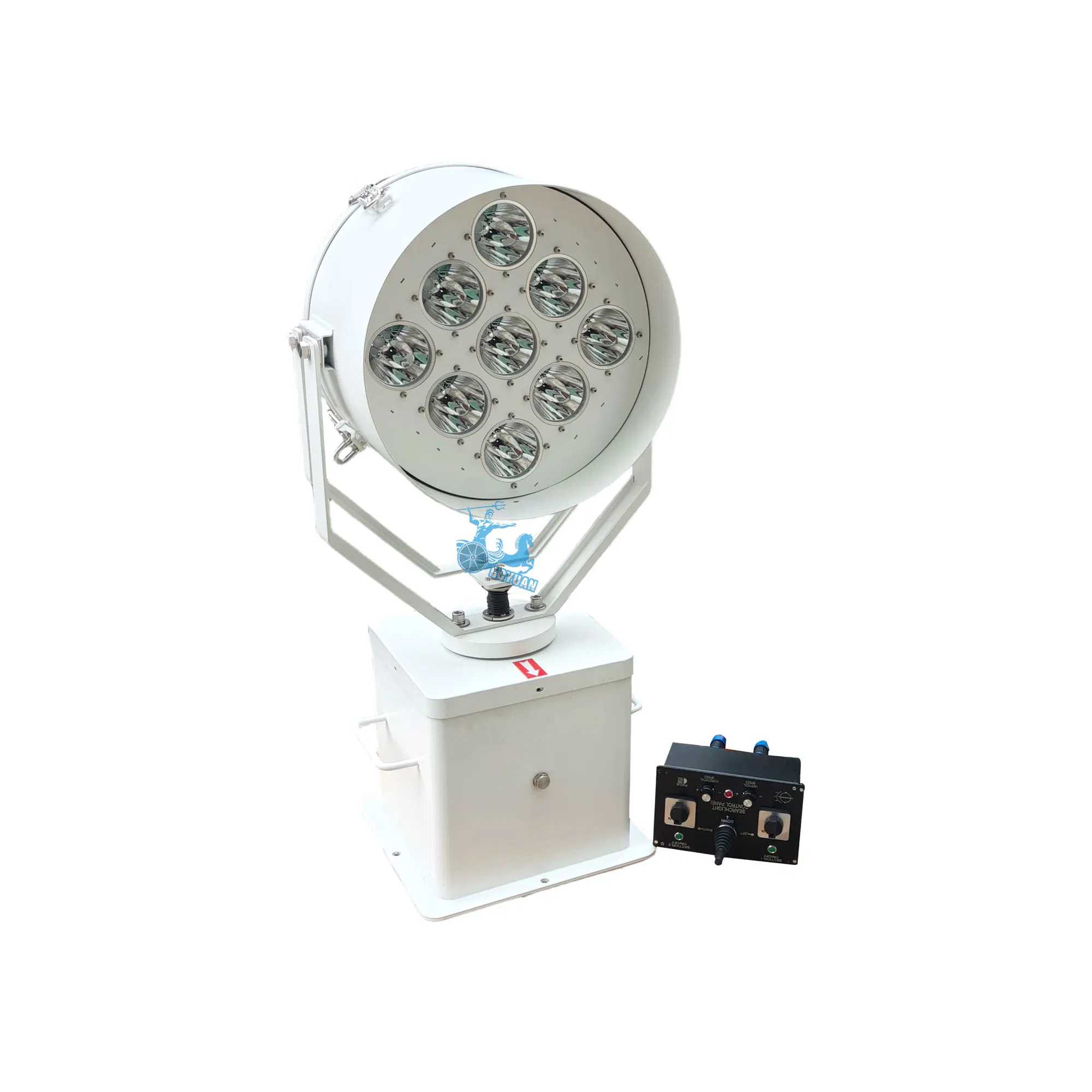

We offer manual (MD), cabin-controlled (MC), and electronic remote-controlled (EC) mounting kits to suit different vessel types and operational requirements.
5. Can these lights withstand heavy vessel vibrations?
Yes, our searchlights have passed vibration test resistance for 5-6G standards and feature high impact resistance (IK08-IK09), ensuring durability on high-speed patrol and workboats.
6. Does weather affect the beam distance?
While the optics are designed for maximum reach, illumination distances can deteriorate rapidly in heavy smoke, thick fog, or smoggy weather conditions.
