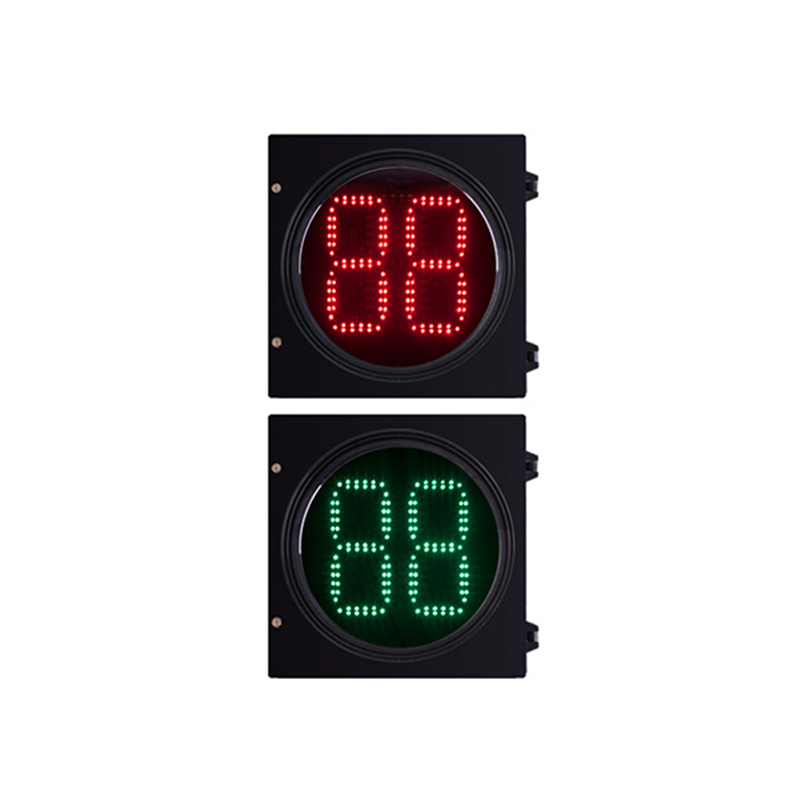

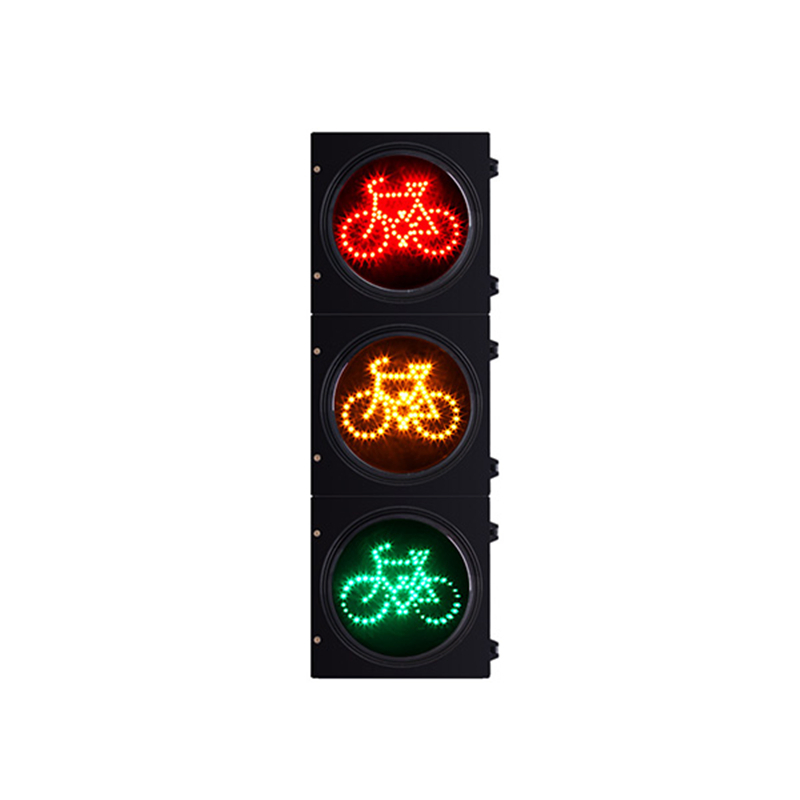

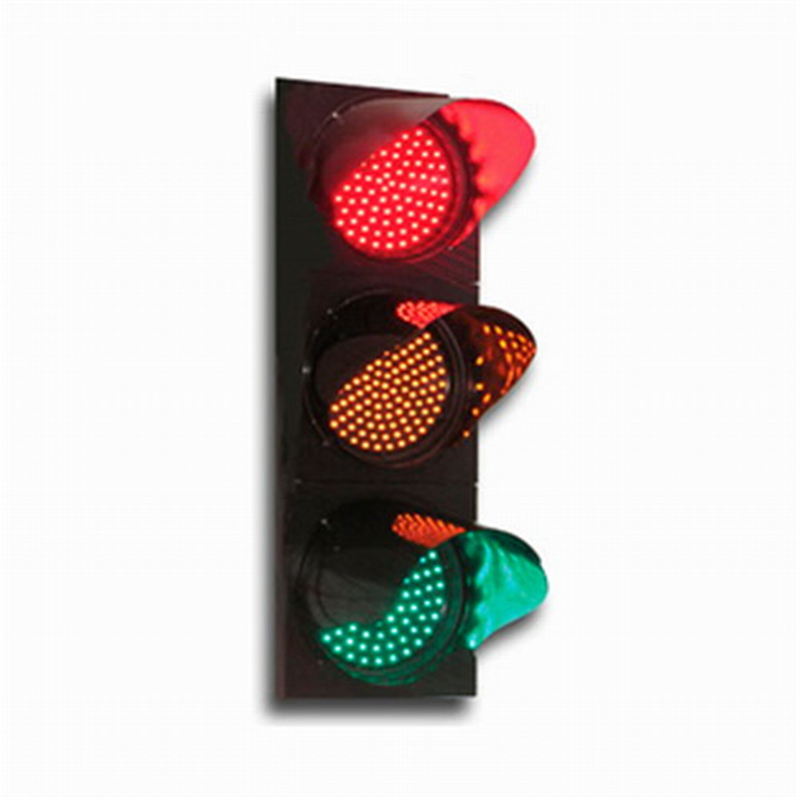

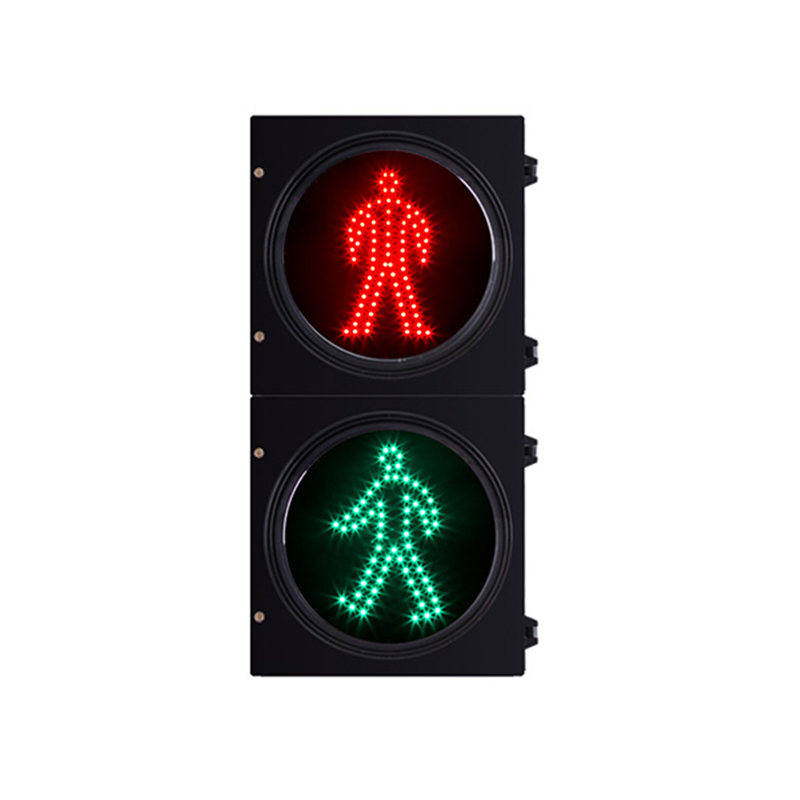

Cr RoHS Approved Pedestrian Warning Vehicle LED Traffic Control Flashing Light with CE Rosh

1 / 5

Cr RoHS Approved Pedestrian Warning Vehicle LED Traffic Control Flashing Light with CE Rosh

Customization:	Available
Dust-Proof:	Yes
Waterproof:	Waterproof

Send Inquiry

Product Description

Professional LED TRAFFIC SIGNAL LIGHT Factory

💠 Rich Experience In OEM/ODM
💠 Small Order Quantities Are Workable
💠 More Than 212 Customers Are Satisfied With Our Products & Service

Basic Information

Model NO.

LED Traffic Light

Housing Material

Die-cast Aluminum

Light Source

LED

Type

Motor Vehicles

IP Rating

IP66

LED Chips

Bridgelux

Certification

CCC, CE, CQC, RoHS

Visible Distance

>300m

LED Lifetime

10000 Hrs

Color

Red Yellow Green Blue(Optional)

Origin

China

HS Code

9405409000

Technical Specifications

Parameter	Details
Model No.	JD200-3-ZGSM-2-RG
Power	Red: ≤ 5W \| Green: ≤ 5W
Operating Voltage	100-240VAC 50/60Hz \| 12V or 24V DC
LED Q'ty	Red: 96 pcs \| Green: 96 pcs
Apply Diameter	Ф200 mm (Ф8 inches)
Operating Temp.	-40~+75 ºC
Wavelength	Red: 625±5nm \| Green: 500±5nm
Operating Humidity	10% ~ 90%
Visible Range	>500m
IP Rating	IP54
Housing Material	PC or Aluminum

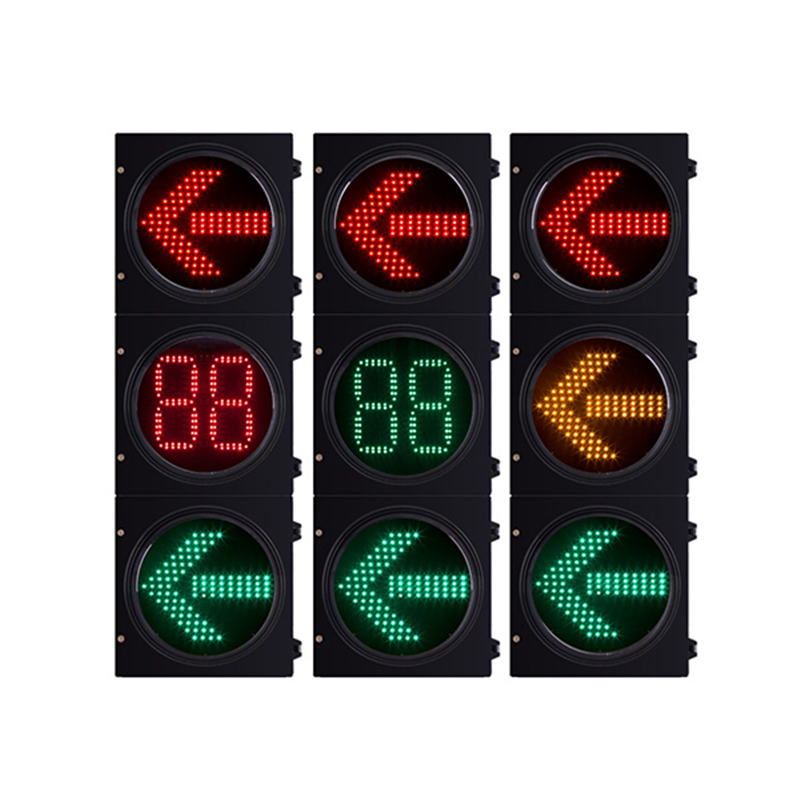

Modular Multi-Aspects LED Signal Heads

Utilizing imported LED chip, long lifespan
Using constant current driver, working voltage 100-240VAC, low power
Novel structure and beautiful appearance
Inflaming retarding and UV-proof housing material
Long visible distance, symmetrical light distribution
Multi-ply sealed water resistant, IP rating: >IP54
In accordance with GB/14887-2011 and International standards
LED Driver efficiency >85%, PF >0.85

Key Features

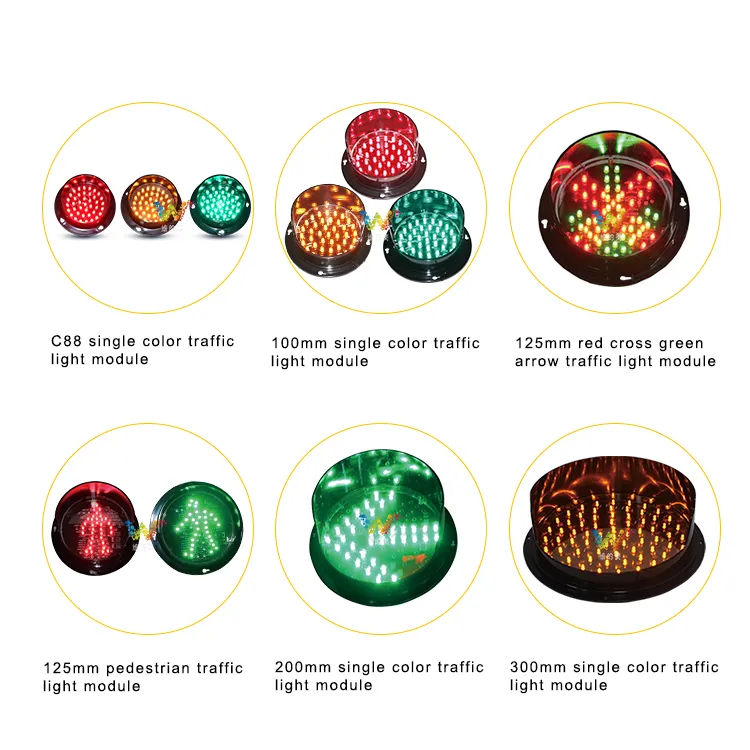

Available in D100/200/300/400mm; Combi signal (ie. D200mm+D300mm)
Longevity of operation and vandal-proof design
Vertical and horizontal mounting options
Low power consumption and brilliant light output
Operating temperature: -40ºC to +74ºC
Wide view angle and compatible with all traffic controllers

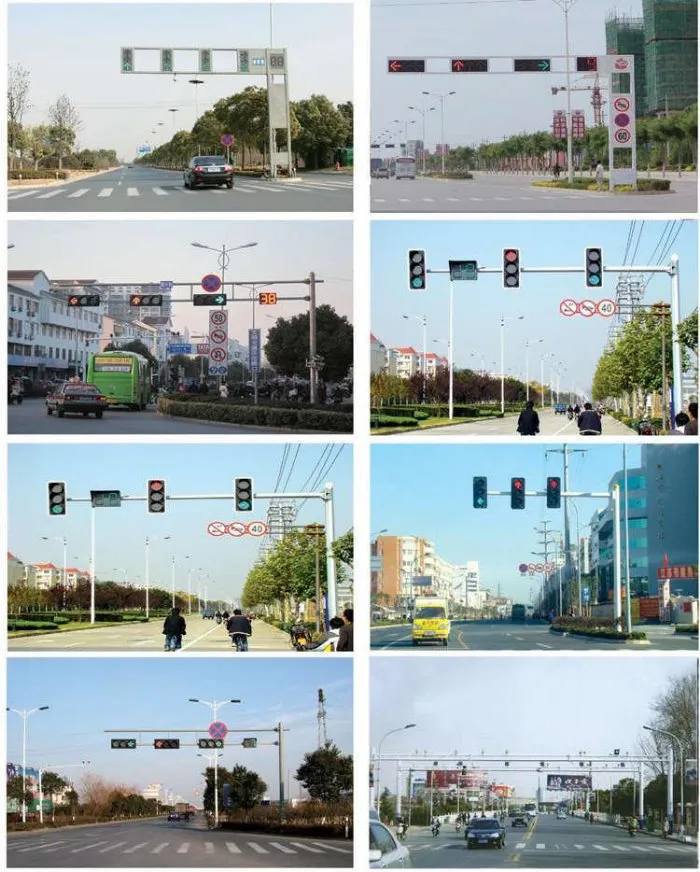

More than 50 countries have installed LED traffic signal lights all over the world.

Frequently Asked Questions

Q1. Can I have a sample order for LED traffic lights?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What is the typical lead time for orders?

A: Samples are usually ready within 3 days, while larger orders typically take 1-2 weeks.

Q3. How do you handle shipping and how long does delivery take?

A: We usually ship via DHL, UPS, FedEx, or TNT, taking 3-5 days. Airline and sea shipping are also optional.

Q4. Is it possible to print a custom logo on the product?

A: Yes. Please inform us formally before production and confirm the design based on our sample.

Q5. What kind of guarantee do you offer for the products?

A: We offer a comprehensive warranty ranging from 3 to 7 years depending on the specific product model.

Q6. How do you manage product quality and faults?

A: Our products are produced under a strict quality control system with a defective rate of less than 0.1%. During the warranty period, we repair or replace any defected products.
