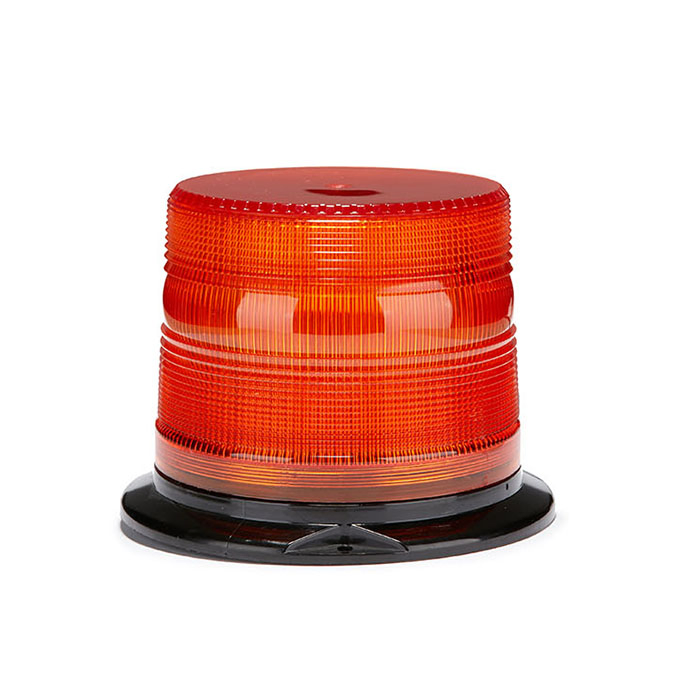

Senken High Brightness Magnetic Mount ECE R65 Gen III LED Safety Beacon Warning Light for Different Vehicles

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.
LL103
Colors
Amber/Red/Blue/White
Power
24W
Voltage
DC10-30V
IP Rating
IP65
Installation
Magnetic/Bolt/Permanent Mount
Dimensions
φ168 mm x 127.8 mm
Light Source
Gen 3 LED
Current Draw
Less Than 1.5A
Flash Frequency
60-100 Times/min
Key Features
  • Uses Gen 3 LEDs as light sources with high brightness.
  • Superior optical lens design for excellent 360° visibility horizontally and wide view angle vertically.
  • Aluminum pillar inside with good heat dissipation ensuring a stable electrical performance.
  • Standard mounting sizes for a user friendly replacement.
  • Colors are optional within red, blue and amber.
  • Universal flash patterns factory-customizable according to requirement.
  • Flash patterns are selectable by self-contained touching switch on the base.
Product Display
Technical Parameters
ModelLL103
Diameter (L)φ168 mm
Height (H)127.8 mm
MountingMagnetic / Permanent
Rated VoltageDC10V-DC30V
Current Draw≤1.5A
Rated Power24W
Color OptionsRed, Blue, Amber, Clear
Light SourcesGen III LED
Net Weight0.62 / 0.87 KG
Technical Drawing 1
Technical Drawing 2
Packaging Info
Package Size
110.00cm * 89.00cm * 50.00cm
Gross Weight
65.000kg
Transport Package
Carton
Frequently Asked Questions
Q1: What type of LEDs are used in the LL103 beacon? A: The LL103 uses high-brightness Gen 3 LEDs as its light source for superior visibility.
Q2: Does this beacon provide full 360-degree coverage? A: Yes, it features a superior optical lens design that provides excellent 360° visibility horizontally and a wide vertical view angle.
Q3: What are the available mounting options for this model? A: The LL103 supports multiple installation modes, including Magnetic, Bolt, Pole, and Permanent mounting.
Q4: Is the housing designed for heat management? A: Yes, it includes an internal aluminum pillar for efficient heat dissipation, ensuring stable electrical performance.
Q5: What is the operating voltage range for this warning light? A: The beacon is compatible with a wide voltage range of DC 10V to DC 30V.
Q6: How can I change the flash patterns? A: Flash patterns are easily selectable via a self-contained touch switch located on the base of the unit.
