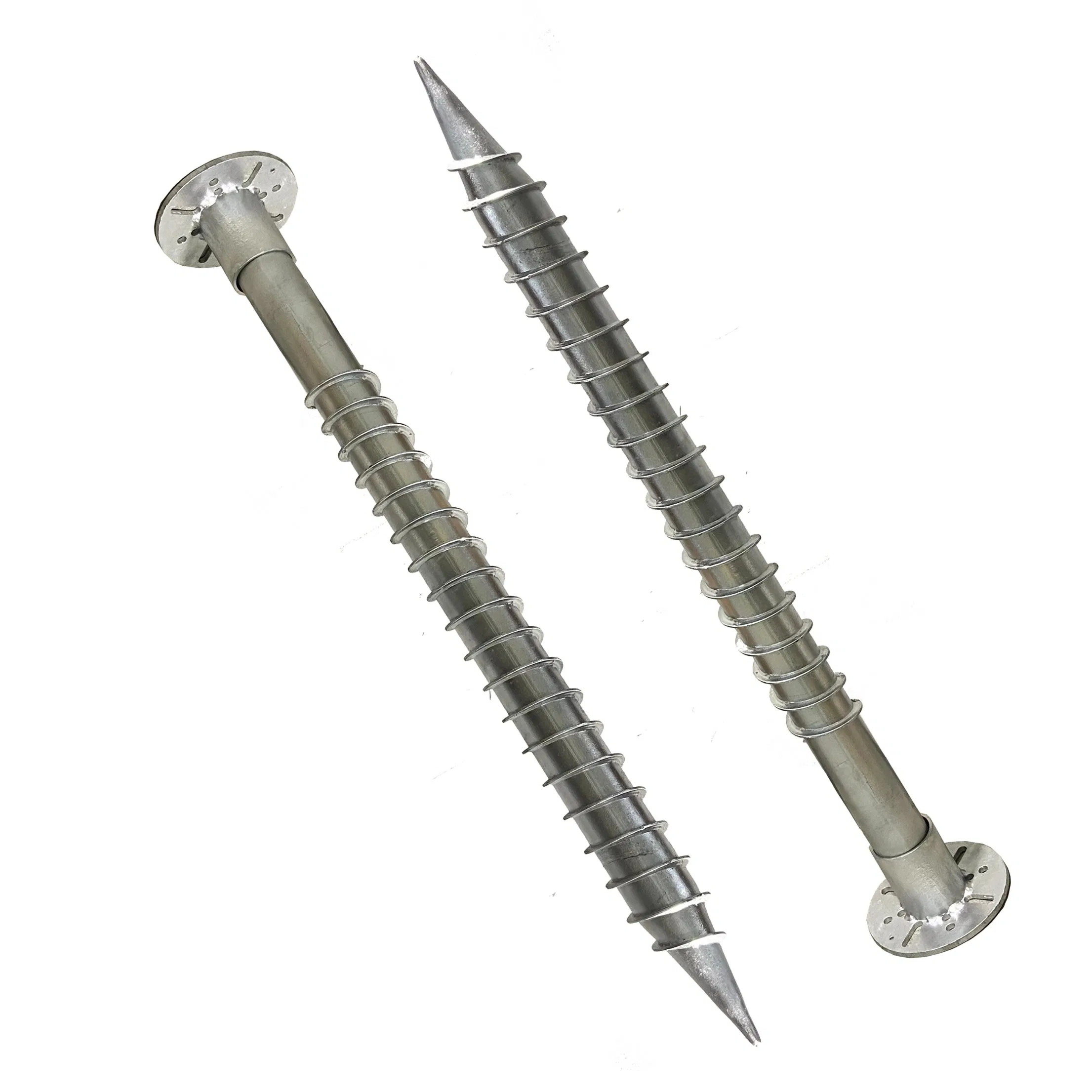

Carbon Steel Adjustable Solar Energy System Anchor Screw Pile Heavy Ground Screw

1 / 5

Carbon Steel Adjustable Solar Energy System Anchor Screw Pile Heavy Ground Screw

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Application:Home, Industrial, Commercial

Specification:Normal, Customization

Length:100-1000mm

Steel Material:Q235B, Q355B

Used:Building, Machinery, Chemical, Environment

Finishing:HDG, Spray, Zinc Aluminum Magnesium

Delivery Time:7-30 Days

Connection:Common Bolt, Hinged Bolts

Name:Carbon Steel Solar Ground Screw

HS Code:7318159090

Packaging & Delivery

Package Size:21.00cm * 20.00cm * 17.00cm

Gross Weight:25.000kg

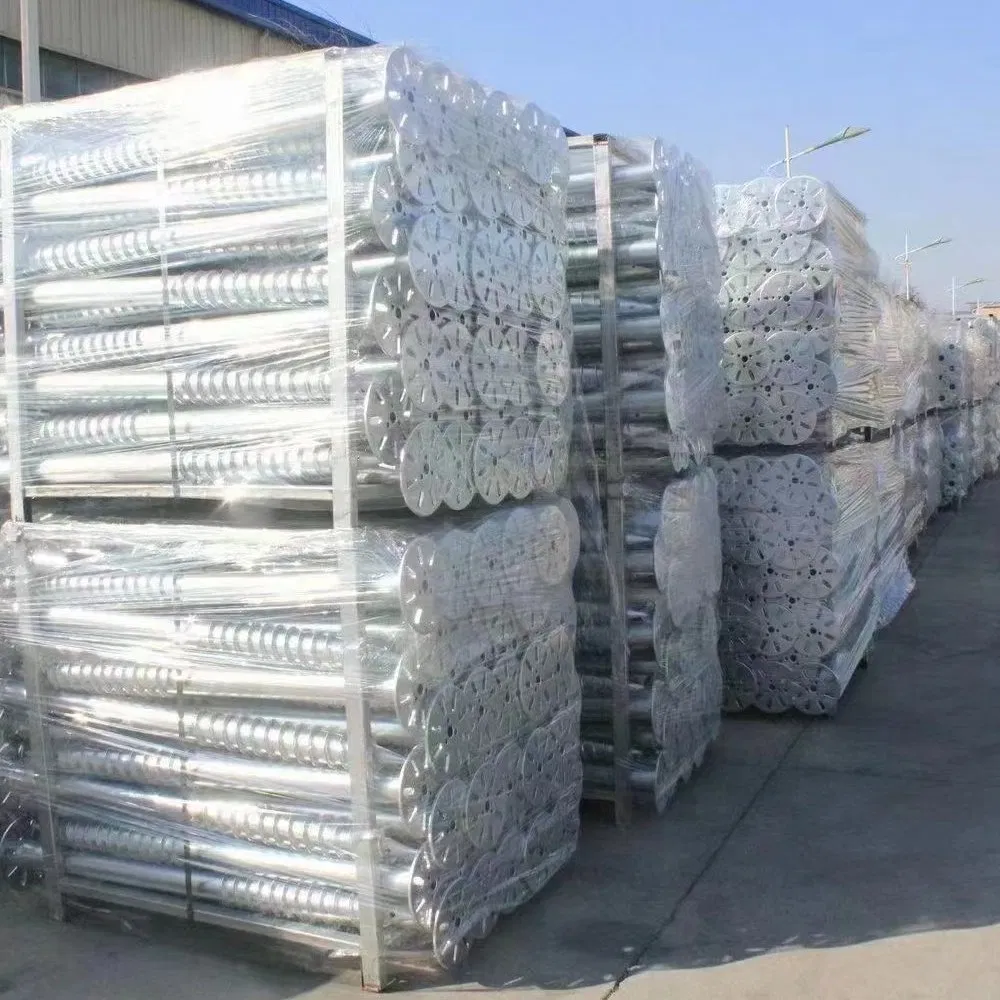

Transport Package:Cartons & Pallets

Production Capacity:500ton/Month

Product Description

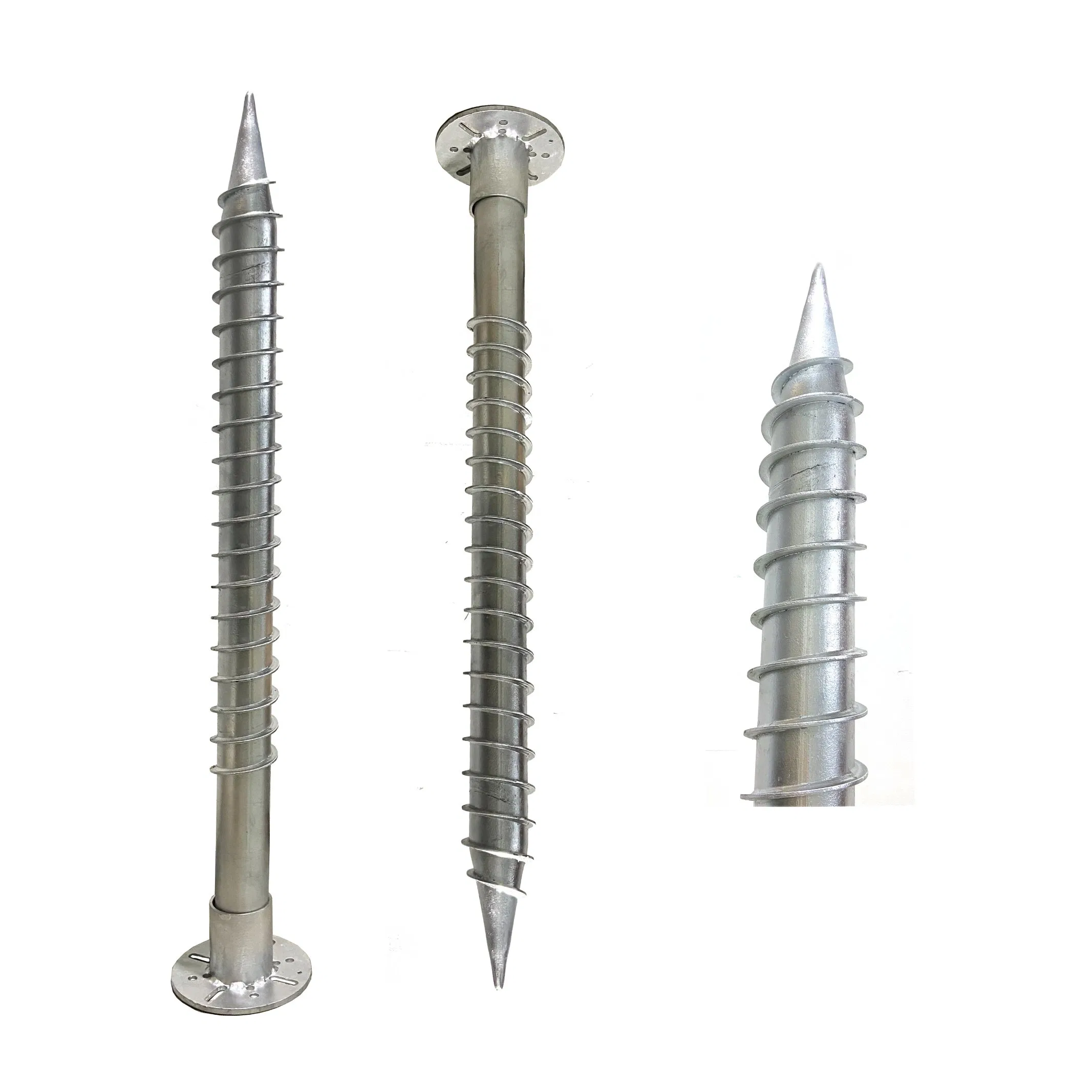

Carbon Steel Adjustable Solar Energy System Post Anchor Ground Screw

Ground Screw as an advanced foundation support solution, are widely used in numerous fields. With their unique spiral shape design, they can be quickly and effectively anchored into the ground, providing a stable foundation for various above-ground structures. There is no need for large-scale earth excavation and concrete pouring, which greatly improves construction efficiency and reduces the impact on the environment. They are favored foundation components in modern engineering construction.

Product Features

✔ Efficient and Convenient Installation: Rapid deployment without waiting for concrete to cure.

✔ Excellent Load-bearing Capacity: Engineered for high stability and structural integrity.

✔ Outstanding Adaptability: Suitable for various soil conditions and terrains.

✔ Adjustability and Flexibility: Easy to align and adjust for precise construction needs.

✔ Environmental Protection: Reusable foundation solution with minimal site disturbance.

Product Material

🔹 Q235 Carbon Structural Steel

It has certain strength and toughness and relatively low cost. It is widely used in the production of screw piles for general construction and civil engineering projects. After hot-dip galvanizing treatment, its corrosion resistance is significantly improved, extending the service life of the piles.

🔹 Q345 Low-Alloy High-Strength Steel

Compared with Q235 steel, Q345 steel has higher strength and better comprehensive mechanical properties. It is suitable for engineering projects with higher requirements for load-bearing capacity, such as industrial plants, large billboards, and wind turbine foundations.

Product Parameters

Model	Screw Diameter (mm)	Screw Length (mm)	Spiral Blade OD (mm)	Blade Spacing (mm)	Load Capacity (kN)
GS-01	48	600	100	200	10
GS-02	60	800	120	250	15
GS-03	76	1000	150	300	20
GS-04	89	1200	180	350	25

Application Fields

🏗️ Construction

Residential Building Foundations
Temporary Building Support

☀️ Energy Industry

Solar Photovoltaic Power Stations
Small Wind Turbine Foundations

🚦 Transportation

Road Sign Foundations
Temporary Traffic Signal Foundations

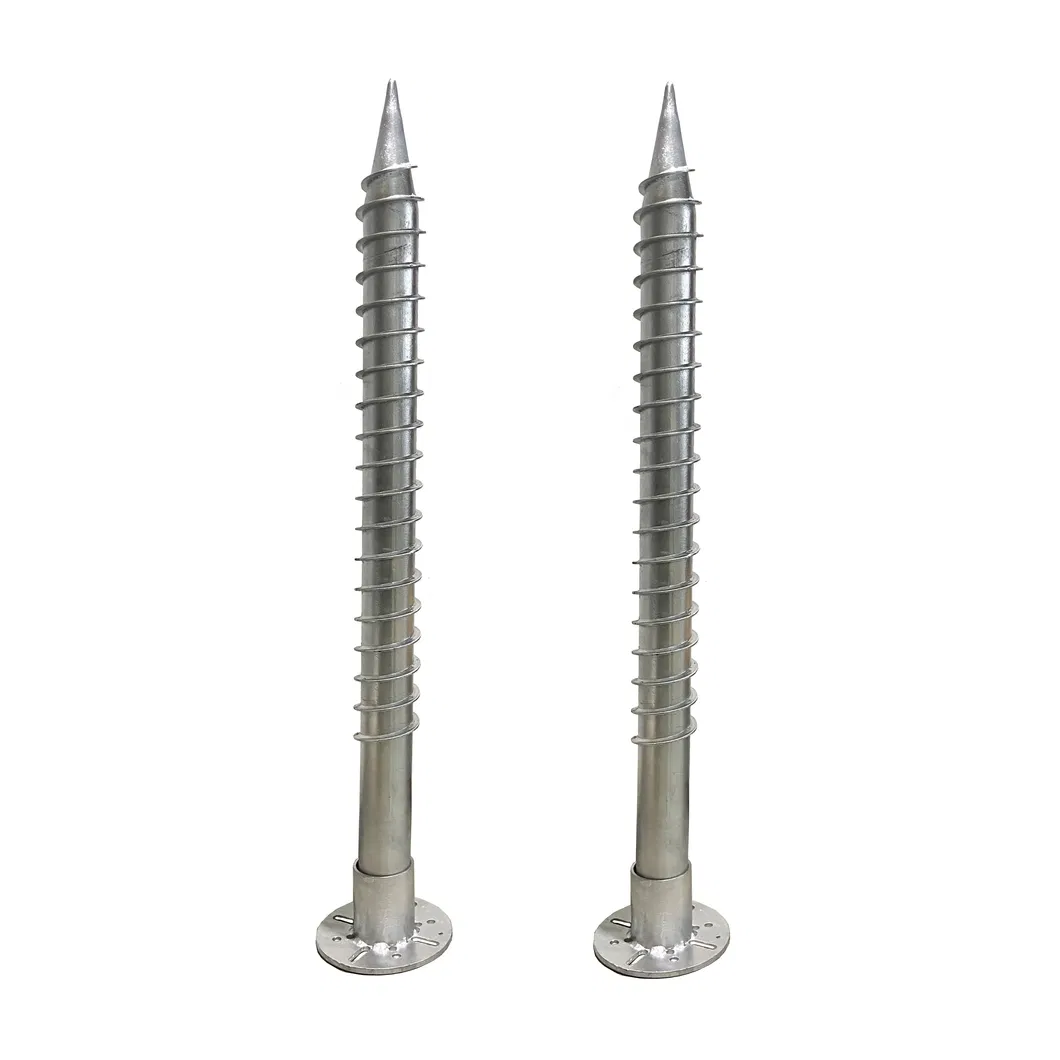

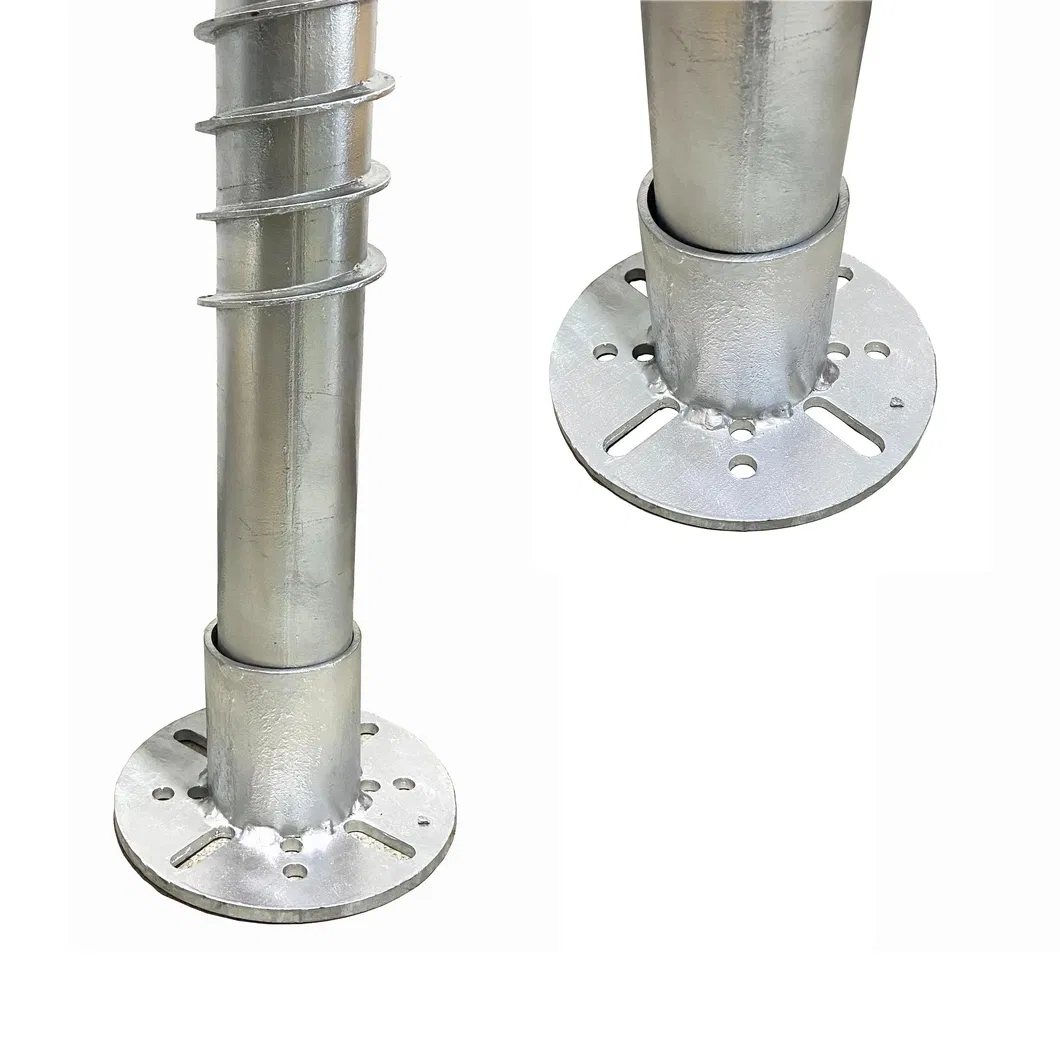

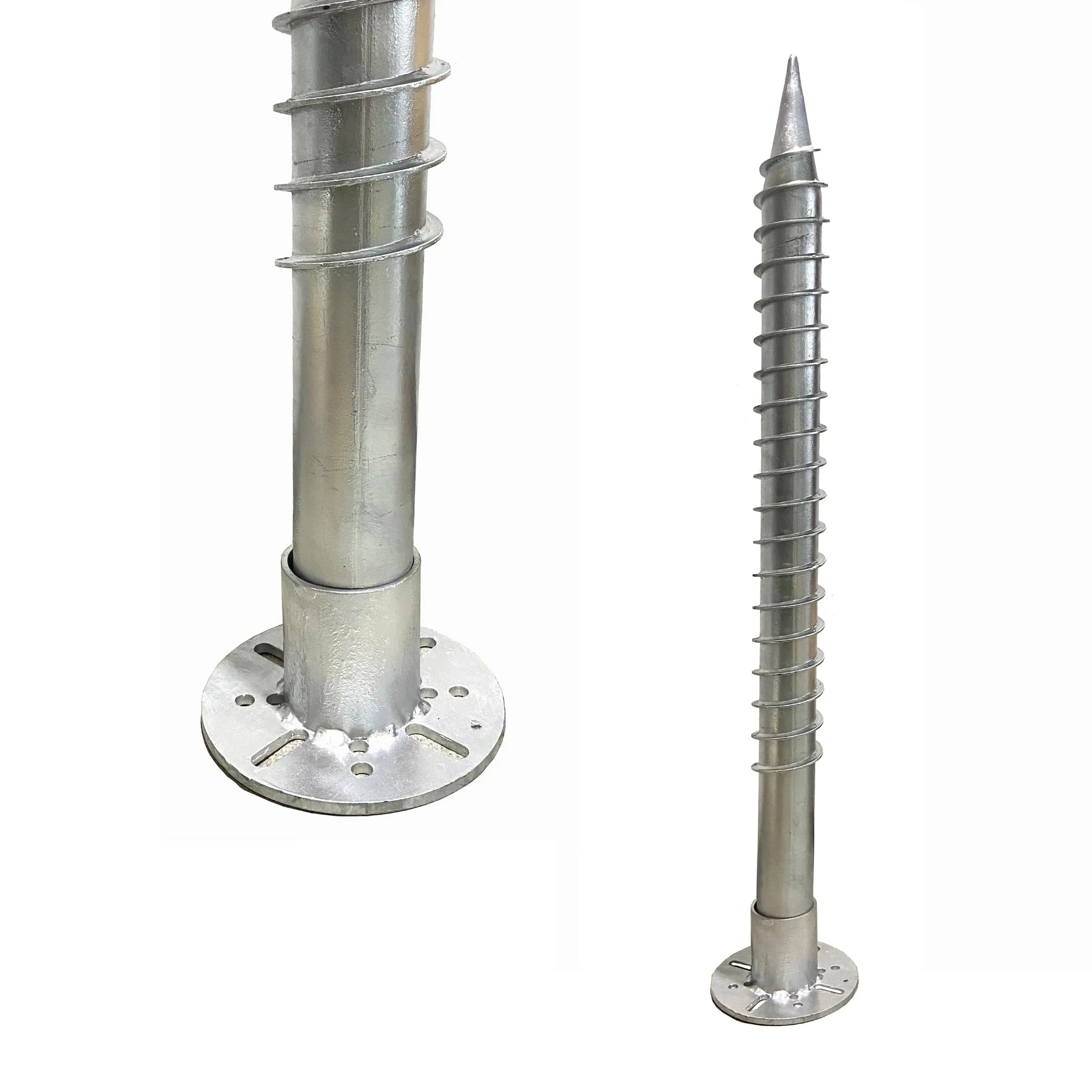

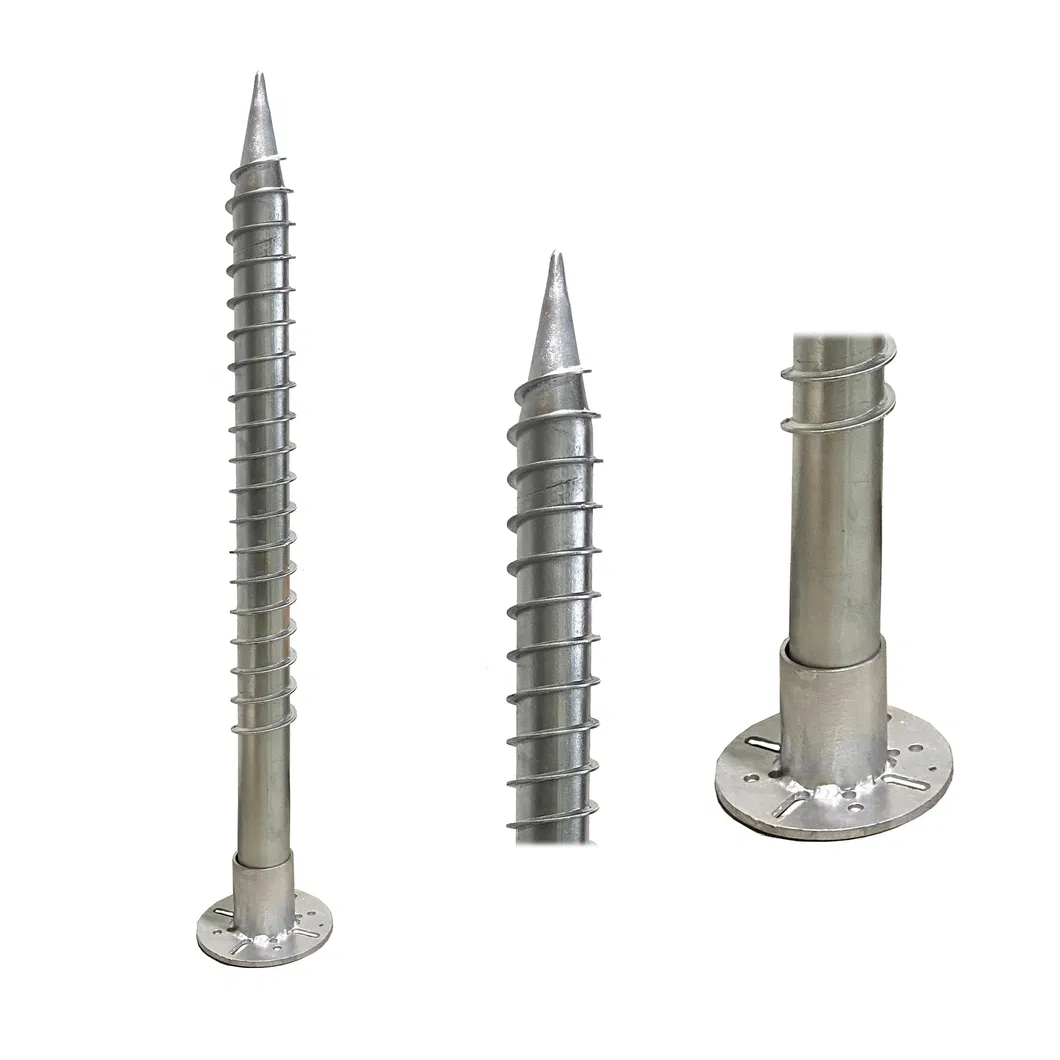

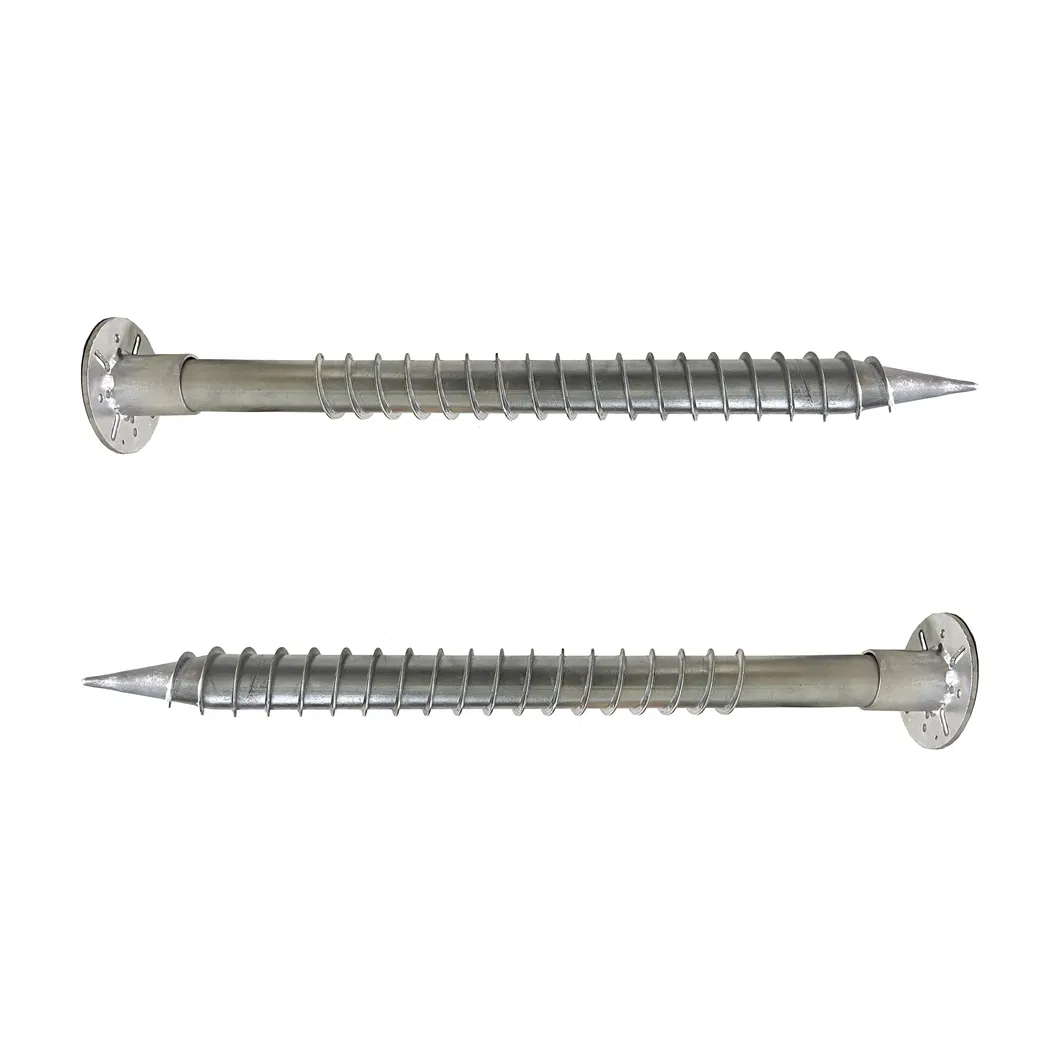

Product Visuals

Frequently Asked Questions

1. What are the main benefits of using ground screws instead of concrete? Ground screws offer much faster installation, require no excavation, produce no waste, and can be used immediately after installation without waiting for concrete to cure.

2. Are these ground screws resistant to corrosion? Yes, our ground screws are typically treated with hot-dip galvanizing (HDG) or specialized coatings like Zinc Aluminum Magnesium to ensure long-term durability in soil environments.

3. Can ground screws be removed and reused? Yes, ground screws are environmentally friendly because they can be unscrewed and reused for other temporary or permanent structures with minimal impact on the ground.

4. What type of soil are ground screws suitable for? They are highly adaptable and can be used in sandy soil, clay, and even gravel. For extremely rocky ground, pre-drilling may be required.

5. How do I choose the right model (GS-01 to GS-04)? The choice depends on the required load-bearing capacity and the type of structure you are supporting. Heavier loads generally require larger diameters and longer lengths.

6. What is the standard lead time for orders? Standard production and delivery time ranges between 7 to 30 days depending on the order volume and customization requirements.
