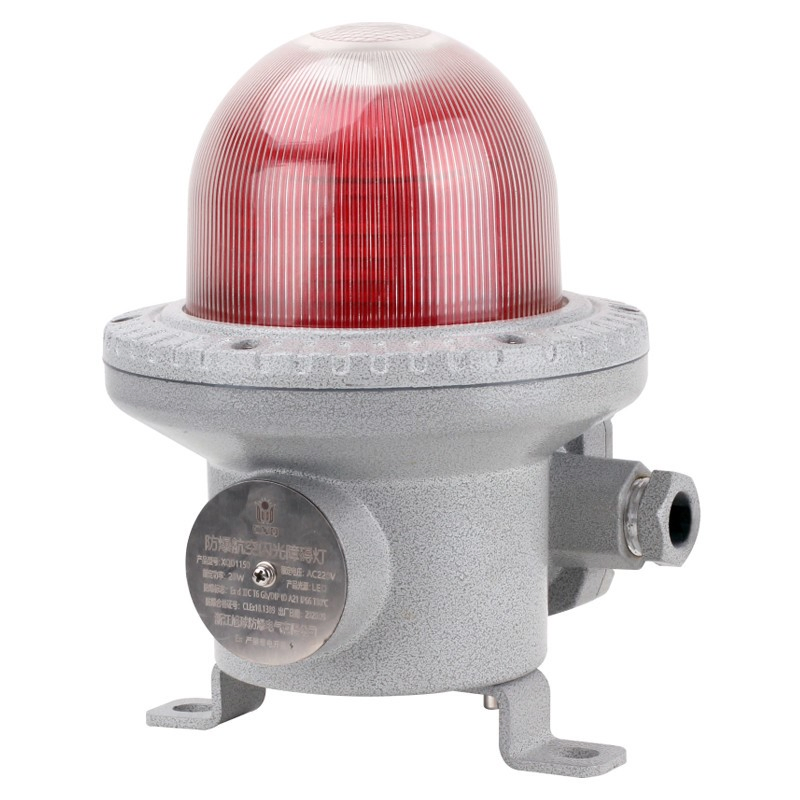

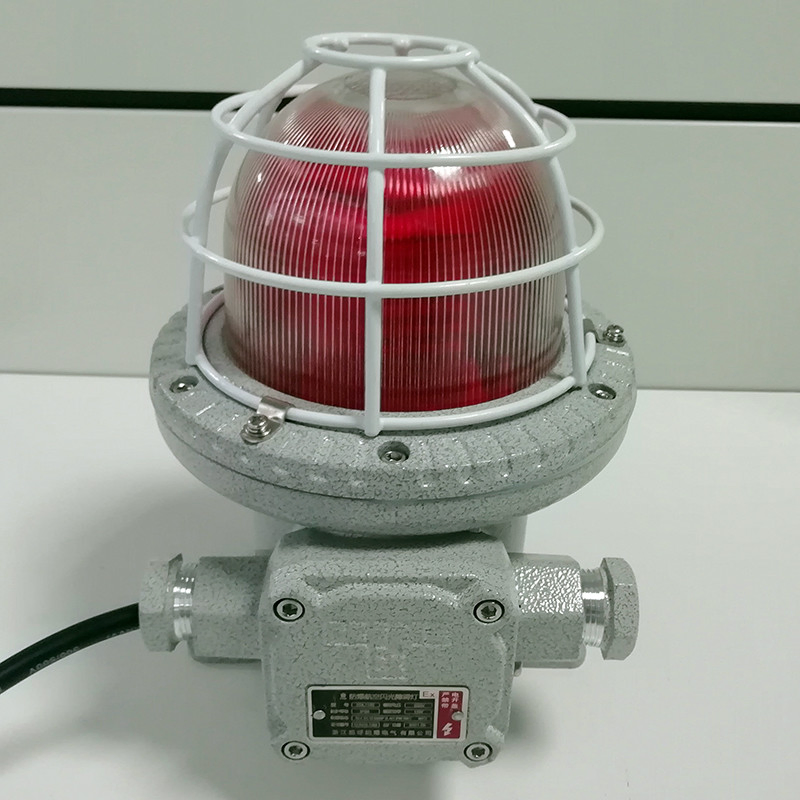

10W 40W Explosion-Proof Aviation Obstruction Light for Communication Towers and Power Towers Explosion Proof Beacon Light
10W 40W Explosion-Proof Aviation Obstruction Light for Communication Towers and Power Towers Explosion Proof Beacon Light
10W 40W Explosion-Proof Aviation Obstruction Light for Communication Towers and Power Towers Explosion Proof Beacon Light
10W 40W Explosion-Proof Aviation Obstruction Light for Communication Towers and Power Towers Explosion Proof Beacon Light
10W 40W Explosion-Proof Aviation Obstruction Light for Communication Towers and Power Towers Explosion Proof Beacon Light
1 / 5
10W 40W Explosion-Proof Aviation Obstruction Light for Communication Towers and Power Towers Explosion Proof Beacon Light
10W 40W Explosion-Proof Aviation Obstruction Light for Communication Towers and Power Towers Explosion Proof Beacon Light
10W 40W Explosion-Proof Aviation Obstruction Light for Communication Towers and Power Towers Explosion Proof Beacon Light
10W 40W Explosion-Proof Aviation Obstruction Light for Communication Towers and Power Towers Explosion Proof Beacon Light
10W 40W Explosion-Proof Aviation Obstruction Light for Communication Towers and Power Towers Explosion Proof Beacon Light

10W 40W Explosion-Proof Aviation Obstruction Light for Communication Towers and Power Towers Explosion Proof Beacon Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
SHBZ-2
IP Rating
IP66
Certification
CCC, CE, RoHS, Iecex
Warranty
1-Year
Working Time
50,000 Hours
Wattage Range
10W, 20W, 30W, 40W
Input Voltage
AC/DC 24V, 36V; AC 220V, 380V
Flash Rate
20-60 Times/Min
Material
Aluminum Alloy
Color Temp
Cool White
Technical Parameters

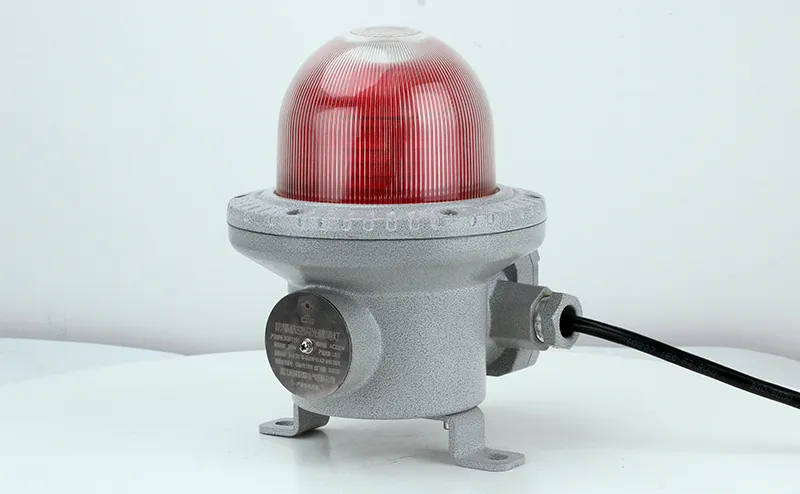

Parameters Banner Technical Drawing
Model Explosion Proof Sign Light Source Power (W) Flash Rate Weight (kg)
SHBZ-Series Ex db IIC T6 Gb
Ex tb IIIC T80ºC Db		 LED 10~40 20~60 4.6
Rated Voltage Inlet Thread Cable Outer Diameter Protection Degree Anti-Corrosion
220V / 50Hz G3/4 Φ10~Φ14mm IP66 WF2
Key Features & Description
Product Description Banner
  • Durable Construction: Aluminum alloy die-casting shell with high-voltage electrostatic spraying, offering superior corrosion and aging resistance.
  • Advanced Optics: Transparent parts made of imported engineering resin, UV resistant and anti-glare for soft, comfortable lighting.
  • Weatherproof Design: High-temperature resistant silicone rubber sealing ring ensuring IP66 protection for indoor and outdoor use.
  • Energy Efficient: Environment-friendly LED source with minimal light attenuation and a service life up to 100,000 hours.
  • Safety Protections: Special constant current power supply with open circuit, short circuit, and overheating protection.
  • Easy Maintenance: Internal special terminal blocks for reliable connection and convenient maintenance.
Applicable Scope
This lighting solution is engineered for hazardous and demanding environments including:
  • Explosive gas environments: Zone 1 & Zone 2 (IIA, IIB, IIC).
  • Combustible dust environments: Zone 21 & Zone 22.
  • Temperature groups: T1 to T6.
  • Fixed structures: Oil exploration, refineries, chemical plants, gas stations, and offshore platforms.

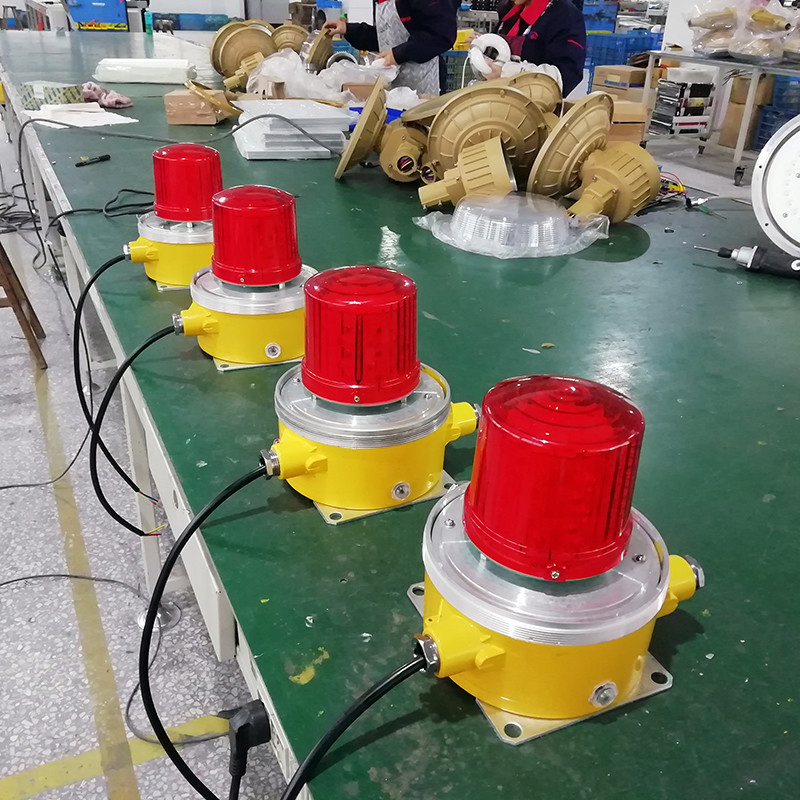

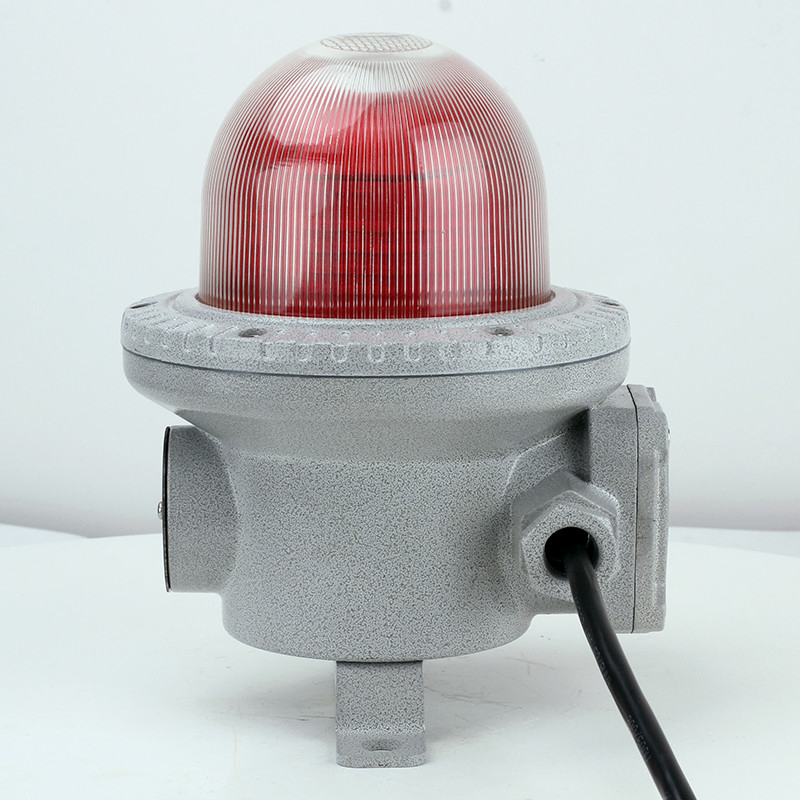

Product Display

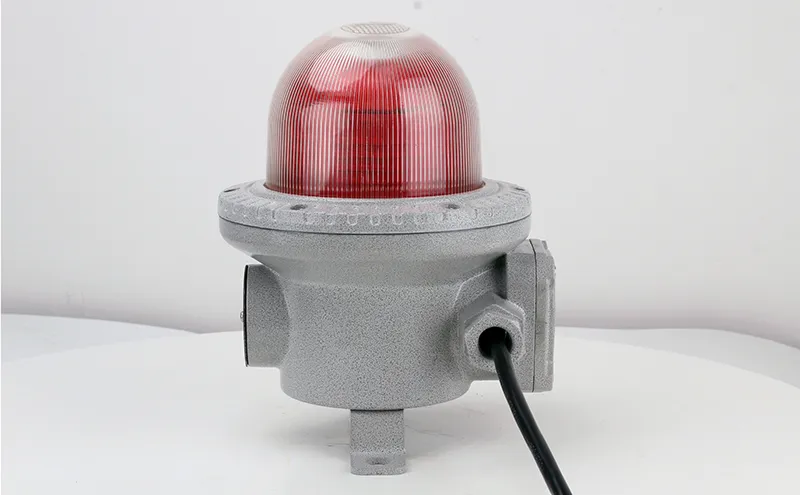

Display 1

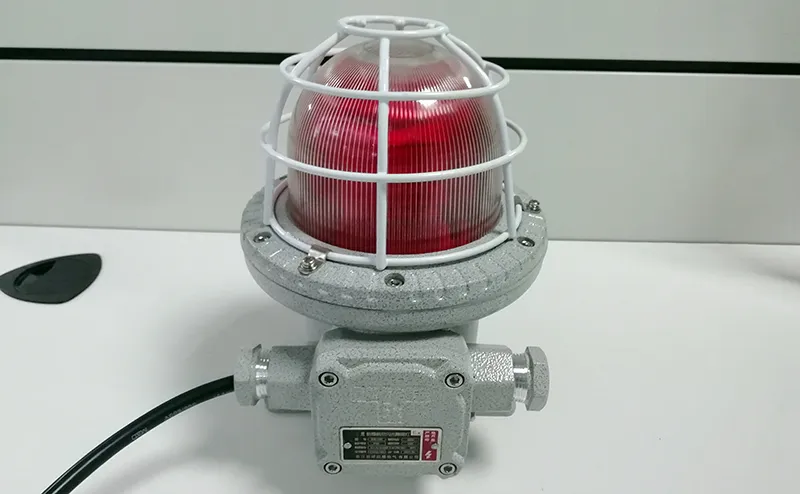

Display 2

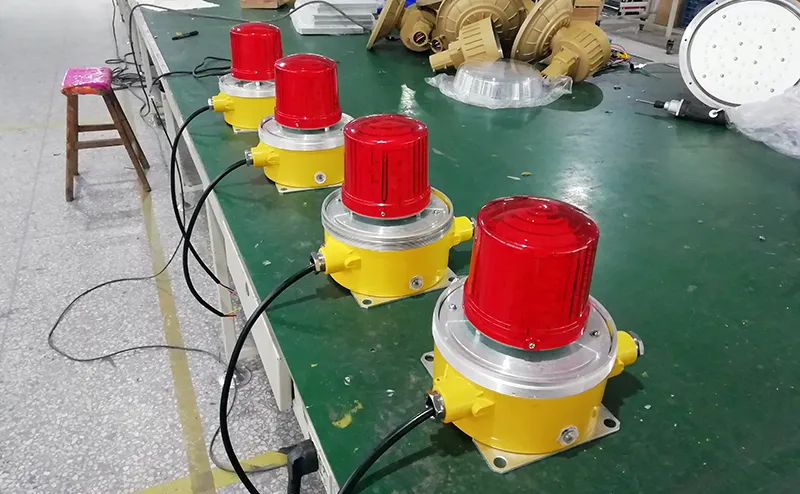

Display 3

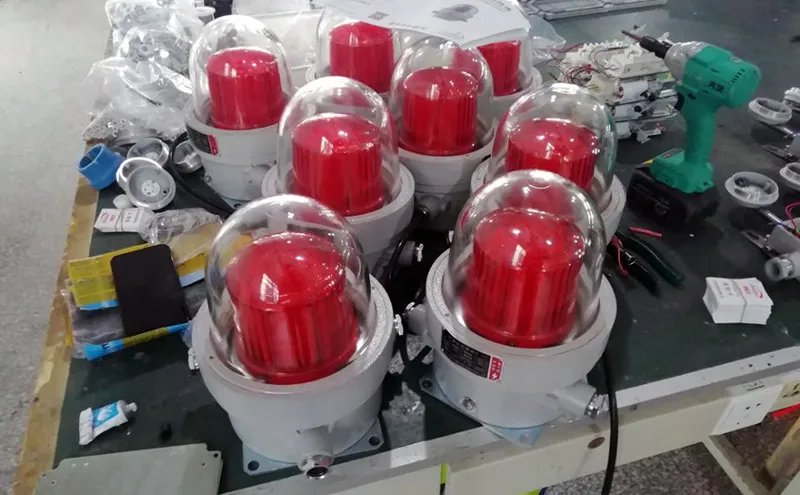

Display 4

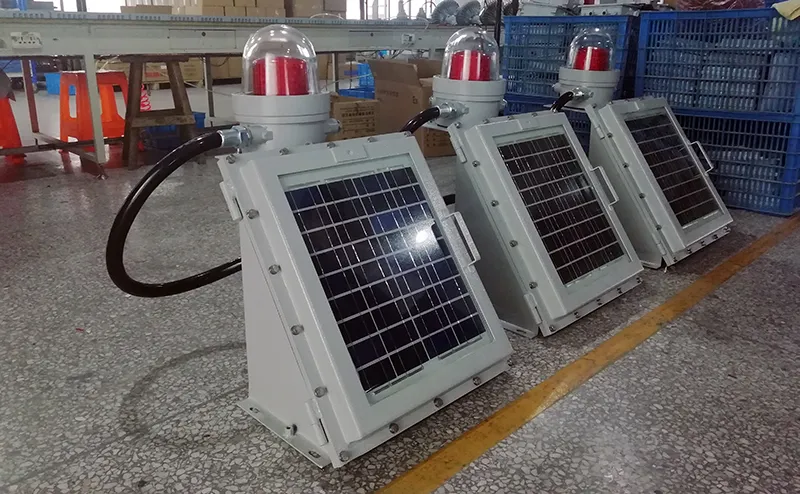

Display 5

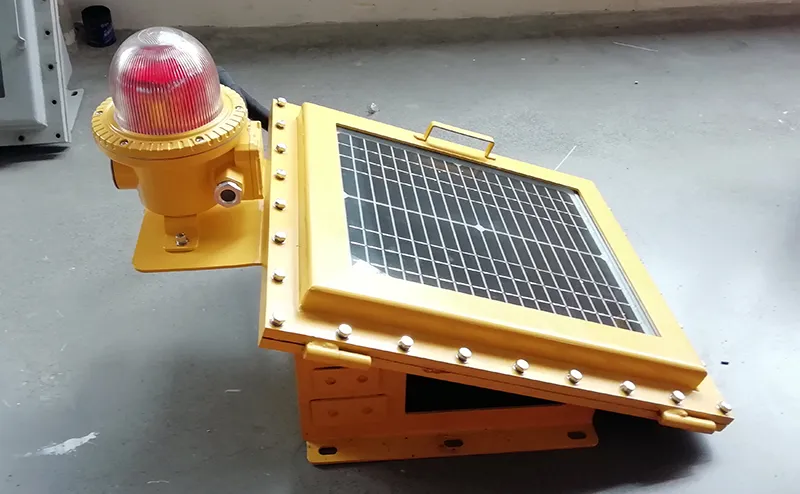

Display 6

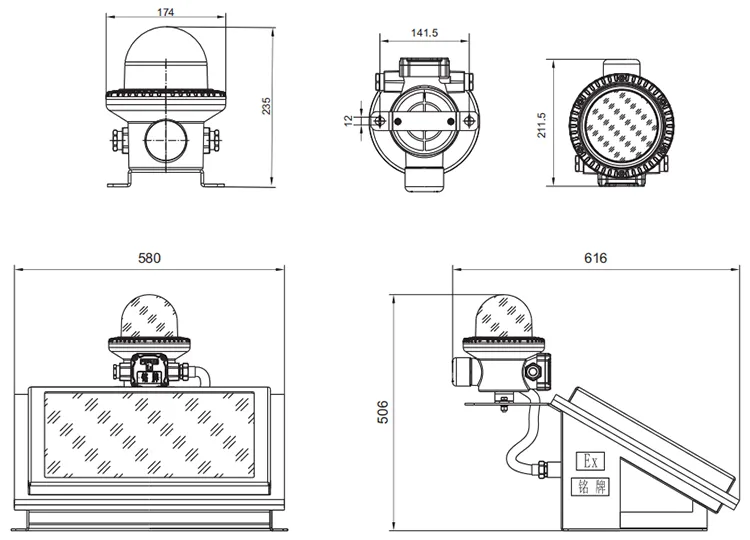

Mounting Options

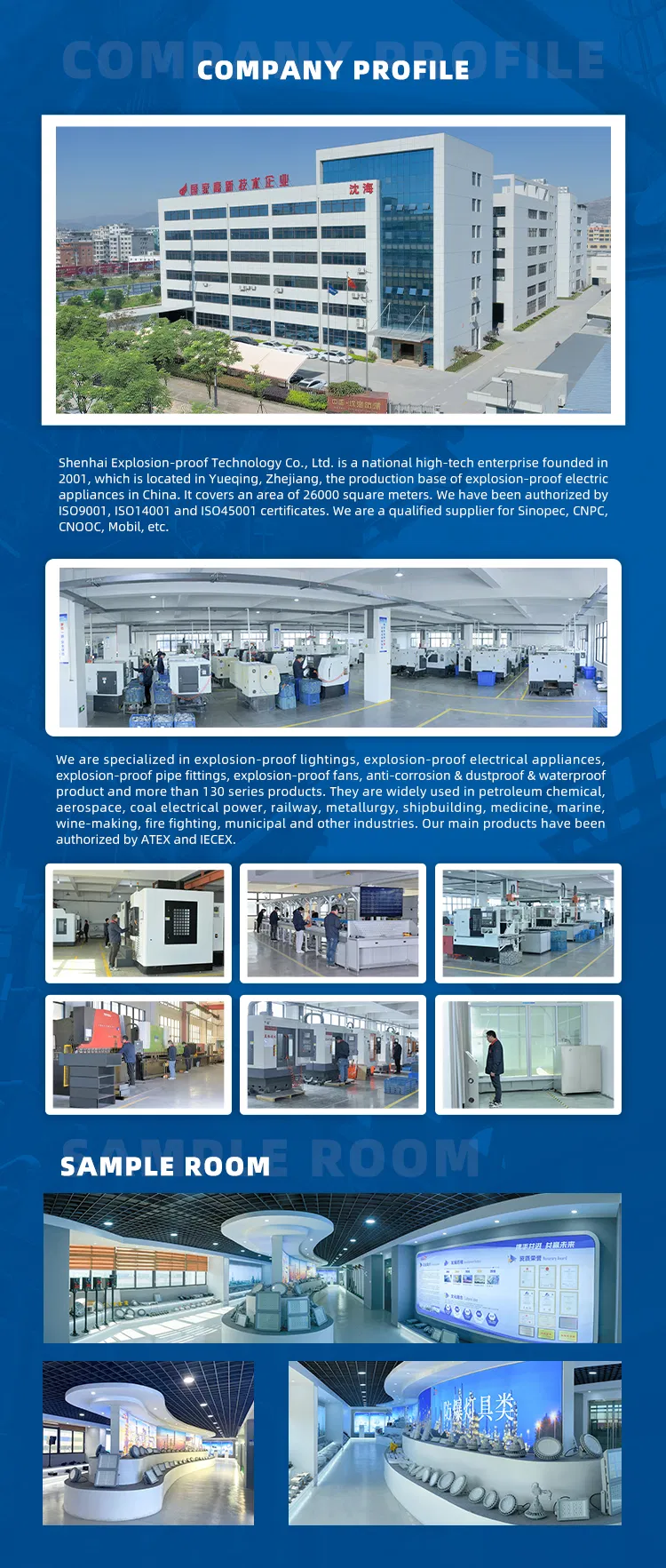

Production & Quality Control

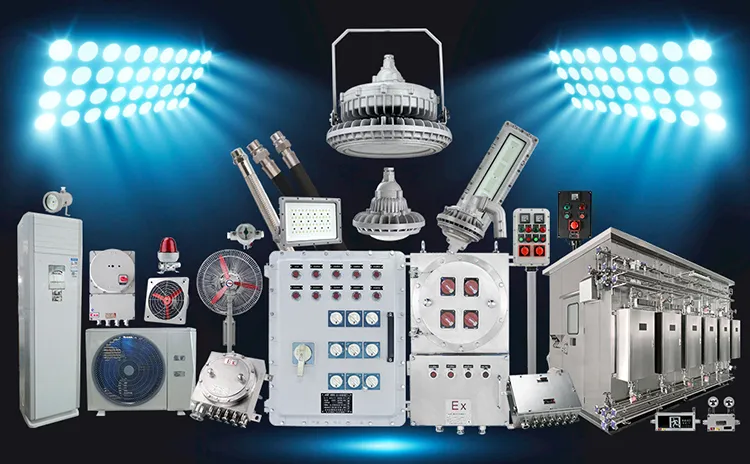

Factory Overview Production Line Quality Control Testing
Certificates 1
Certificates 2
Frequently Asked Questions
FAQ Banner
Are you a factory or a trading company?
We are a specialized factory providing OEM services. Our core product range includes explosion-proof lighting, distribution boxes, cable glands, fans, and anti-corrosion fixtures.
What international certifications do your products hold?
Our products have successfully passed ATEX and IECEx certifications, and we hold numerous national patents for our innovative designs.
In which industries are these explosion-proof lights typically used?
They are widely utilized in petrochemical, aerospace, coal power, metallurgy, shipbuilding, marine, and hazardous municipal locations like gas stations.
Can I request a sample order before making a bulk purchase?
Yes, we welcome sample orders for quality testing and verification. Mixed samples are also acceptable for evaluation.
Do you offer product customization?
Yes, we accept customization. Please provide your requirements and we will confirm the design based on our technical standards and samples.
What is the expected lifespan of the LED light source?
Our high-quality LED sources are designed for longevity, offering a service life of up to 50,000 to 100,000 hours depending on operating conditions.
