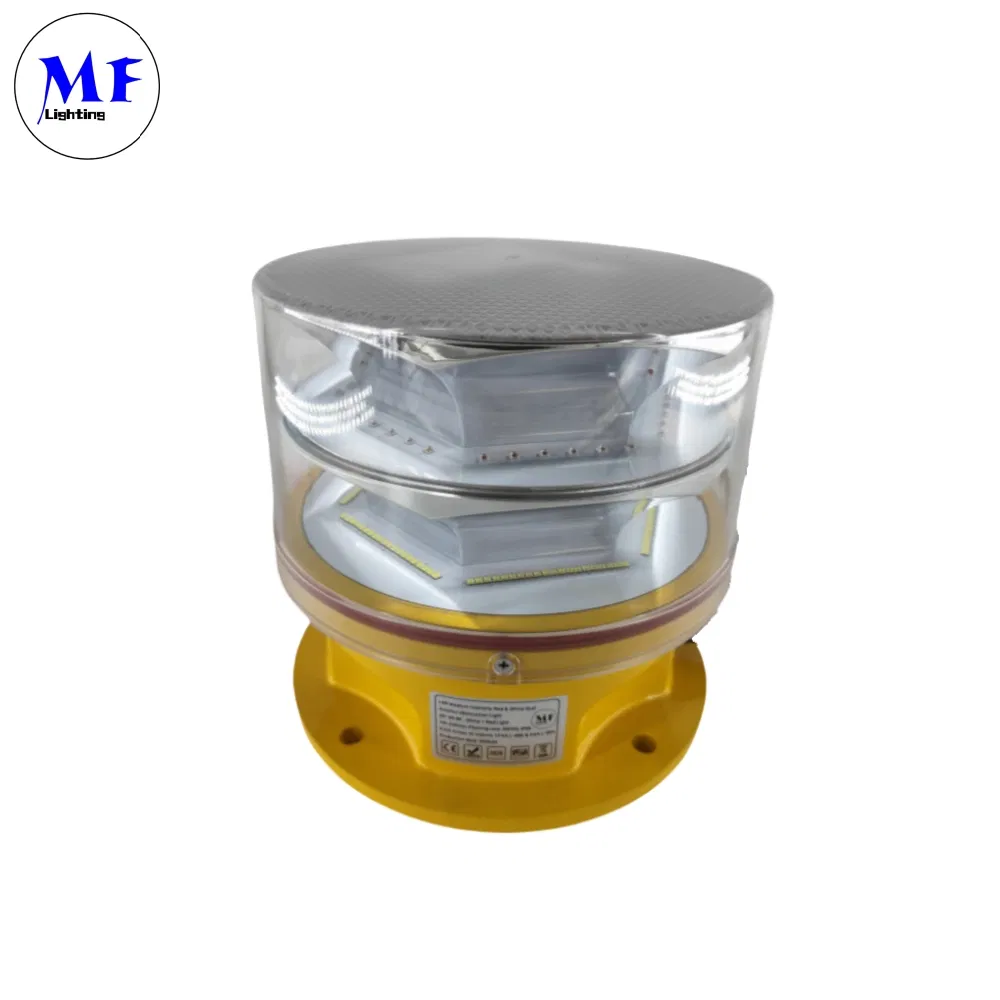

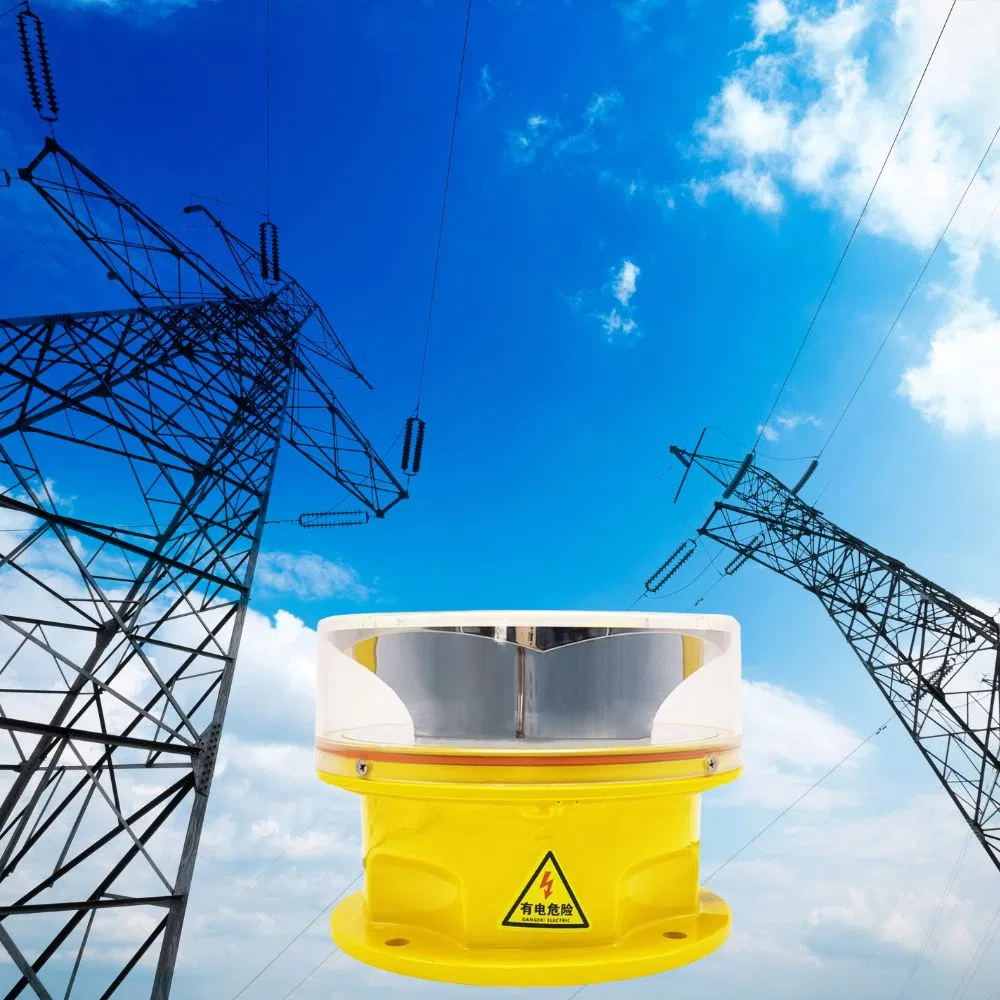

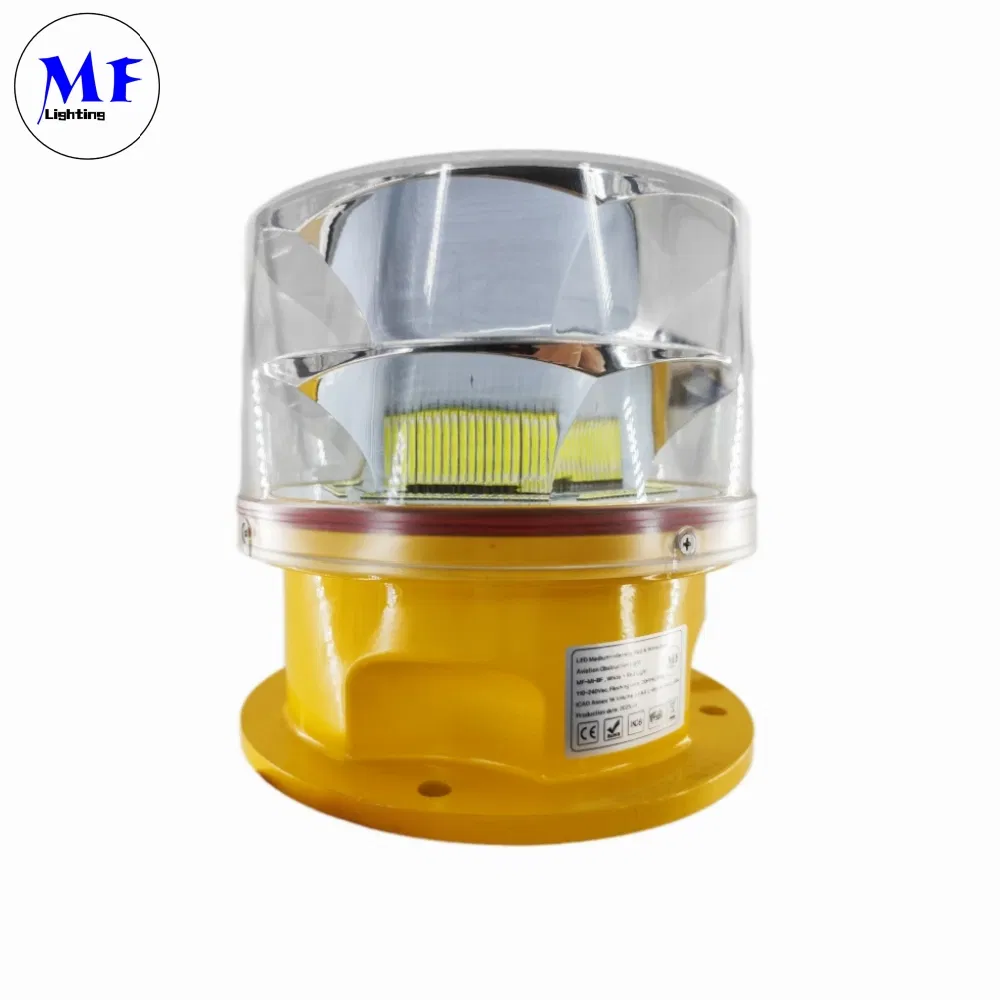

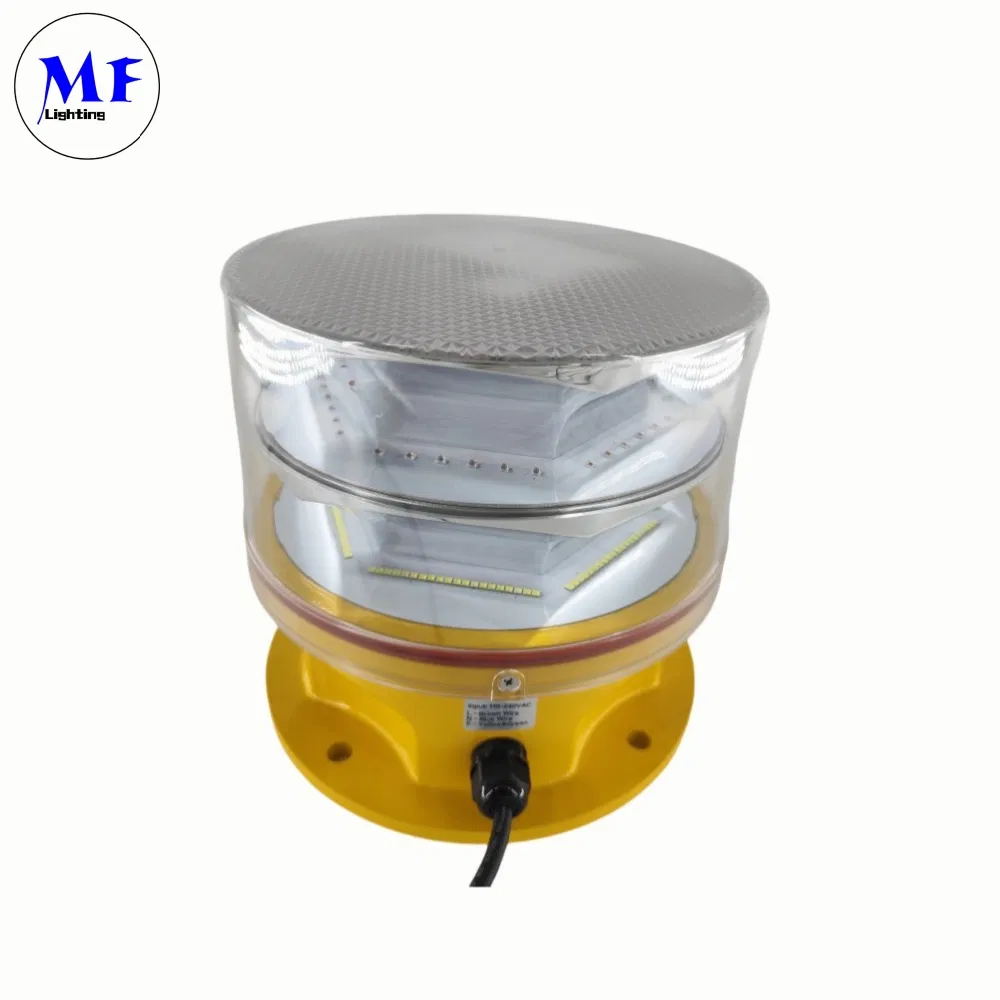

Outdoor Waterproof IP66 Medium-High-Intensity Red&White Customized Color Aircraft Marine Bacon 2000CD 20000CD AC DC Tower Bridge LED Aviation Obstruction Light
Outdoor Waterproof IP66 Medium-High-Intensity Red&White Customized Color Aircraft Marine Bacon 2000CD 20000CD AC DC Tower Bridge LED Aviation Obstruction Light
Outdoor Waterproof IP66 Medium-High-Intensity Red&White Customized Color Aircraft Marine Bacon 2000CD 20000CD AC DC Tower Bridge LED Aviation Obstruction Light
Outdoor Waterproof IP66 Medium-High-Intensity Red&White Customized Color Aircraft Marine Bacon 2000CD 20000CD AC DC Tower Bridge LED Aviation Obstruction Light
Outdoor Waterproof IP66 Medium-High-Intensity Red&White Customized Color Aircraft Marine Bacon 2000CD 20000CD AC DC Tower Bridge LED Aviation Obstruction Light
1 / 5
Outdoor Waterproof IP66 Medium-High-Intensity Red&White Customized Color Aircraft Marine Bacon 2000CD 20000CD AC DC Tower Bridge LED Aviation Obstruction Light
Outdoor Waterproof IP66 Medium-High-Intensity Red&White Customized Color Aircraft Marine Bacon 2000CD 20000CD AC DC Tower Bridge LED Aviation Obstruction Light
Outdoor Waterproof IP66 Medium-High-Intensity Red&White Customized Color Aircraft Marine Bacon 2000CD 20000CD AC DC Tower Bridge LED Aviation Obstruction Light
Outdoor Waterproof IP66 Medium-High-Intensity Red&White Customized Color Aircraft Marine Bacon 2000CD 20000CD AC DC Tower Bridge LED Aviation Obstruction Light
Outdoor Waterproof IP66 Medium-High-Intensity Red&White Customized Color Aircraft Marine Bacon 2000CD 20000CD AC DC Tower Bridge LED Aviation Obstruction Light

Outdoor Waterproof IP66 Medium-High-Intensity Red&White Customized Color Aircraft Marine Bacon 2000CD 20000CD AC DC Tower Bridge LED Aviation Obstruction Light

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.:MF-MI-B2
IP Rating:IP67
Certification:CCC, CE, EMC, RoHS, SAA, ISO
Intensity (Day):≥20000CD
Intensity (Night):≥2000CD
Horizontal Output:360°
Vertical Divergence:3°
Flash Rate:20-60 FPM
Operating Voltage:DC(12V-48V) or AC(110-240V)
Life Expectancy:>100,000 Hours
Material:UV Polycarbonate + Aluminum
Wind Speed:240m/S
Product Description

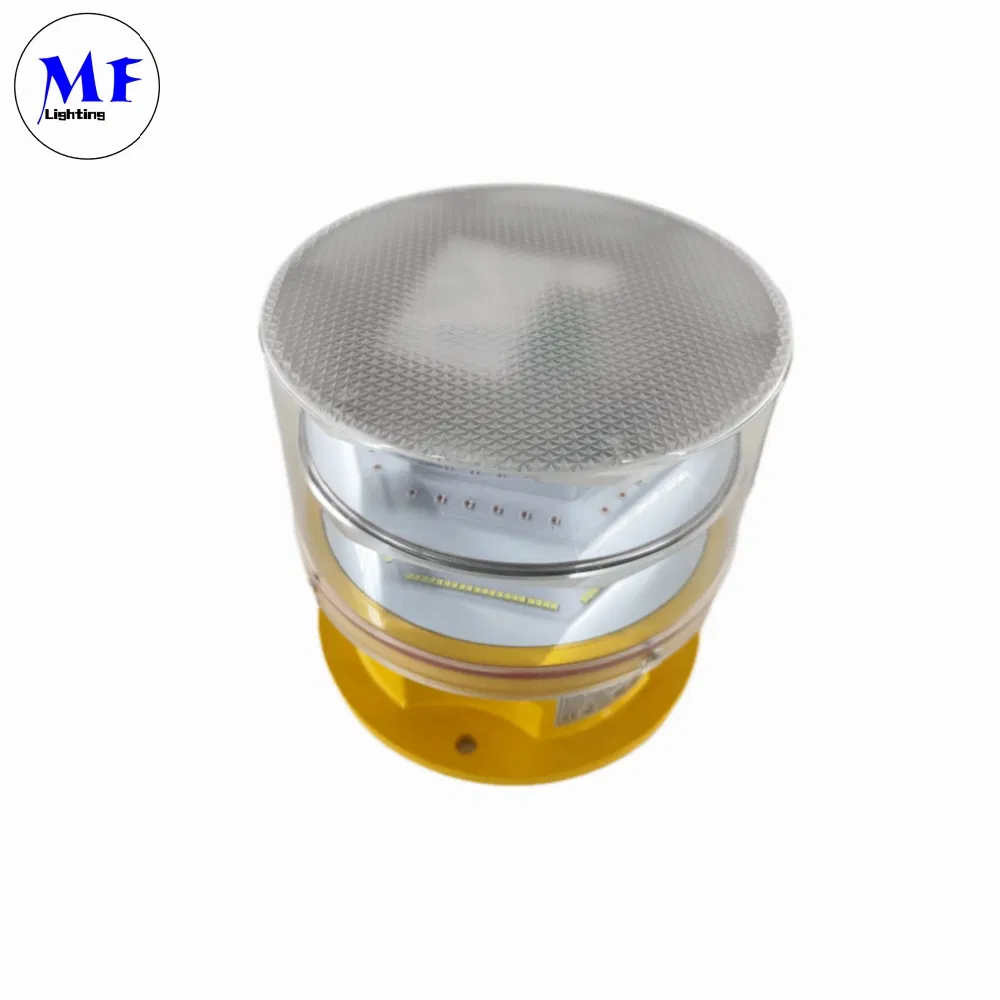

Medium-High Intensity Red & White LED Aviation Light

This LED Medium-intensity Red & White Dual Aviation Obstruction Light flashes white during the daytime and red at night. It is specifically designed for marking obstacles between 45-150 meters in height. Utilizing ultra-high intensity CREE LEDs and a self-designed reflector, it ensures long life and optimal light convergence with low power consumption.

Aviation Obstruction Light
Key Features
✓High-intensity LED technology for long-distance visibility.
✓Built-in photocell for automatic day/night mode switching.
✓UV-protected polycarbonate lens and corrosion-resistant aluminum base.
✓Special vent design to prevent condensation and high-pressure steam build-up.
✓Surge and lightning protection integrated.
✓Optional GPS synchronization and remote monitoring dry contacts.
Technical Specifications
Parameter Details
Light SourceCREE high intensity LED
Available ColorsWhite (Day) / Red (Night)
Waterproof RatingIP66
Lightning SurgeIEC61000-4-5 L-N ±3kV / L-PE ±6kV
Humidity0% - 100%
Standard ComplianceICAO Annex 14 Volume 1, FAA L-864/L-865
Specifications Diagram 1
Specifications Diagram 2
Product Configuration
Model Power Input Flash Rate Photocell Control
MF-MI-BF 110-240Vac / 12V-48VDC 20/30/40/60 FPM Built-in / No Photocell Alone / With Controller
Configuration Banner
Dimensions & Installation

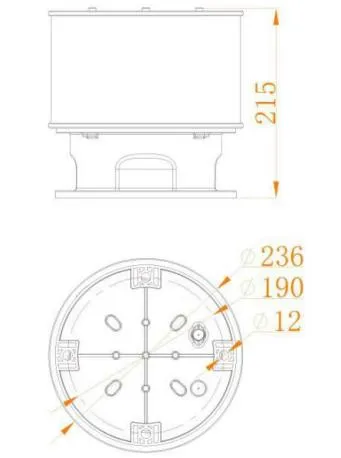

Dimensions

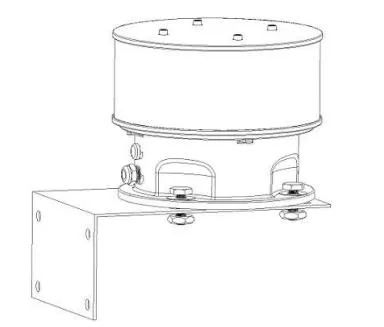

Installation

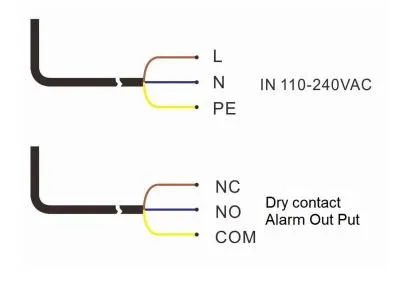

Wiring Diagram
Applications

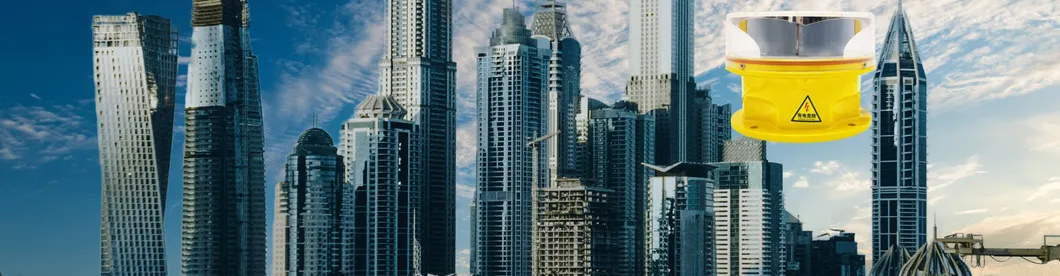

●Tall Structures: Skyscrapers, chimneys, and bridges.

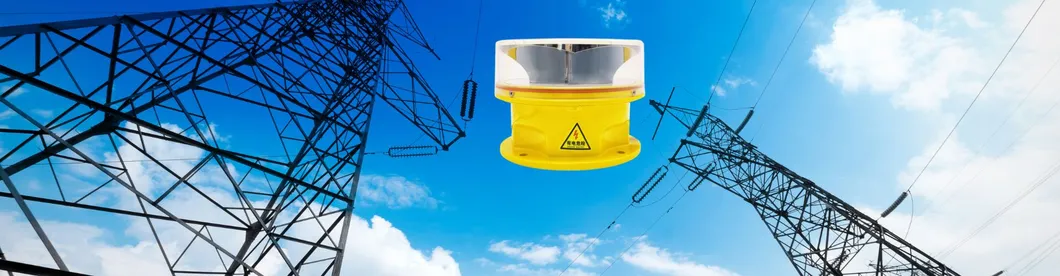

●Energy Infrastructure: Wind turbines and power transmission towers.
●Telecom: Microwave, TV, GSM, and radio broadcast towers.
●Aviation: Airports, helipads, and construction cranes.
●Offshore: Oil rigs and offshore wind farms.
App 1
App 2
App 3
Production & Testing

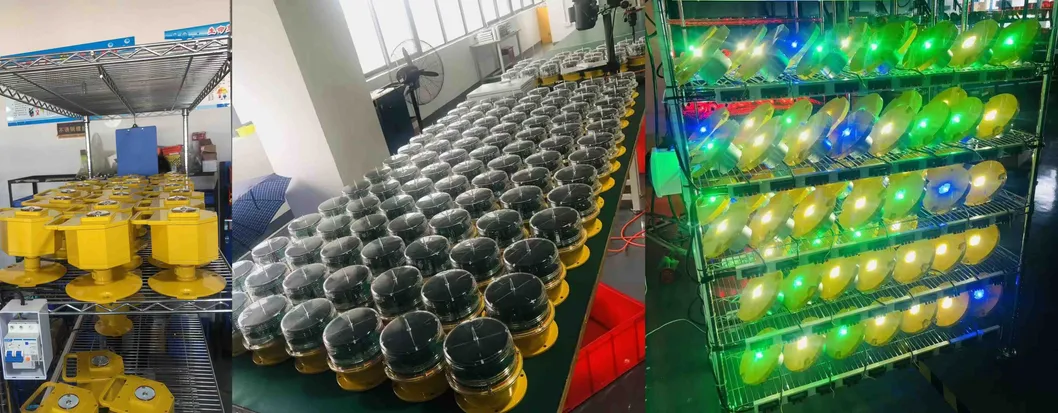

Production 1

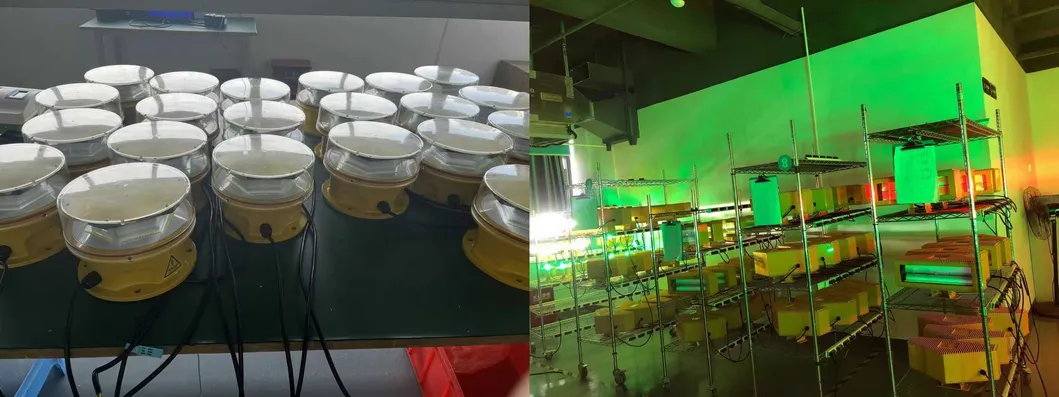

Production 2
Testing 1

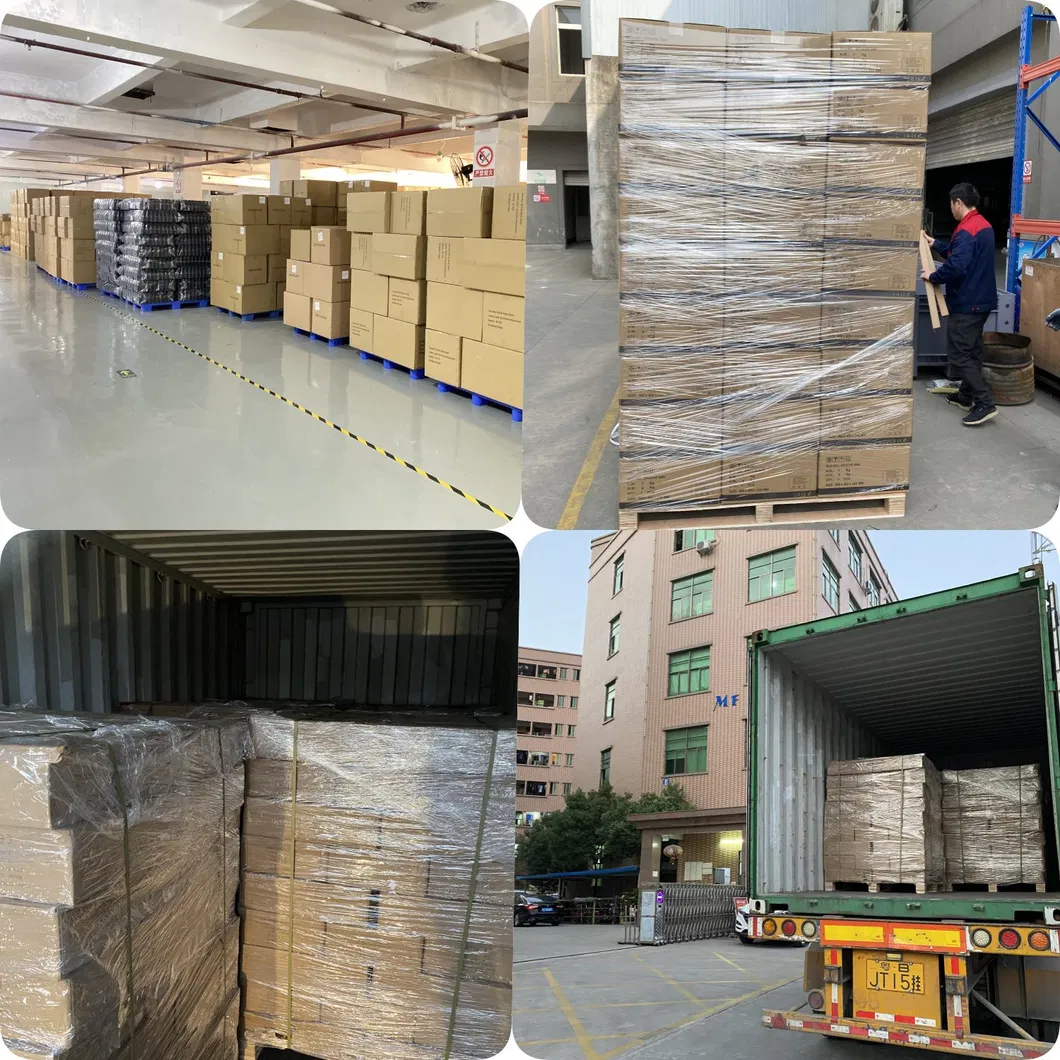

Testing 2
Quality Control 1
Quality Control 2
Frequently Asked Questions
1. What is the main application for this light? It is primarily used on tall structures between 45-150 meters, such as telecom towers, chimneys, skyscrapers, and wind turbines to alert aircraft.
2. Does the light switch between day and night modes automatically? Yes, it features a built-in photocell that allows for automatic white-flash operation during the day and red-flash operation at night.
3. What power options are available? The light supports multiple power inputs, including DC (12V, 24V, 36V, 48V) and AC (110-240VAC).
4. What is the expected lifespan of the LEDs? The ultra-high intensity CREE LEDs used in this product have a life expectancy of over 100,000 hours.
5. Is the unit waterproof and durable for outdoor use? Yes, the unit is IP66/IP67 rated, built with UV-protected polycarbonate and die-casting aluminum to withstand harsh environments.
6. Can the flash rate be adjusted? Yes, the flashing rate is user-adjustable between 20, 30, 40, and 60 flashes per minute.
