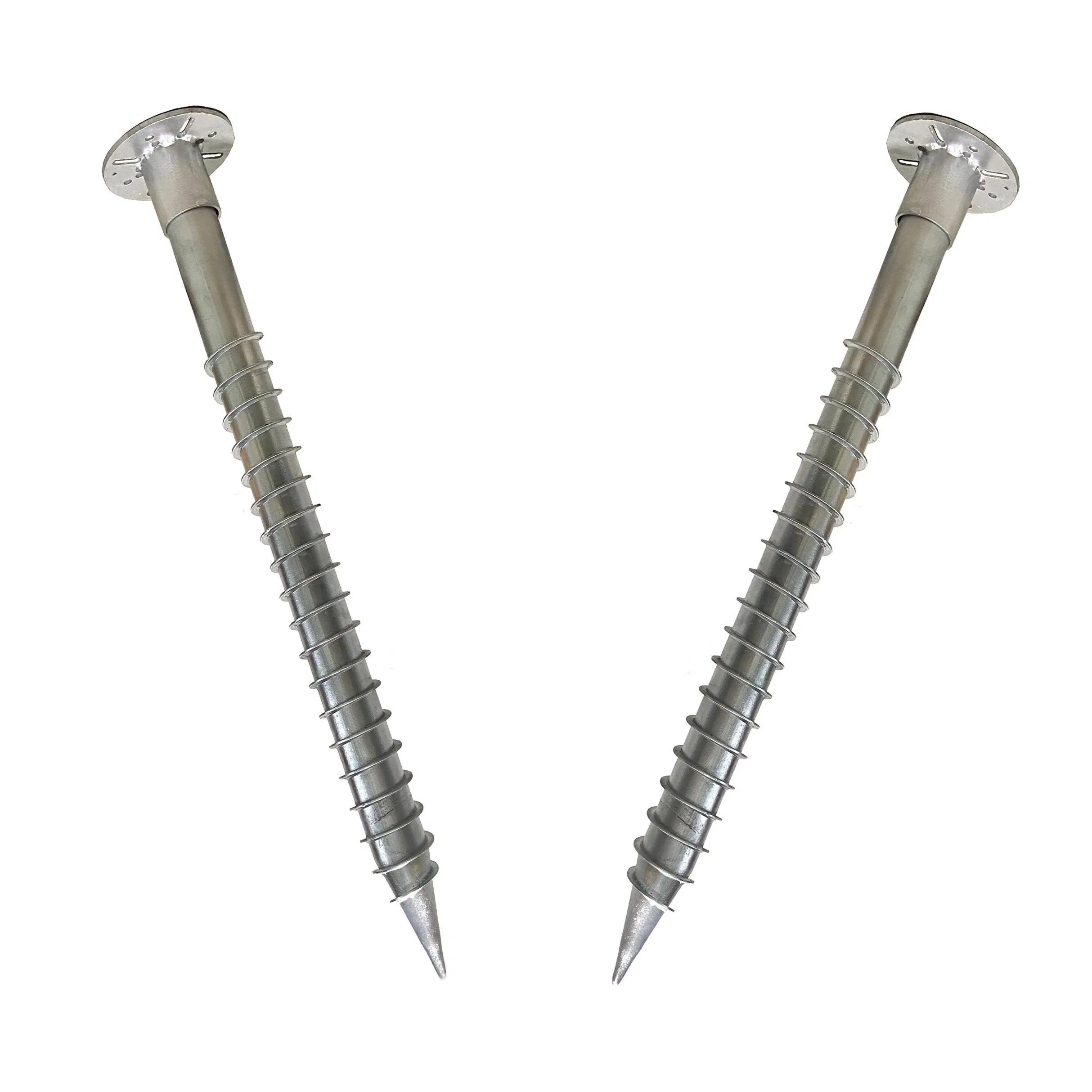

Hot Dipped Galvanized Ground Screw for Solar Panel System

1 / 5

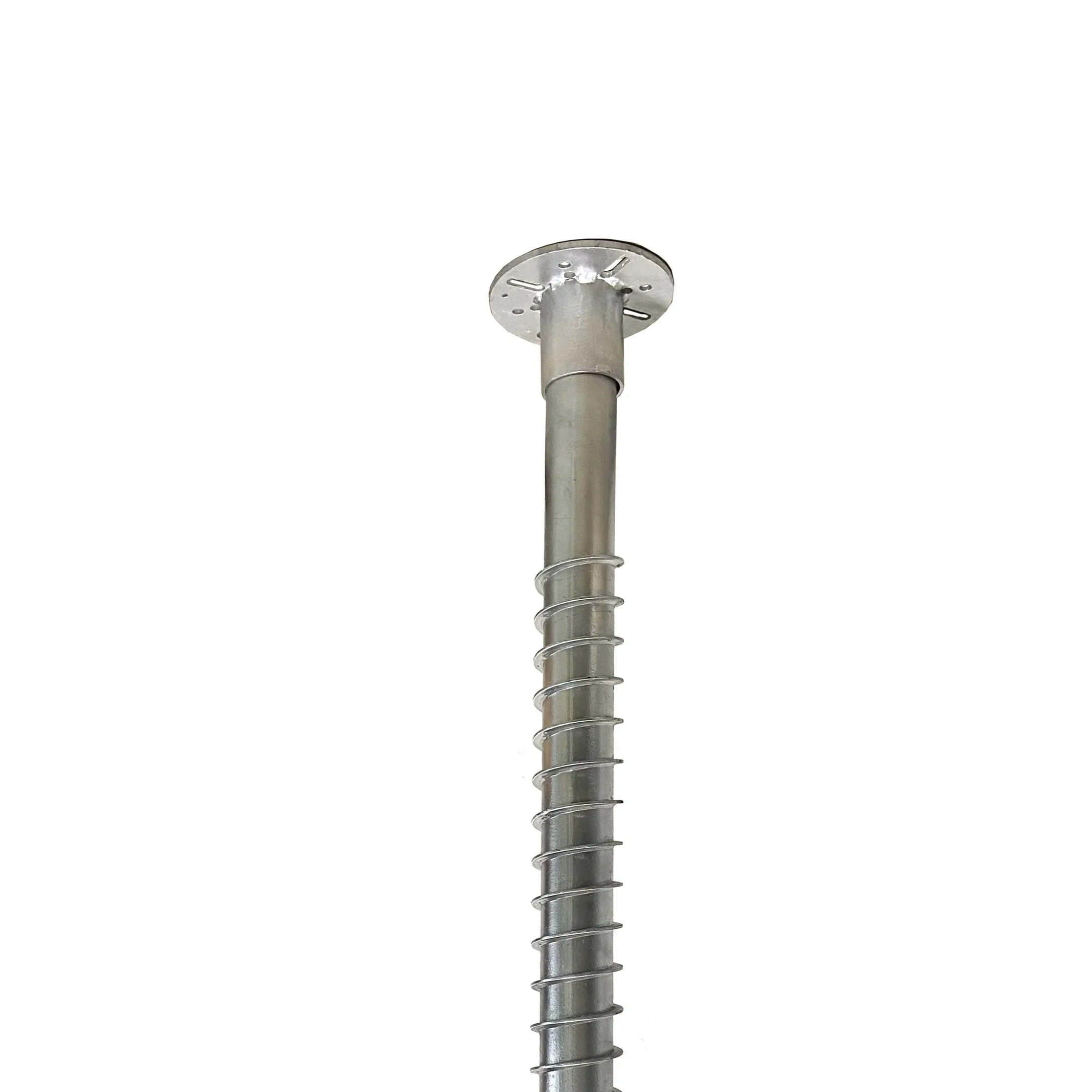

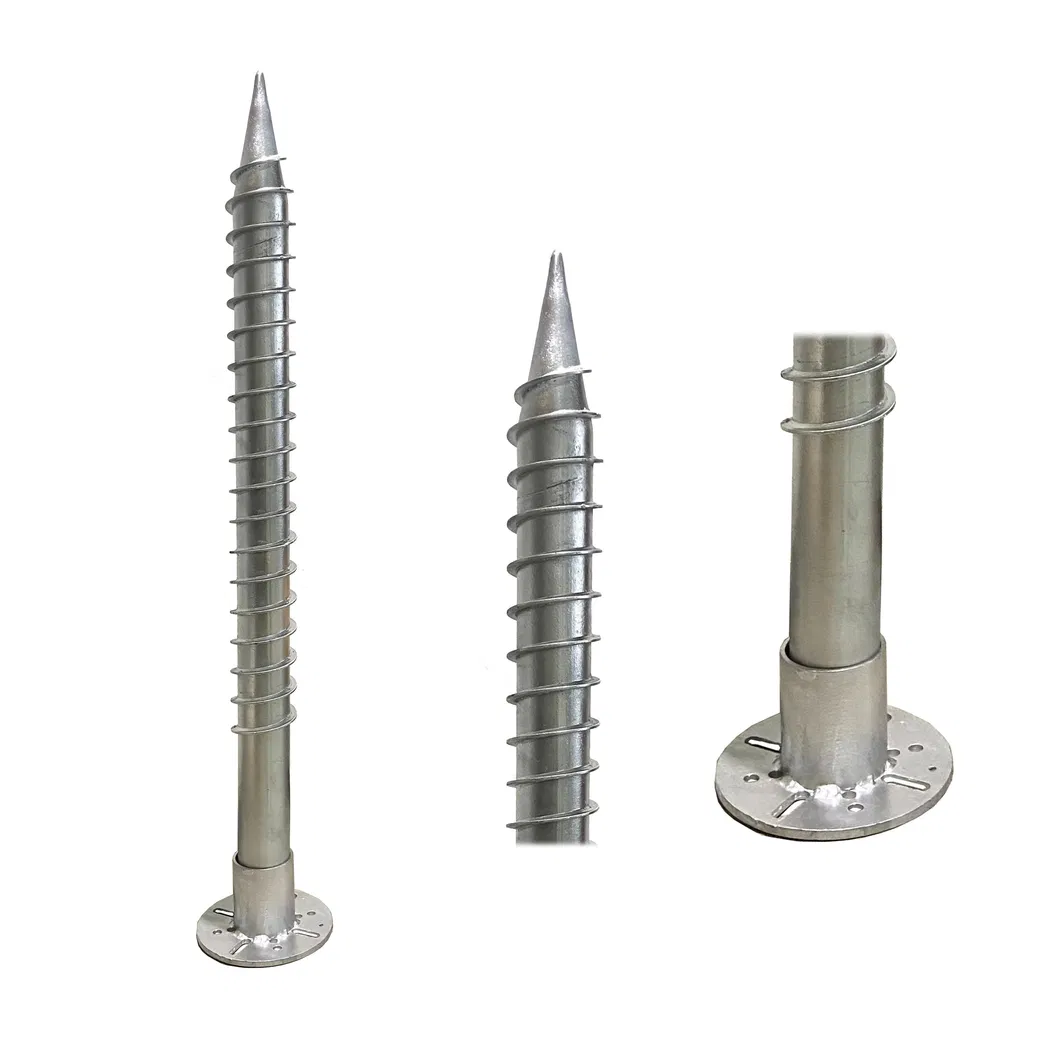

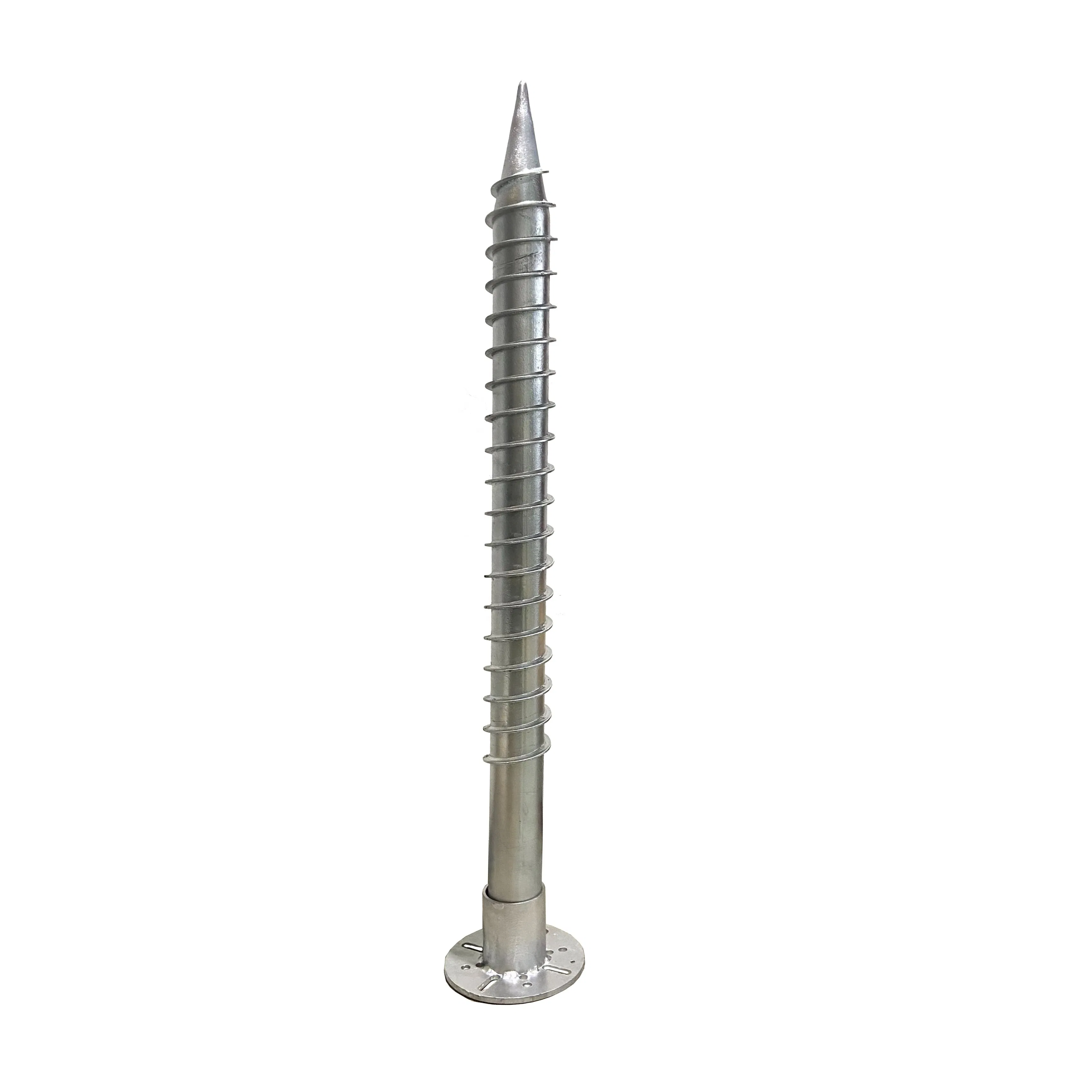

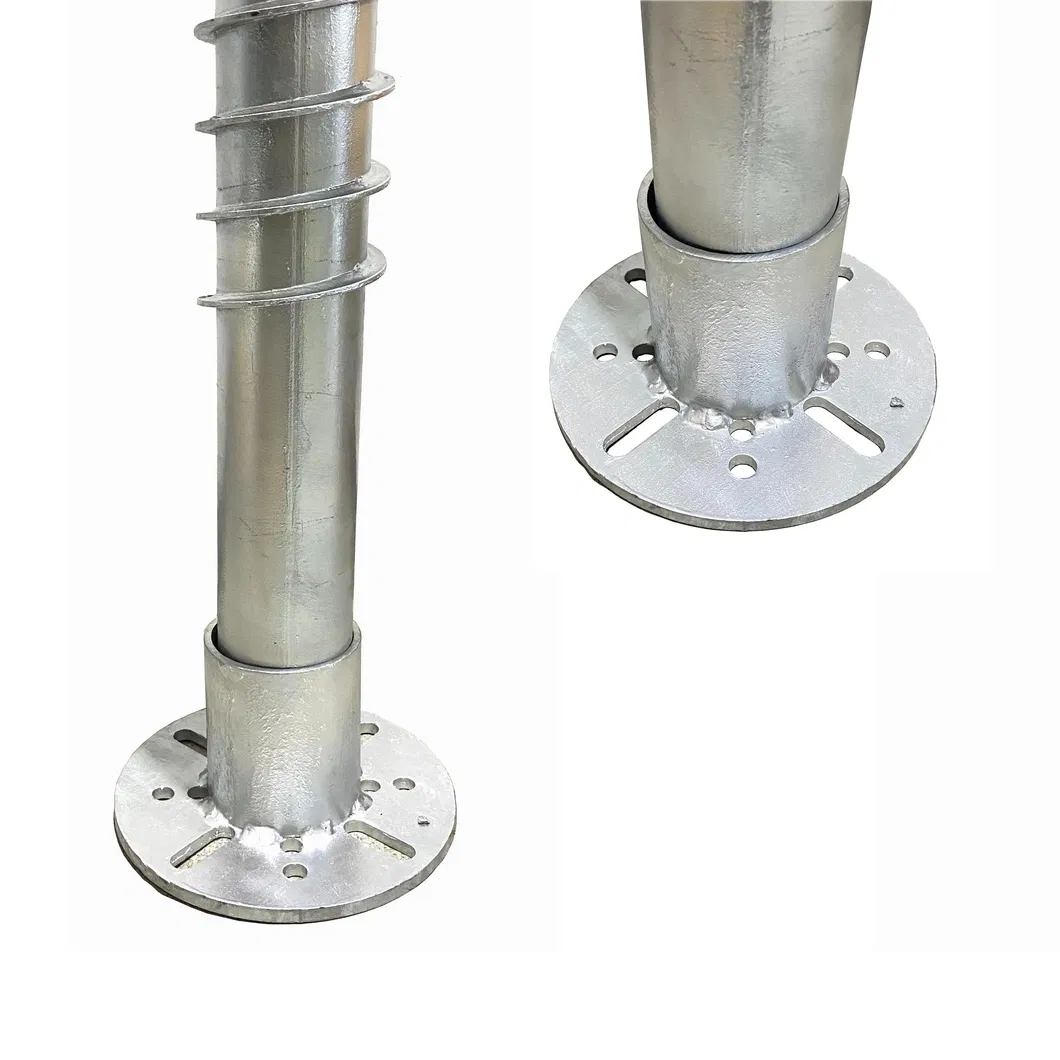

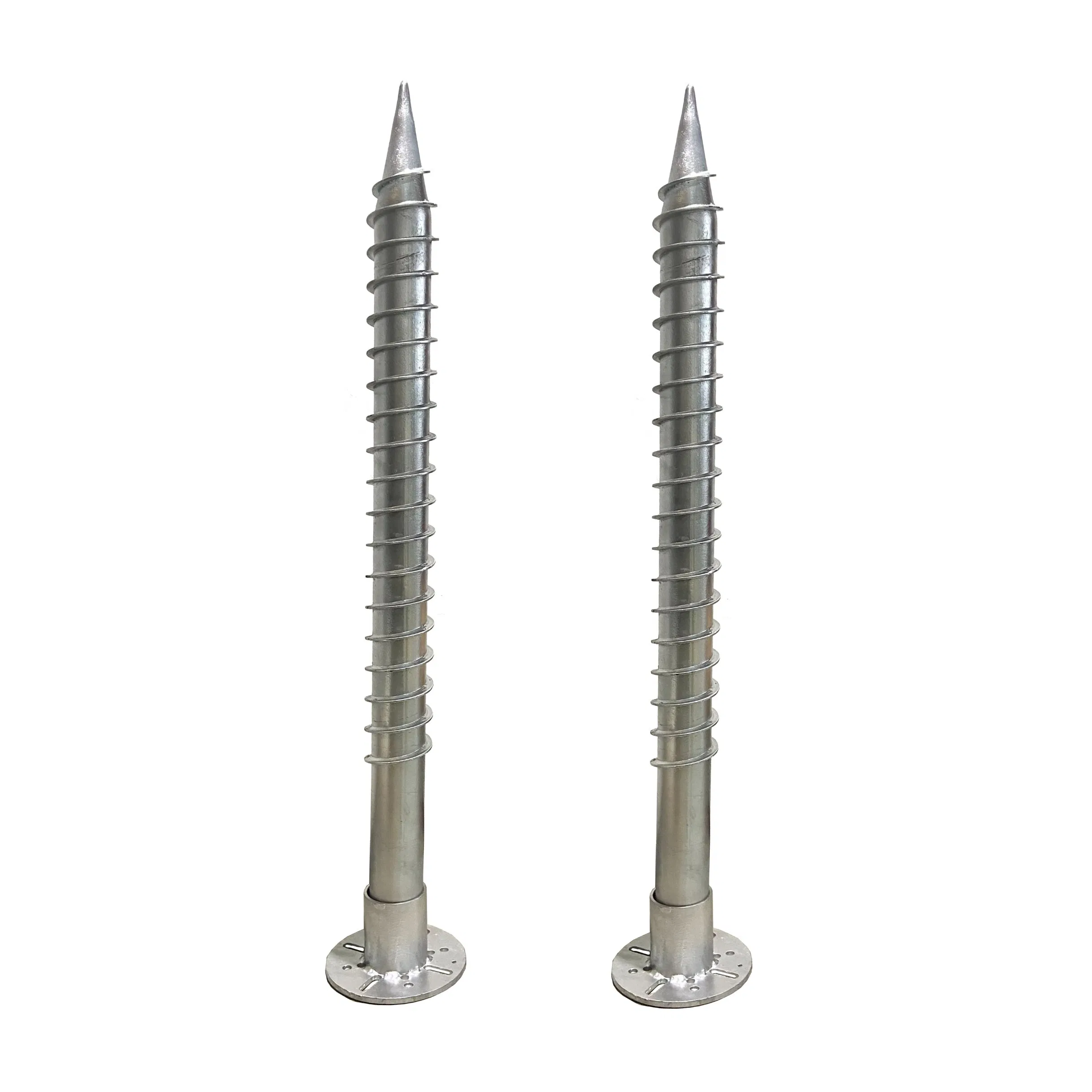

Hot Dipped Galvanized Ground Screw for Solar Panel System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

🔹 Basic Information

Material:

Steel

Type:

Tracking Bracket

Length:

100-1000mm

Steel Material:

Carbon Steel

Used For:

Building, Machinery, Chemical, Environment

Finishing:

Zinc, HDG, Phosphorization, Geomet

Delivery Time:

7-30 days

Connection:

Common Bolt; Hinged Bolts

HS Code:

7318159090

Capacity:

500 ton/Month

🔹 Product Description

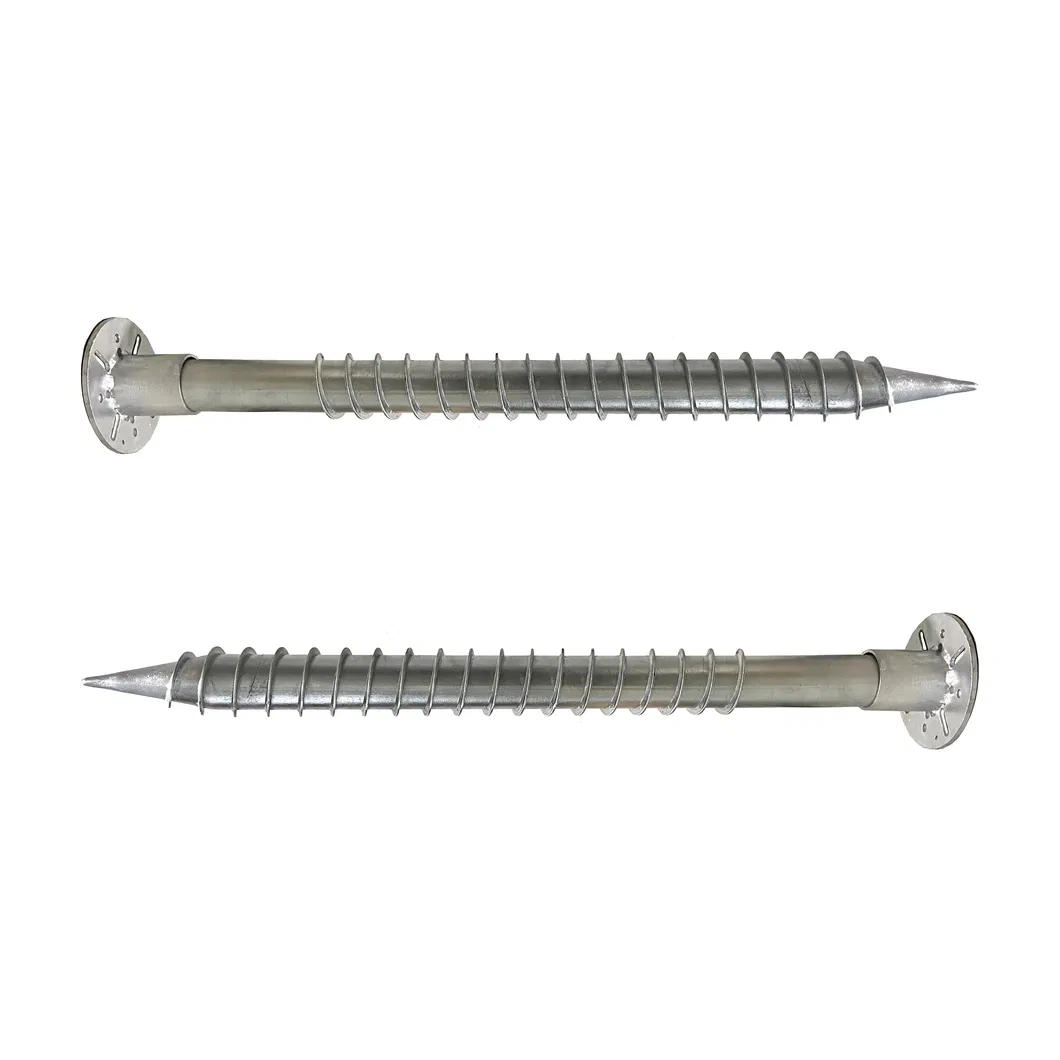

Hot Dipped Galvanized Ground Screw for Solar Panel System

Ground Screw as an advanced foundation support solution, are widely used in numerous fields. With their unique spiral shape design, they can be quickly and effectively anchored into the ground, providing a stable foundation for various above-ground structures. There is no need for large-scale earth excavation and concrete pouring, which greatly improves construction efficiency and reduces the impact on the environment.

🔹 Product Features

✔
Efficient and Convenient: Rapid installation method without complex excavation.
✔
Excellent Load-bearing: High structural stability for heavy solar arrays.
✔
Outstanding Adaptability: Suitable for various soil conditions and terrains.
✔
Adjustability and Flexibility: Easy to align and adjust during the setup process.
✔
Environmental Protection: Low environmental impact and fully reusable components.

🔹 Product Material

1. Q235 Carbon Structural Steel:

It has certain strength and toughness and relatively low cost. It is widely used for general construction and civil engineering projects. After hot-dip galvanizing, its corrosion resistance is significantly improved to prevent rusting and extend service life.

2. Q345 Low-Alloy High-Strength Structural Steel:

Compared with Q235, Q345 steel has higher strength and better comprehensive mechanical properties. It is suitable for projects with higher load-bearing requirements, such as industrial plants and wind turbine foundations.

🔹 Product Parameters

Model	Screw Diameter (mm)	Screw Length (mm)	Spiral Blade Outer Diameter (mm)	Spiral Blade Spacing (mm)	Load-bearing Capacity (kN)
GS-01	48	600	100	200	10
GS-02	60	800	120	250	15
GS-03	76	1000	150	300	20
GS-04	89	1200	180	350	25

🔹 Application Fields

1. Construction Field: Residential building foundations and temporary building support.

2. Energy Industry: Solar photovoltaic power stations and small wind turbine foundations.

3. Transportation Facilities: Road sign foundations and temporary traffic signal foundations.

❓ Frequently Asked Questions

What is a ground screw foundation?

It is a modern foundation solution that uses large spiral-shaped steel piles driven into the ground to provide structural support without the need for concrete.

What are the advantages over concrete foundations?

Ground screws are faster to install, require no drying time, cause minimal ground disturbance, and are fully reusable and environmentally friendly.

How long do hot-dipped galvanized ground screws last?

The hot-dip galvanizing process provides excellent corrosion protection, allowing the steel screws to last for decades even in harsh soil conditions.

Can ground screws be used in rocky soil?

Yes, ground screws are designed with high-strength steel (like Q235 or Q345) to penetrate various soil types, though extremely rocky soil may require specialized installation equipment.

Are these screws suitable for large-scale solar farms?

Absolutely. Their high load-bearing capacity and rapid installation make them the preferred choice for large-scale photovoltaic power stations.

What materials are available for ground screws?

Most ground screws are made from Q235 carbon structural steel for general use, or Q345 low-alloy high-strength steel for projects requiring higher load capacity.
