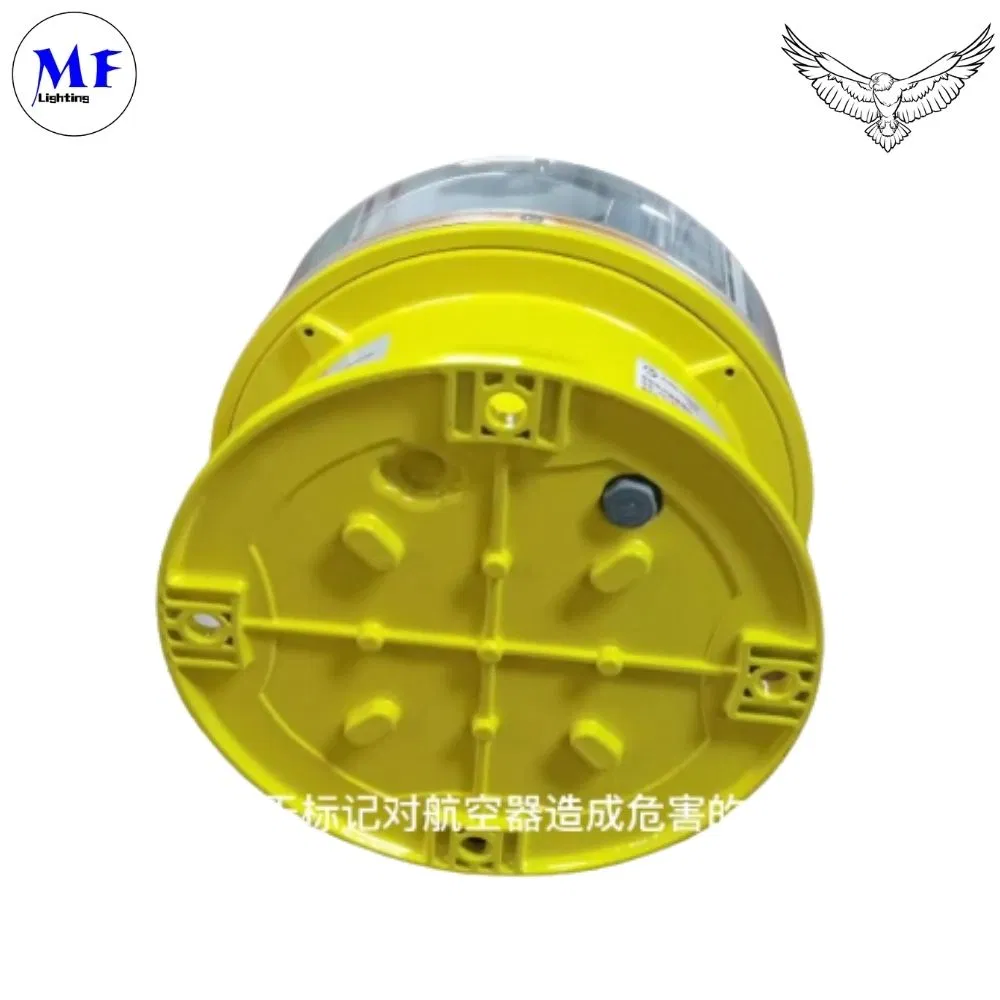

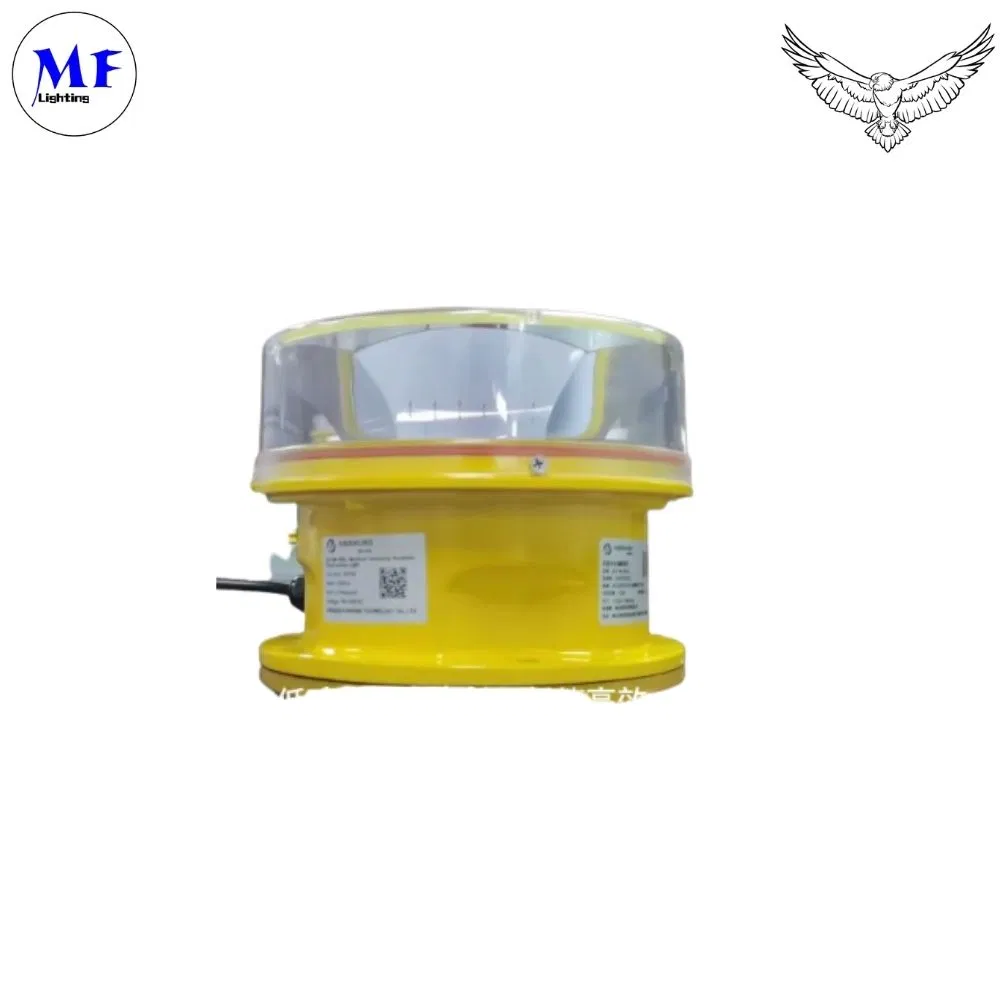

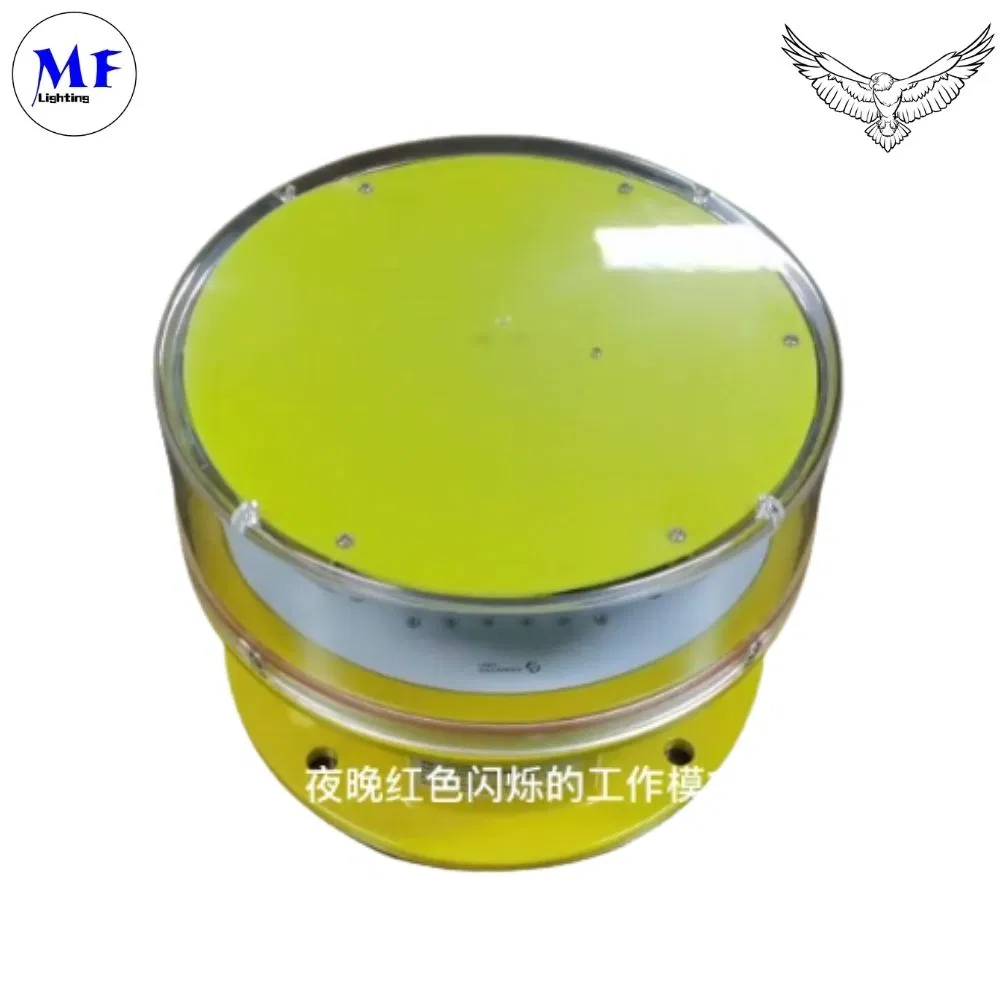

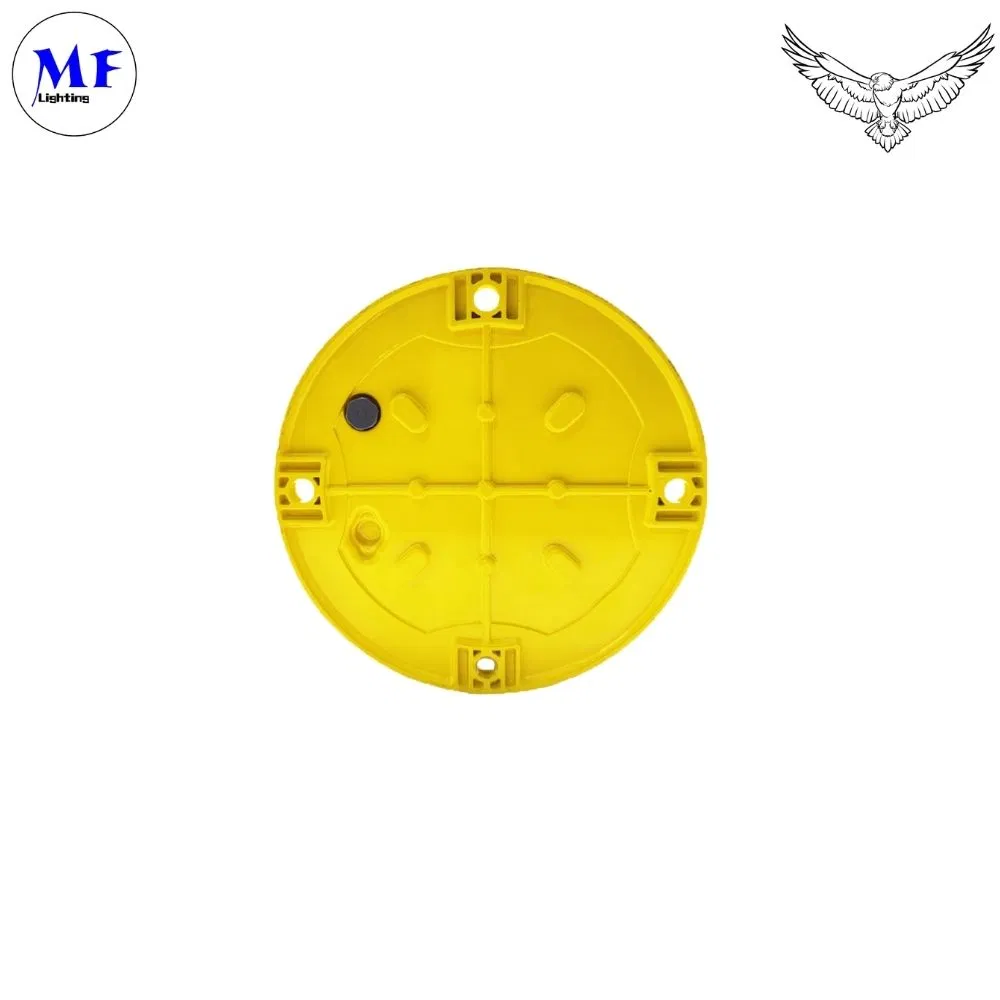

Factory Price IP66 Obstacle Lighting LED Medium Intensity Type B L864 Aviation Obstruction Light for High Chimney Marking Tower High Pole

Still deciding? Get samples of $ !
Request Sample

Product Description

🔵 Overview
Basic Specifications
Model NO.MF-MI-B2
IP RatingIP66
Operating VoltageDC(12V 24V 48VDC) & AC(110-240VAC)
Average Power3W
Circuit ProtectionIntegrated
Body MaterialUV Protection Polycarbonate
Base MaterialPowder-Coated Die-Casting Aluminum
Light SourceLED
Available ColorsRed (Other Color Is Optional)
Horizontal Output360 Degree
Vertical Divergence≥3 Degree
Ambient Temperature-40℃ ~ 55℃
💡 Product Description

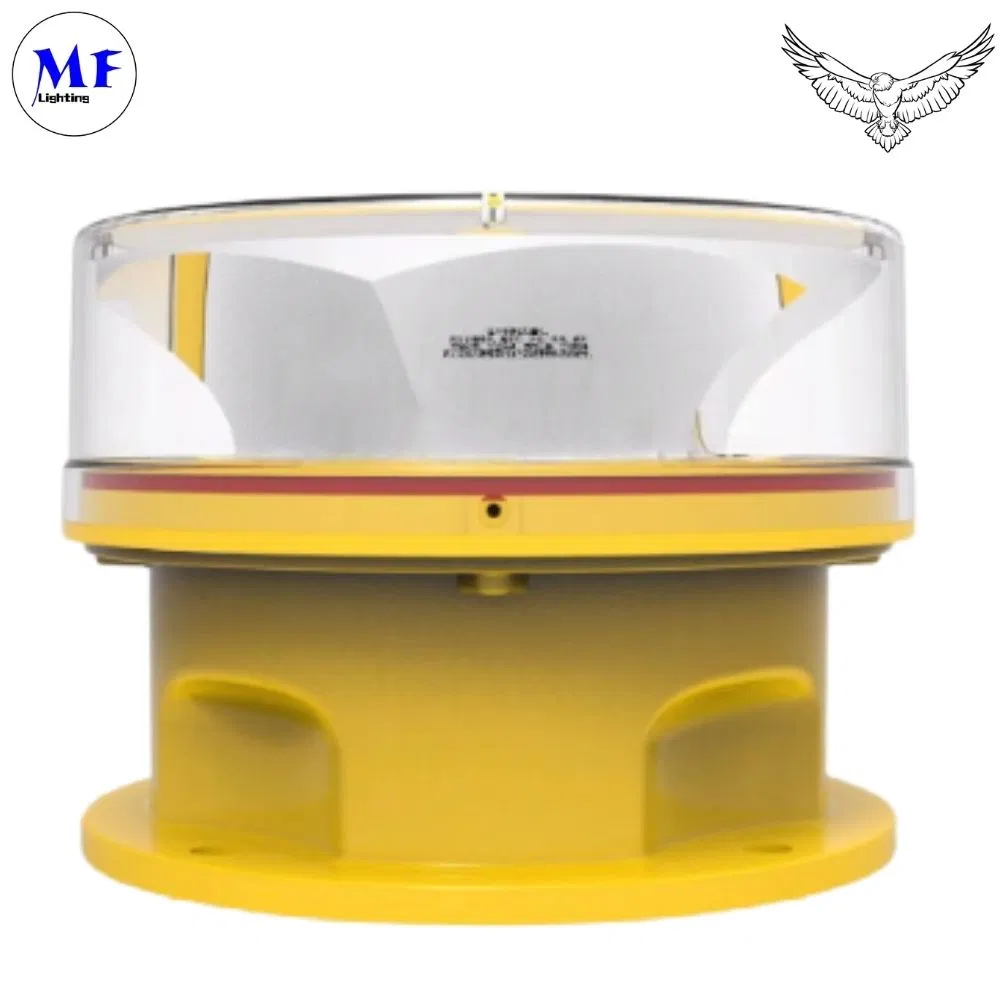

IP66 LED Medium-intensity Type B L864 Aviation Obstruction Light

This LED Medium-intensity Type B L864 Aviation Obstruction Light flashes red and is designed for marking the top of obstacles higher than 45 meters. Using ultra-high intensity CREE LEDs, it ensures long life expectancy and superior performance. The self-designed reflector converges light to reach standard intensity with minimal power consumption.

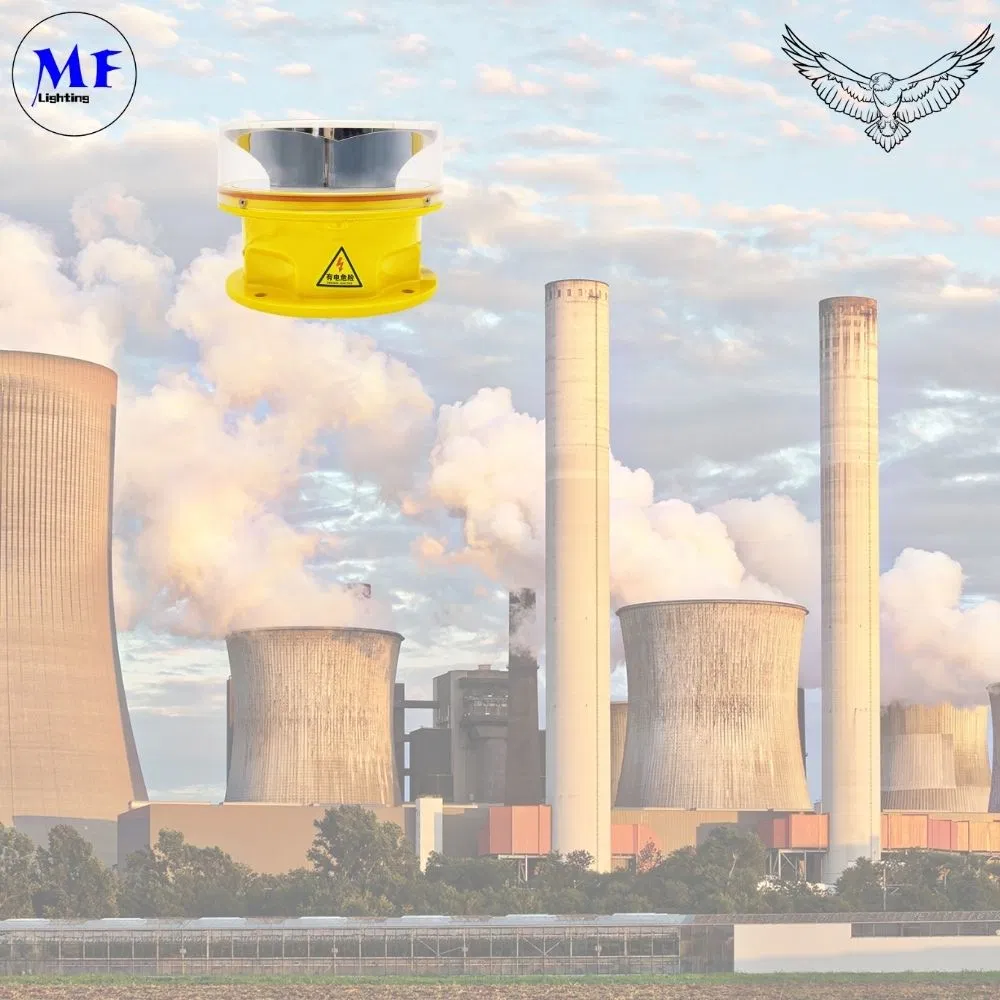

Aviation Obstruction Light View 1

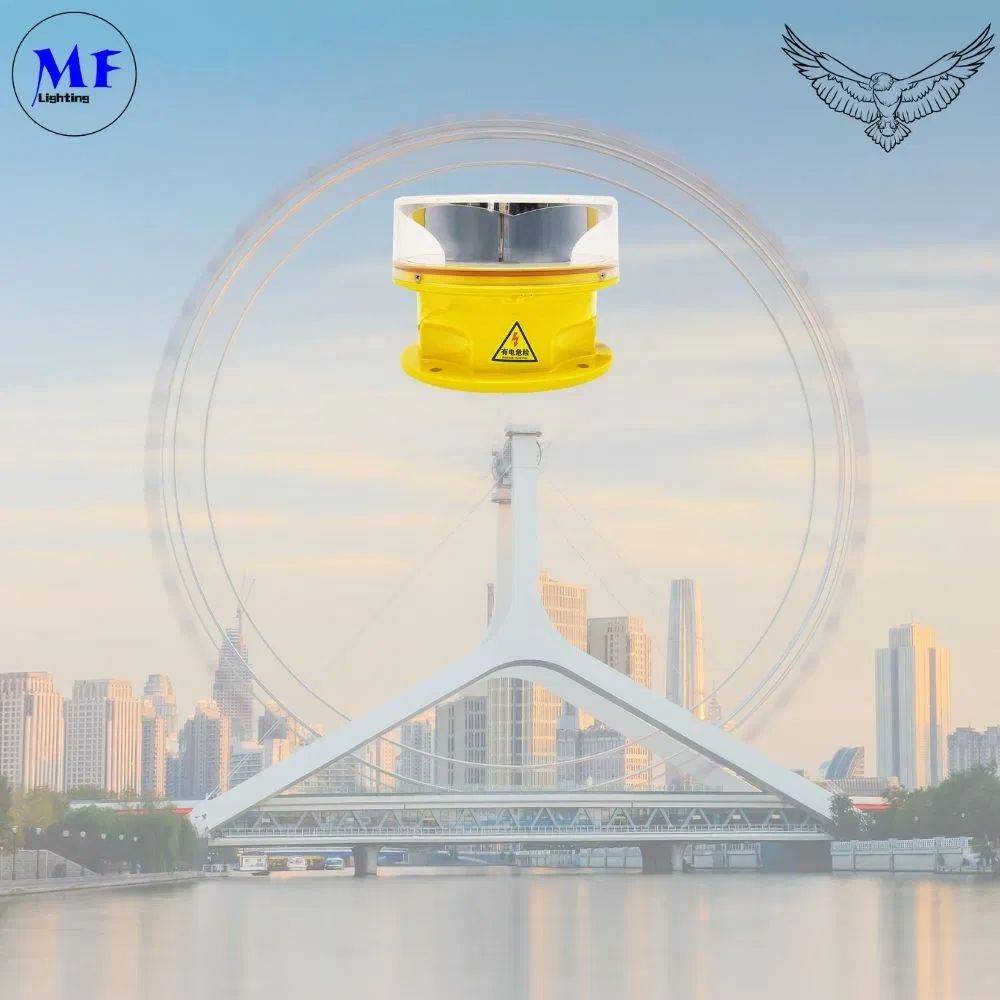

Aviation Obstruction Light View 2
Technical Parameters
Instantaneous Power40W
Lightning SurgeIEC61000-4-5 L-N ±3kV; L-PE ±6kV; Contact discharge 8kV
Mounting Size190×190×θ12 mm
Dimension229×229×168 mm
Weight2.5 kg
Wind Speed Resistance240 Km/h
LED Life Expectancy>100,000 hours
ComplianceICAO Annex 14 Volume 1, FAA L-864
⚙️ Product Features

Electrical Features

  • CREE ultra high intensity LED light source
  • Low power consumption compared to incandescent lamps
  • Multi-voltage support: DC (12V, 24V, 48V) or AC (110-240V)

Physical Features

  • UV protected polycarbonate reflector
  • Die-casting aluminum base with high corrosion resistance
  • Pressure equalizing valve to prevent moisture entry

System Design

  • Built-in photocell for automatic dusk-to-dawn operation
  • Integrated surge and lightning protection
  • Optional GPS synchronization and RS485 communication
📏 Dimensions & Installation

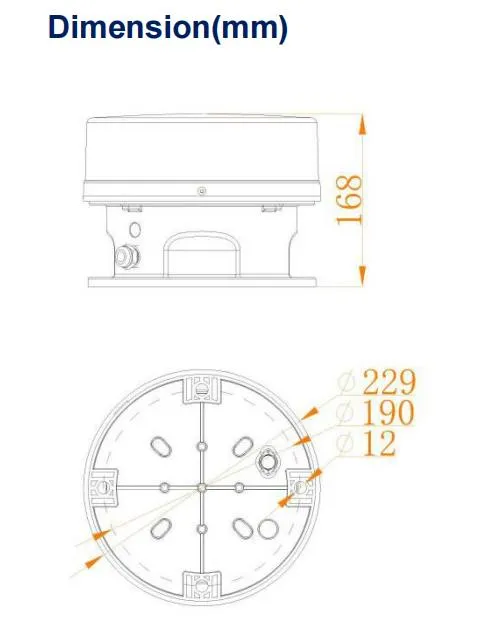

Product Dimensions

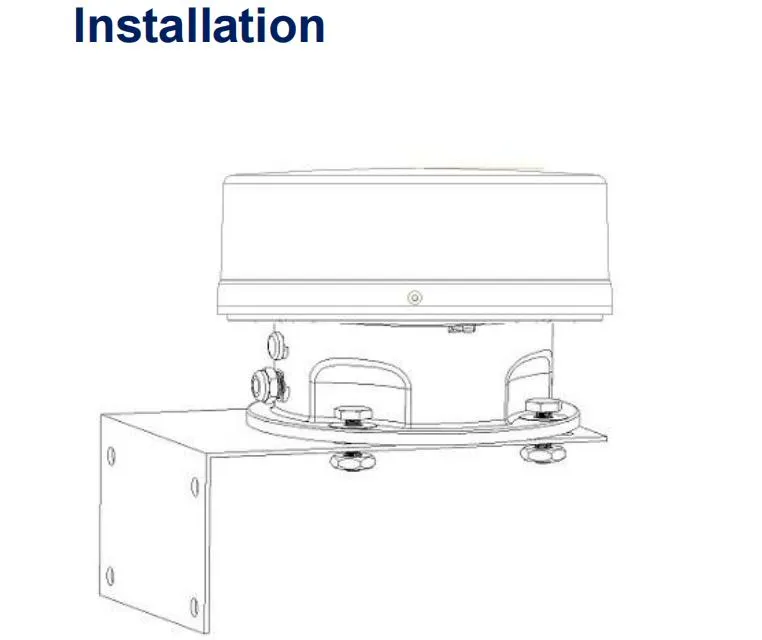

Installation Guide 1

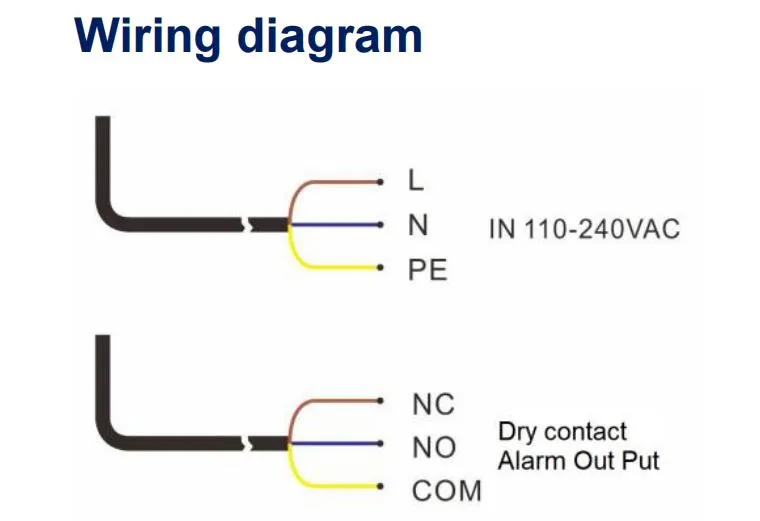

Installation Guide 2
🏭 Production Line

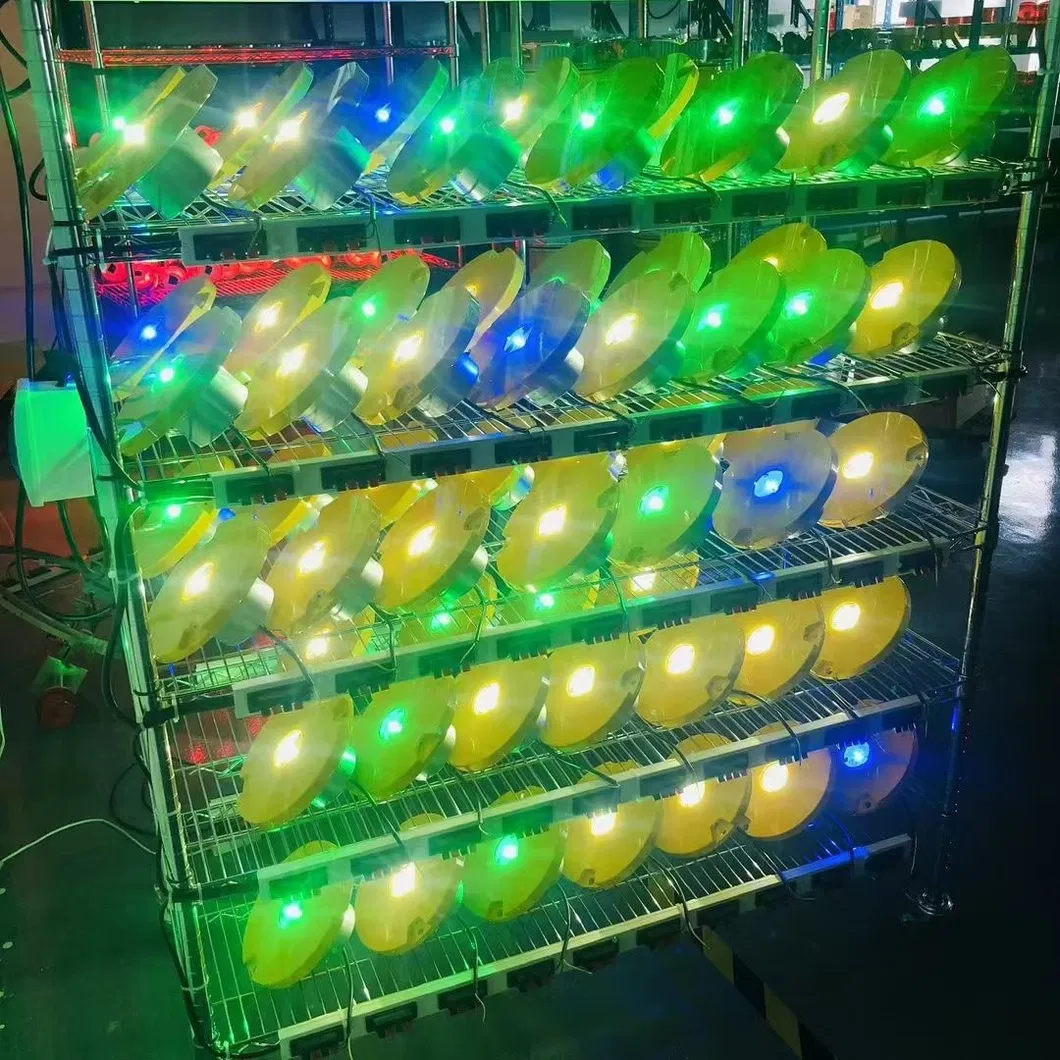

Production Process 1

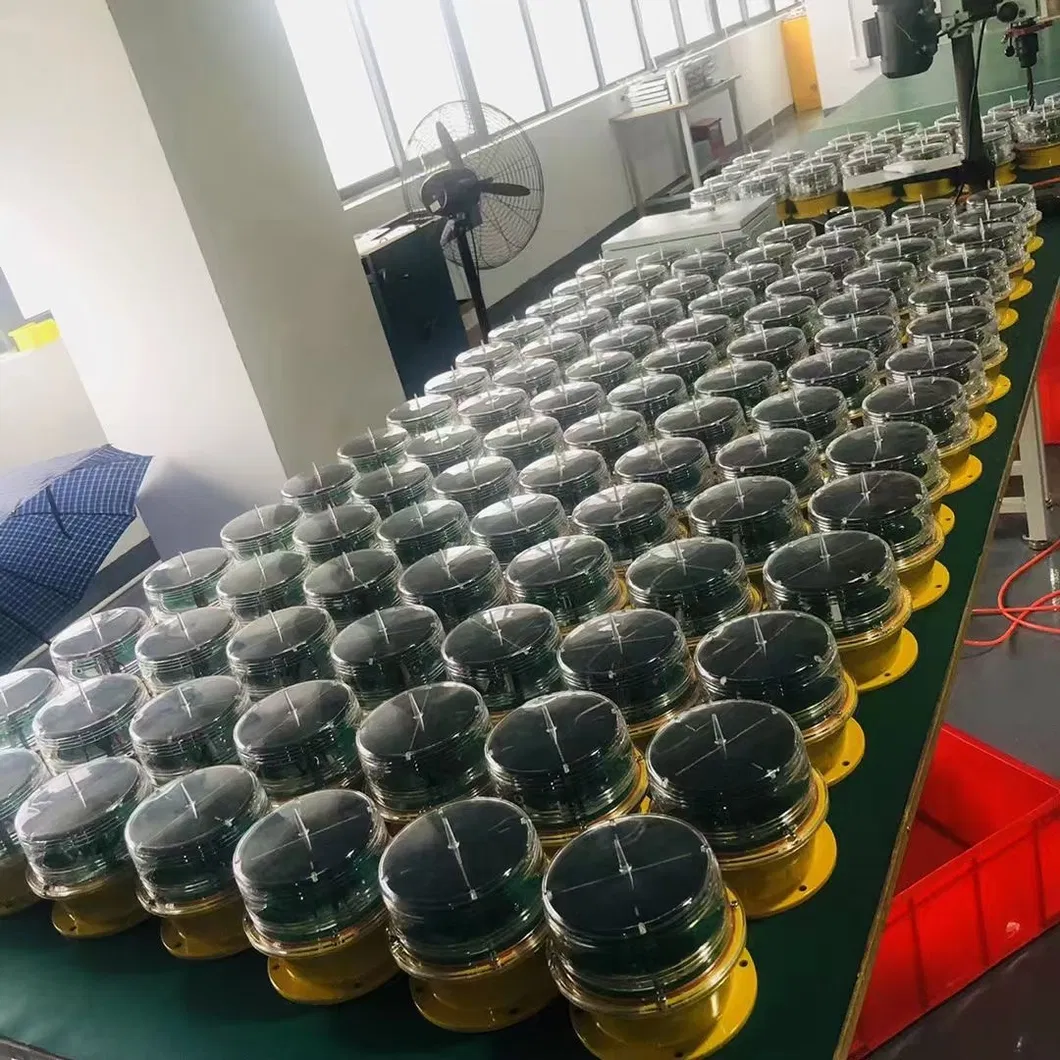

Production Process 2

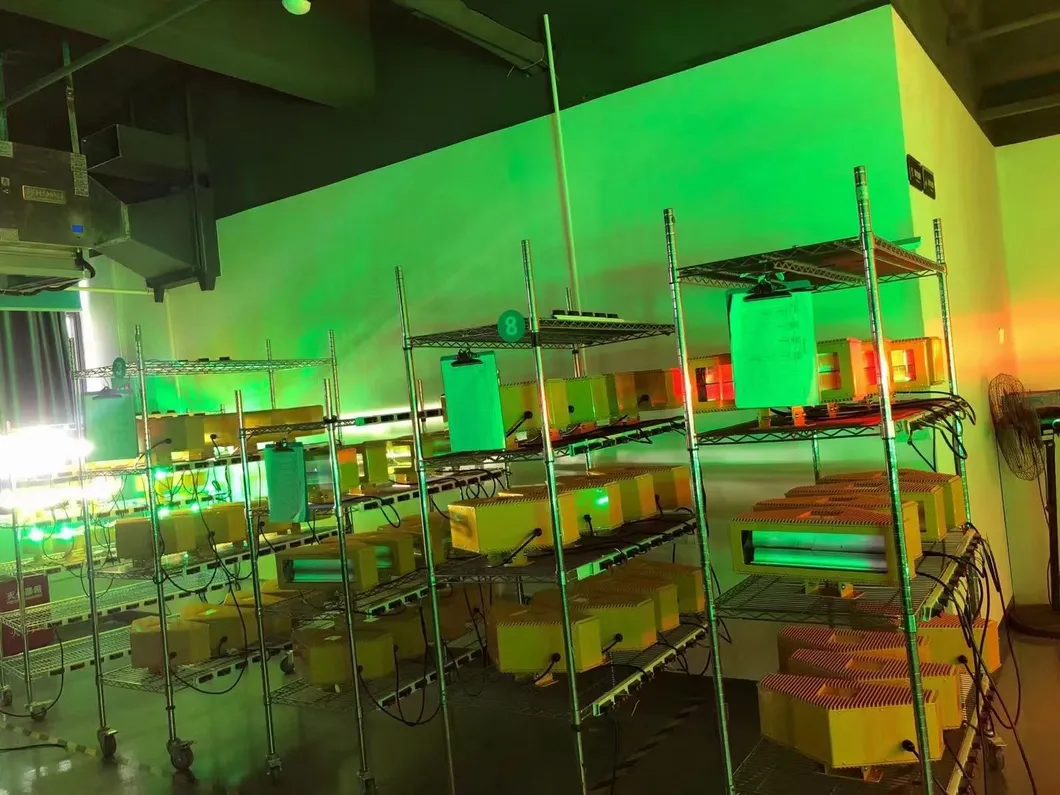

Quality Testing 1

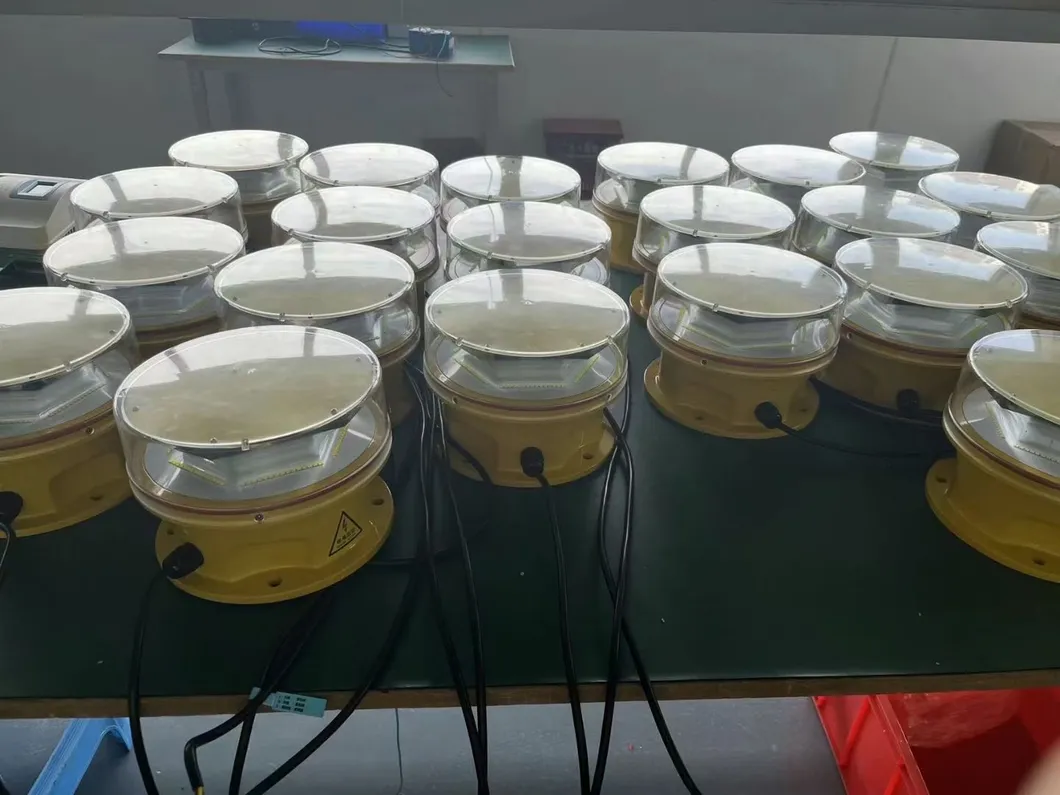

Quality Testing 2
🔧 Configuration
Power Input Flash Rate Photocell Alarm GPS Sync Control
110-240VAC, 12VDC, 36VDC, 48VDC Steady, 20FPM, 30FPM, 40FPM, 60FPM Built-in / No No Alarm / Alarm NO SYNC / GPS SYNC Alone / With Controller
📍 Where to Use

Ideal for marking High-rise Buildings, High Chimneys, Telecom/TV towers, High Poles, Tower Cranes, and Wind Turbines where obstacle height is between 105-150 meters.

Application Scenarios
🏢 Company Profile

We are a leading LED lighting manufacturer with our own specialized factory. Our team focuses on the design, production, and distribution of high-quality LED lighting products. With years of experience in the industry, we have established a reputation for excellence and innovation in LED lighting technology. Our skilled professionals are dedicated to providing the best lighting products and reliable services for both residential and commercial needs.

Factory Facility

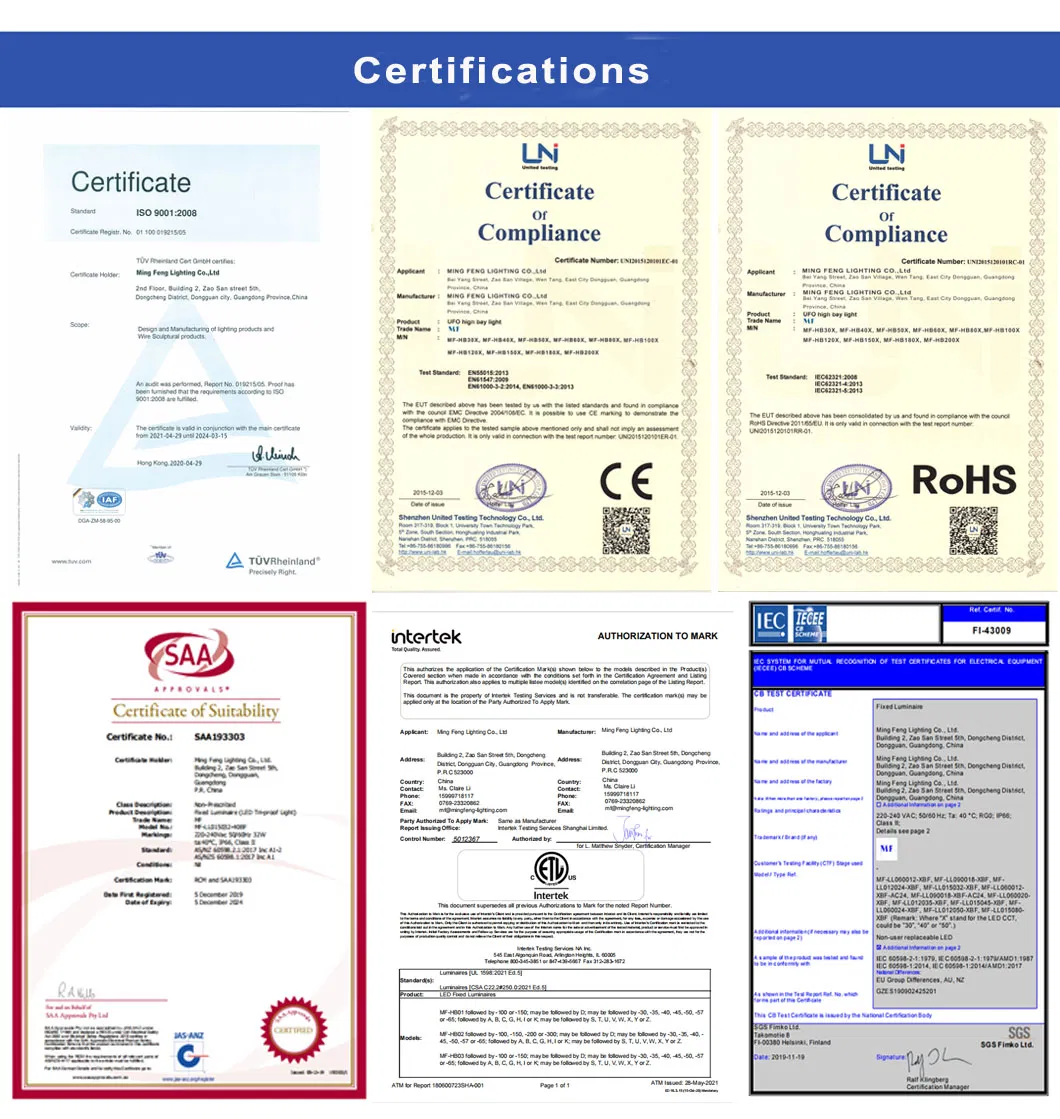

Certifications and Quality
Workshops
FAQ
Q1: What products do you offer?
A1: We provide high-quality floodlights, high bay lights, explosion-proof lights, tri-proof lights, downlights, and specialized aviation obstruction lighting, supported by reliable after-sales warranties.
Q2: Can I customize products with my logo?
A2: Yes, we provide full ODM and OEM services. Please provide your design requirements before production commences.
Q3: How is the warranty and faulty product situation handled?
A3: During the guarantee period, we will ship new units for small quantity issues. For batch defects, we offer repair or replacement solutions based on the specific situation.
Q4: Are sample orders available for testing?
A4: Yes, we welcome sample orders to test and check quality. Mixed samples are also acceptable.
Q5: What is the typical lead time for an order?
A5: Usually, it takes 7 days for samples or small orders and approximately 15 working days for bulk orders, depending on the specific quantity.
Q6: Are the lights compliant with international aviation standards?
A6: Yes, our products are designed to meet ICAO Annex 14 and FAA L-864 standards for medium-intensity obstruction lighting.
