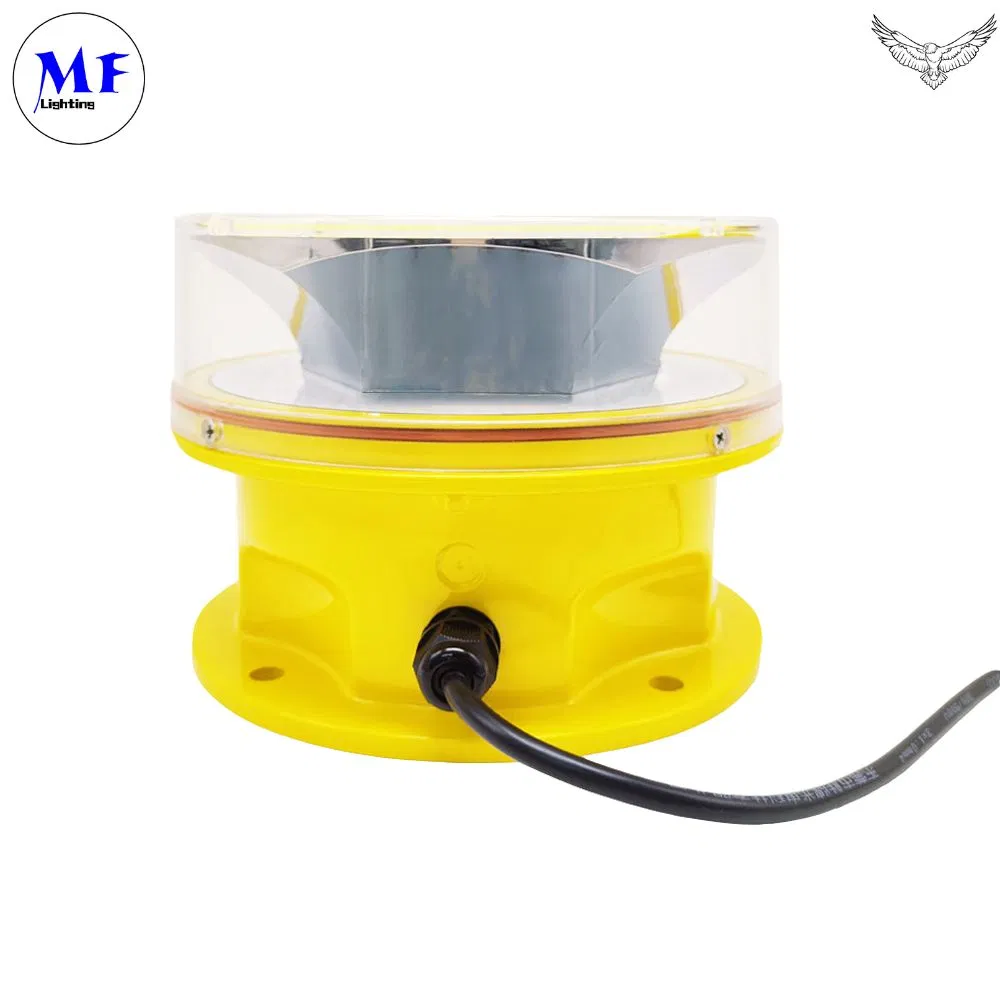

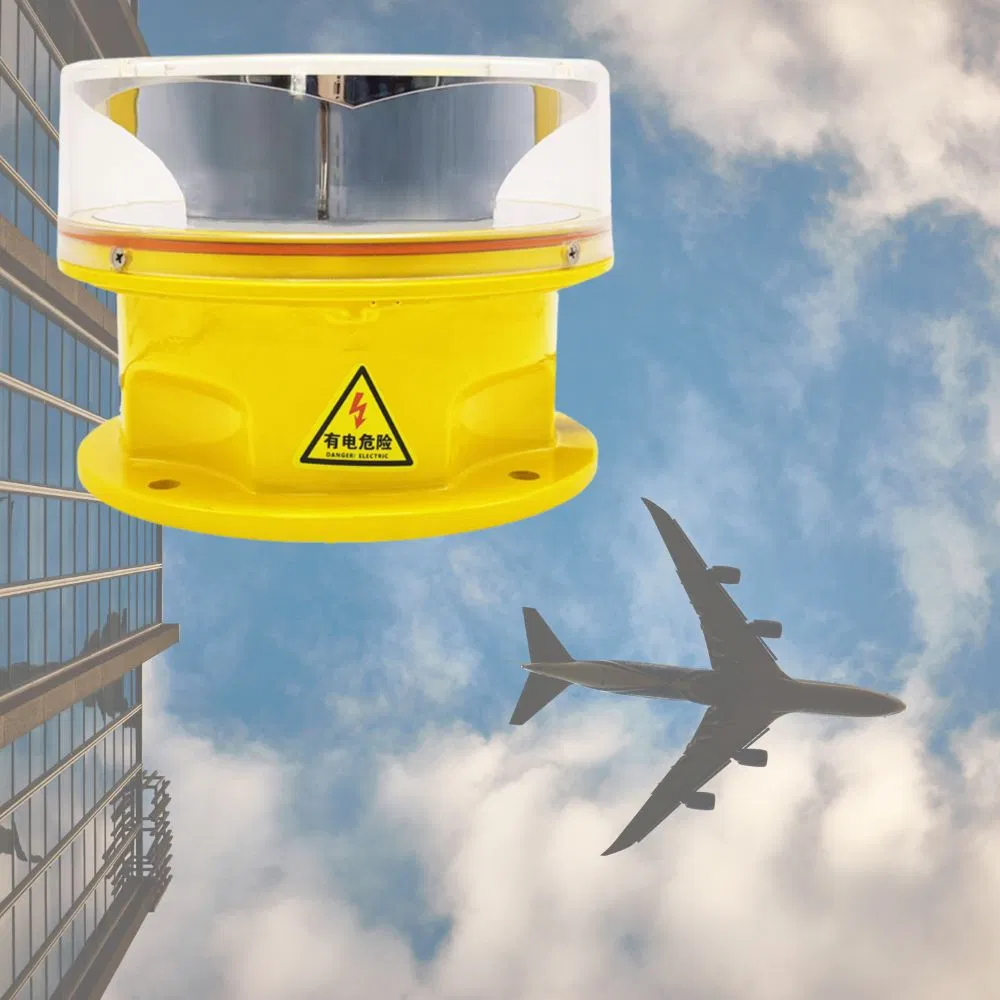

Medium-Intensity Photocell Red&White Dual Aviation Obstruction Light Flashing Light Waterproof Tower Light Awl Aircraft Warning Light Aviation Obstruction Light

1 / 5

Medium-Intensity Photocell Red&White Dual Aviation Obstruction Light Flashing Light Waterproof Tower Light Awl Aircraft Warning Light Aviation Obstruction Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

MF-MI-BF

IP Rating

IP66

Certification

CCC, CE, EMC, ETL, LVD, RoHS, SAA

Available Colors

White (Daytime); Red (Night)

Intensity (Day)

≥20000CD

Intensity (Night)

≥2000CD

Vertical Divergence

3°

Horizontal Output

360°

Body Material

Polycarbonate

Wind Speed

240km/H

Average Power

3W(20FPM)

Voltage

DC(12V-48V) or AC(110-240V)

Product Description

This LED Medium-intensity Red & White Dual Aviation Obstruction Light flashes white during the day and red at night. It is specifically designed for marking the top of obstacles between 45 and 150 meters in height. Utilizing ultra-high intensity CREE LEDs, it ensures a long lifespan and exceptional performance with optimized power consumption.

Specifications

Model	Power Input	Light Source	Flash Rate	Lens Color	Photocell	GPS Sync
MF-MI-BF	110-240Vac / 12-48Vdc	LED / IR	20-60 FPM	Clear	Built-in	Optional

Key Characteristics

💡 Light Source

CREE high intensity LED
Intensity: ≥20000cd (Day) / ≥2000cd (Night)
Horizontal: 360° / Vertical: 3°
LED Life: >100,000 hours

⚡ Electrical & Physical

UV protected Polycarbonate body
Powder-coated Die-casting aluminum base
Integrated Circuit Protection
Operating Temp: -40°C to +55°C

🌍 Environment & Compliance

Waterproof: IP66
Wind Speed: 80m/s
ICAO Annex 14 Volume 1 Compliance
FAA L-865, L-864 Standards

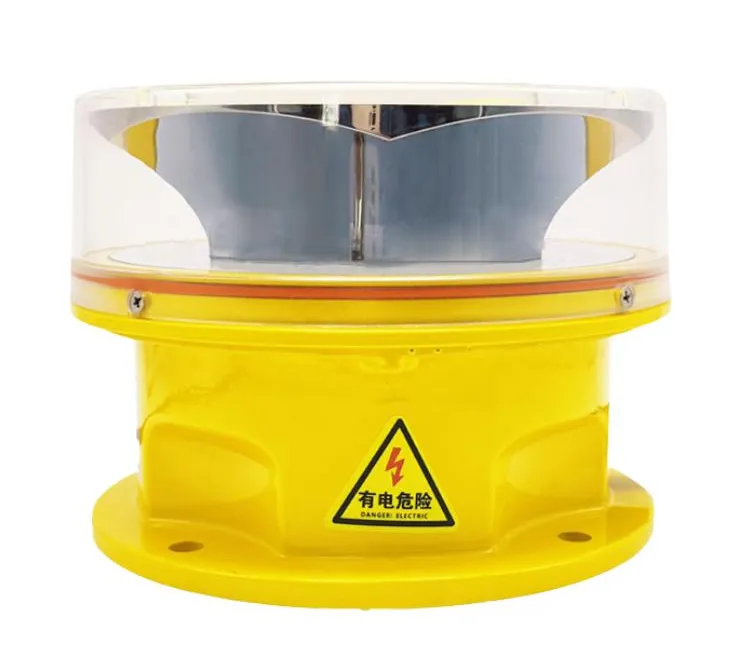

Core Features

The unique design ensures maximum visibility and durability in harsh conditions.

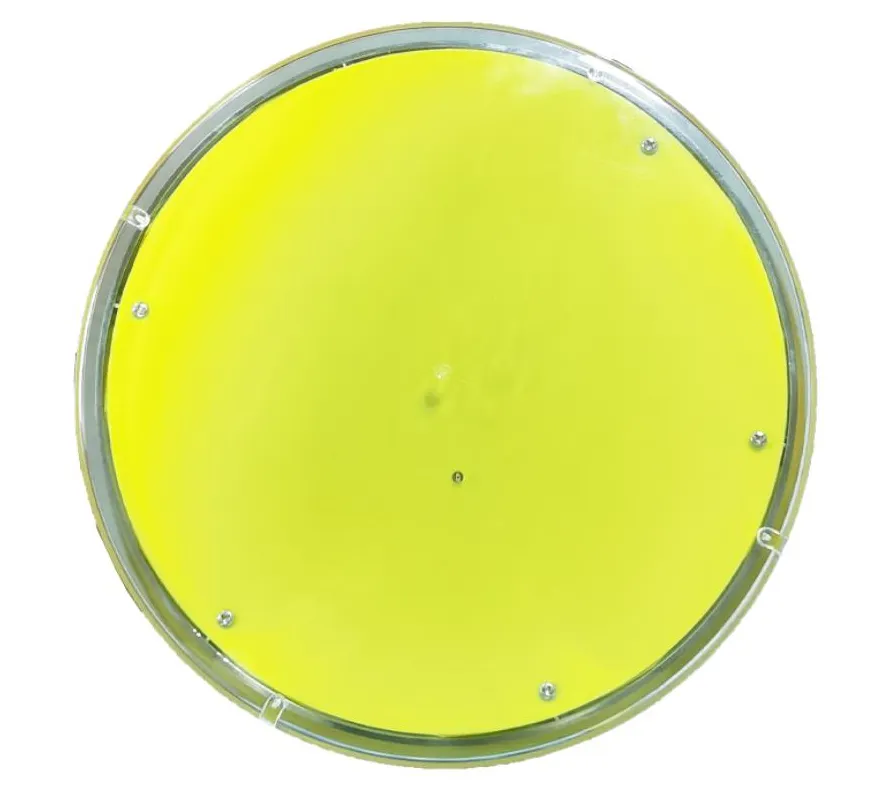

Advanced Optics: Unique UV protected polycarbonate reflector for superior light convergence.

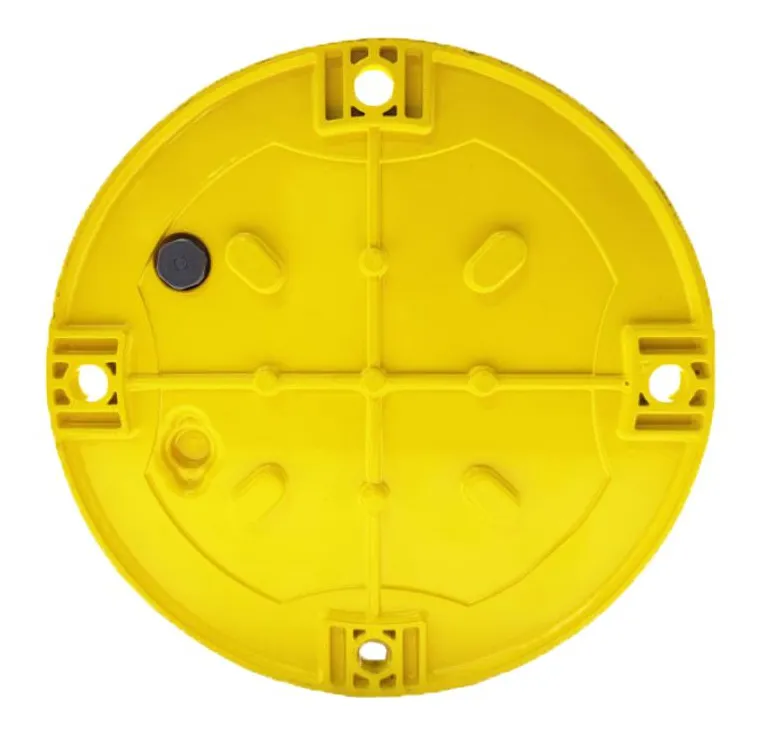

Durability: Die-casting aluminum base offers high corrosion and shock resistance.
Smart Design: Special breather valve prevents high-pressure steam and moisture build-up.
Automation: Built-in photocell for automatic dusk-to-dawn operation.
Options: Adjustable flash rates (20, 30, 40, 60 FPM) and GPS synchronization available.

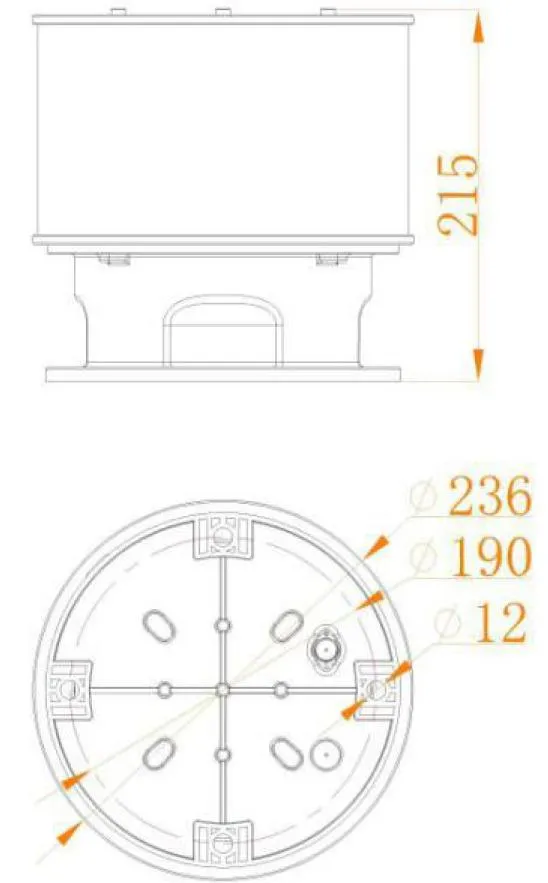

Dimensions & Installation

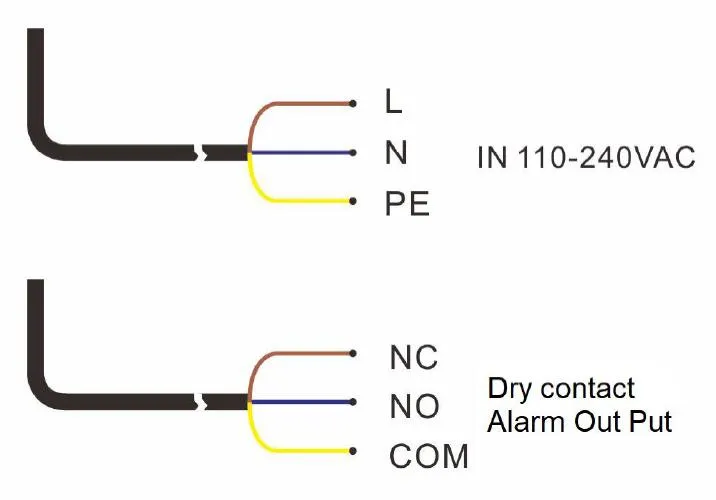

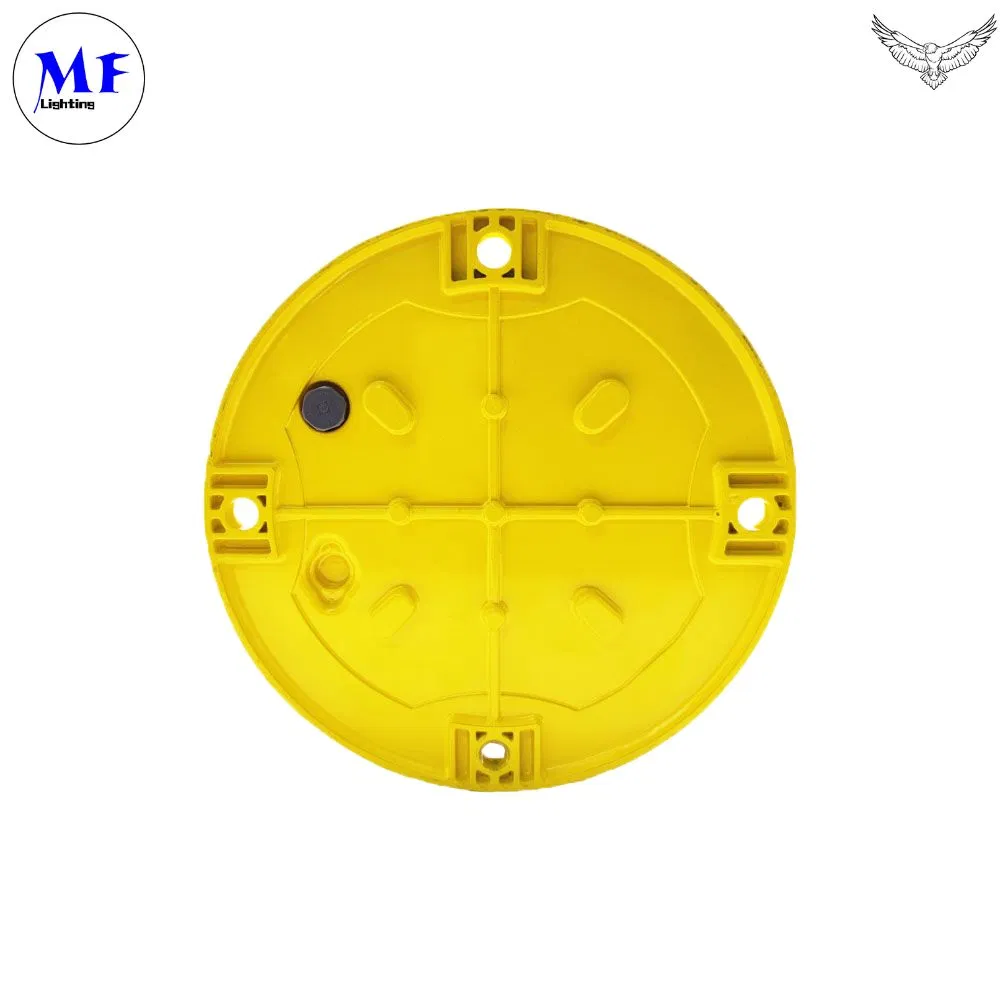

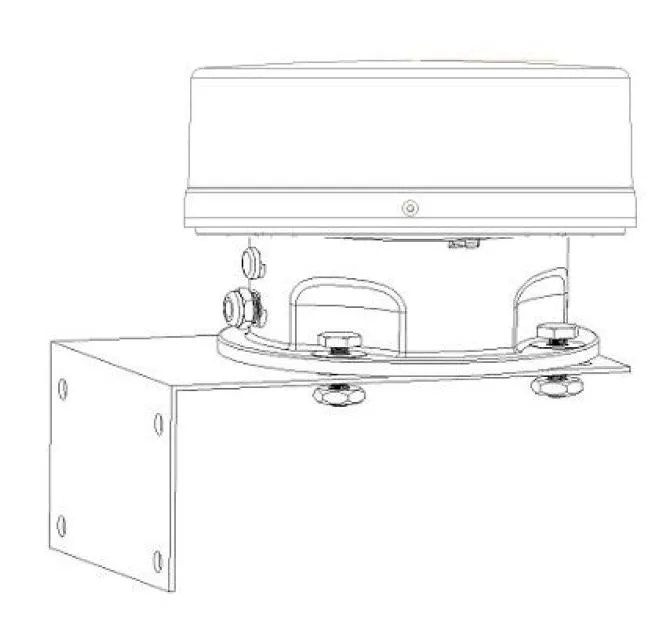

Installation: Supports flat surface mounting. Mounting brackets are customizable. Please refer to the wiring diagram for electrical setup.

Applications

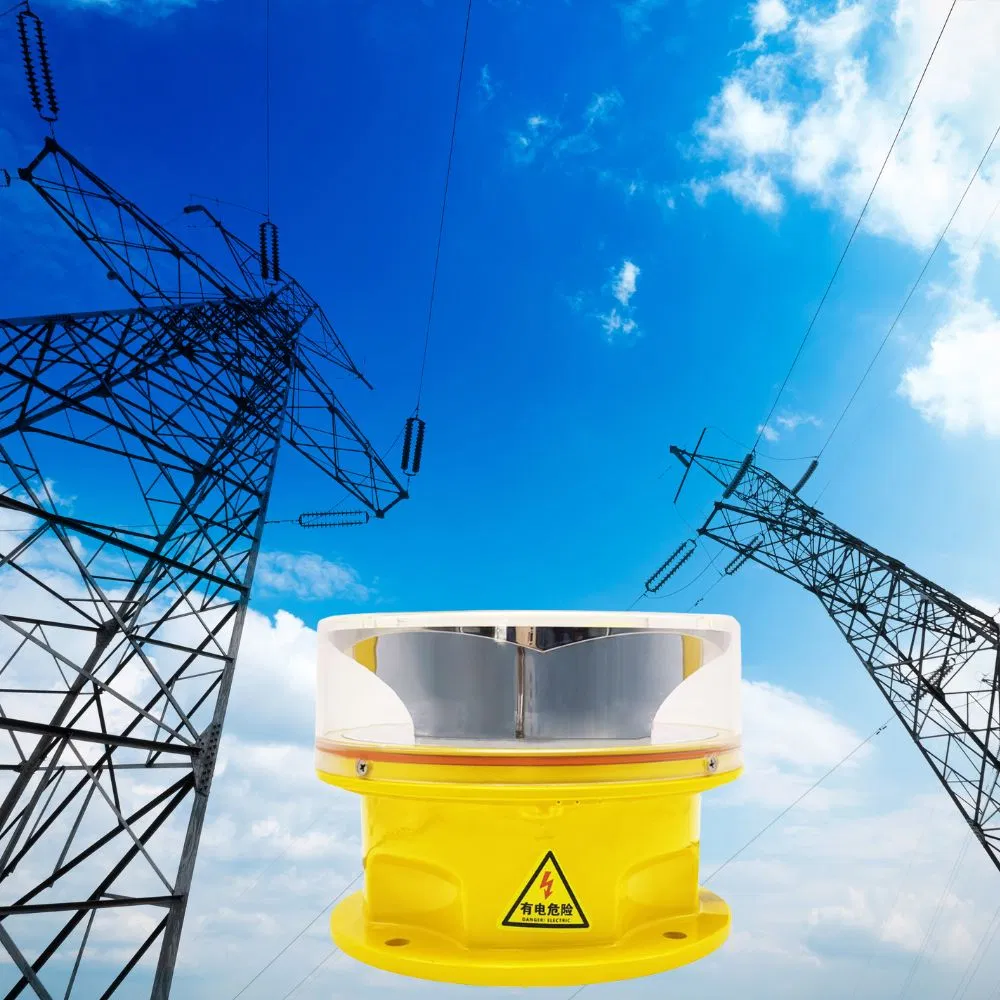

Ideal for marking high-rise buildings, chimneys, telecommunication towers (GSM, Microwave, TV), wind turbines, and tower cranes where obstacle height is between 45 and 150 meters.

Frequently Asked Questions

Q: How does the light switch between day and night modes? A: The unit features a built-in photocell that automatically switches to white flashing during the day and red flashing at night (Dusk-to-Dawn operation).

Q: What is the expected lifespan of the LEDs? A: It uses high-intensity CREE LEDs with a life expectancy of over 100,000 hours, significantly reducing maintenance costs.

Q: Can several lights be synchronized? A: Yes, GPS synchronization is available as an option to ensure multiple lights on a structure flash simultaneously.

Q: Is the light resistant to extreme weather? A: Yes, it is IP66 waterproof rated and designed to withstand wind speeds up to 240km/h (80m/s).

Q: Which standards does this aviation light comply with? A: It complies with ICAO Annex 14 Volume 1 (Medium-intensity Type A/B/C) and FAA L-865/L-864 standards.

Q: What are the power supply requirements? A: The light is highly flexible, supporting both DC (12V, 24V, 36V, 48V) and AC (110-240VAC) power inputs.
