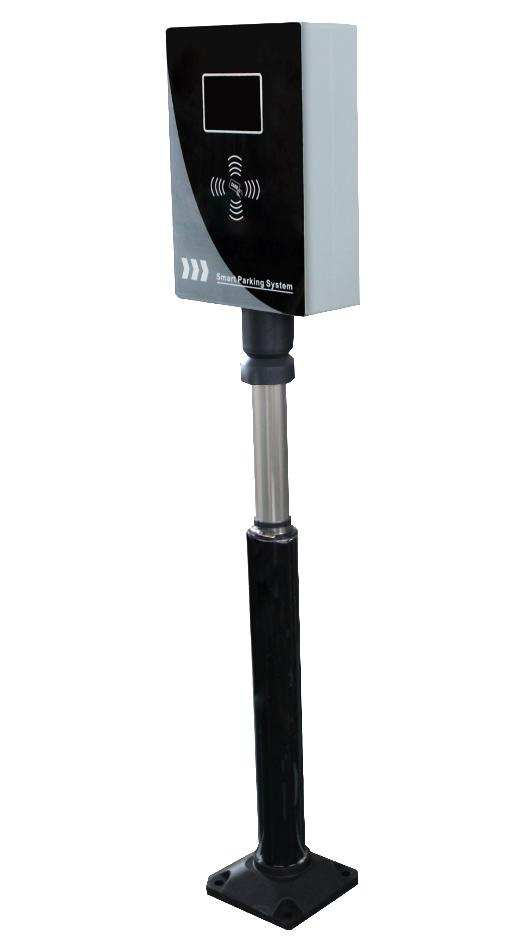

Parking Lot Management System

Customization:	Available
Position:	Central Isolation Barrier
Material:	Aluminium

Send Inquiry

Product Description

Basic Specifications

Model NO.

1033.101

Function

Separation

Upright Post

100*100

Post Fixation

Expansion Bolts

Distortion Degree

Rigid Barrier

Reading Distance

5-10cm

Transport Package

Wood Carton

Specification

Parking Lot Management System Features

●
High-Speed Communication: Transmit data at reliable high speeds with a communication distance of up to 10km.
●
Scalable Capacity: A single CAN (Controller Area Net) bus line can connect up to 30 parking lots and 60 entry/exit units.
●
Double CPU Technology: Enhances system stability and ensures faster processing operations.
●
Double NET Safe Function: Computer network and CAN network operate simultaneously to prevent illegal barrier operations.
●
Automatic Offline Mode: If the network fails, the system switches to offline mode and reloads records once connectivity is restored.

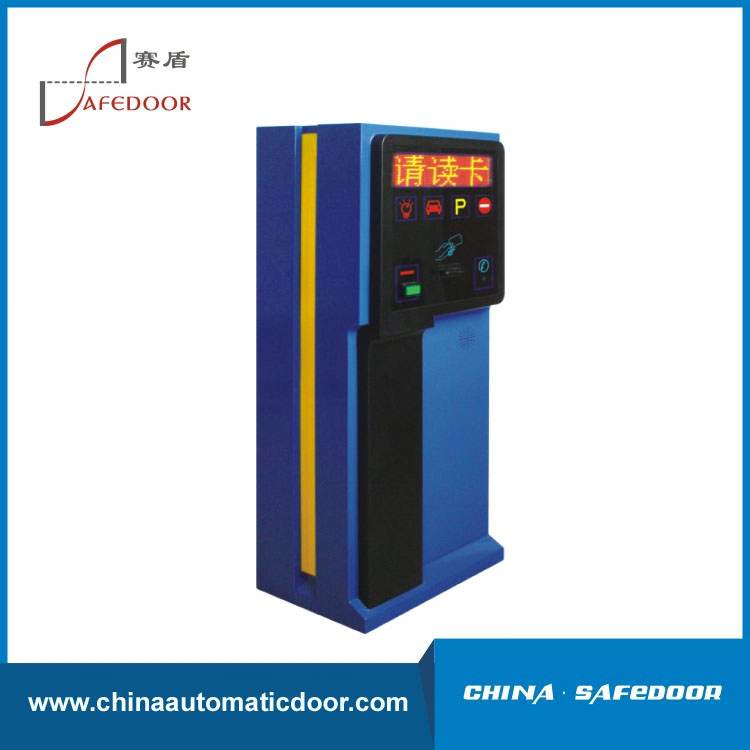

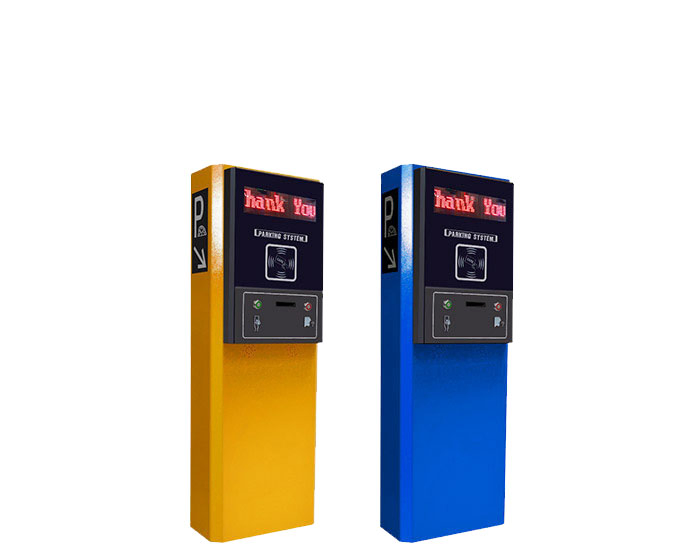

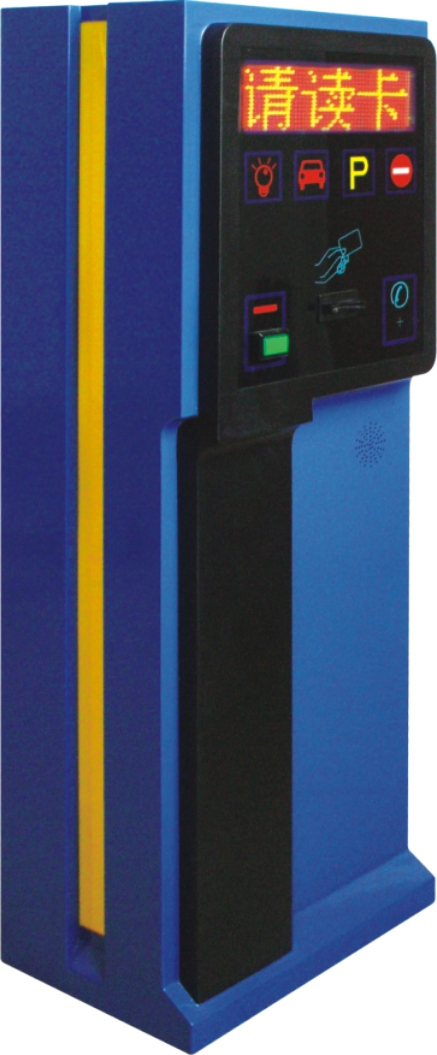

Entry & Exit Control Mainframe

✔
Industrial Design: Matches international standards with integrated functional requirements and professional aesthetics.
✔
Full Functionality: Includes automatic timing, charging, multimedia technology, voice pricing, and English language prompts.
✔
Secure Logic: Features logic interlocking for entry and exit card reading for safe and reliable operation.

Technical Parameters

Specifications	1033.101 (Easy)	1033.102 (Standard)	1033.103 (RFID)
Voice / Image	Yes	Yes	Yes
Loop detector	Yes	Yes	Yes
Interphone / LED	-	Yes	Yes
Card dispenser	-	Yes	Yes
Bluetooth Reading	-	-	Yes
Size (mm)	4553001250
Power Supply	220VAC, 50Hz / 12/24VDC
Communication	CAN (Up to 10km)
Card Support	IC, EM, TI, AWID, HID etc.
Card Capacity	3,000 (ID) / 24,000 Offline Records
Temperature	-25ºC to +65ºC

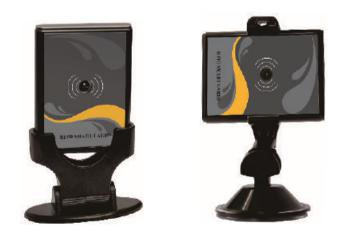

Long-Distance Card Reader Features

★
High Penetration: Penetrates car membranes; no need to open windows for card induction.
★
Precise Positioning: Works via infrared positioning and radio frequency dual-channel mode (80° angle).
★
Format Compatibility: Supports Wiegand 26, Wiegand 34, active 485, and passive 485.
★
Weatherproof: Lightning protection and all-weather work mode with zero maintenance required.

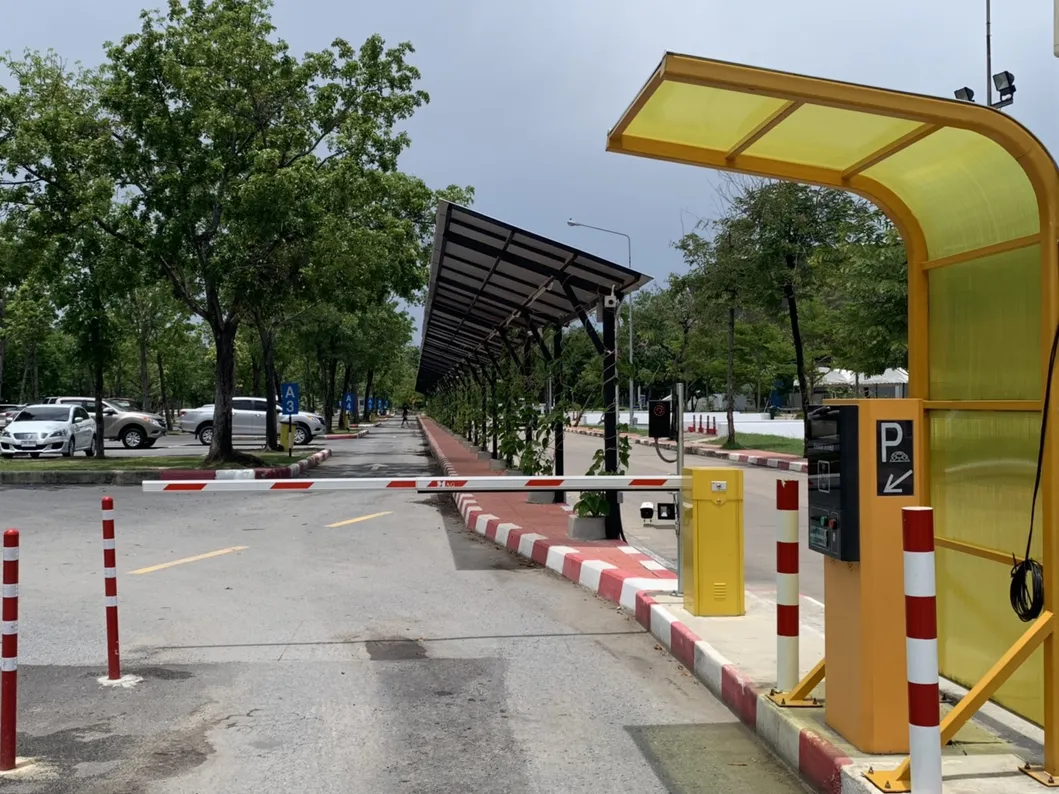

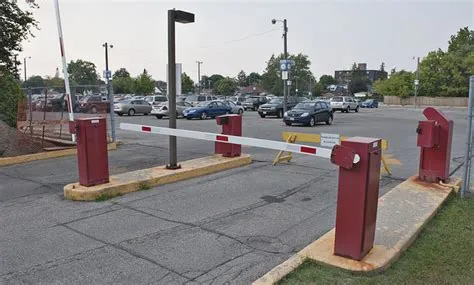

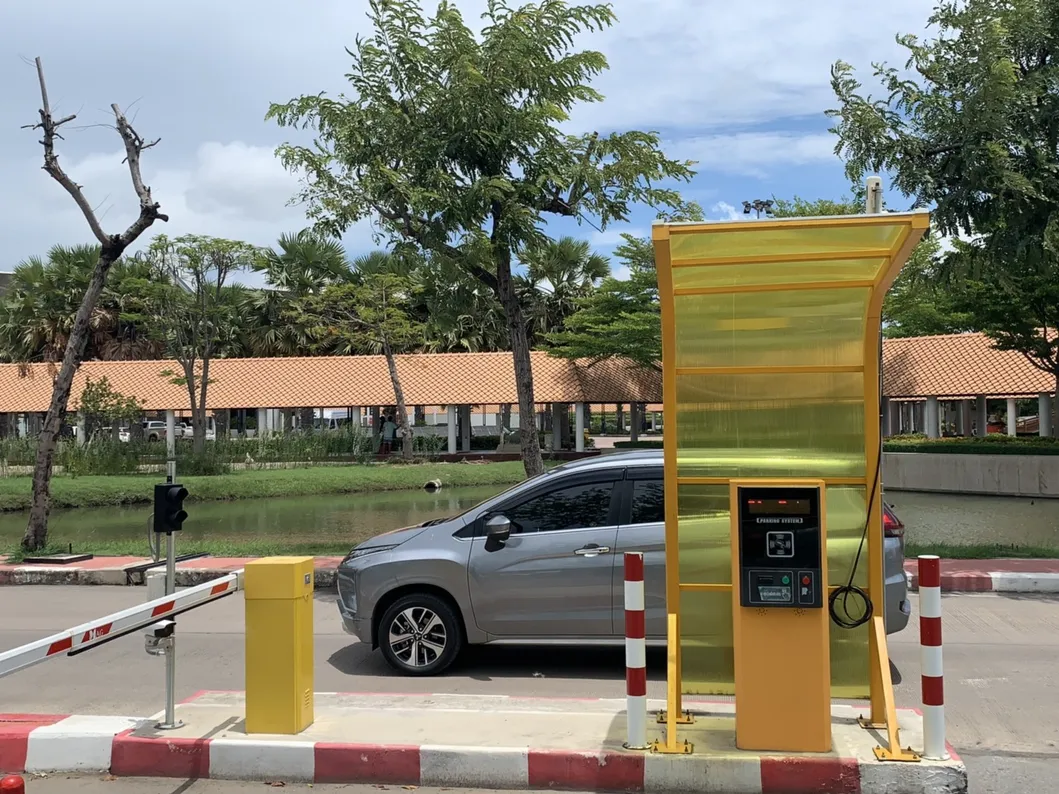

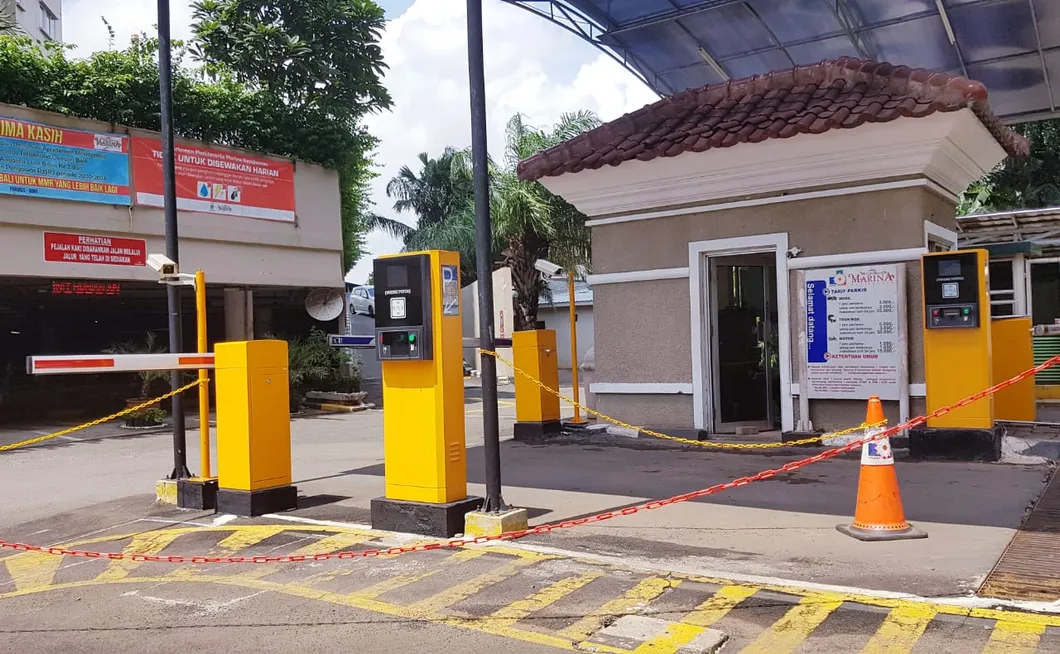

Product Display

Frequently Asked Questions

Q1: What is the maximum communication distance of the system? A1: The system utilizes reliable CAN bus technology, allowing for a communication distance of up to 10km.

Q2: Can the system operate if the computer network goes down? A2: Yes, the system features an automatic transfer to off-line mode. It will continue to record data and automatically reload records to the computer once the network is restored.

Q3: What types of cards are compatible with the reader? A3: The system supports a wide range of card types, including IC, EM, TI, AWID, HID, and more.

Q4: Is the long-distance card reader safe for users? A4: Yes, the long-distance reader uses infrared positioning and produces no electromagnetic radiation during reading, making it safe for people.

Q5: What is the operating temperature range for this equipment? A5: The equipment is designed to operate in various climates, with an ambient temperature range of -25ºC to +65ºC.

Q6: How many devices can be connected on a single concentration line? A6: A single CAN bus concentration line can support up to 30 parking lots and 60 units of entry and exit equipment.
