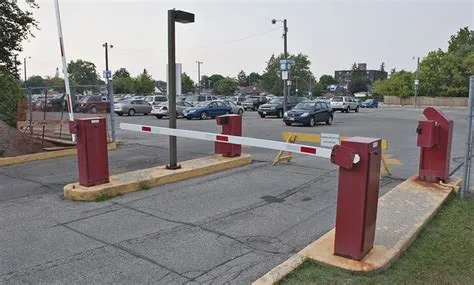

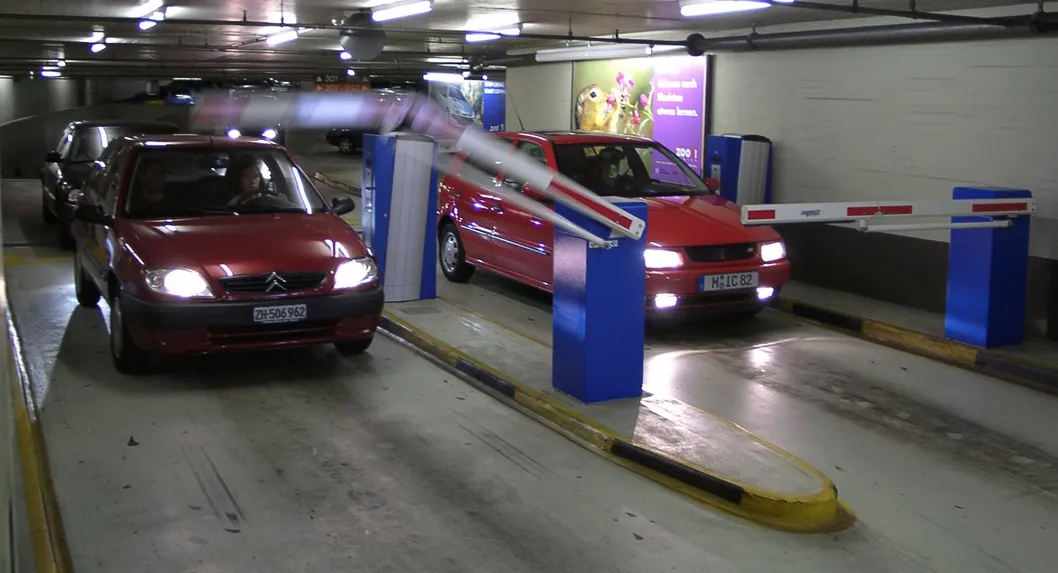

Parking Lot Payment System

Customization:	Available
Position:	Central Isolation Barrier
Material:	Aluminium

Send Inquiry

Product Description

Basic Info

Model NO.1033.103

FunctionSeparation

Upright Post100*100

Post FixationExpansion Bolts

Degree of DistortionRigid Barrier

Reading Distance5-10cm

Transport PackageWood Carton

SpecificationCE

Production Capacity1000PCS/Month

Product Description

System Features

High-Speed Data Transmission: Reliable communication distance up to 10km.
Capacity Expansion: Single CAN bus can connect 30 parking lots and 60 sets of entry/exit equipment.
Double CPU Technology: Ensures system stability and faster processing operations.
Double NET Safety Function: Computer and CAN networks work simultaneously to prevent unauthorized barrier operation.
Automatic Mode Switching: Seamlessly transfers between off-line and on-line work. Reloads records automatically once connection is restored.

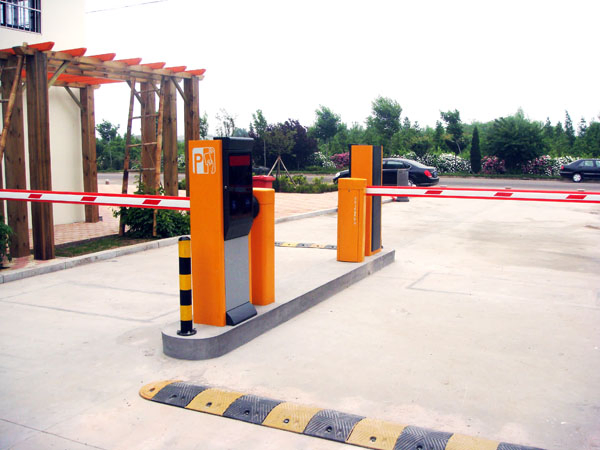

Entry & Exit Control Mainframe Box

Standard design compliant with international industrial requirements.
Customizable materials and colors to match surrounding architecture.
Integrated functions: Automatic timing, charging, voice pricing, and multimedia prompts.
Safe and reliable logic interlocks for secure card reading.

Technical Parameters

Specifications	1033.101 (Easy)	1033.102 (Standard)	1033.103 (RFID)
Voice / Image / Loop Detector	Supported	Supported	Supported
Interphone	-	Supported	Supported
LED Display / Card Dispenser	-	Supported	Supported
Bluetooth Reading	-	-	Supported
Size (mm)	455 * 300 * 1250
Power Supply	220VAC, 50Hz
Working Voltage	12/24 VDC
Database	SQL Server 2000
Communication Port / Dist.	CAN / 10km
Card Types	IC, EM, TI, AWID, HID, etc.
Reading Distance	5 ~ 10 cm
Card Capacity	3,000 (ID)
Off-line Records	24,000
Ambient Temp	-25ºC ~ +65ºC
Optional Equipment	Traffic barrier, Temp card charger, Camera, Video card

Long-distance Card Reader Features

Penetrates car window films; no need to open windows for induction.
Dual-channel infrared positioning and radio frequency mode (80° angle).
Advanced anti-interference and lightning protection.
No electromagnetic radiation, ensuring human safety.
Supports multiple formats: Wiegand 26/34, Active 485, Passive 485.
All-weather operation with zero maintenance required.

Frequently Asked Questions

Q1: What is the maximum communication distance of this system? A: The system uses reliable high-speed data transmission that can reach a communication distance of up to 10km.

Q2: Can the system function if the computer network fails? A: Yes. The system features an automatic transfer between on-line and off-line modes. It will store up to 24,000 records off-line and reload them to the computer once the network is recovered.

Q3: What types of cards are compatible with the reader? A: The system is compatible with various card types including IC, EM, TI, AWID, and HID cards.

Q4: Is the long-distance card reader safe for daily use? A: Absolutely. The long-distance reader emits no electromagnetic radiation when reading, making it completely safe for people.

Q5: How many entry and exit points can a single system handle? A: A single CAN bus concentration line can connect up to 30 parking lots and 60 individual pieces of entry and exit equipment.

Q6: What are the environmental requirements for installation? A: The system is designed for durability with an all-weather work mode and can operate in temperatures ranging from -25ºC to +65ºC.
