System Features
- High-Speed Data Transmission: Reliable communication distance reaching up to 10km.
- Capacity Expansion: Single CAN bus concentration line connects up to 30 parking lots and 60 entry/exit points.
- Double CPU Technology: Ensures system stability and significantly faster operations.
- Double NET Safety Function: Simultaneous computer and CAN network operation prevents illegal barrier activities.
- Automatic Mode Switching: Seamlessly transfers between off-line and on-line modes; reloads records automatically upon recovery.

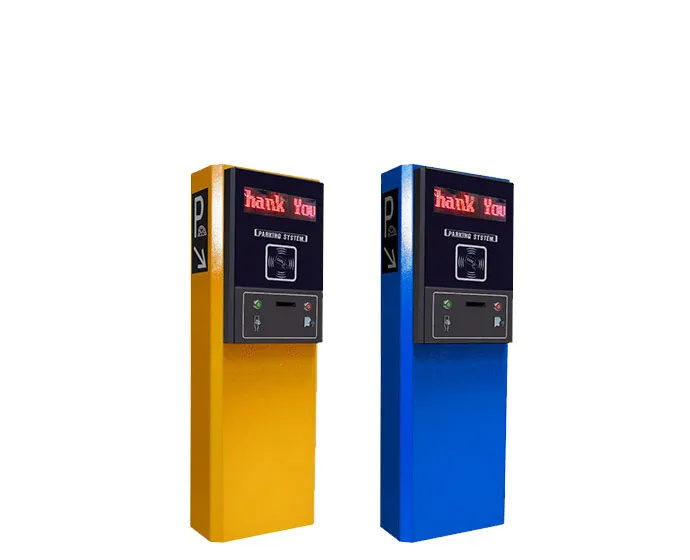

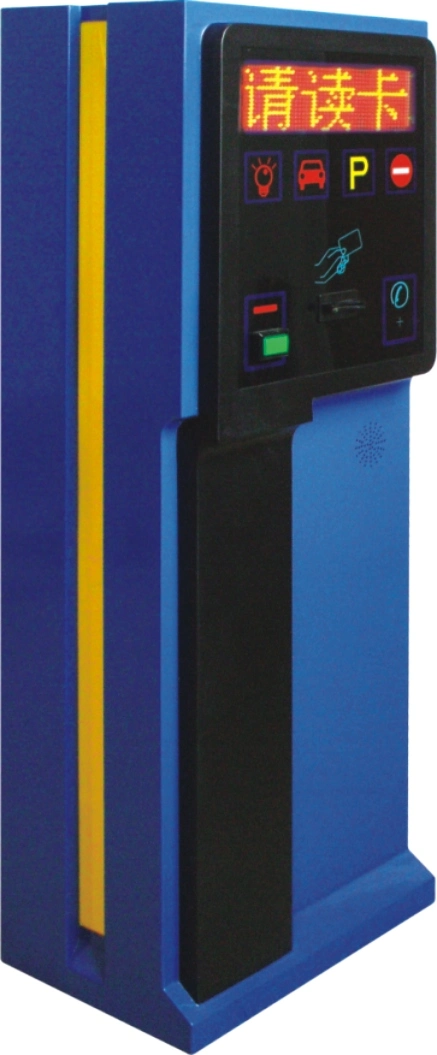

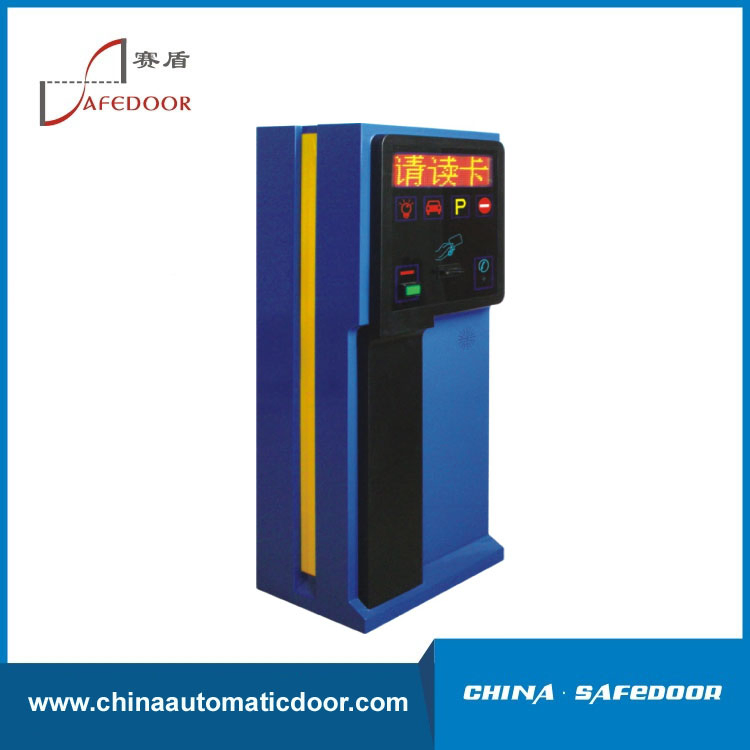

Entry & Exit Control Mainframe
- International industrial design matching versatile architectural styles.
- Integrated functions: Automatic timing, charging, multimedia pricing, and voice prompts.
- Logic interlock for entry and exit ensuring safe and reliable operation.
Technical Parameters
| Specifications |
1033.101 (Easy) |
1033.102 (Standard) |
1033.103 (RFID) |
| Voice / Image / Loop detector | Included | Included | Included |
| Interphone / LED Display | - | Included | Included |
| Card Dispenser | - | Included | Included |
| Long-distance Bluetooth | - | - | Included |
| Size (mm) | 455 * 300 * 1250 |
| Power Supply | 220VAC, 50Hz / 12/24VDC |
| Database | SQL Server 2000 |
| Communication Port / Dist. | CAN / 10 km |
| Supported Cards | IC, EM, TI, AWID, HID, etc. |
| Reading Distance | 5 ~ 10 cm |
| Card Capacity / Records | 3,000 (ID) / 24,000 Off-line |
| Temperature Range | -25ºC ~ +65ºC |

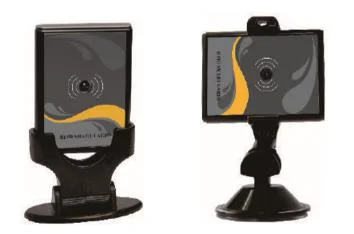

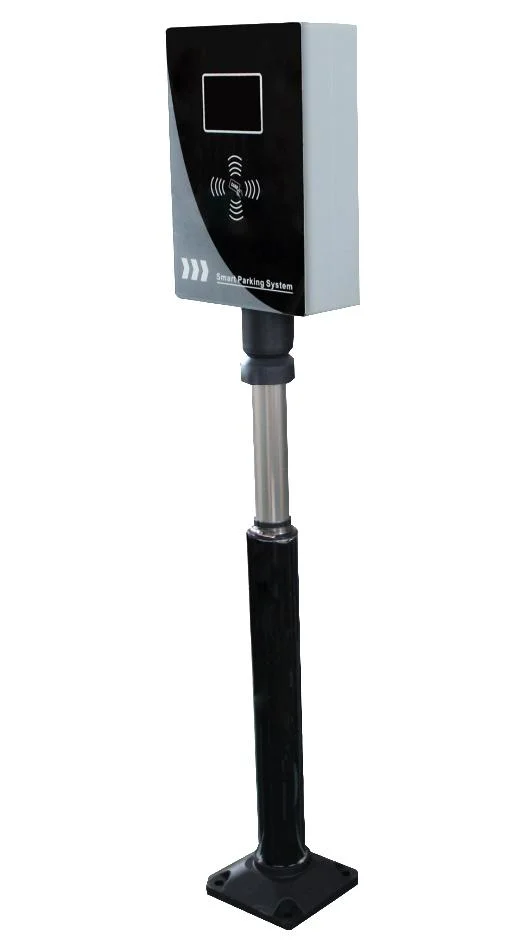

Long-Distance Card Reader
- Penetrates car window films; no need to open windows for induction.
- Infrared positioning radio frequency dual-channel mode (80° reading angle).
- Anti-interference and zero electromagnetic radiation for human safety.
- Multi-format support: Wiegand 26/34, Active/Passive 485.
- All-weather work mode with lightning protection and low maintenance.
Frequently Asked Questions
What is the maximum communication distance of the system?
The system utilizes CAN bus technology, allowing for a reliable data transmission distance of up to 10 kilometers.
Can the parking system operate without a computer connection?
Yes, the system features an automatic transfer to off-line work mode if the computer or network fails, and it will automatically sync records once the connection is restored.
Does the long-distance reader require the driver to roll down the window?
No, the reader is designed to penetrate car membranes and films, allowing for successful card induction without opening the vehicle window.
What types of cards are compatible with the entry mainframe?
The system is compatible with various card types, including IC, EM, TI, AWID, and HID cards.
How many entry and exit points can one system handle?
A single CAN bus concentration line can support up to 30 parking lots and a total of 60 entry and exit equipments.
Is the equipment durable for outdoor use in extreme weather?
Yes, the system is built with all-weather work modes, lightning protection, and is rated for temperatures ranging from -25ºC to +65ºC.
