Direction Traffic Truck Mounted Flashing Arrow Sign Board Controller LED Lamps Trailer Projection Warning Indicator Light

📋 Basic Information

Model NO.

PAR-36

Certification

CE, RoHS

Housing Material

Metal Shell

Light Source

LED

Patterns

Arrow

Mask Specification

Φ300mm

Production Capacity

1000

🚗 Product Features & Overview

✔

A variety of standard mounting frames and brackets are available for installing the arrow boards.

✔

High brightness amber LEDs provide visibility for more than 2000m.

✔

Arrows and other patterns can be selected using the dedicated arrow board control box.

✔

Easy to operate and maintain for long-term road safety usage.

✔

Integrated Photocell: Provides automatic light intensity adjustment for both day and night operations.

✔

Manufacturing techniques strictly meet MUTCD standard and AS 4192-2006 standard.

📐 MUTCD Standard Specifications

Type	Panel Size	Lamp Qty	Lamp Type	Item NO
A	24x48 inch (61x121.9cm)	13pcs	PAR 36	TYPE A-2448-13P36
B	30x60 inch (76.2x152.4cm)	15pcs	PAR 36	TYPE B-3060-15P36
B	30x60 inch (76.2x152.4cm)	25pcs	PAR 36	TYPE B-3060-25P36
B	36x72 inch (91.4x182.9cm)	15pcs	PAR 46	TYPE B-3272-15P46
B	36x72 inch (91.4x182.9cm)	25pcs	PAR 46	TYPE B-3272-25P46
C	48x96 inch (121.9x243.8cm)	15pcs + 2pcs (Rear)	PAR 46	TYPE C-4896-15P46

📐 AS 4192-2006 Standard Specifications

Size	Panel Size	Lamp Qty	Lamp Type	Item NO
A	650x1260mm	13pcs	PAR 36	SIZE A-650*1260-13P36
B	770x1500mm	15pcs	PAR 36	SIZE B-770*1500-15P36
C	1200x2400mm	15pcs + 2pcs (Rear)	PAR 46	SIZE C-1200*2400-15P46

🔆 Component Specifications

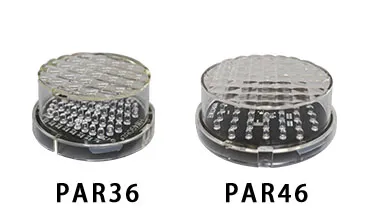

LED Lights

· Color: Amber
· Beam angle: 13°~15°
· Visible Distance: At least 1.2mile (2km)
· Flash Rate: 1HZ
· Optional: PAR36 (800CD) or PAR46 (400CD) units.

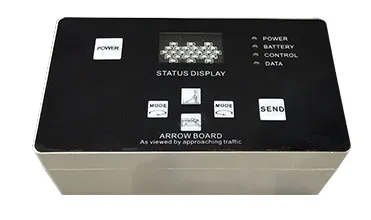

Controller Unit

· Material: Durable ABS
· Power Supply: Car charger connection
· Function 1: Controlling power-operated tilt-frame (up/down)
· Function 2: Changing the display patterns of the panel

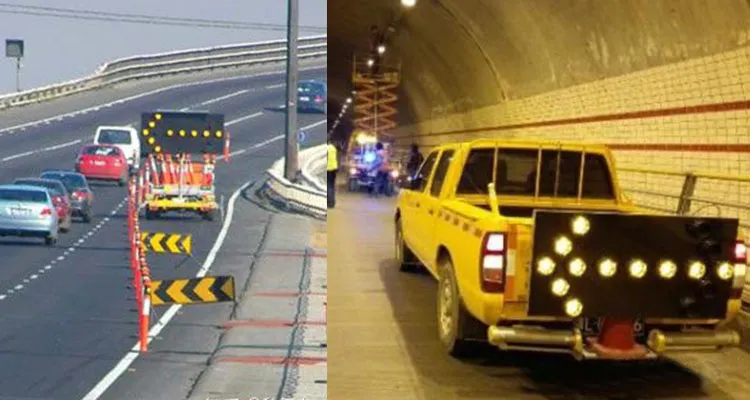

Truck Mounted Flashing Arrow Sign Board Application

❓ Frequently Asked Questions

What is the visibility range of the LED arrow board?

The high-brightness amber LEDs provide a visibility distance of at least 1.2 miles (approximately 2km), ensuring safety for long-range warning.

How does the automatic brightness adjustment work?

The unit is equipped with a photocell that detects ambient light levels, automatically adjusting the light intensity for optimal visibility during both day and night operations.

Which regulatory standards do these boards comply with?

Our manufacturing processes meet both the MUTCD (Manual on Uniform Traffic Control Devices) standard and the AS 4192-2006 standard.

Can the arrow board be mounted on trailers or trucks?

Yes, we offer a variety of standard mounting frames and brackets specifically designed for truck-mounted or trailer-mounted installations.

What are the power requirements for the controller?

The ABS controller is conveniently powered via a standard car charger, making it easy to integrate with vehicle electrical systems.

Are different sizes available for the panels?

Yes, we provide multiple sizes including 24x48, 30x60, 36x72, and 48x96 inches, with various lamp configurations (13, 15, or 25 lamps) to suit different traffic needs.
